UB-UE-EFG

Ubiquiti EFG UniFi Enterprise Fortress Gateway

Ubiquiti EFG UniFi Enterprise Fortress Gateway, 12.5 Gbps routing with IDS/IPS, 2x 25G SFP28 Ports, 2x 10G SFP+ Ports, 2x 2.5 GbE RJ45 Ports, 2x included Hot-Swap psus for Power Redundancy, 1.3" Touchscreen

Overview:

Enterprise Fortress Gateway EFG
25G Cloud Gateway with 500+ UniFi device / 5,000+ client support, 12.5 Gbps IPS routing, and complete high availability.

• Runs UniFi Network for full-stack network management
• Shadow Mode High Availability with automatic failover provides uninterrupted connectivity (VRRP)
• 12.5 Gbps routing with IDS/IPS
• License-free, real-time inspection of encrypted packets with NeXT AI Inspection (SSL/TLS decryption)
• (2) 25G SFP28, (2) 10G SFP+, and (2) 2.5 GbE RJ45 ports (all LAN/WAN remappable)
• (2) included hot-swap PSUs for power redundancy
• 1.3" touchscreen

Specifications:

© 2024 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	UB-UE-EFG
Mechanical

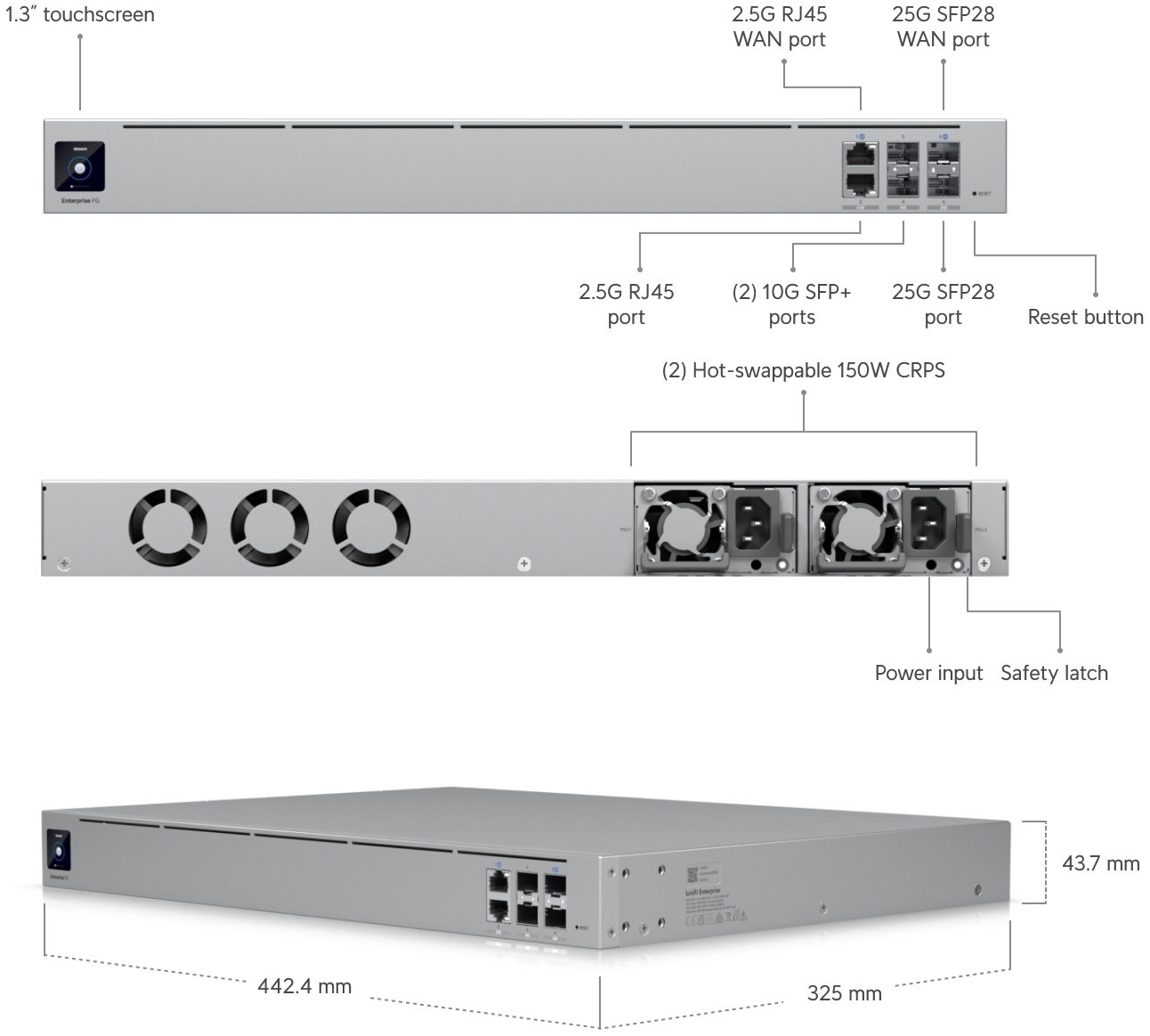

Dimensions	442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8")
Weight	6.5 kg (14.3 lb)
Enclosure material	Aluminium CNC, SGCC steel
Hardware
Processor	18-core ARM v8.2 at 2 GHz
System memory	16 GB DDR4 DIMM
Management interface	Ethernet
	Bluetooth
Networking interface	LAN:
	(1) 25G SFP28 port
	(2) 10G SFP+ ports
	(1) 2.5G RJ45 port
	WAN:
	(1) 25G SFP28 port
	(1) 2.5G RJ45 port
Power method	(1) Universal AC input, 100-240V AC, 7A Max, 50/60 Hz
Power supply	(2) Hot-swappable 150W CRPS
Supported voltage range	100-240V AC
Max. power consumption	82W
ESD/EMP protection	Air: ± 8kV, contact: ± 4kV
LCM display	(1) 1.3" touchscreen
Button	Factory reset
Ambient operating temperature	0 to 40° C (22 to 104° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
Gateway Features
Performance	Redundant WAN with failover and load balancing
	WiFi QoS with UniFi APs
	Application, domain, and country-based QoS
	Application and device type identification
	Additional internet failover with LTE Backup
	Internet quality and outage reporting
Next-generation security	Application-aware firewall rules
	Signature-based IPS/IDS threat detection
	Content, country, domain, and ad filtering
	VLAN/subnet-based traffic segmentation
	Full stateful firewall
Advanced networking	License-free SD-WAN
	WireGuard, L2TP and OpenVPN server
	OpenVPN client
	OpenVPN and IPsec site-to-site VPN
	One-click Teleport and Identity VPN
	Policy-based WAN and VPN routing
	DHCP relay
	Customizable DHCP server
	IGMP proxy
	IPv6 ISP support
Capacity
UniFi devices	500+
Client devices	5,000+
Concurrent sessions	1 million
New sessions / sec	71000
SSL/TLS inspection concurrent sessions	10000
IDS/IPS signatures	80,000+
Routing Throughput
Firewall	23.5 Gbps
IDS/IPS	12.5 Gbps
VPN Server Single User Throughput
UniFi Identity	1.2 Gbps
Teleport	1.2 Gbps
WireGuard	1.2 Gbps
OpenVPN	210 Mbps
L2TP	280 Mbps
Site-to-Site VPN Single Tunnel Throughput
Site Magic	1.1 Gbps
OpenVPN	120 Mbps
IPsec	580 Mbps
VPN Client Single Tunnel Throughput
WireGuard	980 Mbps
OpenVPN	180 Mbps
LEDs
Ethernet	White: Link/activity
SFP+	White: Link/activity
CRPS	Off: No AC power present
	Steady white: AC power and DC output active
	Flashing white: AC power present
	Steady red: AC power lost/failure events
	Flashing red: Warning events
Software
Mobile app	UniFi iOS :Version 10.16.2 and later
	UniFi Android : Version 10.17.2 and later
