UB-U6-MESH-PRO

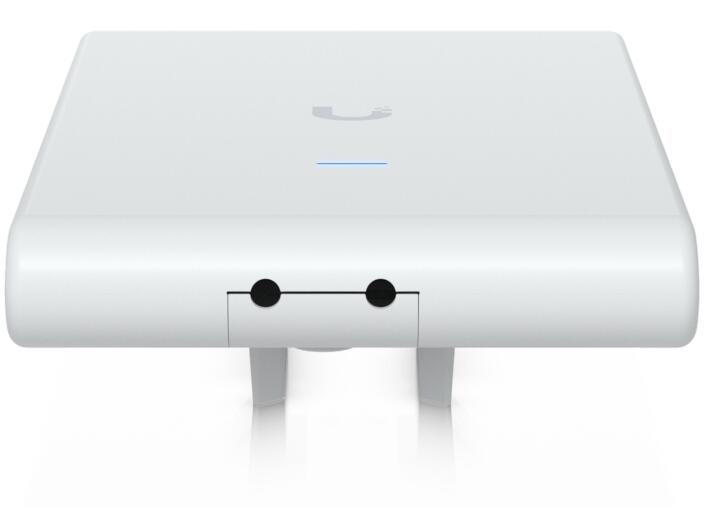

Ubiquiti UniFi6 Mesh Pro Indoor / Outdoor Dual Band WiFi6 Access Point

Ubiquiti UniFi6 Mesh Pro Indoor / Outdoor Dual Band WiFi6 Access Point, U6-MESH-PRO, 2x GbE RJ45 Ports, PoE Power Method, 573.5 Mbps @ 2.4GHz, 2.4 Gbps @ 5GHz, 8 dBi 2.4GHz antenna gain, 8 dBi 5GHz antenna gain, 350+ concurrent clients

Overview:

U6 Mesh Pro
Indoor/outdoor WiFi 6 AP with 4 spatial streams, an integrated super antenna, and a gigabit passthrough port.

• WiFi 6
• 4 spatial streams
• 185 m² (2,000 ft² ) coverage with the integrated omnidirectional super antenna
• 350+ connected devices
• Powered using PoE
• GbE uplink with (1) GbE passthrough port

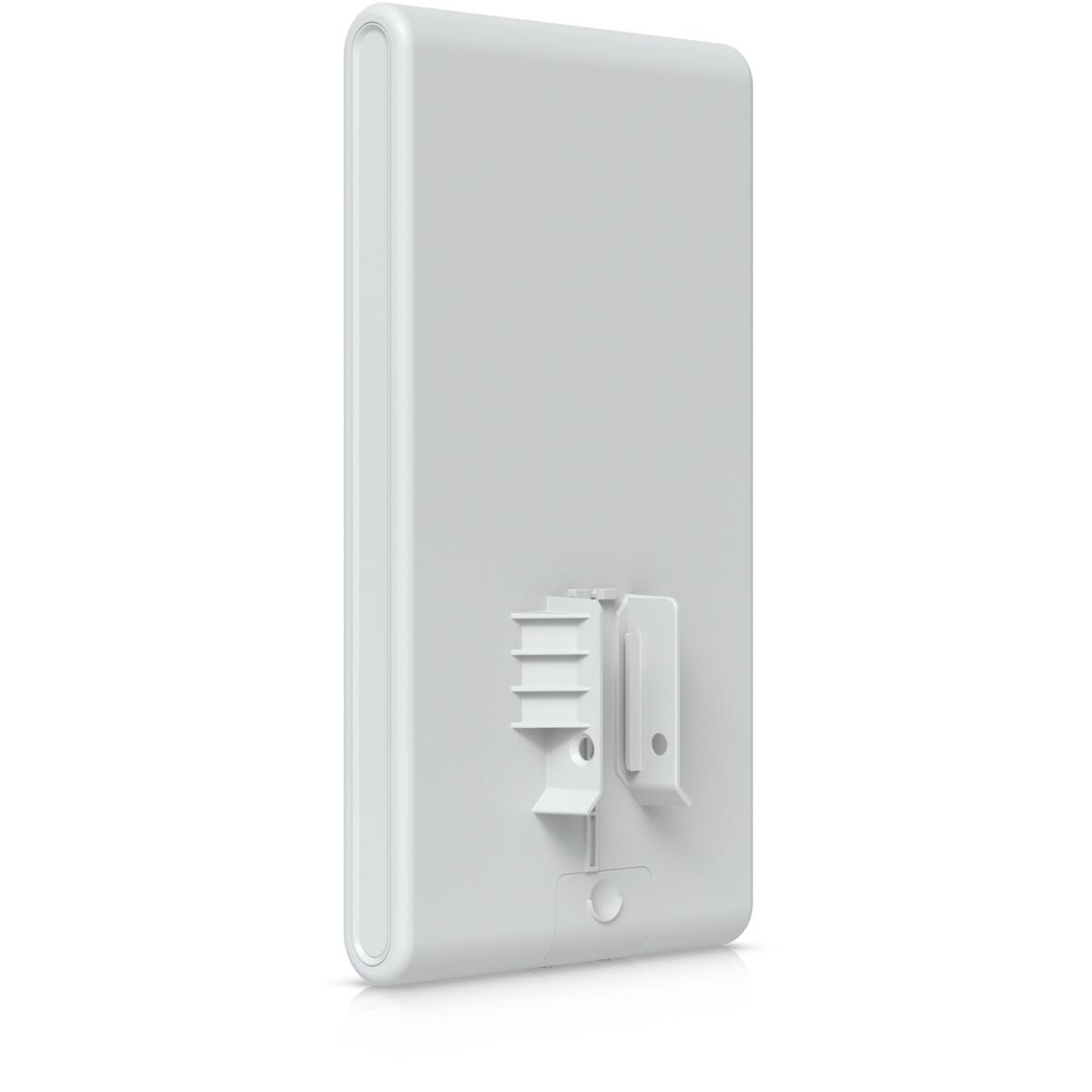

• Versatile wall and pole mounting
• Weatherproof (outdoor exposed)

Specifications:

© 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	UB-U6-MESH-PRO
Mechanical
Dimensions	343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4")
Weight	819 g (1.8 lb)
Enclosure material	UV-stabilized polycarbonate
Mount material	Aluminum alloy, steel
Pole mount diameter	1~2.5" on pipe outer diameter
Weatherproofing	IPX6
Hardware
Networking interface	(2) GbE RJ45 ports
Management interface	Ethernet
	WiFi
Power method	PoE
Power supply	UniFi PoE switch
	48V, 0.5A PoE adapter (Included)
Supported voltage range	42.5-57V DC
Max. power consumption	9W
Max. TX power
2.4 GHz	22 dBm
5 GHz	27 dBm
6 GHz	-
MIMO
2.4 GHz	2 x 2 (DL/UL MU MIMO)
5 GHz	2 x 2 (DL/UL MU-MIMO)
6 GHz	-
Max. data rate
2.4 GHz	573.5 Mbps (BW40)
5 GHz	2.4 Gbps (BW160)
6 GHz	-
Antenna gain
2.4 GHz	8 dBi
5 GHz	8 dBi
6 GHz	-
LEDs	White/blue
Button	Factory reset
Mounting	Wall, pole (Included)
Ambient operating temperature	-30 to 60° C (-22 to 140° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
Software
WiFi standards	802.11a/b/g/n/ac/ax (WiFi 6)
Wireless security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID	8 per radio
VLAN	802.1Q
Advanced QoS	Per-user rate limiting
Guest traffic isolation	Supported
Concurrent clients	350+
Supported Data Rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac	6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6)	7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
Application Requirements
UniFi Network	Version 8.1.127 and later
