UA-HUB-GATE

Ubiquiti UniFi Access Gate Hub 5x Input & 4x Relay

Ubiquiti UniFi Access Gate Hub 5x Input & 4x Relay, UA-HUB-GATE, 1 gate / 1 side Door supported, PoE++ Power Method, DIN-Rail (Included) mounting, 5x Gigabit Networking Interface, 4x PoE Outputs 50V DC 30W per Port, 1x gate exit request, 1x gate position, 1x side Door exit request, 1x side Door position, 1x Emergency

Overview:

Gate Hub
UA-Hub-Gate

The Ubiquiti UniFi Access Gate Hub provides advanced gate access management, supporting smooth integration with Access readers and Intercom systems. Designed for both residential and commercial settings, it allows centralized control and monitoring of gates and side doors.

Description:

The UA-Hub-Gate simplifies gate management with multiple networking and relay options. It supports one gate and one side door, offering real-time status monitoring and emergency handling. Powered via PoE++, it ensures efficient energy delivery while providing DIN-Rail mounting for easy installation. With five Gigabit networking ports and four PoE outputs, it delivers high-speed connectivity and reliable operation for secure access control systems.

Features:

Connectivity and Power

• 5 Gigabit networking interfaces for fast, stable connections
• 4 PoE outputs delivering 50V DC and 30W per port
• PoE++ power method for efficient energy distribution

Door and Gate Management

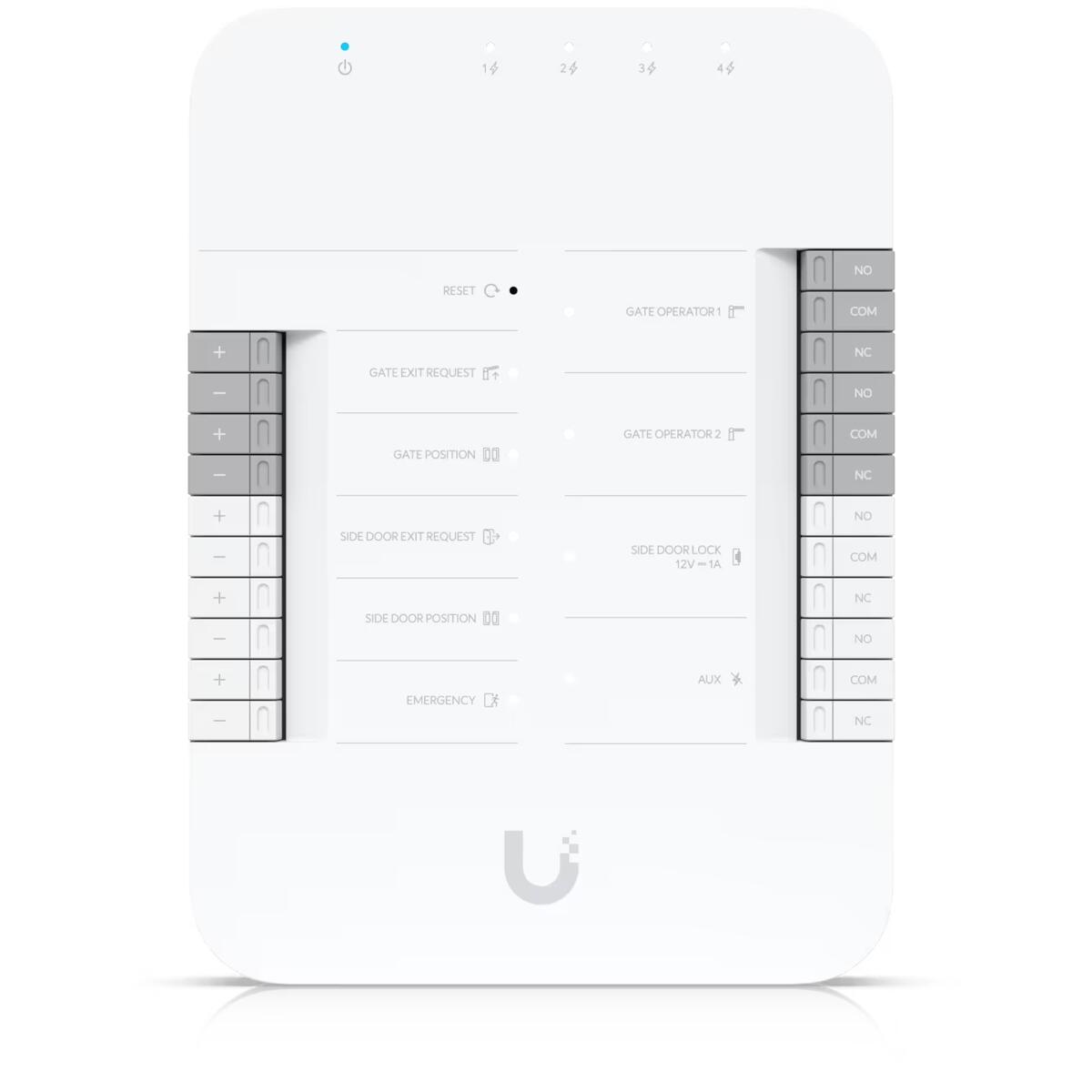

• Supports 1 gate and 1 side door for comprehensive access control
• Includes exit request and position monitoring for both gate and side door
• Emergency input for immediate override or alert

Installation and Integration

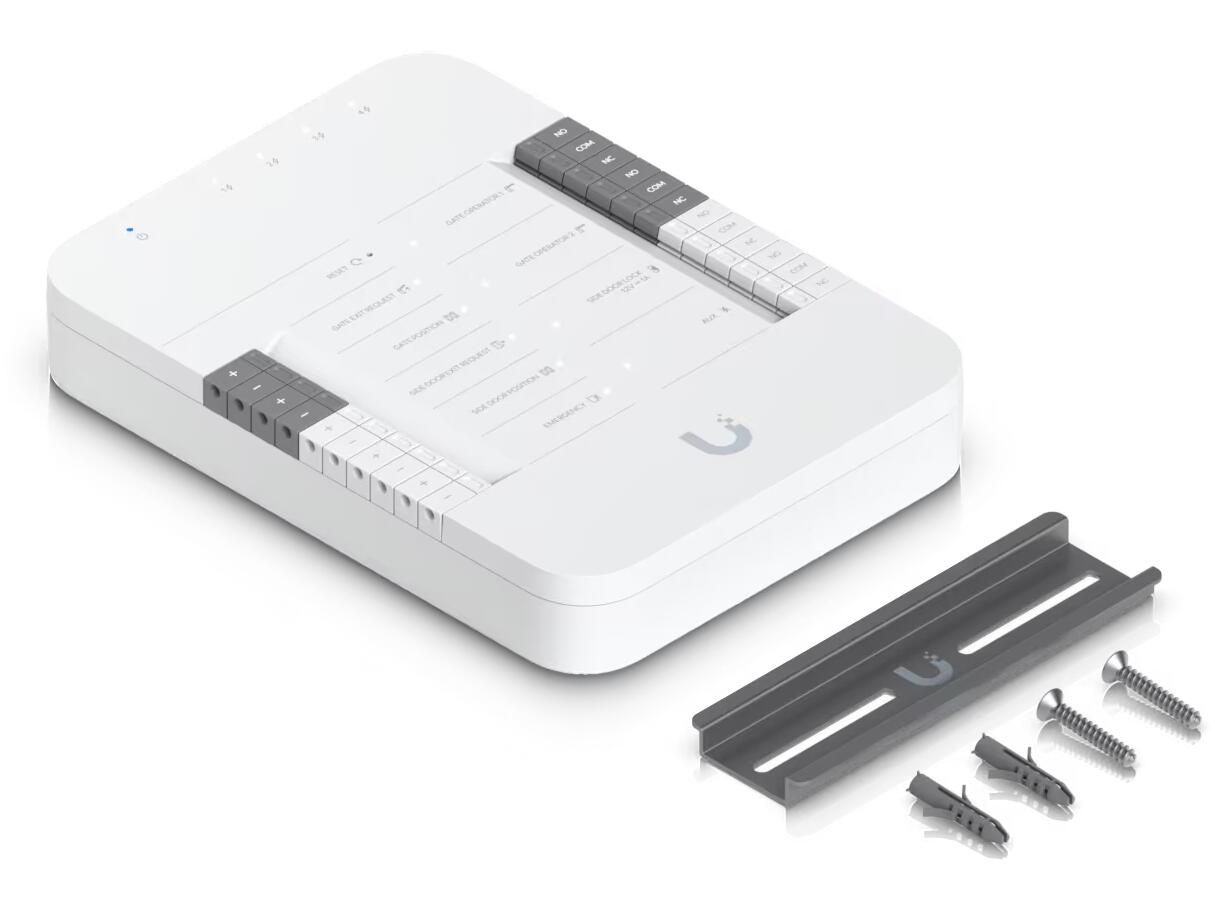

• DIN-Rail mounting included for flexible setup
• Seamlessly connects with Access readers and Intercom systems
• Compatible with UniFi Access for centralized management

Performance and Reliability

• Robust relay system for precise gate and door operations
• High-speed networking ensures smooth communication with connected devices
• Designed to handle both routine and emergency access scenarios

Specifications:

© 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	UA-HUB-GATE
Overview

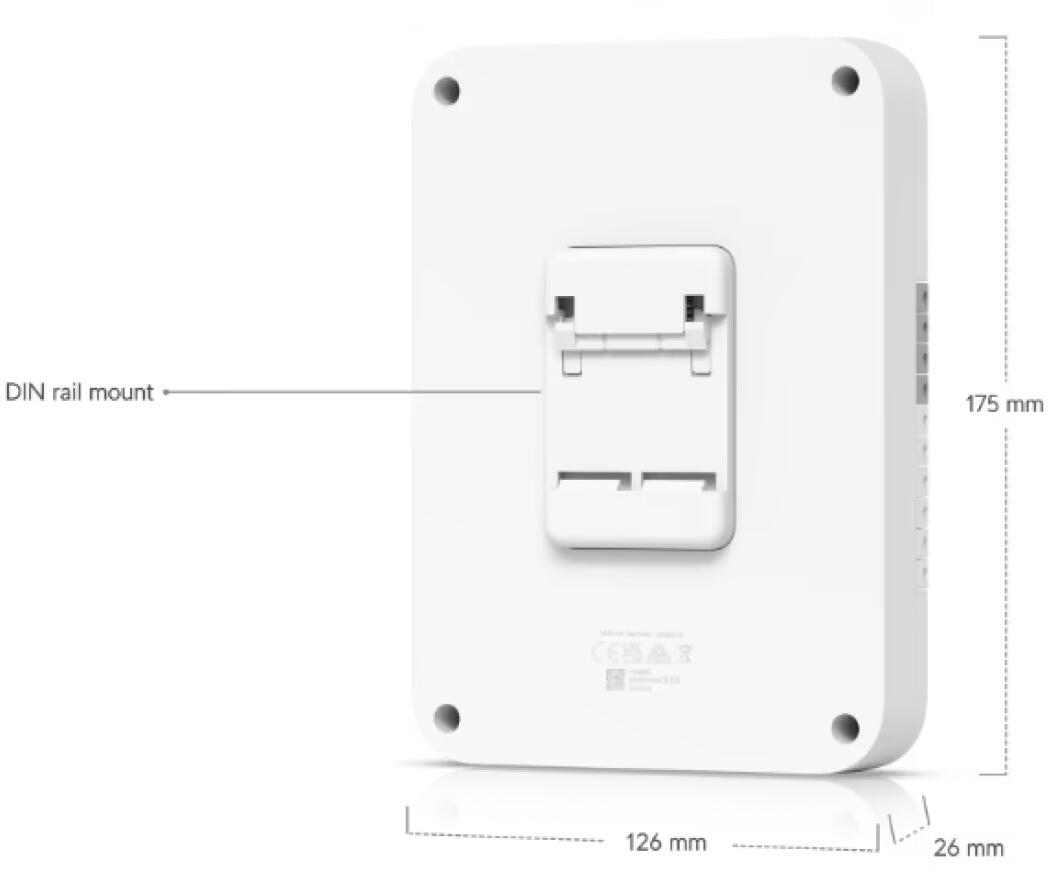

Dimensions	175 x 126 x 26 mm
	(6.9 x 5 x 1")
UniFi Application Suite
Access	Yes
Supported Doors	1 gate, 1 side door
Input Terminals	(1) Gate exit request
	(1) Gate position
	(1) Side door exit request
	(1) Side door position
	(1) Emergency
Power Method	PoE++
	UL 294 Power-limited Class 2 PSU
	UL 60950-1/62368-1 LPS/PS2 PSU
NDAA Compliant	Yes
UL 294 Level	Destructive attack: Level I
	Line security: Level I
	Endurance: Level I
	Standby power: Level I
Mechanical
Weight	460 g (1 lb)
Enclosure Material	Polycarbonate
Mounting	DIN-rail (Included)
Hardware
Digital Input	Gate exit request, gate position, side door exit request, side door position, emergency
Dry Output Relay	(2) Operator: rated 30V DC, up to 1A
	(1) Aux: rated 30V DC, up to 1A
Powered Output Relay	Side door lock: 12V DC, up to 1A
Indoor and Outdoor Use	Indoor only: device itself
	Outdoor: with waterproof junction box
Ambient Operating Temperature	-30 to 60degrees C
	(-22 to 140degrees F)
Ambient Operating Humidity	5 to 90% noncondensing
Networking Interface	(5) 10/100/1000 Base-T
PoE Interface	(1) PoE++ input, 50V DC, 1A
	(4) PoE outputs, 50V DC, 30W per port
	(Max 55W aggregated)
Max. Power Consumption	22W (Without PoE output)
	60W (With PoE output)
LEDs	W/B Learn More
Buttons	(1) Factory-reset
Recommend Max. Cable Length
UA-Lock-Electric (400mA)	24 AWG length: 25 m (82 ft)
	22 AWG length: 42 m (138 ft)
	20 AWG length: 66 m (217 ft)
	18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
UA-Lock-Magnetic-540kg (500mA)	24 AWG length: 20 m (66 ft)
	22 AWG length: 32 m (105 ft)
	20 AWG length: 51 m (167 ft)
	18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)
UA-Lock-Magnetic-270kg (800mA)	24 AWG length: 12 m (29 ft)
	22 AWG length: 20 m (66 ft)
	20 AWG length: 30 m (98 ft)
	18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
Other locks
(1A)	24 AWG length: 9 m (30 ft)
	22 AWG length: 15 m (49 ft)
	20 AWG length: 24 m (79 ft)
	18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
PoE Cabling Requirements	Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
	The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords , 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement	Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
	The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade	Grade assignment: I
Certifications	CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level	UA-Hub-Gate, V01
Software
Management Application	Access
