U7-PRO-XG-B

Ubiquiti UniFi WiFi 7 Pro XG Tri-band Black Access Point

Ubiquiti UniFi WiFi 7 Pro XG Tri-band Black Access Point, U7-PRO-XG-B, 6x spatial streams, 300+ Maximum Client count, 10 GbE Uplink, PoE+ Power Method, 1x 10 GbE RJ45 Port, 140 m2 coverage area, 5.8 Gbps @ 6GHz, 4.3 Gbps @ 5GHz, 688 Mbps @ 2.4GHz

Overview:

Ubiquiti UniFi WiFi 7 Pro XG Access Point
The Ubiquiti UniFi WiFi 7 Pro XG (U7-PRO-XG-B) is a high-performance, ceiling-mounted access point designed for demanding environments. Equipped with the latest WiFi 7 technology, it supports tri-band connections and advanced spatial stream capabilities, ensuring reliable and ultra-fast wireless connectivity for a large number of devices.

Description:

This access point delivers exceptional network performance with 6 spatial streams, a maximum client count of over 300, and speeds up to 5.8 Gbps on the 6GHz band. It includes a 10 GbE uplink and PoE+ support, making installation flexible and efficient. Covering areas up to 140 square meters, it is ideal for offices, commercial spaces, or high-density environments requiring stable and high-speed WiFi.

Features:

High-Speed Tri-Band Connectivity
The U7 Pro XG offers simultaneous tri-band operation:

• 6GHz band at 5.8 Gbps
• 5GHz band at 4.3 Gbps
• 2.4GHz band at 688 Mbps

This ensures smooth streaming, video conferencing, and seamless data transfer even with numerous connected devices.

Robust Network Capacity
Designed for high-density usage, the U7 Pro XG supports over 300 connected clients, making it suitable for large offices, coworking spaces, and educational institutions. Its six spatial streams maximize throughput while reducing congestion on busy networks.

Flexible Installation and Connectivity

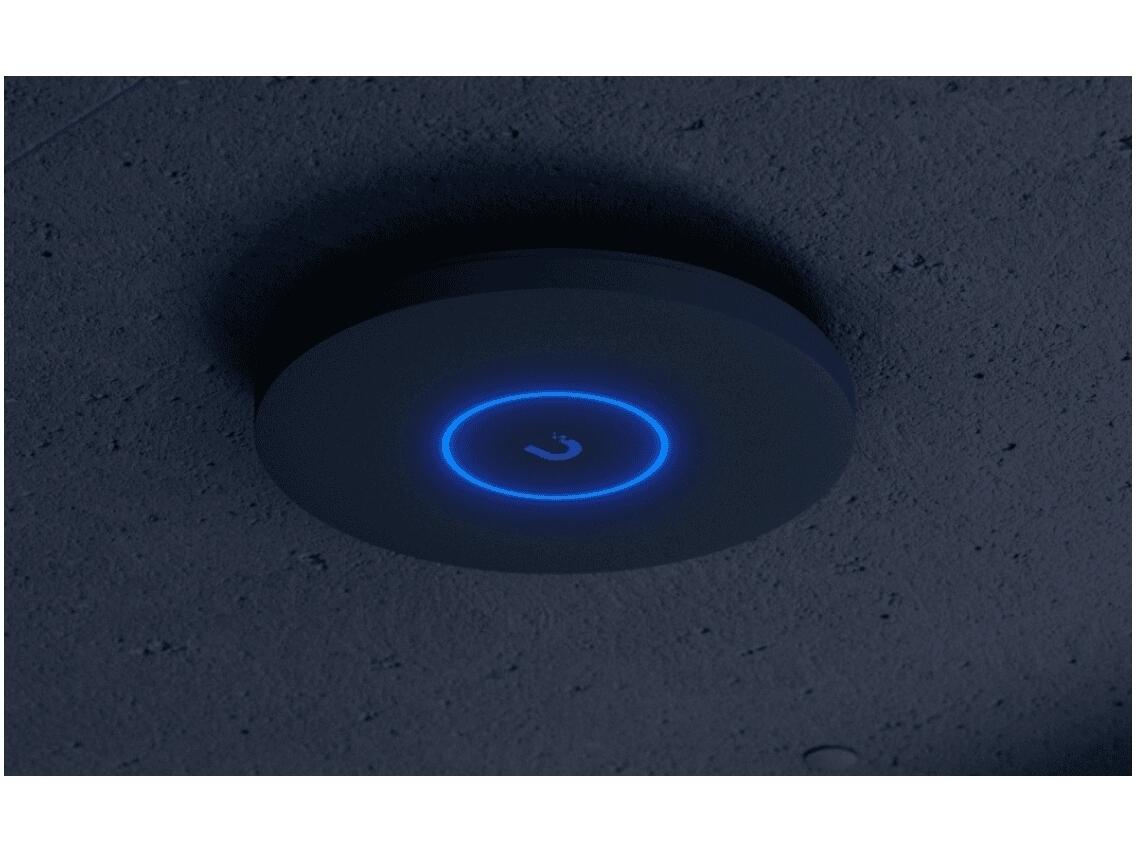

The device features a ceiling-mount design and supports multiple Ethernet speeds, including 10 GbE, 5 GbE, 2.5 GbE, and 1 GbE. PoE+ support simplifies installation by providing both power and data over a single cable, reducing setup complexity and wiring requirements.

Reliable Coverage for Medium to Large Spaces
With a coverage area of approximately 140 square meters, this access point ensures stable connections across rooms, floors, or open office layouts. Its advanced radio design delivers consistent performance across all three frequency bands.

Technical Overview:

• Model: U7-PRO-XG-B
• Tri-band WiFi 7 with 6 spatial streams
• Maximum client support: 300+
• Uplink: 10 GbE RJ45 port
• Power: PoE+
• Coverage area: 140 m²
• Speed: 5.8 Gbps @ 6GHz, 4.3 Gbps @ 5GHz, 688 Mbps @ 2.4GHz

Specifications:

© 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	U7-PRO-XG-B
Overview

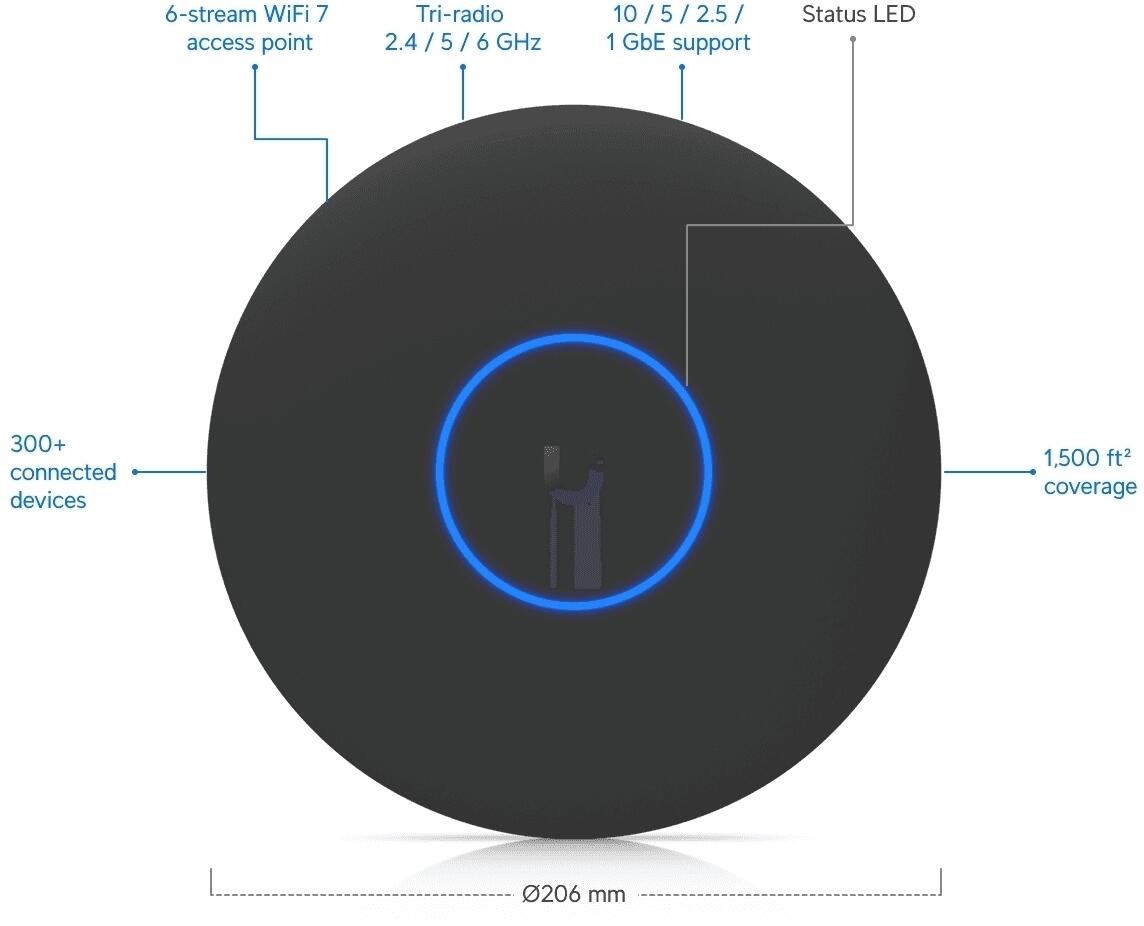

Dimensions	Ø206 x 32.5 mm
	(Ø8.1 x 1.3")
WiFi Standard	WiFi 7
Spatial Streams	6
Coverage Area	140 m² (1,500 ft²)
Max. Client Count	300+
Uplink	10 GbE
Mounting	Ceiling, Wall
	(Lite Mount Included)
Power Method	PoE+
Performance
MIMO	6 GHz
	2 x 2 (DL/UL MU-MIMO)
	5 GHz
	2 x 2 (DL/UL MU-MIMO)
	2.4 GHz
	2 x 2 (DL/UL MU-MIMO)
Max. Data Rate	6 GHz
	5.8 Gbps (BW320)
	5 GHz
	4.3 Gbps (BW240)
	2.4 GHz
	688 Mbps (BW40)
Antenna Gain	6 GHz
	6 dBi
	5 GHz
	5 dBi
	2.4 GHz
	4 dBi
Max. TX Power	6 GHz
	24 dBm
	5 GHz
	26 dBm
	2.4 GHz
	23 dBm
Max. BSSIDs	8 per Radio
Supported Data Rates	802.11be (WiFi 7)
	6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
	5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
	802.11ax (WiFi 6)
	7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
	802.11ac (WiFi 5)
	6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
	802.11n
	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Features
Wireless Meshing	Yes
Band Steering	Yes
802.11v BSS Transition Management	Yes
802.11r Fast Roaming	Yes
802.11k Radio Resource Management (RRM)	Yes
Advanced Radio Management	Yes
Passpoint (Hotspot 2.0)	Yes
Captive Hotspot Portal	Custom Branding Landing Page
	Yes
	Voucher Authentication
	Yes
	Payment-Based Authentication
	Yes
	External Portal Server Support
	Yes
	Password Authentication
	Yes
	Guest Network Isolation
	Yes
Private Pre-Shared Key (PPSK)	Yes
WiFi Speed Limiting	Yes
Client Device Isolation	Yes
WiFi Schedules	Yes
RADIUS over TLS (RadSec)	Yes
Dynamic RADIUS-assigned VLAN	Yes
Hardware
Max. Power Consumption	22W
Supported Voltage Range	42.5-57V DC

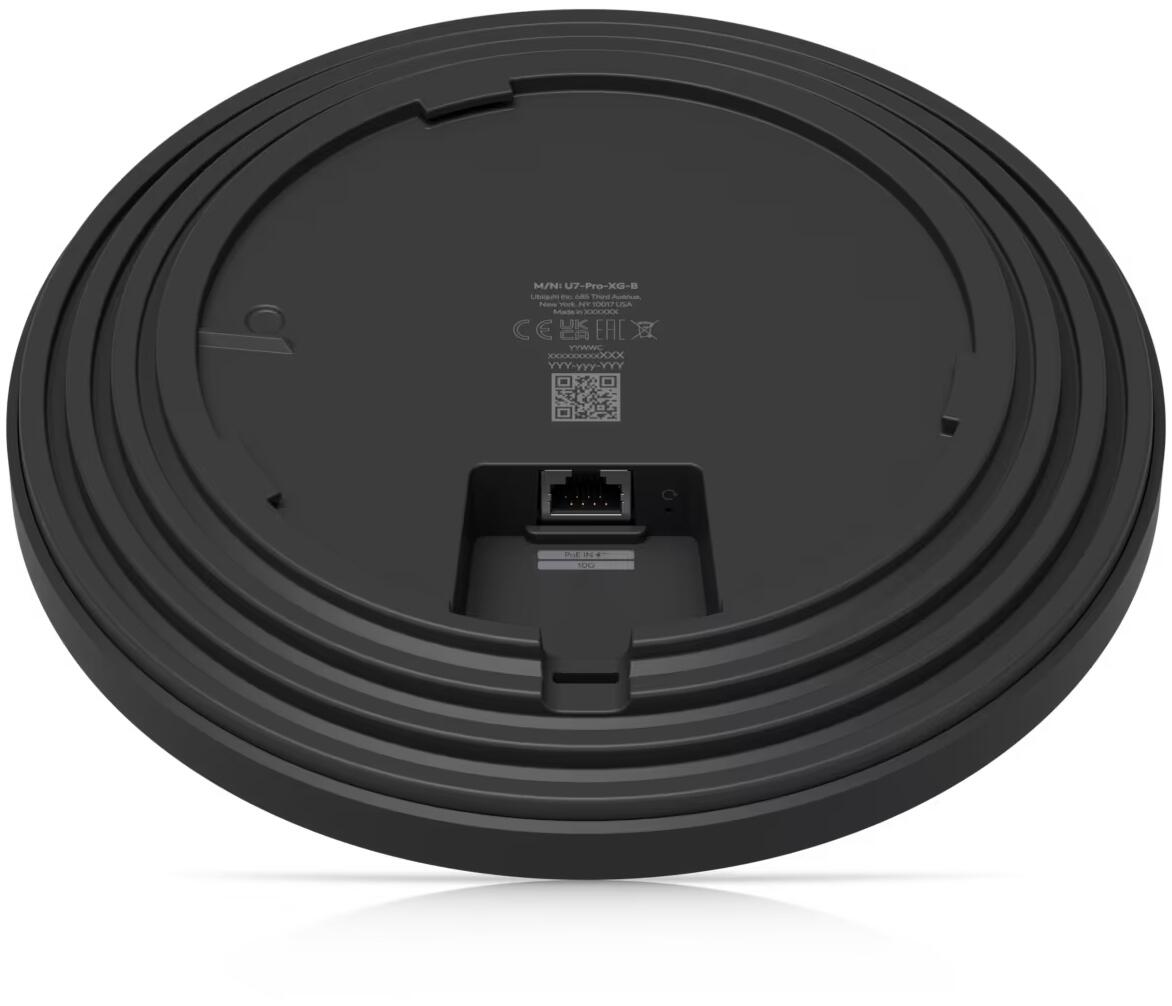

Networking Interface	(1) 10 GbE RJ45 port
Weight	750 g (1.7 lb)
Management	Ethernet
Enclosure Material	UV-stabilized polycarbonate, aluminum alloy
Mount Material	Stainless steel (SUS304), galvanized steel (SGCC)
LEDs	System
	White/Blue
Channel Bandwidth	HT 20 / 40, VHT 20 / 40 / 80 / 160, HE 20 / 40 / 80 / 160, EHT 20/40/80/160/240/320 (MHz)
NDAA Compliant	Yes
Certifications	CE, FCC, IC
Ambient Operating Temperature	-30 to 40degrees C (-22 to 104degrees F)
Ambient Operating Humidity	5 to 95% noncondensing
Software
Application Requirements	UniFi Network
	Version 9.0.114 and later (U7 Pro XG - White)
	Version 9.1.120 and later (U7 Pro XG - Black)
