NET-EAP211-BRIDGEKIT

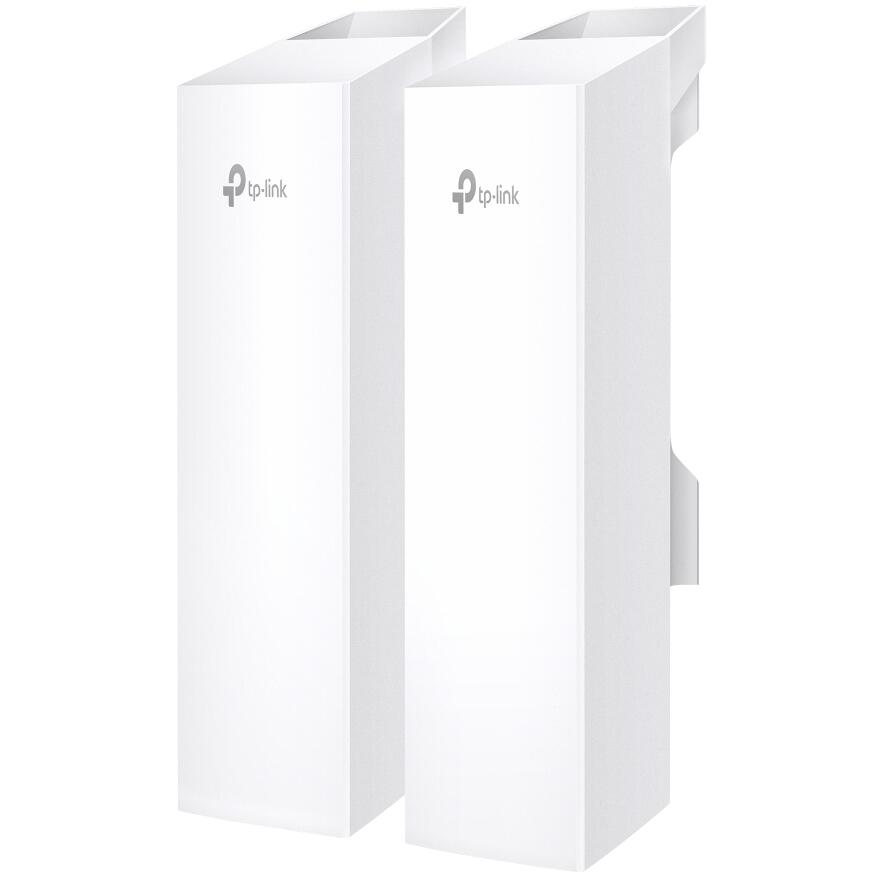

TP-Link Omada EAP211-Bridge kit 5.0GHz 867 Mbps Wireless Bridge Indoor / Outdoor Access Point

TP-Link Omada EAP211-Bridge kit 5.0GHz 867 Mbps Wireless Bridge Indoor / Outdoor Access Point, 3x Gigabit Ethernet Ports, Internal 2x2 dual-polarized directional MIMO antennas, IP65 Weatherproof enclosure, 1000m coverage, Pole mounting, 5GHz up to 867 Mbps, Mesh, 5G 2x2 MU-MIMO DL

Overview:

Omada Wireless Bridge: High-Speed 5 GHz Access Point for Indoor and Outdoor Use
The TP-Link Omada EAP211-Bridge Kit provides a reliable wireless bridge solution designed for both indoor and outdoor settings. This device operates on the 5 GHz band, delivering speeds of up to 867 Mbps, and supports long-range wireless transmission up to 1 km. Ideal for extending Wi-Fi to remote locations, this access point is equipped with three Gigabit Ethernet ports, allowing you to connect high-speed devices such as IP cameras. With its rugged IP65 weatherproof enclosure and advanced features like auto-pairing and agile LEDs, the Omada EAP211-Bridge Kit is an excellent choice for enhancing your network coverage, whether at home, in a business, or in industrial settings.

Description:

This versatile wireless bridge supports both Point-to-Point (PtP) and Point-to-Multipoint (PtMP) connections, making it perfect for expanding network coverage or monitoring remote locations. The device's durable design features an IP65 weatherproof rating, allowing it to withstand harsh outdoor conditions, while 6kV lightning protection ensures safety during storms. With easy installation options and compatibility with Omada SDN for remote management, the EAP211-Bridge Kit offers a flexible and scalable networking solution. Whether used to extend Wi-Fi across large properties, connect security cameras, or monitor construction sites, this access point provides reliable performance and a straightforward setup.

Features:

Key Benefits of the TP-Link Omada EAP211-Bridge Kit

• Reliable Long-Range Wi-Fi : Achieve wireless transmission over distances up to 1 km, perfect for connecting remote buildings, farms, or offices.
• Ideal for Surveillance : With three Gigabit Ethernet ports, the EAP211-Bridge supports multiple high-speed devices, including IP cameras, ensuring smooth video surveillance.
• Outdoor-Ready Durability : IP65-rated weatherproof protection, 6kV lightning protection, and wide temperature tolerance (-40degrees C to 70degrees C) make this device suitable for outdoor installations.
• Seamless Setup and Installation : Features auto-pairing, LED signal strength indicators, and simple mounting options for quick deployment in any environment.
• Flexible Connectivity : Supports both Point-to-Point (PtP) and Point-to-Multipoint (PtMP) connections, offering diverse options for extending Wi-Fi or setting up surveillance networks.

Long-Range Wireless Bridge for Diverse Applications
Whether you're extending Wi-Fi to an additional building or setting up a remote camera network, the Omada EAP211-Bridge Kit provides a reliable solution for various use cases. It supports both PtP and PtMP connections, ideal for diverse scenarios like:

• Remote Site Wi-Fi Expansion : Extend your home or office network to separate buildings like garages, warehouses, or guesthouses.
• Surveillance Networks : Set up outdoor cameras at farms, parking lots, or construction sites for enhanced security with real-time monitoring.
• Remote Camera Monitoring : Use the bridge to connect cameras to a central network, offering 550 Mbps bandwidth over a distance of up to 100 meters (328 feet) in outdoor conditions.

Weatherproof and Rugged Design for All-Season Use
The EAP211-Bridge Kit's IP65 weatherproof design ensures reliable performance in all weather conditions, from scorching heat to freezing cold. With a wide operating temperature range of -40degrees F to 158degrees F (-40degrees C to 70degrees C), this bridge is built to handle tough environments. Additionally, the 6kV lightning protection minimizes the risk of damage during thunderstorms, making it a safe and durable choice for outdoor deployments.

Effortless Installation with Flexible Mounting Options
Setting up the Omada EAP211-Bridge Kit is quick and straightforward, thanks to features like:

• Auto-Pairing : Simplify setup with auto-pairing for easy deployment of the bridge kit. (Note: Manual setup is required for three or more bridges.)
• Signal Alignment LEDs : Use the built-in LED indicators to easily align the bridge for optimal signal strength.
• Flexible Mounting Options : Includes pole mounting accessories, with wall mounting available as an optional accessory for various installation needs.

Remote Management with Omada SDN Integration
For businesses or larger setups, the EAP211-Bridge Kit integrates with Omada SDN, allowing centralized and remote management via the Omada app or web interface. This makes it easier to deploy multiple bridge kits at once and manage them from anywhere. Batch provisioning speeds up the setup process, while remote monitoring and configuration ensure that the network is always running smoothly.

Extended Range and High-Speed Connectivity for Your Network
Whether for residential, commercial, or industrial applications, the TP-Link Omada EAP211-Bridge Kit delivers reliable, long-range Wi-Fi connectivity and secure, high-speed access for devices across large areas. With a maximum data rate of 867 Mbps on the 5 GHz band, it provides stable performance for high-demand applications, including video surveillance, remote monitoring, and general network expansion.

Outdoor Use with Rugged Protection
The TP-Link Omada EAP211-Bridge Kit is designed to endure the elements, with an IP65-rated weatherproof case, lightning protection, and resistance to extreme temperatures. This makes it a great option for extending Wi-Fi across large outdoor spaces like farms, construction sites, or even multi-building campuses.

Reliable, High-Speed Wi-Fi for Various Scenarios

• Extend Wi-Fi to Remote Locations : Ideal for connecting distant buildings, offices, or facilities.
• Outdoor Surveillance : Set up wireless security cameras and monitor properties in real-time without the need for extensive wiring.
• Flexible Setup for Different Needs : Easy to install with flexible mounting options and intuitive management tools via the Omada app.

Final Thoughts on the TP-Link Omada EAP211-Bridge Kit
The TP-Link Omada EAP211-Bridge Kit offers an ideal solution for extending your network, improving connectivity, and enhancing surveillance capabilities, all while withstanding tough environmental conditions. With its long-range performance, durable design, and integration with Omada SDN for remote management, this wireless bridge is the perfect addition to any outdoor or large-area network setup.

Specifications:

© 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	NET-EAP211-BRIDGEKIT
HARDWARE FEATURES

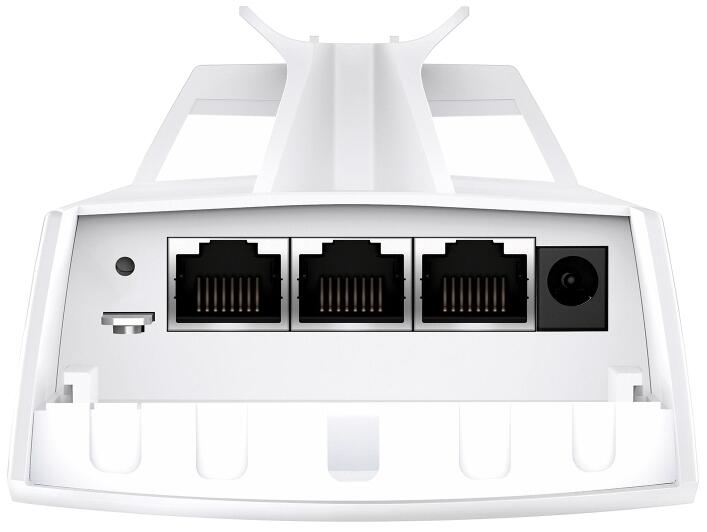

Interface	3x Gigabit Ethernet Ports
Button	Reset
Power Supply	12V DC / 24V Passive PoE (Passive PoE adapter included.)
Max. Power Consumption	11.5W
Dimensions ( W x D x H )	3.1 x 2.4 x 8.8 in (79 x 60 x 224 mm)
Antenna	Internal 2 x 2 Dual-polarized directional MIMO antennas
	5 GHz: 7.0 dBi
	Horizontal:70degrees, Vertical: 70degrees
Weatherproof Enclosure	IP65
Mounting	Pole Mounting (Accessories included)
WIRELESS FEATURES
Coverage	1000m(3280ft)
Wireless Standards	IEEE 802.11 a/b/g/n/ac
Frequency	5 GHz
Signal Rate	5 GHz: Up to 867 Mbps
Wireless Functions	Mesh
	MU-MIMO: 5G 2x2 MU-MIMO DL
	Load Balance
	Seamless Roaming(802.11r)
	Beamforming
	Airtime Fairness
	Multiple SSIDs:8
	Wireless Statistics
	Wireless Schedule
	Reboot Schedule
	RADIUS Accounting
	MAC Authentication
	Static IP/Dynamic IP
Wireless Security	VLAN
	Access Control
	Rogue AP Detection
	Captive Portal Authentication
	Maximum number of MAC Filter: 4,000
	WPA-Personal/Enterprise, WPA2-Personal/Enterprise
Transmission Power	CE:
	<23dBm (5 GHz, band 1 / 2, EIRP)
	<30dBm (5 GHz band3, EIRP)
	FCC:
	<22dBm (5 GHz band1/4)
Management Features
Omada App	Yes
Restore & Backup	Yes
Firmware update via Web	Yes
NTP	Yes
Centralized Management	Omada Hardware Controller (OC300)
	Omada Hardware Controller (OC200)
	Omada Software Controller
	Omada Cloud-Based Controller
Cloud Access	Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
SSH	Yes
Web-based Management	Yes
OTHERS
Certification	CE, FCC, RoHS
Package Content	EAP211-Bridge KIT
	Passive PoE Adapter
	Power Cord
	Installation Guide
	Mounting Kit
Environment	Operating Temperature: -40 degreesC-70 degreesC (-40 degreesF-158 degreesF)
	Storage Temperature: -40 degreesC-70 degreesC (-40 degreesF-158 degreesF)
	Operating Humidity: 10%-90% non-condensing
	Storage Humidity: 5%-90% non-condensing
