EAP225-OUTDOOR

TP-Link AC1200 Dual Band MU-MIMO Gigabit Indoor/Outdoor Access Point

TP-Link AC1200 Dual Band MU-MIMO Gigabit Indoor/Outdoor Access Point, EAP225-OUTDOOR, 867 Mbps at 5GHz, 300 Mbps at 2.4GHz, 1x Gigabit Ethernet (RJ-45) Port, Support 802.3af PoE and Passive PoE, 24V Passive PoE, Pole / Wall Mounting

Overview:

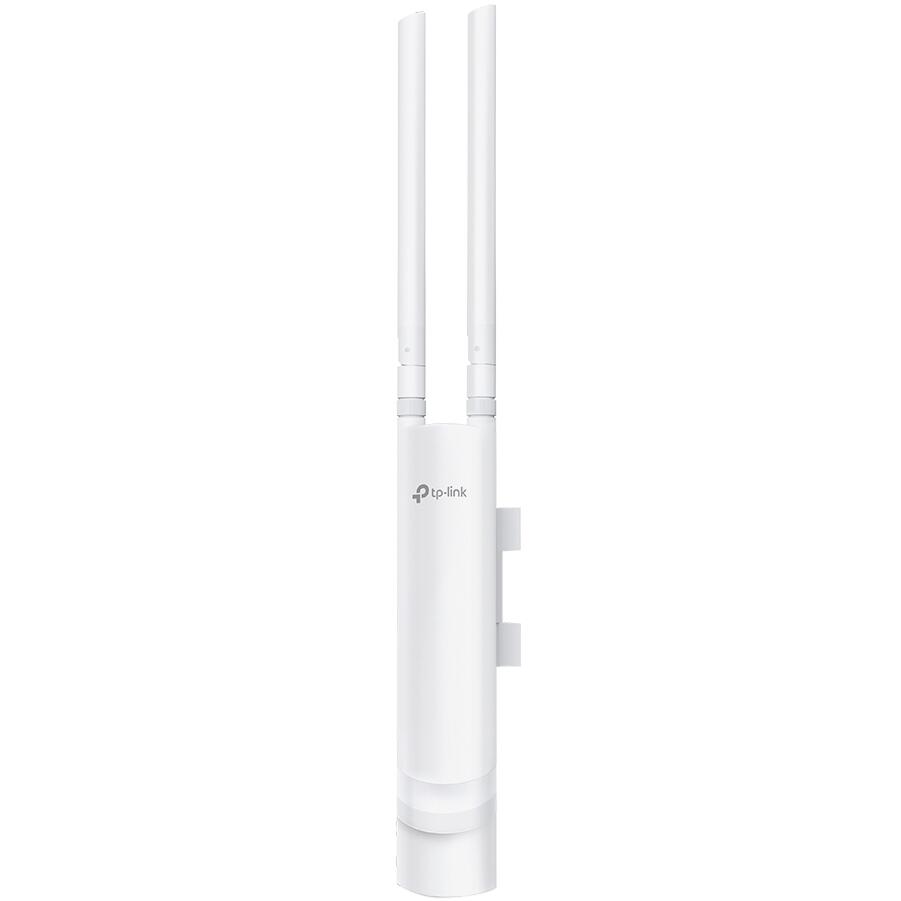

EAP225-Outdoor - AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point

• Durable, weatherproof enclosure for outdoor Wi-Fi applications
• Up to 1200Mbps with 2x2 MIMO technology
• High transmission power and high gain antennas provide a long-range coverage area
• Free Omada Controller software enables administrators easily manage hundreds of EAPs
• Captive portal provides a convenient method for guest authentication
• Facebook Wi-Fi and SMS anthentication help to boost your business
• 802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation

Features:

11AC Wave 2 Makes Wi-Fi Go Further Omada
EAP225-Outdoor

Gigabit Wi-Fi Speeds withMU-MIMO Technology
EAP225-Outdoor supports simultaneous dual band speed of up to 1200Mbps. Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, EAP225-Outdoor can communicate with multiple clients at the same time which making it ideal for high density environment.

Product without MU-MIMO EAP225-Outdoor with MU-MIMO Excellent Hardware Designs
With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.

Detachable Antennas
EAP225-Outdoor is designed with 2Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.

Delicate Appearance Even Better for Indoor Applications
EAP225-Outdoor is just similar to a cellphone, with dimension: 8.5 x 1.8 x 1.1in. (215 x 46 x 27mm)

Multiple PoE Options for Easy Installation
EAP225-Outdoor supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter.

Flexible Deployment
EAP225-Outdoor can be easily installed on a wall or to a pole with the mounting kits provided.

Wi-Fi That Goes the Distance
With high transmission power and high gain omnidirectional antennas, EAP225-Outdoor provides stable wireless coverage at a range up to 200m+* at 2.4GHz and 300m+* at 5GHz in outdoor settings.

*Based on field tests. Real transmission range may vary, according to environment, receiving device, etc.

Specially Designed Weatherproof Enclosure for Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.

• 4KV Lightning Protection and 15KV ESD Protection
• No Ingress of Dust
• Water Proof Enclosure

Efficient Centralized Network Management
With Omada Controller software, small andmedium-sized businesses can take command of hundreds of indoor and outdoor access points all from a single location. Its network management as it should be - efficient and intuitive.

Specifications:

© 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	EAP225-OUTDOOR
HARDWARE FEATURES

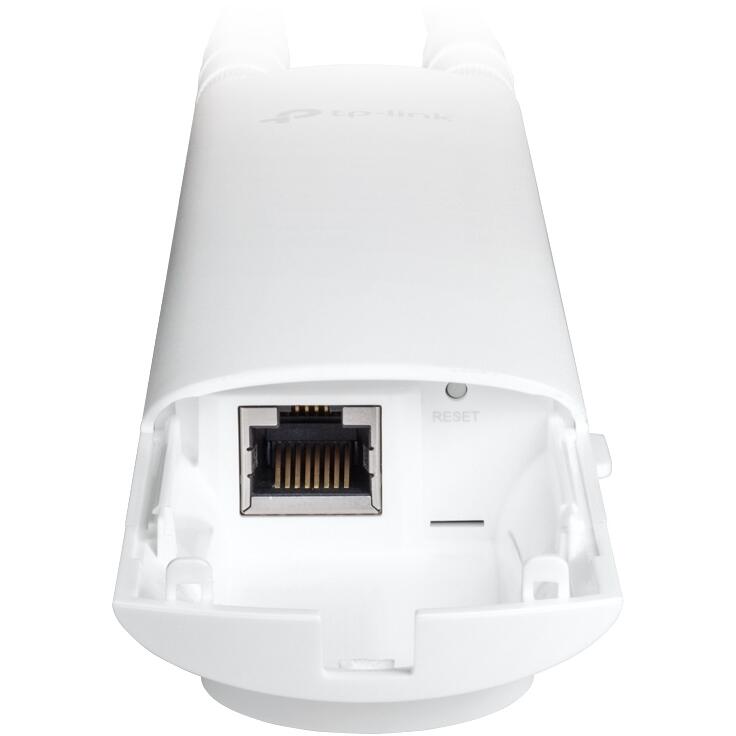

Interface	Gigabit Ethernet (RJ-45)Port*1(Support 802.3af PoE and Passive PoE)
Button	Reset
Power Supply	802.3af/A PoE
	24V Passive PoE (+4, 5pins, -7, 8pins. PoE Adapter Included)
Power Consumption	10.5W
Dimensions ( W x D x H )	8.5 x 1.8 x 1.1in. (215 x 46 x 27 mm)
Antenna	2.4GHz: 2 * 3dBi, 5GHz: 2 * 4dBi
Weatherproof Enclosure	IP65
Mounting	Pole/Wall Mounting (Kits included)
Hardware Watch Dog	Yes
WIRELESS FEATURES
Wireless Standards	IEEE 802.11a/b/g/n/ac
Frequency	2.4GHz, 5GHz
Signal Rate	802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9, NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
	802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
	802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
	802.11b: 1, 5.5, 11Mbps
	802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Functions	Multiple SSIDs(Up to 16 SSIDs, 8 for each band)
	Enable/Disable Wireless Radio
	Automatic Channel Assignment
	Transmit Power Control (Adjust Transmit Power on dBm)
	QoS(WMM)
	MU-MIMO
	Airtime Fairness
	Beamforming
	Band Steering
	Load Balance
	Rate Limit
	Reboot Schedule
	Wireless Schedule
	Wireless Statistics based on SSID/AP/Client
Wireless Security	Captive Portal Authentication
	Access Control
	Wireless Mac Address Filtering
	Wireless Isolation Between Clients
	SSID to VLAN Mapping
	Rogue AP Detection
	802.1X Support
Transmission Power	CE: <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP)
	FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz)
MANAGEMENT
Omada App	Yes
Omada Cloud Controller	Yes
Centralized Management	Omada Cloud-Based Controller
	Omada Hardware Controller (OC300)
	Omada Hardware Controller (OC200)
	Omada Software Controller
Omada Controller Software	Yes
Cloud Access	Yes
Email Alerts	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c
System Logging Local/Remote Syslog	Yes
SSH	Yes
Web-based Management	Yes
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
Certification	CE, FCC, RoHS

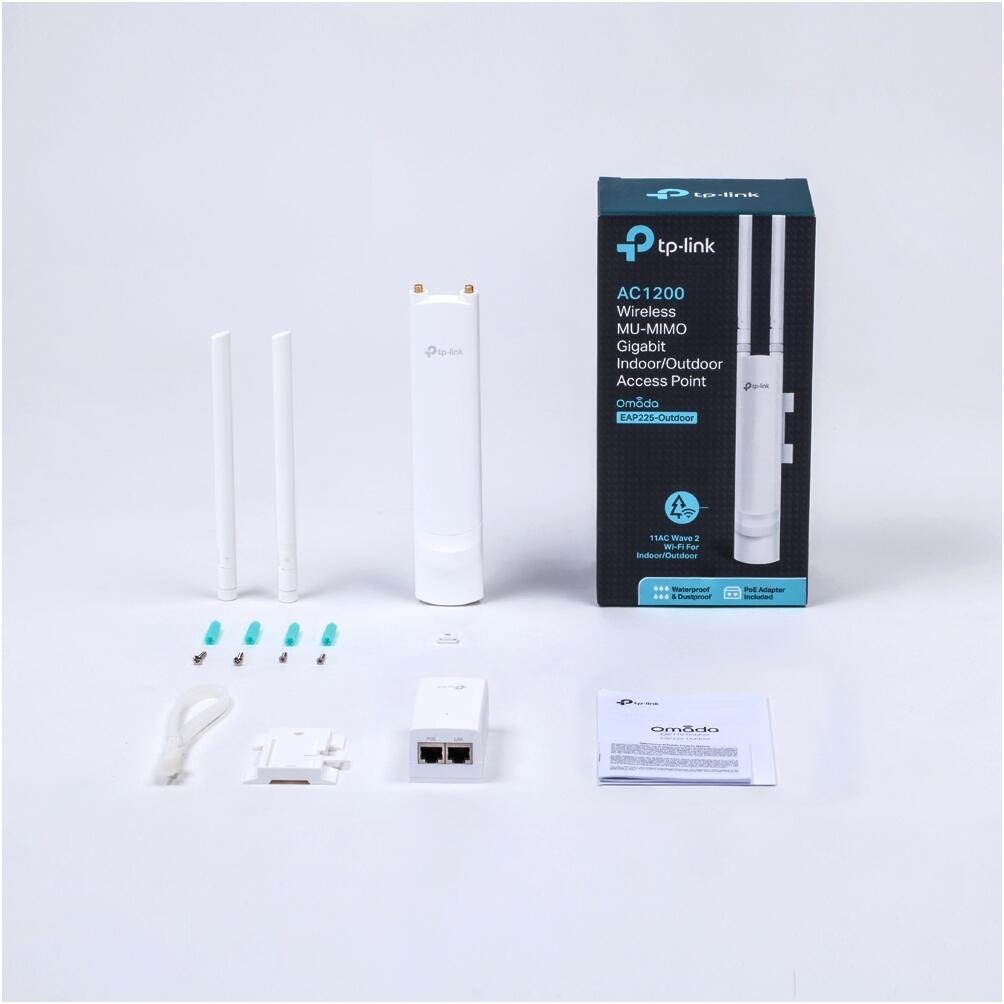

Package Contents	AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
	EAP225-Outdoor
	Power Adapter
	Mounting Kits
	Installation Guide
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment	Operating Temperature: -30°C~70°C (-22°F~158°F)
	Storage Temperature: -40°C~70°C (-40°F~158°F)
	Operating Humidity: 10%~90% non-condensing
	Storage Humidity: 5%~90% non-condensing
