Synology DS3622xs+

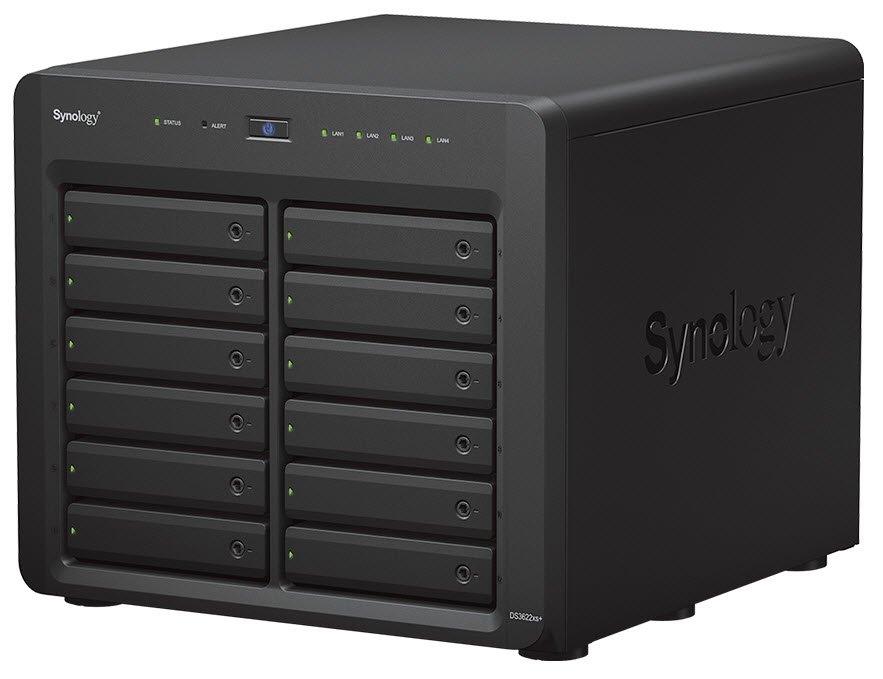

Synology DS3622xs+ 12-Bay Xeon D-1531 2.2GHz Enterprise Desktop NAS

Synology DS3622xs+ 12-Bay Enterprise Desktop NAS, expandable up to 36 bays with expansion units. Replacing DS3617xsII

Features:

High-performance mass storage
The 12-bay Synology DS3622xs+ is a powerhouse NAS capable of fitting into small and medium business environments with intensive and multi-user workloads. Its high capacity, scalability, and processing power make it ideal for VM and container storage, for lightning-fast file sharing, and as a network video recorder for large surveillance deployments. It comes with powerful storage management, file syncing, surveillance, and backup software, and is suitable for editing high-quality video.

CPU
Six-core Intel® Xeon® processor

Throughput
4,719 MB/s seq. read
260,691 4K random read IOPS

Memory
16 GB DDR4 ECC, expandable to 48 GB

Scalability
Expand to 36 drives with two DX1222 expansion units

Dependable storage for many scenarios
Synology NAS is a versatile storage platform that fits perfectly in file server, block storage, or application server roles that require high availability, reliability, and leading-edge storage technology.

Multi-purpose NAS storage
Keep digital assets accessible locally or remotely with easy-to-maintain shared file storage, backed by fast SMB file serving, powerful RAID options, efficient backup tools, and granular permission management.

SAN infrastructure for SMBs
Deploy certified block storage with minimal disruption thanks to easy management plugins, and leverage free snapshots paired with built-in high-availability options to maximize service availability.

Versatile business applications
Host business solutions privately and on your own terms, including a powerful backup server to protect all business assets from a centralized platform or a full-fledged surveillance platform to safeguard physical premises with transparent licensing.

Faster performance
Enjoy a smooth experience even with multiple users running demanding applications. See the numbers that make the DS3622xs+ more efficient.

Built to maximize uptime
The DS3622xs+ is built to keep mission-critical data and services accessible, so that businesses can continue to perform even when disaster strikes.

Rise to the challenge
Prepare your DS3622xs+ for the heaviest workloads or upgrade flexibly as your business continues to grow. Use add-in cards to add bandwidth, fast SSD cache, or both.

Out-of-the-box data protection
Protect your data with professional backup software for your Synology NAS, other devices, and applications.

Active Backup Suite
Securely back up Windows clients and servers, Microsoft 365 and Google Workspace accounts, file servers, and VMware® and Hyper-V® virtual machines with the Active Backup Suite.

Implement a 3-2-1 backup strategy
Combine local and remote backup strategies to achieve fully redundant protection of your IT infrastructure using Synology and third-party solutions.

Efficient collaboration and communication
Empower your workforce to collaborate, share files, and communicate from anywhere.

Certified virtual machine storage
Synology DiskStation Manager (DSM) streamlines provisioning for and management of virtual machines with full certification for VMware® vSphere™, Microsoft® Hyper-V®, Citrix® XenServer™, and OpenStack virtualization environments. Synology Storage Console for VMware® or Windows platforms lets you manage storage directly from your hypervisor. VMware® VAAI integration and Windows ODX help offload storage operations and speed up data transfer, and a Kubernetes CSI driver lets you provision and manage volumes directly from the K8s CLI.

Centralized surveillance for your business
Transform the DS3622xs+ into a powerful network video recorder with Synology Surveillance Station.

Secure and private
Footage stored locally is protected by industry-standard AES-256 encryption.

Scale up any time
Connect up to 90 IP cameras from a wide selection of over 7,900 validated models.

Real-time analytics
Take advantage of intelligent monitoring features and receive automatic alerts of security events.

Performance backed by Synology drives
Enjoy high sustained performance and reliability with enterprise-grade drives designed for Synology NAS and featuring built-in data protection.

Get more with DiskStation Manager
Take advantage of a whole host of native productivity, management, and security solutions available on the web-based Synology DSM operating system.

Data Protection
Keep your business safe from data loss and minimize service downtime.

User Management
Manage user accounts and devices throughout your business with powerful directory services.

Security
Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions.

File Management
Manage, sync, and share files from multiple devices through a centralized platform.

System Administration
Manage the health of your deployments and centrally administer updates with ease.

Security
Secure data with comprehensive built-in security tools to protect your devices against evolving threats.

Specifications:

© 2024 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	Synology DS3622xs+
Hardware Specifications
CPU	CPU Model - Intel Xeon D-1531
	CPU Quantity - 1
	CPU Core - 6
	CPU Architecture - 64-bit
	CPU Frequency - 2.2 (base) / 2.7 (turbo) GHz
	Hardware Encryption Engine - Yes
Memory	System Memory - 16 GB DDR4 ECC SODIMM
	Memory Module Pre-installed - 16 GB (8 GB x 2)
	Total Memory Slots - 4
	Maximum Memory Capacity - 48 GB (8 GB x 2 + 16 GB x 2)
Storage	Drive Bays - 12
	Maximum Drive Bays with Expansion Unit - 36 (DX1222 x 2)
	Compatible Drive Type:
	3.5" SATA HDD
	2.5" SATA HDD
	2.5" SATA SSD
	Hot Swappable Drive* - Yes
External Ports	RJ-45 1GbE LAN Port - 2
	RJ-45 10GbE LAN Port - 2
	Out-of-Band Management LAN Port - 1
	USB 3.2 Gen 1 Port* - 2
	Expansion Port - 2
	Expansion Port Type - Mini-SAS HD
PCIe	PCIe Expansion - 1 x Gen3 x8 slot (x8 link)
Appearance	Size (Height x Width x Depth) - 270 mm x 300 mm x 340 mm
	Weight - 9.8 kg
Others	System Fan - 120 mm x 120 mm x 2 pcs
	Fan Speed Mode:
	Full-Speed Mode
	Cool Mode
	Quiet Mode
	Easy Replacement System Fan - Yes
	Power Recovery - Yes
	Noise Level* - 25 dB(A)
	Scheduled Power On / Off - Yes
	Wake on LAN / WAN - Yes
	Power Supply Unit / Adapter - 550 watts
	AC Input Power Voltage - 100V to 240V AC
	Power Frequency - 50/60 Hz, Single Phase
	Power Consumption:
	94.42 watts (Access)
	54.33 watts (HDD Hibernation)
	British Thermal Unit:
	322.39 BTU/hr (Access)
	185.51 BTU/hr (HDD Hibernation)
Temperature	Operating Temperature - 0°C to 40°C (32°F to 104°F)
	Storage Temperature - -20°C to 60°C (-5°F to 140°F)
	Relative Humidity - 5% to 95% RH
Certification	FCC
	CE
	BSMI
	VCCI
	RCM
	UKCA
	EAC
	KC
	UL
Environment	RoHS Compliant
Packaging Content	Main Unit X 1
	Accessory Pack X 1
	AC Power Cord X 1
	RJ-45 LAN Cable X 2
	Quick Installation Guide X 1
Optional Accessories	DDR4 ECC SODIMM: D4ES02-8G/D4ES01-16G
	Expansion Units: DX1222
	Enterprise Series 3.5" SATA HDD: HAT5300 Series
	Plus Series 3.5" SATA HDD: HAT3300 Series
	Enterprise Series 2.5" SATA SSD: SAT5200 Series
	M.2 SSD & 10GbE Combo Adapter Card: E10M20-T1
	M.2 SSD Adapter Card: M2D20
	25GbE Network Interface Card: E25G30-F2
	10GbE Network Interface Card: E10G21-F2/E10G30-T2/E10G18-T1
DSM Specifications
Storage Management	Maximum Single Volume Size:
	200 TB (32 GB memory required)
	108 TB
	Maximum Internal Volume Number - 256
	SSD Read/Write Cache (Determining cache size) - Yes
	SSD TRIM - Yes
	RAID Group - Yes
	Supported RAID Type:
	RAID F1
	Basic
	JBOD
	RAID 0
	RAID 1
	RAID 5
	RAID 6
	RAID 10
	RAID Migration:
	Basic to RAID 1
	Basic to RAID 5
	RAID 1 to RAID 5
	RAID 5 to RAID 6
	Volume Expansion with Larger HDDs:
	RAID F1
	RAID 1
	RAID 5
	RAID 6
	RAID 10
	Volume Expansion by Adding a HDD:
	RAID F1
	JBOD
	RAID 5
	RAID 6
	Global Hot Spare Supported RAID Type:
	RAID F1
	RAID 1
	RAID 5
	RAID 6
	RAID 10
File System	Internal Drives:
	Btrfs
	ext4
	External Drives:
	Btrfs
	ext4
	ext3
	FAT
	NTFS
	HFS+
	exFAT
File Services	File Protocol:
	SMB
	AFP
	NFS
	FTP
	WebDAV
	Rsync
	Maximum Concurrent SMB/AFP/FTP Connections - 4,000
	Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion) - 10,000
	Windows Access Control List (ACL) Integration - Yes
	NFS Kerberos Authentication - Yes
Account & Shared Folder	Maximum Local User Accounts - 16,000
	Maximum Local Groups - 512
	Maximum Shared Folder - 512
	Maximum Shared Folder Sync Tasks - 32
Hybrid Share	Maximum Hybrid Share Folders - 15
Hyper Backup	Folder and Package Backup - Yes
	Entire System Backup - Yes
High Availability	Synology High Availability - Yes
Log Center	Syslog Events per Second - 3,000
Virtualization	VMware ESXi 6.5 and VAAI - Yes
	Windows Server 2022 - Yes
	Citrix Ready - Yes
	OpenStack - Yes
General Specifications	Supported Protocols - SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
	Supported Browsers:
	Chrome
	Firefox
	Edge
	Safari
	Supported Language - English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands and more
Add-on Packages
Antivirus by McAfee (Trial)	Yes
Central Management System	Yes
Synology Chat	Suggested Maximum Users - 4,000
	Suggested Concurrent Users - 500
Download Station	Maximum Concurrent Download Tasks - 80
SAN Manager	Maximum iSCSI Target Number - 256
	Maximum LUN - 512
	LUN Clone/Snapshot, Windows ODX - Yes
Synology MailPlus / MailPlus Server	Free Email Accounts - 5 (Additional accounts require purchase of licenses)
	Suggested Maximum Users - 7,500
	Suggested Concurrent Users - 1,500
	Maximum Server Performance - 4,235,000 emails per day, approx. 129 GB
Media Server	DLNA Compliance - Yes
Synology Photos	Facial Recognition - Yes
	Object Recognition - Yes
Snapshot Replication	Maximum Snapshots per Shared Folder - 1,024
	Maximum of System Snapshots - 65,536
Surveillance Station	Default Licenses - 2 (Additional cameras require purchase of licenses)
	Suggested Maximum IP Cameras and Total FPS (H.264):
	720p: 90 channels, 2700 FPS
	1080p: 90 channels, 2250 FPS
	3M: 90 channels, 1500 FPS
	5M: 90 channels, 900 FPS
	4K: 55 channels, 550 FPS
	Suggested Maximum IP Cameras and Total FPS (H.265):
	720p: 90 channels, 2700 FPS
	1080p: 90 channels, 2700 FPS
	3M: 90 channels, 2250 FPS
	5M: 90 channels, 1500 FPS
	4K: 90 channels, 1080 FPS
Synology Drive	Recommended Number of Concurrent Sync Clients - 1,800 (the number of connections that can be maintained when the recommended number of hosted files was reached)
	Recommended Number of Hosted Files - 50,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
Synology Office	Suggested Maximum Users - 12,500
	Suggested Concurrent Users - 5,000
Video Station	Yes
Virtual Machine Manager	Recommended Virtual Machine Instances - 12
	Recommended Virtual DSM Number (Licenses required) - 12 (including 1 Free License)
VPN Server	Maximum Connections - 60
