DS-SCCV50PB

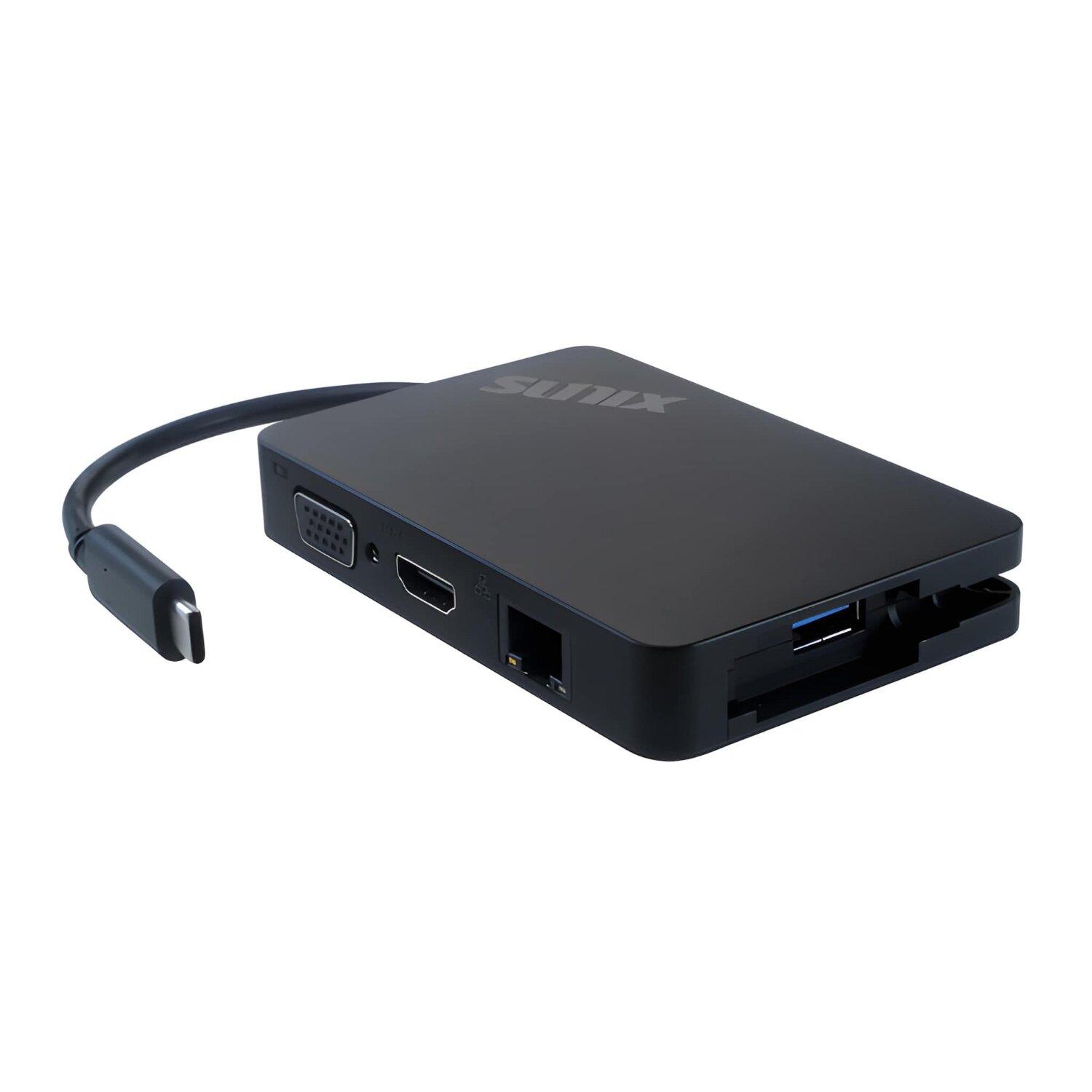

Sunix CCV50PB USB-C Portable Mini Dock Plus Power with USB 3.0 / Gigabit Ethernet / VGA / HDMI / Power Charging

About this product

The SUNIX CCV50PB USB-C Mini Dock is a compact 4-in-1 docking station that expands a compatible USB Type-C laptop or computer with HDMI, VGA, Gigabit Ethernet and USB 3.0 connectivity. It supports HDMI or VGA video output up to 1920 x 1200 at 60Hz, USB 3.0 data transfer up to 5Gbps and 10/100/1000Mbps Ethernet. Its compact 102 x 66 x 16mm design and 150mm tethered cable make it suitable for home, office and mobile workstation use. Buy now from our website for a practical USB-C connectivity solution in South Africa.

Overview Summary

SUNIX CCV50PB USB-C Mini Dock provides multiple connectivity options from a single USB Type-C connection. The dock includes HDMI and VGA display outputs, one USB 3.0 Type-A port and one Gigabit Ethernet port, making it useful for connecting external displays, wired networks and USB peripherals to compatible computers.

The CCV50PB supports HDMI and VGA resolutions up to 1920 x 1200 at 60Hz, while the USB 3.0 port supports data transfer speeds up to 5Gbps. HDMI can provide digital audio output, while VGA is intended for video only. The compact ABS housing measures 102 x 66 x 16mm and includes a 150mm tethered USB Type-C cable for convenient portable use.

What tier does this fall into?

Mid-range USB-C connectivity dock

What is this best for?

Laptop docking, external display connection, office presentations, wired networking, USB peripheral connection, mobile workstations

Overview

SUNIX portable Mini Dock (CCV50PB) offers the combined functionality of a 4in1 USB 3.0 device docking station, converting a single USBC port into multiple connection ports, including a HDMI (video & audio), VGA, Gigabit Ethernet network, and USB 3.0 connectivity. There's no need to plug in multiple cables every time you return to your desk, making easy to connect your USB Type C equipped laptop to a complete workstation. HDMI/VGA/Ethernet/USB 3.0 connects your USBC equipped mobile computer to an external display with your choice of HDMI or VGA outputs. You can also connect to the internet and all your necessary external USB peripherals via Ethernet and USB 3.0 ports. With USB Power Delivery feature, it enables the maximum functionality of USB by providing more flexible power delivery along with data over an USB TypeC tethered cable. This small, multipleinterfaces, tethered cable included, compact dock will replace up to 3 dongles, leaving you more space in your bag and on your desk. It's compatible with major Windowsbased PC, Apple MACOS, and Google Chrome operation system.

Description

The SUNIX CCV50PB is a compact USB-C portable mini dock designed to expand the connectivity of compatible USB Type-C computers. A single USB Type-C connection provides access to HDMI, VGA, Gigabit Ethernet and USB 3.0 connectivity, reducing the need for multiple separate adapters when setting up a workstation or connecting a laptop to external equipment.

For display connectivity, the dock provides one HDMI 1.4 port and one VGA RGB D-Sub 15-pin port. Both video outputs support resolutions up to 1920 x 1200 at 60Hz. HDMI supports digital audio output, while VGA does not carry audio. HDMI and VGA video outputs cannot operate synchronously.

The USB 3.0 Type-A port supports SuperSpeed data transfer up to 5Gbps and is suitable for compatible USB peripherals and storage devices. The Gigabit Ethernet port supports 10/100/1000Mbps networking with Auto MDIX and uses an RJ45 connector with LED indication.

The CCV50PB also supports USB Power Delivery 2.0 through its USB Type-C connection and can provide power charging functionality where supported by the connected system and power source. The dock is driver free on supported Windows, Apple Mac and Google Chromebook systems.

Measuring 102 x 66 x 16mm and weighing 50g, the SUNIX CCV50PB is designed for portability. The integrated 150mm tethered USB Type-C cable helps keep the dock and connection cable together when transporting the device between home, office and other work locations.

Features

The SUNIX CCV50PB combines commonly required laptop connectivity features into one compact USB-C docking solution.

USB Type-C connection with USB Type-C Alternate Mode support.
HDMI 1.4 video output supporting up to 1920 x 1200 at 60Hz.
VGA RGB D-Sub 15-pin video output supporting up to 1920 x 1200 at 60Hz.
HDMI provides digital audio output.
HDMI and VGA video outputs are selectable and do not operate synchronously.
One USB 3.0 Type-A port with data transfer speeds up to 5Gbps.
Gigabit Ethernet connectivity supporting 10/100/1000Mbps.
IEEE 802.3, IEEE 802.3u and IEEE 802.3ab Ethernet standards support.
Auto MDIX support for Ethernet connectivity.
USB Power Delivery 2.0 support for compatible systems.
Supports USB bus power through USB Type-C.
USB Type-A port supports BC charging v1.2 up to 1.5A.
Driver free operation on supported Windows, Apple Mac and Google Chromebook systems.
Compact ABS housing suitable for portable use.
Integrated 150mm tethered USB Type-C cable.
Green LED indicator for USB link ready status.

What's in the Box

1 x SUNIX CCV50PB USB-C Portable Mini Dock
1 x Integrated 150mm USB Type-C tethered cable

Specifications

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications and features
Product Code	DS-SCCV50PB
Hardware
Model	CCV50PB
Description	USB-C Portable Mini Dock Plus Power with USB 3.0 / Gigabit Ethernet / VGA / HDMI / Power Charging
USB Standard	USB 3.1 Gen1 Controller Interface (xHCI) Rev1.1
Input Interface	USB Type-C
Input Interface	USB Type-C Alternate Mode
Output Interface	USB Power Charging Type-C x 1-port
	USB 3.0 Type-A x 1-port
	Gigabit Ethernet x 1-port
	VGA(RGB) x 1-port
	HDMI Ver1.4 x 1-port
LED indicator	Green for USB Link Ready
Power Consumption	USB Bus Power 2W @ 5VDC
Power Consumption	(board only without power output to device)
USB Communication
Interface	USB 3.1 Gen1 Controller Interface (xHCI) Rev1.1
Output USB Port	USB Type-A Female Receptacle
	USB 3.0(5Gbps), High Speed(480Mbps)
	Full Speed(12Mbps), Low Speed (1.5Mbps)
No. of Port	1-port
Power source	USB Bus-Power 5V@1.5A from USB Type-C
Power source	USB Power Delivery 5/20VDC
Power output	USB port supports BC charging v1.2 5VDC / Maximum 1.5A
Over Current Protection	USB Type-A Port: 5VDC
Ethernet Communication
Standard	IEEE 802.3/ 802.3u/ 802.3ab
Interface	Gigabit Ethernet
Interface	10/100/1000 Mbps with Auto MDIX
No. of Port	1-port
PCB Connector	RJ45 with LED Indication
Video and Audio Communication
Mode	Extend mode, Mirror mode, Screen Rotation mode
Standard	HDMI Ver1.4b
Standard	VGA RGB
Video	HDMI: Max resolution up to 1920x1200 @ 60Hz
	VGA: Max resolution up to 1920x1200 @ 60Hz
	Note: HDMI and VGA video output will NOT work synchronously.
Resolution Support	Resolution : Name : Refresh Rate
	640x480 : VGA : 60
	800x600 : SVGA : 60
	1024x768 : XGA : 60
	1280x720 : 720p : 60
	1280x768 : WXGA : 60
	1280x800 : WXGA : 60
	1280x1024 : SXGA : 60
	1366x768 : WXGA : 60
	1400x1050 : SXGA : 60
	1600x900 : - : 60
	1600x1200 : UXGA : 60
	1680x1050 : WSXGA : 60
	1920x1080 : 1080p : 60
	1920x1200 : WUXGA : 60
Audio	Digital Audio output over HDMI connectivity
Audio	Note: VGA does not support audio output
PCB Connector	Standard HDMI Female x 1-port
PCB Connector	VGA D-Sub 15-pin Female x 1-port
Driver Support (Driver Free)
Windows	Windows 10 (32/64-bit) or above
APPLE MAC	MAC OS X 10.10 (Yosemite) or above
Google Chrome	Chrome OS Version 42.x or above
Environment
Operation temp.	0 degreesC ~ 60 degreesC (32-140degreesF)
Operation humidity	5 to 95% RH
Storage temp	-20 degreesC ~ 70 degreesC (-4~158degreesF)
Standards and Certifications
EMC	EUR: CE, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3
	US: FCC Part 15 Class B
	TAIWAN: BSMI: CNS13438
	JAPAN: VCCI
Green	RoHS, CRoHS, WEEE
Physical Characteristics
Weight	50g (1.8oz)
Case Material	ABS (plastic)
	102(L)x66(W)x16(H) mm
	Tethered Cable length: 150mm

FAQ

What is the SUNIX CCV50PB used for?

The SUNIX CCV50PB expands a compatible USB Type-C computer with HDMI, VGA, Gigabit Ethernet and USB 3.0 connectivity. It is suitable for laptops, office workstations, presentations and portable computing setups.

What display resolutions does the SUNIX CCV50PB support?

The HDMI and VGA outputs support resolutions up to 1920 x 1200 at 60Hz. HDMI and VGA cannot be used for synchronous video output.

Does the SUNIX CCV50PB support USB 3.0?

Yes. The dock provides 1 x USB 3.0 Type-A port with data transfer speeds up to 5Gbps for compatible USB devices.

Does the SUNIX CCV50PB support Gigabit Ethernet?

Yes. The RJ45 Ethernet port supports 10/100/1000Mbps Gigabit Ethernet with Auto MDIX and IEEE 802.3, IEEE 802.3u and IEEE 802.3ab standards.

Does the SUNIX CCV50PB support HDMI audio?

Yes. Digital audio output is supported through HDMI. VGA does not support audio output.

Is the SUNIX CCV50PB compatible with Windows and Mac?

The manufacturer lists driver free support for Windows 10 32-bit or 64-bit and above, Mac OS X 10.10 Yosemite and above, and supported Chrome OS versions. The host computer must support the required USB Type-C Alternate Mode functionality.

Does the SUNIX CCV50PB support USB Power Delivery?

Yes. The CCV50PB supports USB Power Delivery 2.0 through its USB Type-C connection. Actual power delivery and available power output depend on the connected system and power supply.
