SHELLY WALL DISPLAY XL BLACK

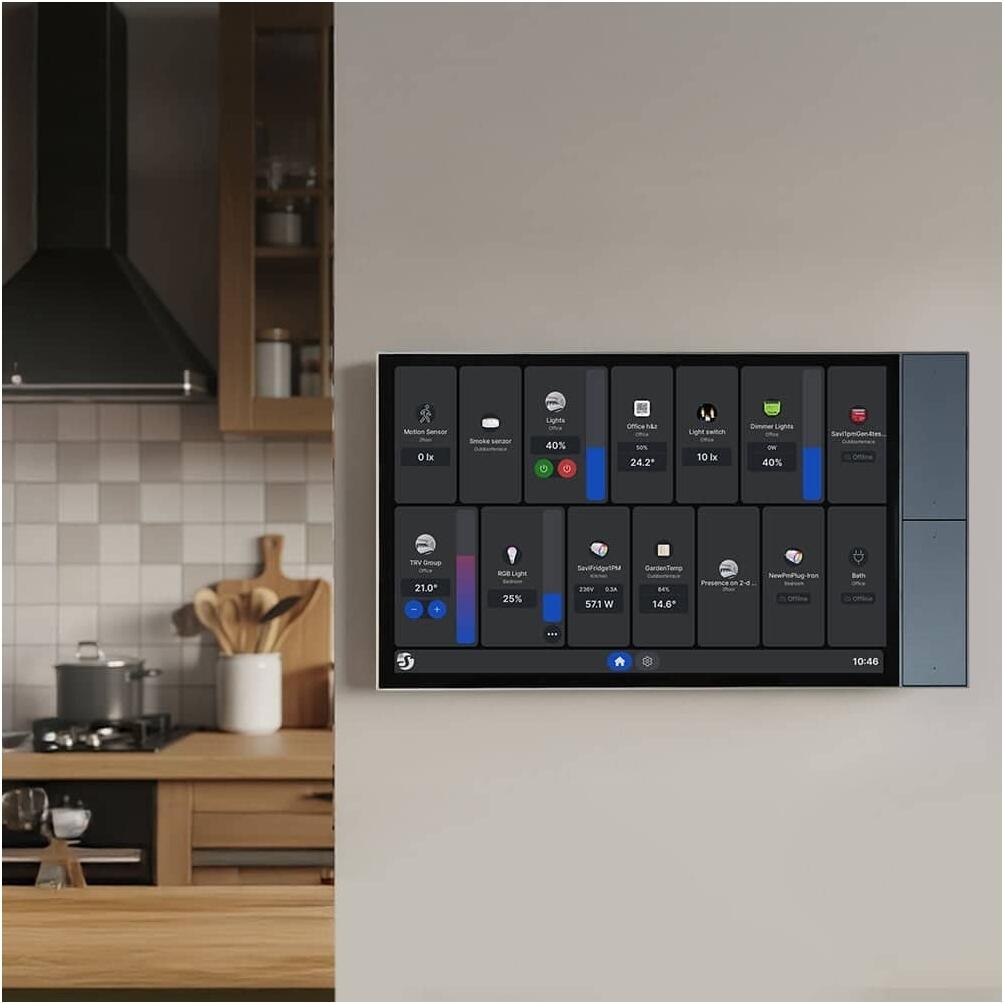

Shelly Wall Display XL - Smart Home Control Panel with a 10.1" Touch Display

Shelly Wall Display XL - Smart Home Control Panel with a 10.1" Touch Display, 5-point 1280x752 Touch Screen, Wall Box mounting, 2x 2 W Speaker, 1 Button for turning On/Off the screen, 4 control buttons, Light Sensor, Four-microphone line Array, Proximity Sensor, Wi-Fi 6 Dual Band, Bluetooth, Rockchip RK3566 Quad Core Cortex-A55 1.8GHz CPU, 2GB RAM, 32GB Flash, Android 11 system, Built-In Relay switching controlling appliances up to 1500W, Integrated Media player & Internet Radio support

Overview:

Smart Home Control Panel with Large Touch Display
The Shelly Wall Display XL is a modern smart home control panel designed to centralize and simplify how you interact with connected devices. Built around a responsive 10.1 inch touchscreen, it provides a clear, intuitive interface for managing lighting, appliances, climate systems, and more. Designed for installation in a standard wall box, it fits seamlessly into residential or commercial environments such as homes, apartments, hotels, and shared spaces.

With a fast quad core processor and Android 11 operating system, the interface responds instantly to user input, ensuring smooth navigation between controls, scenes, and media. Integrated connectivity via WiFi 6 and Bluetooth enables flexible communication with a wide range of smart devices, while built in speakers and media support extend its functionality beyond control into entertainment.

Description:

The Shelly Wall Display XL BLACK is a wall mounted smart control hub that combines a high resolution touchscreen, built in relay switching, and customizable controls into a single device. It allows users to manage multiple smart devices from one central interface, reducing reliance on mobile apps. With dual band WiFi, Bluetooth support, and compatibility with platforms like Home Assistant, it integrates easily into existing smart ecosystems. The addition of physical control buttons, sensors, and media playback capabilities makes it suitable for both automation and everyday convenience, offering a streamlined and efficient smart home experience.

Features:

Part Number and Identification
Part Number / SKU: SHELLY WALL DISPLAY XL BLACK

Centralized Control for Everyday Use
This wall mounted display eliminates the need to move between rooms or rely solely on mobile devices. Lights, HVAC systems, and appliances can be controlled directly from the screen with minimal effort. The interface can be tailored to display commonly used devices, making daily interaction faster and more efficient.

Physical buttons complement the touchscreen by offering quick access to key actions. These can be configured for tasks such as switching off all lights, activating scenes, or controlling specific devices without navigating menus.

Energy Awareness and Monitoring
Real time power monitoring helps track consumption across connected devices. By visualizing usage patterns, users can identify inefficiencies and adjust behavior to reduce energy costs. This is particularly useful in larger homes or commercial spaces where multiple systems run simultaneously.

Connectivity and Integration
The Shelly Wall Display XL operates over dual band WiFi 6 and Bluetooth 5.4, ensuring stable and fast communication. It supports integration with platforms such as Home Assistant, MQTT, and webhooks, allowing advanced automation and system interoperability.

Remote access via the Shelly Smart Control app ensures that users can monitor and manage their environment even when off site, maintaining control over devices and automation routines.

Custom Interface and Automation
The interface can be customized with widgets, device groups, and shortcuts to match user preferences. Scenes can be created to automate multiple actions simultaneously, such as adjusting lighting, temperature, and device states with a single tap.

Automation extends to scheduled actions and triggers, allowing the system to respond dynamically to time or conditions without manual input.

Media and Audio Control
Built in stereo speakers and media playback support allow the device to function as a basic entertainment hub. Users can stream internet radio or control external audio systems, including Bluetooth and compatible speaker setups, directly from the display.

Application Scenarios

• Appliance control for lights, fans, heaters, and small devices using the integrated relay
• Climate automation through scheduled or triggered heating and cooling adjustments
• Scene activation for routines like leaving home or starting the day
• Energy monitoring to identify and reduce unnecessary consumption
• Guest friendly environments in rentals or hotels with simple on screen controls
• Remote management of devices and systems from anywhere

Core Technical Details

• Display: 10.1 inch touchscreen, 1280 x 752 resolution, 5 point capacitive touch
• Processor: Rockchip RK3566 quad core Cortex A55 at 1.8 GHz
• Memory: 2 GB RAM, 32 GB flash storage
• Operating system: Android 11
• Connectivity: WiFi 6 dual band 2.4 GHz and 5 GHz, Bluetooth 5.4
• Audio: Dual 2 W speakers with enclosed sound cavity
• Relay output: Supports appliance control up to 1500 W
• Sensors: Light sensor, proximity sensor, four microphone array
• Power supply: 100 to 240 V AC, USB Type C support
• Mounting: Standard wall box installation

Physical and Environmental Details

• Dimensions: 155.8 x 272.5 x 38.3 mm
• Weight: 920 g
• Operating temperature: -20 C to 40 C
• Humidity range: 30 percent to 70 percent RH
• Construction: Metal, coated PC, and glass front

Flexible Smart Environment Control
The Shelly Wall Display XL BLACK integrates control, monitoring, and automation into a single wall mounted unit. By combining responsive hardware, broad connectivity, and a customizable interface, it reduces complexity while improving accessibility across smart environments. Suitable for both residential and commercial deployments, it delivers a practical and scalable control solution.

Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	SHELLY WALL DISPLAY XL BLACK
Physical
Size (HxWxD)	155,8x272,5x38,3 mm / 6.13x10.7x1.50 inch
Weight	920 g / 32.45 oz
Touch Screen	5-point capacity screen, G+FF touch
Screen resolution	1280x752 px
Screw terminals max torque	0.4 Nm / 3.5 lbin
Conductor cross section	0.75 to 2.5 mm² / 18 to 14 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length	15 mm / 0.24 to 0.59 in
Mounting	Wall box
Shell material	Metal stamping, PC with coating, glass
Shell color	Black with Grey frame
	Black with Black frame
Speaker	2x 2 W (BOX sound cavity)
Environmental
Ambient working temperature	-20 degreesC to 40 degreesC / -5 degreesF to 105 degreesF
Humidity	30 % to 70 % RH
Max. altitude	2000 m / 6562 ft
Electrical
Power supply	100 - 240 V~ 50/60Hz
Power consumption	< 15 W
USB TYPE-C power supply	5 V / 3 A
Power Button	1 button for turning On/Off the screen
Control Buttons	4 functional buttons for setting
Output circuits ratings
Max. switching voltage	240 V~
Max. switching current	2 Amp
Output (AC)	100 - 240 V~ 50/60Hz
Output (USB TYPE-C)	5 V / 0.5 A
Sensors, meters
Internal-temperature sensor	No
Ambient temperature sensor	No
Humidity sensor	No
Light sensor	Yes
Microphone	Yes (Four-microphone line array)
G-sensor	No
Proximity sensor	Yes (≤1 meter)
Wi-Fi
Protocol	Wi-Fi 6 Dual Band
RF band	2.4 & 5 GHz
Max. RF power	< 20 dBm
Range	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
	(Depends on local conditions)
Bluetooth
Protocol	5.4
RF band	2402 - 2480 MHz
Max. RF power	< 4 dBm
Range	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
	(Depends on local conditions)
Microcontroller unit
CPU	Rockchip RK3566 Quad core Cortex-A55 1.8GHz
RAM	2 GB
Flash	32 GB
System	Android 11
Firmware capabilities
Schedules	20
Webhooks (URL actions)	20 with 5 URLs per hook...
Scripting	No
MQTT	Yes
