HR10

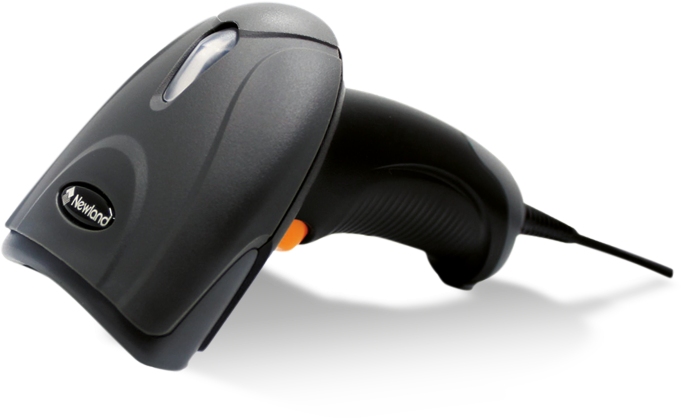

Newland HR10 Sardina 1D CCD handheld reader USB

Newland HR10 Sardina 1D CCD handheld reader USB, Grey top cover with USB cable, Autosense, including foldable stand (No Smart stand support), CCD 1500 image sensor, Red LED illumination, Scan modes - trigger / Sense / continuous mode / command trigger mode, 300 scans per second

Features:

Delivers outstanding value.
Designed as an entry-level 1D barcode scanner, the HR1060 Sardina provides excellent value for everyday use. The device is easy and comfortable to use and can stand up to everyday drops and bumps, making it a reliable investment.

Reduces the need for training.
Intuitive to use, the HR1060 Sardina requires little to no set up or training. From the moment the device is taken out of the box, employees can comfortably use the device all day due to its light design, speed and simplicity. It is equipped with a fast and accurate Newland 1D scanning engine. The result? Aggressive linear barcode reading that eliminates delays in scan-intensive applications.

Built for the task at hand.
From barcodes printed on paper to barcodes displayed on a smartphone screen, the HR1060 Sardina scans virtually all linear barcodes with ease. Its ability to read barcodes from a distance improves worker comfort when scanning larger boxes or out-of-reach products in a cart.

Foldable stand available.
A foldable stand is available either as an accessory or as a set that includes both the scanner and stand.

Application scenarios.
Retail chains, office automation, mail/parcel sorting, distribution.

Specifications:

© 2021 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	HR10
Performance
Processor	0110 Chip
Image Sensor	CCD 1500
Illumination	Red LED (610nm~640nm)
Depth of Field EAN13 (13mil)	52-595mm
Depth of Field CODE 39 (5mil)	55-130mm
Minimal Print Contrast	30%
Scan Angle Roll	30°
Scan Angle Pitch	±60°
Scan Angle Skew	±60°
Field of View Horizontal	38.2°
Scan Modes	Trigger, Sense, Continuous Mode, Command Trigger Mode
Scan Rate	300 scans per second
Data capture
1D	EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey.
Physical
Dimensions (mm)	101(L)x68(W)x145(H)mm
Weight	190g (USB cable included)
Material	PC, ABS
Buttons	Trigger
Interfaces	RS-232, USB, PS/2
Notifications	Beep, LED indicator
Input Voltage	5VDC±5%
Current @ 5VDC Operating	115±10mA
Current @ 5VDC Standby	14mA
Power Supply Input	DC5V, 1.5A
Power Supply Output	AC100~240V, 50~60Hz
Environmental
Operating Temperature	-20°C to 60°C (-4°F to 140°F)
Storage Temperature	-40°C to 80°C (-40°F to 176°F)
Humidity	5%~95% (non-condensing)
Electro Static Discharge (ESD)	±8 KV (contact discharge), ±10 KV (air discharge)
Drop	1.2m
Sealing	IP42
Accessories
Optional	RS232 Cable, PS/2 Cable, Adapter
Standard	USB Cable
Certifications
Certifications	FCC Part15 Class B, CE EMC Class B, RoHS
