Overview:

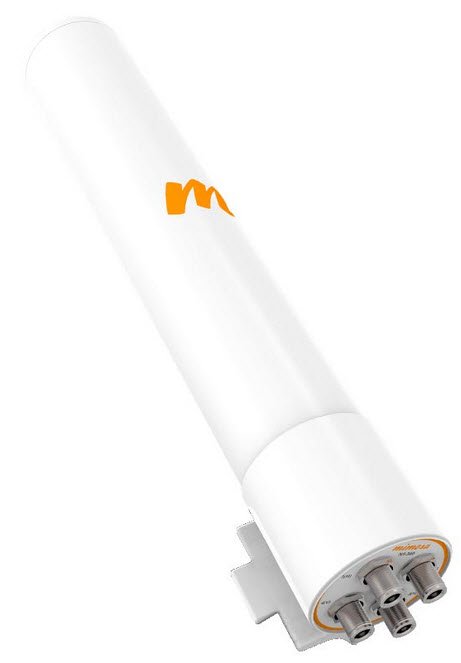

Introducing the industry’s first 4-port, beamforming, 360º antenna specifically designed exclusively for Mimosa’s A5c access point. The N5-360 antenna’s unique design incorporates quad-180º overlapping antenna polarizations, doubling the coverage of Mimosa MicroPoP deployments with 3 dB of beamforming gain. The N5-360 boosts throughput by providing balanced dual-stream coverage over 360º of azimuth. Without sacrificing performance, the N5-360 operates over a wide frequency range, from 4.9 to 6.4 GHz, supporting licensed public safety bands and other expanded frequencies, where permitted by region.

Features:

LONGER-RANGE MICROPOPS
Double the coverage area with 60% longer reach for MicroPoP deployments, easily handling deployments to homes within 500 m in dense, last mile, suburban areas.

WIDE-FREQUENCY RANGE
The only antenna available for use between 4.9 to 6.4 GHz, delivering incredible spectrum flexibility.

OPTIMIZED FOR 360º THROUGHPUT
Enhanced C5 and C5c subscriber speeds through new, balanced, multi-stream technology.

BEAMFORMING INNOVATION
3 dB performance enhancement in a compact design, with all new quad-180º overlapping antenna polarizations that enable range-extending, beamforming technology.

Specifications:

© 2019 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	MIM-N5-360
Gain	15 dBi
Frequency	4.9-6.4 GHz
Azimuth Beamwidth	360º via 4 overlapping 180º sectors
Elevation Beamwidth (3 db)	8º
Downtilt	2º
Dimensions	Height: 465 mm (18.31") including bracket
	Width: 80 mm (3.15")
Weight	1.11 kg (2.45 lbs)
RF Connectors	4 N-type female
