RBCAPGI-5ACD2ND-XL

MikroTik cap AC XL Dual Band AC PoE ceiling Mount Access Point, 2x LAN

MikroTik cap AC XL Dual Band AC PoE ceiling Mount Access Point, RBcAPGi-5acD2nD-XL, IPQ-4018 CPU, RouterOS license 4, 128 MB RAM, 16 MB storage size, 300 Mbit/s Wireless 2.4 GHz Maximum Data rate, 802.11b/g/n, 867 Mbit/s Wireless 5 GHz Maximum Data rate, 802.11a/n/ac, 2x 10/100/1000 Ethernet Ports ( 1x Gigabit Ethernet Port with PoE-out & 1x (POE-in) DC input)

Overview:

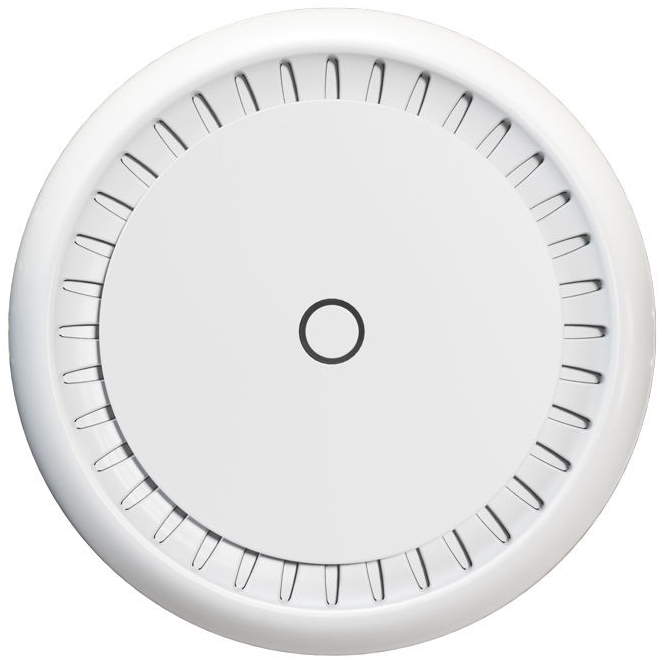

cAP XL ac
The ceiling AP on steroids! Our bestseller cAP is back - juiced up and stronger than ever. Compared to the previous cAP models, the improved high-gain antenna increases the covered area by up to 100%!

Need a nice-looking access point that wont get in your way? Or perhaps youre managing the network in a crowded place and dont want everyone to have physical access to the device? Either way - ceiling is the answer! The device itself is pretty sleek - the low profile attracts less attention than a smoke detector. Your clients, guests, or colleagues wont even notice it. But they will definitely notice the blazing fast wireless connection all across the premises.

The new design features a larger high-gain antenna, higher sensitivity, and a built-in reflector. These improvements allow increasing the covered area by up to 100%, compared to the previous cAP models!

The dual-band, dual-chain 2.4 and 5 GHz wireless radio provides a strong coverage in 360 degrees around it, so you dont have to worry about the placement of the device so much. Putting it on the ceiling eliminates many signal absorption problems, such as the signal being blocked by large TV sets, metal cubicle walls in open space offices, etc.

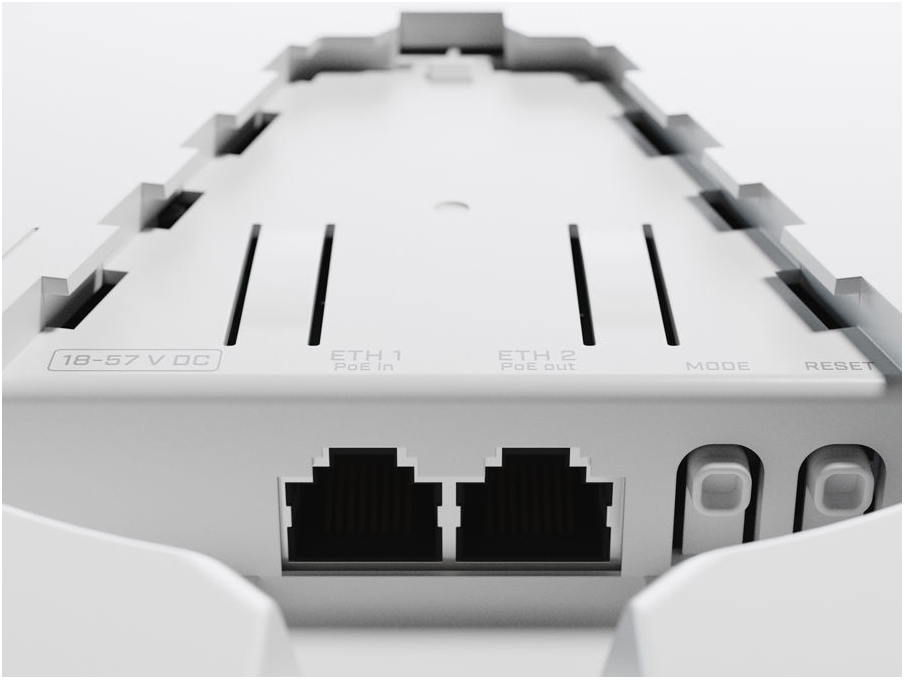

Even though the radio supports repeater mode, the two Gigabit Ethernet ports give you the ability to extend your network with cables, even if PoE power is required: the cAP XL ac supports 802.3af/at PoE input on the first port and passive PoE output (up to 57V) on the second port.

Specifications:

© 2023 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	RBCAPGI-5ACD2ND-XL
Specifications
Product code	RBcAPGi-5acD2nD-XL
Architecture	ARM 32bit
CPU	IPQ-4018
CPU core count	4
CPU nominal frequency	716 MHz
RouterOS license	4
Operating System	RouterOS
Size of RAM	128 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
IPsec hardware acceleration	Yes
Wireless capabilities
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	6
Wireless 2.4 GHz chip model	IPQ-4018
Wireless 2.4 GHz generation	Wi-Fi 4
Wireless 5 GHz Max data rate	867 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n/ac
Antenna gain dBi for 5 GHz	5.5
Wireless 5 GHz chip model	IPQ-4018
Wireless 5 GHz generation	Wi-Fi 5
AC speed	AC1200
Ethernet
10/100/1000 Ethernet ports	2
Number of 1G Ethernet ports with PoE-out	1
Powering
Number of DC inputs	1 (PoE-IN)
Max power consumption	24 W
Max power consumption without attachments	11 W
FAN count	Passive
PoE in	802.3af/at
PoE in input Voltage	18-57 V
PoE-out
PoE-out ports	Ether2
PoE out	Passive PoE up to 57V
Max out per port output (input 18-30 V)	500 mA
Max out per port output (input 30-57 V)	330 mA
Max total out (A)	500 mA
Certification & Approvals
Certification	CE, FCC, IC, EAC, ROHS
Other
Mode button	Yes
