MT-RBWAP-LTEV2

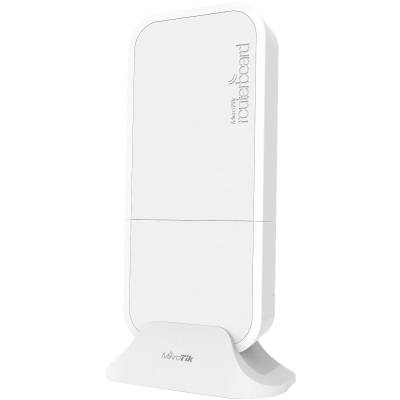

MikroTik wAP LTE kit (2024) - Weatherproof LTE CPE with 2.4GHz Wireless

MikroTik wAP LTE kit (2024) - Weatherproof LTE CPE with 2.4GHz Wireless, wAPR-2nD&EC200A-EU, 650 MHz CPU, RouterOS License 4, RouterOS V7 Operating System, 64 MB RAM, 16 MB storage size, 3 DC inputs (PoE-in / DC jack / automotive), 300 Mbit/s Wireless 2.4GHz Max Data rate, 1x 10/100 Ethernet Port, 1 Modem (Mini SIM), 1 Mini PCI-e slots

Overview:

wAP LTE kit (2024)
A refresh of the classic weatherproof wAP LTE kit - with a new LTE modem that brings the PRICE DOWN and the performance UP! Disruptive pricing: the best OUTDOOR LTE/WI-FI deal on the market if you're on a tight budget.

wAP LTE kit is a tiny weatherproof wireless access point for installation outside your house, in the garden, on your porch, or in any other challenging environment where you need a capable wireless connection on the tightest budget possible. It features an Ethernet port with passive PoE-in, but there are more ways to power this affordable access point: there's also a standard DC jack and an automotive plug.

The new revision features a new LTE modem that offers improved connectivity, the addition of the popular B28 band, and a massive price drop!

wAP LTE kit is weatherproof and can be fixed to any external wall from the inside of the case - for extra security and less visible attachments. The bottom part can also be secured with a special anti-vandal screw, which can only be opened by the owner. There is an opening in the back of the case, allowing you to run the Ethernet cable directly behind the unit and through the wall. This way the wAP attracts less attention and blends into any environment.

Specifications:

© 2024 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	MT-RBWAP-LTEV2
Specifications
Product code	wAPR-2nD&EC200A-EU
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz
RouterOS license	4
Operating System	RouterOS v7
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	-40°C to 60°C
Powering
Number of DC inputs	3 (PoE-IN, DC jack, Automotive)
DC jack input Voltage	9-30 V
Automotive input Voltage	9-30 V
Max power consumption	7 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	9-30 V
Mobile
2G Category	Class12
2G bands	8 (900MHz) / 3 (1800MHz)
3G Category	R7 (21Mbps Downlinks, 5.76Mbps Uplink)
3G bands	5 (850MHz) / 8 (900MHz) / 1 (2100MHz)
LTE Category	4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands	20 (800MHz) / 3 (1800MHz) / 1 (2100MHz) / 7 (2600MHz) / 8 (900 MHz) / 5 (850MHz) / 28 (700MHz)
LTE TDD bands	40 (2300MHz) / 38 (2600MHz) / 41 (2500MHz)
TAC	86314105
Wireless specifications
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	2
Wireless 2.4 GHz chip model	QCA9531
Wireless 2.4 GHz generation	Wi-Fi 4
Ethernet
10/100 Ethernet ports	1
Peripherals
Number of SIM slots	1 Modem (Mini SIM)
MiniPCI-e slots	1
Other
PCB temperature monitor	Yes
Voltage Monitor	Yes
Certification & Approvals
Certification	CE, E-MARK, EAC, ROHS
IP	54
