MT-RBWAP-LTE7-AX

MikroTik wAP AX LTE7 - Weatherproof CAT7 LTE CPE with Dual-Band Wi-Fi 6

MikroTik wAP AX LTE7 - Weatherproof CAT7 LTE CPE with Dual-Band Wi-Fi 6, wAPGR-5HaxD2HaxD&R11e-LTE7, RouterOS V7 Operating System, 256MB RAM, 128 MB storage size, DC jack / PoE-in, LTE category 7, DL 300 Mbps, UL 100 Mbps, Wi-Fi 6, 1200 Mbit/s 5GHz Max Data rate, 574 Mbit/s 2.4GHz Max Data rate, 2x Gigabit Ethernet Ports, 1x SIM (Micro SIM) slot, 1 Mini PCI-e slots

Overview:

MikroTik wAP AX LTE7 Outdoor WiFi 6 LTE Router
The wAP ax LTE7 kit builds on the proven reliability of earlier models, introducing faster connectivity, stronger hardware, and improved wireless performance. Designed for outdoor deployment, it combines a CAT7 LTE modem with dual-band WiFi 6 to deliver stable internet access in remote or demanding environments such as rural homes, service stations, or transport stops. The updated enclosure enhances durability while maintaining a discreet, low-profile appearance suitable for both public and private installations.

Description:

The MikroTik wAP AX LTE7 is a weatherproof outdoor LTE access point engineered for dependable connectivity in challenging conditions. It integrates a high-speed CAT7 LTE modem with WiFi 6 technology to provide faster uploads, improved responsiveness, and wider coverage. With a robust ARM-based platform running RouterOS v7, it supports advanced networking features including VPN performance and centralized management. Its compact, vandal-resistant design ensures secure installation, while flexible power options and dual Gigabit Ethernet ports make deployment straightforward across a wide range of use cases.

Features:

Built for Reliable Outdoor Connectivity
Engineered with an IP66-rated enclosure, this unit is designed to withstand harsh weather while maintaining consistent performance. The housing includes a concealed mounting system and anti-vandal screw, making it suitable for exposed environments where security and durability are critical.

The improved LTE antenna design and higher gain ensure better signal reception and stability, even in areas with weak or congested networks. This makes it particularly effective for rural connectivity or locations where fixed-line internet is unavailable.

WiFi 6 Performance with Wider Coverage
The integrated dual-band WiFi 6 radio delivers efficient and stable wireless coverage across both 2.4 GHz and 5 GHz bands. With 2x2 MIMO chains on each band, the device ensures reliable throughput for multiple connected devices across homes, yards, or small business premises.

Key wireless capabilities include:

• Up to 574 Mbps on 2.4 GHz for broader coverage and compatibility
• Up to 1200 Mbps on 5 GHz for higher-speed connections
• Improved efficiency and reduced latency with WiFi 6 technology
• Enhanced antenna gain for stronger and more consistent signal distribution

CAT7 LTE for Faster and Smarter Connectivity
Upgrading to LTE Category 7 introduces meaningful performance improvements, particularly in upload speeds and network efficiency. This is especially relevant for cloud applications, video streaming, and remote monitoring setups.

Advantages of CAT7 LTE include:

• Download speeds up to 300 Mbps and upload speeds up to 100 Mbps
• Carrier aggregation (2xCA) for improved network responsiveness
• Expanded band support including B28 and B32 for better coverage in busy or rural areas
• Improved overall stability in congested mobile networks

Efficient Hardware and RouterOS v7 Control
Powered by a dual-core ARM CPU, the device is optimized for stable operation and advanced networking tasks. RouterOS v7 enables granular control, making it suitable for both standalone deployments and centrally managed networks.

Hardware and system highlights:

• ARM 64-bit architecture with dual-core 800 MHz CPU
• 256 MB RAM and 128 MB NAND storage
• RouterOS Level 4 license for advanced configuration
• CAPsMAN support for centralized device management
• Strong VPN performance for secure remote access

Flexible Installation and Power Options
The device supports multiple powering methods, allowing it to adapt to different installation scenarios. Its compact form factor and internal mounting design make it easy to deploy discreetly.

Installation and connectivity options:

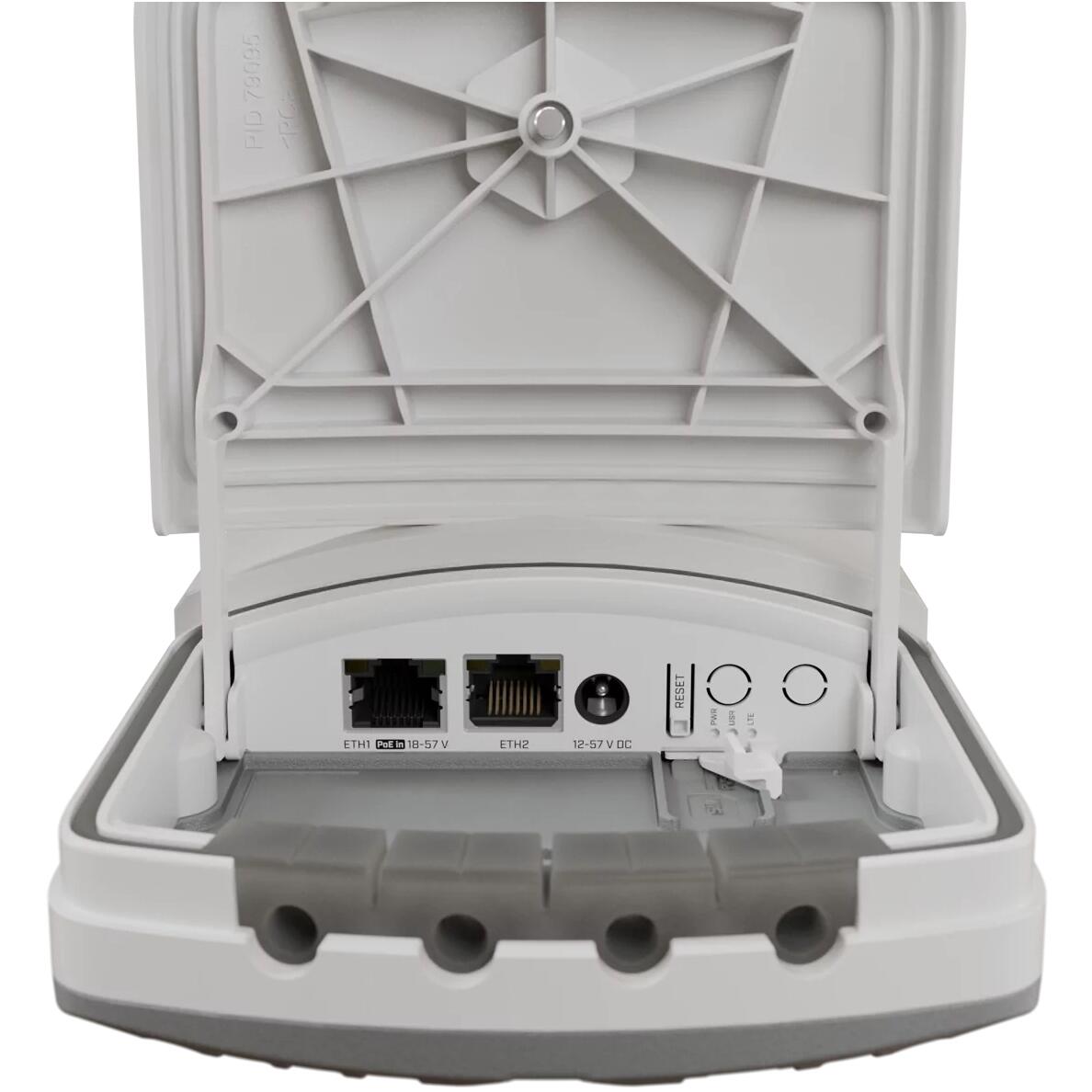

• Two Gigabit Ethernet ports for wired connectivity
• PoE-in (802.3af/at) support for simplified cabling
• DC input option for alternative power sources
• Micro SIM slot for LTE connectivity
• Internal mounting with cable pass-through for clean installations

Technical Summary
Core system details:

• Product code: wAPGR-5HaxD2HaxD&R11e-LTE7
• Part number / SKU: MT-RBWAP-LTE7-AX
• Operating system: RouterOS v7
• CPU: IPQ-5010 dual-core ARM
• Frequency: 800 MHz

Wireless and LTE:

• WiFi standard: 802.11a/b/g/n/ac/ax
• Dual-band operation with 2x2 MIMO
• LTE Category 7 with global band support
• 3G fallback compatibility

Environmental and build:

• IP66-rated weatherproof enclosure
• Passive cooling design
• Operating temperature range from -30 C to 70 C

Power and efficiency:

• Power input via PoE-in or DC jack
• Voltage range: 12 V to 57 V
• Maximum power consumption: 13 W

Designed for Versatile Deployment
Whether deployed at a remote property, roadside installation, or small business site, the wAP AX LTE7 provides a balanced combination of speed, resilience, and manageability. Its upgraded LTE performance and WiFi 6 capability make it a practical solution for extending reliable internet access where traditional infrastructure falls short.

Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	MT-RBWAP-LTE7-AX
Specifications
Product code	wAPGR-5HaxD2HaxD&R11e-LTE7
Architecture	ARM 64bit
CPU	IPQ-5010
CPU core count	2
CPU nominal frequency	800 MHz
CPU Threads count	2
RouterOS license	4
Operating System	RouterOS v7
Size of RAM	256 MB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-30degreesC to 70degreesC
Powering
Number of DC inputs	2
	(DC jack, PoE-IN)
DC jack input Voltage	12-57 V
Max power consumption	13 W
PoE in	802.3af/at
Cooling type	Passive
PoE in input Voltage	18-57 V
Mobile
3G Category	R8 (DL: 42.2 Mbps , UL: 5.76 Mbps)
3G bands	1 (2100 MHz)
	3 (1800 MHz)
	5 (850 MHz)
	8 (900 MHz)
LTE Category	7 (DL: 300 Mbps , UL: 100 Mbps)
MIMO DL	2x2
MIMO UL	1x1
LTE FDD bands	1 (2100 MHz)
	3 (1800 MHz)
	5 (850 MHz)
	7 (2600 MHz)
	8 (900 MHz)
	20 (800 MHz)
	28 (700 MHz)
	32 (1500 MHz)
LTE TDD bands	38 (2600 MHz)
	40 (2300 MHz)
	41 (2500 MHz)
TAC	35312597
Wireless specifications
Wireless 2.4 GHz Max data rate	574 Mbit/s
Wireless 2.4 GHz Number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz	6.9
Wireless 2.4 GHz chip model	IPQ-5010
Wireless 2.4 GHz generation	Wi-Fi 6
Wireless 5 GHz Max data rate	1200 Mbit/s
Wireless 5 GHz Number of chains	2
Wireless 5 GHz standards	802.11a/n/ac/ax
Antenna gain dBi for 5 GHz	7
Wireless 5 GHz chip model	QCN-6102
Wireless 5 GHz generation	Wi-Fi 6
Ethernet
10/100/1000 Ethernet ports	2
Peripherals
Number of SIM slots	1
	Modem
	(Micro SIM)
MiniPCI-e slots	1
Other
CPU temperature monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes
Certification & Approvals
Certification	CE, EAC, ROHS
IP	66
Included parts	24V 0.8A power adapter
	Gigabit PoE injector
	Hose clamp 1
