Features:

• Next gen UEFI BIOS
• Perfect for system builders
• Easy to use
• Windows 10 optimized
• Packed with security features

STABLE, SECURE NETWORKING
The Gigabit network adapter on MSI Professional motherboards offers fast, reliable and secure networking.

Featuring Network Genie for easy to use bandwidth optimizing

• Allows you to change applications' traffic priority
• Perfect for cloud computing and data syncing

M-CLOUD
MSI M-Cloud is a convenient and secure way of saving personal files in the cloud. M-Cloud simplifies complicated settings with a user friendly interface and is easy to learn. Build and maintain your personal cloud with ease. M-Cloud can also turn your PC into an Access Point. You can easily share a wireless network or internet signal to other devices through just a few simple steps.

DARK CHOKE
Dark Choke uses the special core design and allows the Dark Choke to run at a lower temperature with higher capacity and better power efficiency and stability.

SOLID CAP
With their aluminum core design and Japanese made quality, Solid CAPs are made for high-end design motherboard. Not only do Solid CAPs could provide lower Equivalent Series Resistance (ESR), but also work firmly for over-10-year.

HUMIDITY PROTECTION
Reduction in moisture absorption helps prevent "Conductive Anodic Filament". Untreated PCB's can have 10x higher failure rate.

HIGH TEMPERATURE PROTECTION
All key components used in MSI motherboards have all passed military testing ensuring stable operation in the harshest environments.

CIRCUIT PROTECTION
Carefully selected materials, multiple PCB layers and shielding result in the best circuit protection for MSI motherboards.

ESD PROTECTION
Each and every I/O port is protected against the hazards of Electro Static Discharge.

EMI PROTECTION
All MSI motherboards comply with strict American FCC regulations and reduce the impact of Electromagnetic Interference.

EASY DIAGNOSTIC
MSI EZ Debug LED is an easy troubleshooting tool using 3 LEDs to indicate CPU / Memory / VGA operation every time you boot up your system. Run into trouble? Use the LEDs to easily identify the source of your problem and get back into operation quickly.

ENHANCED CPU OVERVOLTAGE PROTECTION
Onboard overcurrent protection prevents overcurrent and short-circuit damage of the CPU and other components. There shows a warning message let’s you know that overcurrent protection is activated for easier troubleshooting.

VGA ARMOR: REINFORCED PCI EXPRESS SLOT
With the increased size and weight of modern high end graphics cards, traditional PCI Express slots often show signs of bending or even breaking. Meet VGA Armor, strengthened PCI Express slots using more solder points to make sure you never have to worry about breaking off any of the slots.

TOTAL FAN CONTROL
Total Fan Control gives you complete control of all your fans connected to the motherboard, through a revolutionary and easy to use interface.

• Full control of fans through 4-pin fan headers
• Real-time monitor fan speeds & temperatures
• Intuitive, easy to use application design
• Set profiles
• Log fan speed, voltage and temperature status

BENEFIT FROM THE NEW INTEL® SMALL BUSINESS BASICS SOLUTION with MSI® MOTHERBOARDS
Intel® SBB is a unique, customizable solution that helps improve small businesses data security, maximizes employee productivity and boosts overall office computers’ performance. A simple and intuitive interface which improves security and productivity – With USB blocker, screen sharing, file sharing, and chat.

WHQL CERTIFIED. WINDOWS 10 READY.
Benefit from great compatibility and a worry-free user experience when using Microsoft Windows 8 / 8.1 or Windows 10 with MSI PRO Series motherboards. MSI is world’s first motherboard manufacturer to receive official Microsoft Windows 10 WHQL certification. With a true testament to compatibility and performance, the MSI R&D team ensures a worry-free experience when using the latest version of Microsoft Windows on any MSI PRO Series motherboard.

Studio grade sound with AUDIO BOOST
With Audio Boost we're delivering the highest sound quality through the use of premium quality audio components. That way, you can enjoy breathtaking, crystal clear sound and music through 6-channel Audio or high impendence headphones and truly dominate the game.

Isolated Audio PCB With LED LINE
Audio Boost acts like a dedicated soundcard by physically isolating the audio circuitry to give you a more clear audio signal.

Chemi-Con Audio Capacitors
Delivering high fidelity crystal clear sound with exceptional acoustics and realism.

Separated Audio Layers
Equal and perfect sound quality for left & right channel audio through the use of seperated layers in the PCB.

Anti-popcorn Noise
Audio Boost protects your ears against annoying loud popping sounds when you plug devices in or out or turn your PC on/off.

5.1 Audio Jacks 7.1 via front
With high quality audio connectors you get the best possible signal output with less chance of distortion.

Front Dedicated Headphone Out
Convenient use of the front panel audio output while retaining high quality amplified sound.

2X FRONT USB 3.1 GEN1
With a clever placed USB 3.1 Gen1 front pin header, available on MSI motherboards, you can connect up to 2 USB 3.1 Gen1 devices directly to the front of your PC Chassis. This way you can easily enjoy fast USB speeds without having to use the hard-to-reach USB ports on the rear.

DOUBLE ESD PROTECTION
The front USB 3.1 Gen1 ports on MSI motherboards are protected by a set of protective ICs to prevent damage caused by Electrostatic Discharge (ESD) from plugging/unplugging USB devices.

LEGACY VGA VIDEO SUPPORT
To support professional monitors, TV's, beamers and other displays, this MSI motherboard features a VGA video output. No matter what screen type you want to connect, using a dedicated graphics card or an onboard connector, MSI motherboards have you covered.

4K UHD
Enjoy awesome 4K UHD (2160p ultra-high definition) video playback with MSI motherboards.

HDMI
This motherboard is equipped with a HDMI port supporting the latest 4K Ultra-HD 4096×2160p resolution @ 24Hz to provide a breathtaking visual experience.

Specifications:

© 2017 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications

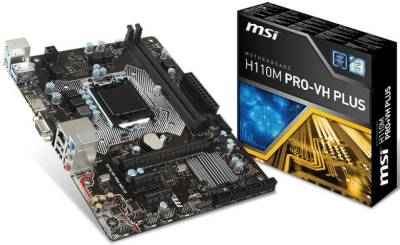

Product Code	H110M PRO-VH PLUS
Socket	1151
CPU (Max Support)	i7
Chipset	Intel H110
DDR4 Memory	2133 MHz
Memory Channel	Dual
DIMM Slots	2
Max Memory (GB)	32
PCI-Ex16	1
PCI-E Gen	Gen3
PCI-Ex1	2
SATAIII	4
TPM (header)	1
LAN	10/100/1000*1
USB 3.1 ports (Front)	2(Gen1)
USB 3.1 ports (Rear)	2(Gen1)
USB 2.0 ports (Front)	4
USB 2.0 ports (Rear)	2
Audio ports (Rear)	3
VGA	1
HDMI	1
DirectX	DX12
Form Factor	M-ATX
