B560M PRO-VDH WIFI

MSI B560m PRO-VDH WiFi Intel 11th Gen LGA 1200 mATX mainboard

MSI - MSI B560m PRO-VDH WiFi Intel 11th Gen LGA 1200 mATX mainboard, Intel B560 Chipset, 4 DIMM slots, 1x PCI-e x16, PCI-e Gen4, 22 PCI-e x1, 22 M.2 slot, 1x Realtek 8125b 2.5Gbps LAN controller, USB 3.2 ports, USB 2.0 ports, Serial ports, DisplayPort, VGA, HDMI, 7.1-channel high definition audio, 6x SATA 6Gb/s ports, Intel Wi-Fi 6 AX201, Bluetooth 5.1
No stock at suppliers. print


B560M PRO-VDH WIFI MSI B560m PRO-VDH WiFi Intel 11th Gen LGA 1200 mATX mainboard Image 2
B560M PRO-VDH WIFI MSI B560m PRO-VDH WiFi Intel 11th Gen LGA 1200 mATX mainboard Image 3
B560M PRO-VDH WIFI MSI B560m PRO-VDH WiFi Intel 11th Gen LGA 1200 mATX mainboard Image 4
B560M PRO-VDH WIFI MSI B560m PRO-VDH WiFi Intel 11th Gen LGA 1200 mATX mainboard Image 5
Not rated yet



Rate this product

Specials
Prices, images and descriptions are for reference purposes only & may change without prior notice. PLEASE RELY ON ABOVE DESCRIPTIONS AND NOT ON IMAGES. B560M PRO-VDH WIFI MSI B560m PRO-VDH WiFi Intel 11th Gen LGA 1200 mATX mainboard is available from Laptop Direct and it is sold as new from our Motherboards: Intel LGA1200 10th/11th gen range of products. For reference purposes, the price of R2405 is valid 2026-10-12, and while stocks last, may be valid until . The price displayed is a guide for reference purposes only, and may change without prior notice. Reference prices are an invitation for potential buyers to make an offer to purchase, which we may reject without reason. A quote with final pricing is sent before a purchase can be made. T&C's apply. E&OE. Laptop Direct. You are looking at products found in the Motherboards: Intel LGA1200 10th/11th gen category.
Subscribe

Specification for the entire series

Important information: Kindly note that specifications differ between models. Features, options and accessories displayed below this paragraph are not included with this product unless it has been specified in the above description.


Please remember these important points when reading the information below this paragraph: Operating systems cannot be removed or changed, monitors are not included with computers, free Anti-virus and Office Software are trial versions or may have limited features and an additional license needs to be purchased to activate the full product.

B560M PRO-VDH WIFI

MSI B560m PRO-VDH WiFi Intel 11th Gen LGA 1200 mATX mainboard

MSI B560m PRO-VDH WiFi Intel 11th Gen LGA 1200 mATX mainboard, Intel B560 Chipset, 4 DIMM slots, 1x PCI-e x16, PCI-e Gen4, 22 PCI-e x1, 22 M.2 slot, 1x Realtek 8125b 2.5Gbps LAN controller, USB 3.2 ports, USB 2.0 ports, Serial ports, DisplayPort, VGA, HDMI, 7.1-channel high definition audio, 6x SATA 6Gb/s ports, Intel Wi-Fi 6 AX201, Bluetooth 5.1

Overview:

B560M PRO-VDH WIFI
  • Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5066(OC) MHz
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
  • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Audio Boost: Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Features:

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

USER FRIENDLY DESIGN
MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.

M.2 SHIELD FROZR
Worlds fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

With MSI M.2 Shield FROZR
  • Prevents throttling
  • Maximizes drive performance
  • Higher maximum SSD speeds
Normal M.2 SSD
*performance vary by model configuration

CONNECTIVITY
The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

EXPERIENCE MORE
MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.

A HUGE STEP OF DDR PERFORMANCE
MSI OC LAB does not merely work hard on extreme overclocking. Compare to B460 motherboard memory XMP profile, MSI does have great improvement on performance and efficiency for B560. Easy to enable XMP profile with auto power settings to get the best memory speed and stability.

Specifications:

© 2021 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specificationsspacer
Product CodeB560M PRO-VDH WIFIspacer
Quick Spec
CPU (Max Support)i9
Socket1200
ChipsetIntel B560 Chipset
DDR4 Memory5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4533(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200(JEDCE & POR) / 3000(JEDCE & POR) / 2933(JEDCE & POR) / 2800(JEDCE & POR) / 2666(JEDCE & POR) / 2400(JEDCE & POR) / 2133(JEDCE & POR) MHz
Memory ChannelDual
DIMM Slots4
Max Memory (GB)128
PCI-E x161
PCI-E GenGen4
PCI-E x12
SATAIII6
M.2 Slot2
TPM (header)1
LAN1x Realtek 8125B 2.5Gbps LAN controller
WiFi & BluetoothIntel Wi-Fi 6 AX201, Bluetooth 5.1
USB 3.2 ports (Front)2(Gen 1, Type A)
USB 3.2 ports (Rear)2(Gen 2, Type A), 2(Gen 1, Type A)
USB 2.0 ports (Front)4
USB 2.0 ports (Rear)2
Serial ports(Front)1
Audio ports (Rear)Realtek ALC897 Codec
DisplayPort1
VGA1
HDMI1
DirectX12
Form FactorMATX
Operating SystemSupport for Windows 10 64-bit
Detailed Spec
CPUSupports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Processor socket LGA1200
ChipsetIntel B560 chipset
Memory4x DDR4 memory slots, support up to 128GB
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5066 MHz
1DPC 2R Max speed up to 4600+ MHz
2DPC 1R Max speed up to 4266+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Expansion Slot1x PCIe x16 slot (From CPU)
PCI_E1 (From CPU)
Support up to PCIe 4.0 for 11th Gen Intel CPU
Support up to PCIe 3.0 for 10th Gen Intel CPU
2x PCIe 3.0 x1 slots (From B560 chpiset)
Onboard Graphics1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
1x VGA port, supports the maximum resolutions of 2048x1536 @50Hz, 2048x1280 @60Hz and 1920x1200 @60Hz
1. Available only on processors featuring integrated graphics.
2. Graphics specifications may vary depending on the CPU installed.
AudioRealtek AL897 Codec
7.1-Channel High Definition Audio
LAN1x Realtek 8125B 2.5Gbps LAN controller
Wireless LAN & BluetoothIntel Wi-Fi 6 AX201
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
WiFi 6 pre certified
Supports Bluetooth 5.1, FIPS, FISMA
Storage6x SATA 6Gb/s ports (From B560 chipset)
2x M.2 slot (Key M)
M2_1 slot
Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU (From CPU)
Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU (From B560 chipset)
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (from B560 chipset)
Supports up to PCIe 3.0 x4
Supports 2242/ 2260/ 2280 storage devices
Intel Optane Memory Ready
Supports Intel Smart Response Technology for Intel Core processors
1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
2. Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
USBIntel B560 Chipset
2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
2x USB 2.0 Type-A ports on the back panel
USB Hubs GL850G
4x USB 2.0 ports are available through the internal USB 2.0 connectors
Form FactorMiro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
BIOS Features1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.2, SMBIOS 3.0
Multi-language
Internal connectors1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
2x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x Serial port connector
1x Tuning Controller Connector
LED Feature1x 4-pin RGB LED connector
1x 3-pin RAINBOW LED connector
4x EZ Debug LED

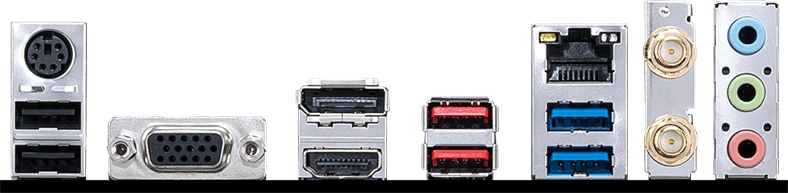

Back panel Connectors1. Keyboard / Mouse
2. VGA
3. DisplayPort
4. USB 3.2 Gen 2 10Gbps Type-A
5. LAN port
6. WiFi / Bluetooth
7. Audio connector
8. USB 2.0
9. HDMI
10. USB 3.2 Gen 1 5Gbps Type-A
