NET-CAT6A-BOOTCRIMP

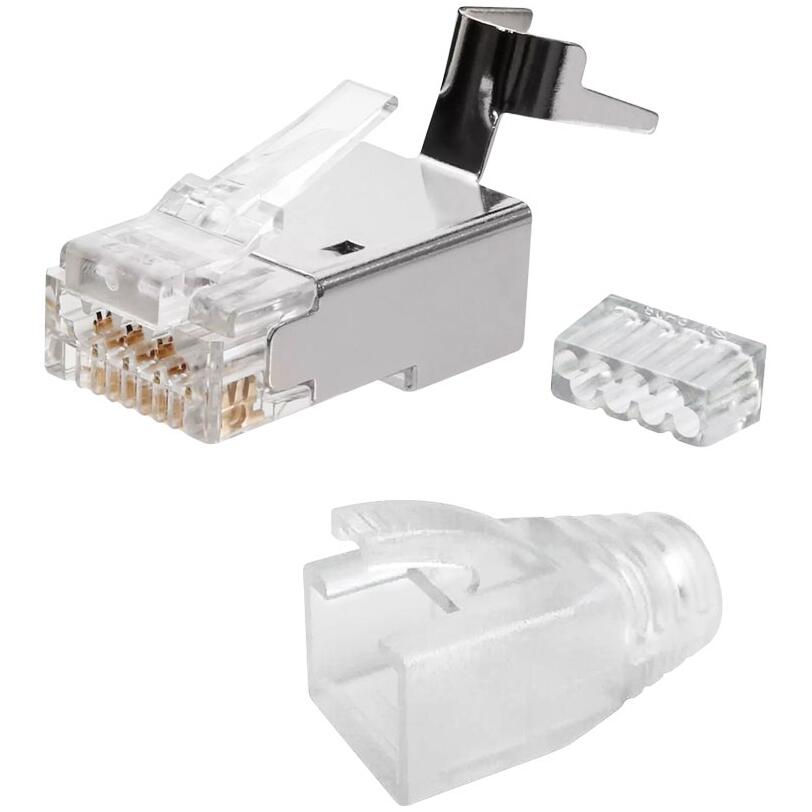

LinkQnet Cat 6A / CAT7 STP Easy pass plug & Boot

LinkQnet - LinkQnet Cat 6A / CAT7 STP Easy pass plug & Boot
BUY TODAY ! Expected to be in Stock at suppliers.* print


Not rated yet



Rate this product

Specials
Prices, images and descriptions are for reference purposes only & may change without prior notice. PLEASE RELY ON ABOVE DESCRIPTIONS AND NOT ON IMAGES. NET-CAT6A-BOOTCRIMP LinkQnet Cat 6A / CAT7 STP Easy pass plug & Boot is available from Laptop Direct and it is sold as new from our Network Lan connectors & boots range of products. For reference purposes, the price of R32 is valid 2026-10-24, and while stocks last, may be valid until . The price displayed is a guide for reference purposes only, and may change without prior notice. Reference prices are an invitation for potential buyers to make an offer to purchase, which we may reject without reason. A quote with final pricing is sent before a purchase can be made. T&C's apply. E&OE. Laptop Direct. You are looking at products found in the Network Lan connectors & boots category.
Subscribe

Specification for the entire series

Important information: Kindly note that specifications differ between models. Features, options and accessories displayed below this paragraph are not included with this product unless it has been specified in the above description.


Please remember these important points when reading the information below this paragraph: Operating systems cannot be removed or changed, monitors are not included with computers, free Anti-virus and Office Software are trial versions or may have limited features and an additional license needs to be purchased to activate the full product.

NET-CAT6A-BOOTCRIMP

LinkQnet Cat 6A / CAT7 STP Easy pass plug & Boot

LinkQnet Cat 6A / CAT7 STP Easy pass plug & Boot

Overview Summary:

Upgrade your network connections with the LinkQnet Cat6A / CAT7 Easy Pass Plug & Boot. Designed for both PoE and high-speed Ethernet applications, this connector ensures reliable performance with up to 90W power delivery. Easy to install and fully shielded, it maintains signal integrity across demanding network setups. Shop now to enhance your home or office network efficiency.

Perfect for professional and DIY networking, this RJ45 plug offers durable copper-alloy contacts with gold plating and a polycarbonate housing for long-lasting use. Ideal for high-speed Cat6A or CAT7 cables, it ensures stable connectivity while supporting PoE devices seamlessly. Buy now and simplify your network installations.

What tier does this fall into?

Premium

What is this best for?

PoE devices, Ethernet networks, high-speed data transfer, office networking, home networking, RJ45 installations

Overview:

LinkQnet Cat 6A / CAT7 STP Easy Pass Plug & Boot (NET-CAT6A-BOOTCRIMP)
This LinkQnet Cat 6A / CAT7 STP Easy Pass Plug & Boot is designed for high-performance structured cabling environments where stable power delivery and reliable data transmission are required. It supports advanced PoE applications and is engineered for professional network installations that demand consistent electrical integrity, shielding performance, and long-term durability. The design focuses on efficient termination with enhanced conductivity and mechanical strength, making it suitable for modern high-density networking systems.

Description:

The LinkQnet Easy Pass Plug & Boot solution is built to simplify installation while maintaining strong electrical performance across Cat 6A and Cat 7 shielded twisted pair networks. It supports high-power PoE transmission, robust shielding, and industrial-grade durability, making it ideal for enterprise networking, data centres, and professional AV or PoE-powered deployments. The construction materials and plated contacts ensure low resistance, stable connectivity, and extended mating life for repeated installations.

Features:

Power and PoE Capability
This connector system is engineered to support high-efficiency Power over Ethernet applications, including advanced IEEE 802.3bt Type 4 Class 8 deployments.

  • Maximum power from PSE: 90W
  • Maximum power at powered device: 71.3W
  • Number of energized pairs: 4
  • IEEE standard support: 802.3bt Type 4 Class 8
  • Compliance reference: IEC 60512-99-002:2022

These capabilities ensure reliable power delivery for high-demand network devices such as access points, IP cameras, and other PoE-powered infrastructure.

Electrical and Material Details
The connector is constructed using high-quality materials to ensure durability and stable signal integrity in demanding environments.

  • Contact pins material: copper alloy
  • Shielding material: copper alloy
  • Gold plating thickness: 50u
  • Housing material: polycarbonate
  • Housing fire rating: UL 94-V2
  • Mating cycles: minimum 1200
  • Contact pin height: 6.02 mm plus or minus 0.13 mm
  • UL application rating: 250V AC maximum at 2A
  • Dielectric withstand voltage: 1000V AC for 60 seconds
  • Insulation resistance: 500 megaohm
  • Contact resistance: 20 milliohm maximum
  • Design: two-level hole with 4 plus 4 insert structure

These specifications ensure low signal loss, high durability, and consistent shielding performance over extended use.

Environmental and Mechanical Performance
Built for stability across varying installation conditions, this plug and boot system maintains performance across a wide operating range.

  • Storage temperature range: minus 40C to 70C
  • Operating temperature: below 35C
  • Relative humidity: below 70 percent RH

The robust mechanical design ensures consistent performance in controlled indoor environments commonly used in professional networking installations.

Standards Compliance and Industry Compatibility
The LinkQnet Cat 6A / CAT7 Easy Pass Plug & Boot is compliant with major international cabling and connectivity standards, ensuring compatibility with global structured cabling systems.

  • IEC 60512-99-002
  • IEEE 802.3bt Type 4 Class 8
  • ANSI TIA-568.2-D
  • ISO IEC 11801
  • IEC 60603-7-51
  • EN 50173-1
  • EN 50173-2
  • IEC 61935-2
  • ANSI TIA-1096-A

These certifications confirm suitability for enterprise-grade networking installations requiring standardized performance and interoperability.

The product SKU NET-CAT6A-BOOTCRIMP identifies this specific model within the LinkQnet range, ensuring accurate sourcing for procurement and deployment planning.


Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specificationsspacer
Product CodeNET-CAT6A-BOOTCRIMPspacer
POWER OVER ETHERNET (PoE) FEATURES
Maximum Power from PSE 90W
Maximum Power at PD 71.3W
Number of Energized Pair 4x
IEEE 802.3bt Type-4 Class-8
IEC 60512-99-002:2022
SPECIFICATIONS
Contact Pins (Conductors) Material Copper-Alloy
Shielded Copper-Alloy
Gold Plating Thickness 50u"
Housing Material Polycarbonate
Housing UL 94-V2
Mating Cycles 1,200 Min.
Height of 8P8C Contact Pins 6.02mm ±0.13mm
Storage Temperature -40degreesC~70degreesC
Operating Temperature <35degreesC
UL Applications 250V AC Max. @2A
Dielectric Withstanding Voltage 1000V AC in 60s
Insulation Resistance 500MΩ
Contact Resistance 20mΩ Max.
Two-Level Hole with Insert 4+4
COMPLIANT WITH INTERNATIONAL STANDARDS IEC 60512-99-002
IEEE 802.3bt Type-4 Class-8
ANSI/TIA-568.2-D
ISO/IEC 11801
IEC 60603-7-51
EN 50173-1
EN 50173-2
IEC 61935-2
ANSI/TIA-1096-A (Formerly FCC Part 68.5 Subpart F)
