BAT-LI-25200WM-TG

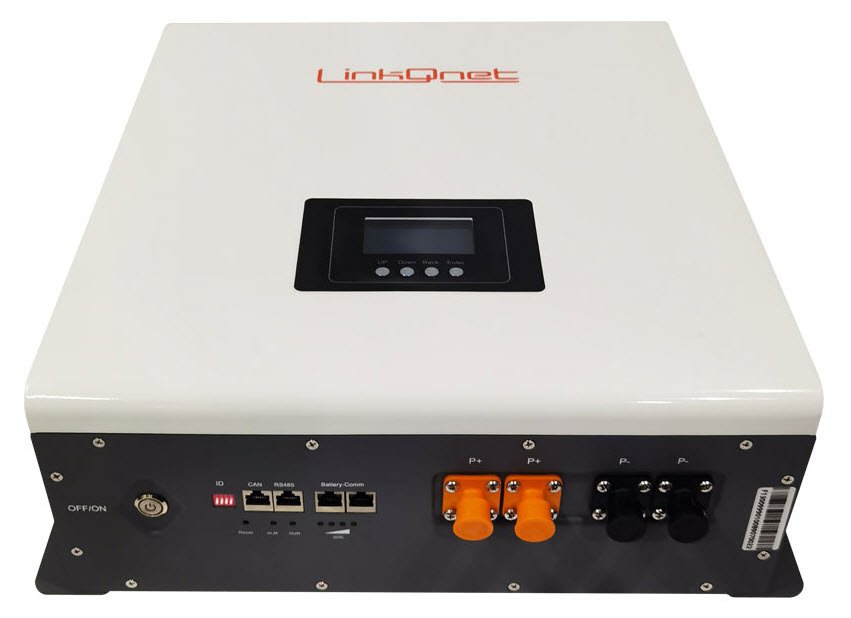

Linkqnet Lifepo4 25.6v 200ah Wallmount Battery Pack With Can Bms

Linkqnet Lifepo4 25.6v 200ah Wallmount Battery Pack With Can Bms

Features:

• High Density Solution: The battery pack is expertly constructed from premium materials and complies with all major safety and performance specifications. The core cell storage consists of sixteen new Lithium-Ion Phosphate (LFP) prismatic cells manufactured by Hefei Guoxuan Hi-Tech Power Energy Co., Ltd. Guoxuan are the manufacturers of choice for leading German EV brands and well as many other electric vehicle manufacturers.
• Innovative Battery Management System: The BMS has been designed with the experience of over ten years of battery management involvement. It uses internationally sourced components to ensure consistency, performance and reliability. The firmware is interactively developed and robust. The flexibility of both CAN bus and RS485 communications allows for a wide range of applications. The LCD display allows a clear overview of the battery state of charge and condition without the need for interfacing to a computer.

Specifications:

© 2024 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	BAT-LI-25200WM-TG
BASIC PARAMETERS
Rated Voltage	25.6 Volts
Rated Capacity	200 Amp Hours
Rated Energy	5120 Watt Hours
Rating	0.5C
OPERATING PARAMETERS
Operating Voltage Range	22.4 Volts - 28.0 Volts
Charge Voltage Range	27.6 Volts - 28.0 Volts (Typical Inverter Bulk/Float Charge can be set to 27.7V)
Cut-O&#-1280; Voltage	22.4 Volts (Typical Inverter Cut O&#-1280; can be set to 23.0V)
Recommended Charge Current	50 Amps
Maximum Charge Current	100 Amps
Maximum Discharge Current	100 Amps
PHYSICAL PARAMETERS
Dimensions	400mm (D) x 550mm (W) x 160mm (H) - Optimized for wall mounting
Weight	49kg
Communication Ports	RS485 (For programming), CAN bus, 2x Inverter Battery-Comm / Stacking Ports
Display	LED and LCD with cursor keys for BMS Status and State of Charge
Output Terminal	2 x Red Amphenol SurLok Positive, 2 x Black Amphenol SurLok Negative
Output Protection	Internal Electronic Circuit Disconnecter
ENVIRONMENTAL
Humidity	5% - 95% Relative Humidity
Charge Temperature Range	0°C to 45°C
Discharge Temperature Range	-20°C to 60°C
Storage Temperature Range	-20°C to 45°C
SERVICE LIFE
Cycle Life	More than 6000 Cycles at 50 Amp Discharge Rate and 80% Depth of Discharge
Hardware Design Life	Fifteen Years
CERTIFICATION
Safety	CE, EMC, TUV (IEC62619), UL1973
Transportation	UN38.3
INSTALLATION
Inverter Integration to BMS	Requires customized cable for each specific inverter brand, refer to manual
Inverter Integration without BMS	Will emulate Lead Acid battery, can be optimized by altering inverter parameters
BMS base protocol compatibility	Voltronic "LIb" BMS protocol / Optional Pylontech BMS protocol
Addressable Parallel Stacking	Battery packs can be paralleled up to sixteen addressable units per solution
Installation Competency	Not consumer installable. Needs to be wired into inverter/UPS by a qualified electrical contractor with appropriate experience.
