DS-QAZ0610G1

Hikvision Analog Frameless Ceiling Speaker 10W

Hikvision - Hikvision Analog Frameless Ceiling Speaker 10W, DS-QAZ0610G1, 10W rated Power, 1x 1.0-inch tweeter and 1x 6.5-inch Woofer
BUY NOW - selling fast! Limited Stock at suppliers.* print


DS-QAZ0610G1 Hikvision Analog Frameless Ceiling Speaker 10W Image 2
DS-QAZ0610G1 Hikvision Analog Frameless Ceiling Speaker 10W Image 4
Not rated yet



Rate this product

Specials
Prices, images and descriptions are for reference purposes only & may change without prior notice. PLEASE RELY ON ABOVE DESCRIPTIONS AND NOT ON IMAGES. DS-QAZ0610G1 Hikvision Analog Frameless Ceiling Speaker 10W is available from Laptop Direct and it is sold as new from our Intercoms / access control accessories range of products. For reference purposes, the price of R990 is valid 2026-10-31, and while stocks last, may be valid until . The price displayed is a guide for reference purposes only, and may change without prior notice. Reference prices are an invitation for potential buyers to make an offer to purchase, which we may reject without reason. A quote with final pricing is sent before a purchase can be made. T&C's apply. E&OE. Laptop Direct. You are looking at products found in the Intercoms / access control accessories category.
Subscribe

Specification for the entire series

Important information: Kindly note that specifications differ between models. Features, options and accessories displayed below this paragraph are not included with this product unless it has been specified in the above description.


Please remember these important points when reading the information below this paragraph: Operating systems cannot be removed or changed, monitors are not included with computers, free Anti-virus and Office Software are trial versions or may have limited features and an additional license needs to be purchased to activate the full product.

DS-QAZ0610G1

Hikvision Analog Frameless Ceiling Speaker 10W

Hikvision Analog Frameless Ceiling Speaker 10W, DS-QAZ0610G1, 10W rated Power, 1x 1.0-inch tweeter and 1x 6.5-inch Woofer

Overview Summary:

The Hikvision DS-QAZ0610G1 is a 10W frameless ceiling speaker designed for clear, reliable audio in commercial and professional environments. With a 6.5-inch woofer and 1-inch tweeter, it delivers balanced sound with flexible 70V, 100V and 8Ω input options.

Ideal for paging, background music and general public address applications, this Hikvision ceiling speaker is a practical choice for offices, retail spaces and other indoor installations. Buy now for a dependable in-ceiling audio solution in South Africa, or shop now to upgrade your sound system.

What tier does this fall into?

Professional

What is this best for?

Background music, public address, voice announcements, paging, commercial audio, office audio, retail audio

Overview:

The Hikvision DS-QAZ0610G1 is a frameless 10W analog ceiling speaker designed for discreet and reliable audio installation in commercial, office, retail, hospitality, education and other indoor environments. Its flush ceiling design provides a clean appearance while the combination of a 6.5-inch woofer and 1.0-inch tweeter delivers clear speech and balanced audio across a useful frequency range.

Description:

The Hikvision DS-QAZ0610G1 ceiling speaker provides flexible power selection for different installation requirements. It supports multiple 100V and 70V line power settings, making it suitable for distributed public address systems where several speakers need to be connected across a larger area.

The 6.5-inch woofer handles the main audio output, while the 1.0-inch tweeter helps reproduce higher frequencies for clearer voice announcements and general audio playback. With a sensitivity of 89 dB and a maximum SPL of 98 dB, the speaker is designed to provide effective sound coverage without requiring excessive amplifier power.

Features:

Hikvision 10W Ceiling Speaker for Distributed Audio

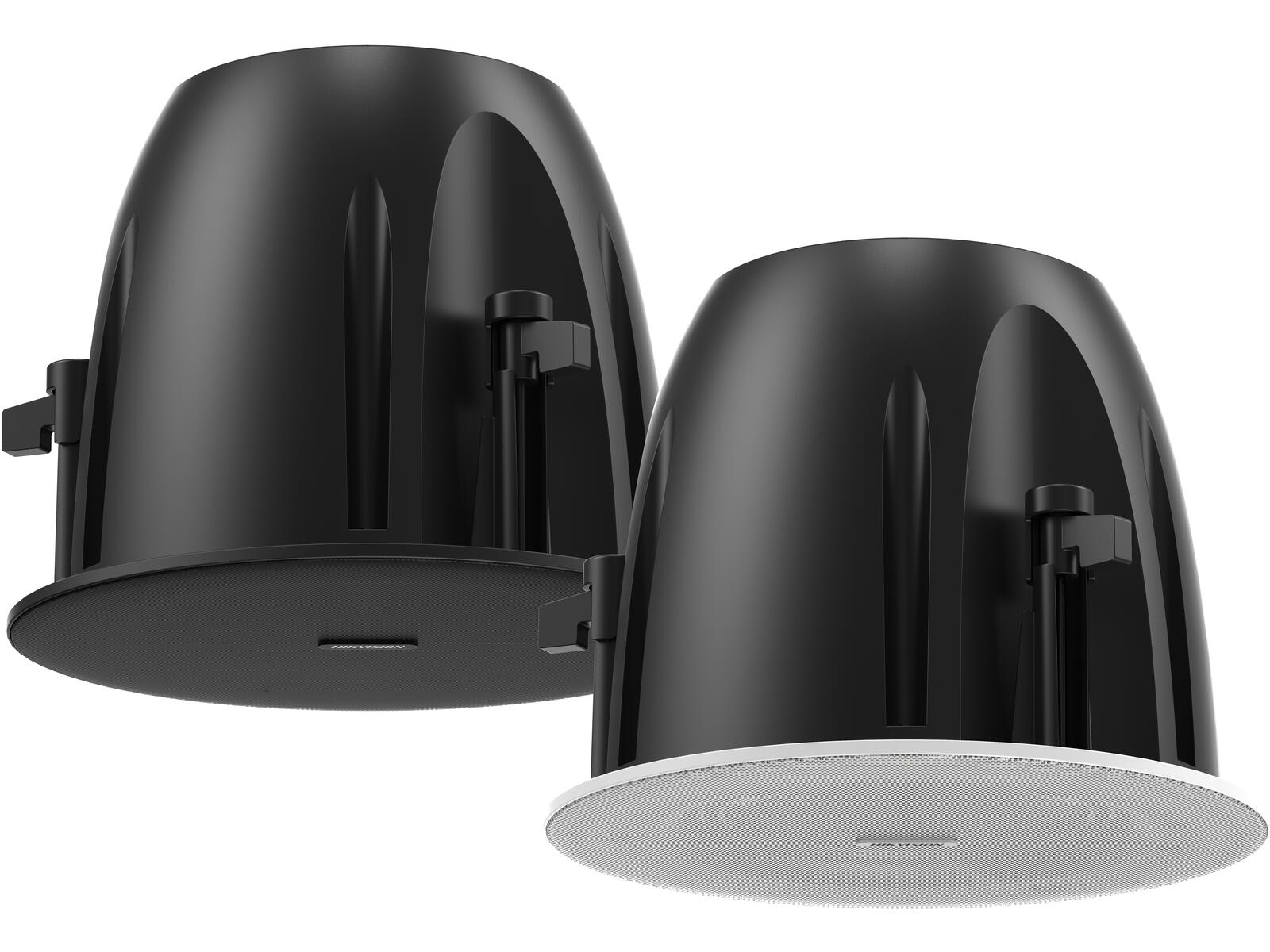

The frameless ceiling design allows the DS-QAZ0610G1 to blend neatly into indoor ceilings, making it a practical choice for installations where a discreet speaker appearance is preferred. The speaker is available in white or black, providing additional flexibility when matching the installation environment.

Power options include:

  • 100V line: 10W, 5W or 2.5W
  • 70V line: 10W, 5W, 2.5W or 1.25W
  • Rated power: 10W
  • Sensitivity at 1 m, 1 W: 89 dB
  • Maximum SPL: 98 dB
  • Frequency response: 120 Hz to 20 kHz

Clear Audio for Voice and Background Sound
The DS-QAZ0610G1 is suited to applications that require clear announcements, paging and background audio from a ceiling-mounted speaker. Its woofer and tweeter arrangement provides a broader audio range than a basic single-driver speaker, helping maintain intelligible speech while also supporting general music playback.

The speaker can be used as part of a larger 70V or 100V distributed audio system in locations such as offices, shops, schools, hotels, commercial buildings and other indoor areas.

Flexible Installation Options
Multiple power tap settings allow installers to adjust the speaker output according to the size of the area and the requirements of the audio system. This can help balance sound levels across installations with multiple ceiling speakers while making better use of available amplifier power.

The Hikvision DS-QAZ0610G1 is identified by part number / SKU DS-QAZ0610G1, making it easy to specify when sourcing or matching equipment for a compatible distributed audio installation.

Key Audio Details

  • Driver arrangement: 1 x 6.5-inch woofer and 1 x 1.0-inch tweeter
  • Frequency response: 120 Hz to 20 kHz
  • Sensitivity: 89 dB at 1 m, 1 W
  • Maximum SPL: 98 dB
  • 70V and 100V line operation
  • Multiple selectable power settings
  • Frameless ceiling-mounted design
  • Available in white or black

Suitable Applications
This Hikvision ceiling speaker is a practical option for public address and distributed audio installations where a discreet appearance, adjustable output and clear audio reproduction are required. It can be used for paging, announcements, background music and general indoor audio in commercial and professional environments.


Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specificationsspacer
Product CodeDS-QAZ0610G1spacer
Speaker
Impedance 8Ω
Rated Power 10W
Total Harmonic Distortion (THD) ≤1%
Sensitivity(1 m, 1 W) 89dB
Max. Acoustic Pressure 98dB
Frequency Response 120Hz~20kHz(-10dB)
Speaker Unit 1 x 1.0-inch tweeter and 1 x 6.5-inch woofer
Coverage Angle Conical Coverage: 88degrees
Interface
Audio In Constant voltage input: 100 V/Constant voltage input: 70 V/Constant impedance input: 8 Ω
Voltage Input 100V: 10W, 5W, 2.5W
70V : 10W, 5W, 2.5W, 1.25W
8Ω
General
Material Main body: PC
Base: ABS
Mounting Hole Dimension Ø225 mm (8.86")
Dimension Ø242.78 mm x 192.7 mm (9.56" x 7.59")
Approx. 2.7 kg (5.95 lb.)
Language 5 languages: English, French, Spanish, German, Italian
Package Dimension 305 mm x 305 mm x 315 mm (12.01" x 12.01" x 12.4")
With Package Weight Approx. 2.9 kg (6.49 lb.)
Packing List Device x 1
Regulatory Compliance and Safety Information x 1
Operating Temperature -10 degreesC to 45 degreesC
Operating Humidity < 90% (No condensation)
Mounting Depth 240 mm (9.45")


Download: pdf_downloads/2_7/274168_PDF1.pdf (641884 KB)
