DS-QAE0A60G1-VB

Hikvision 2 Zone 60W analogue amplifier

Hikvision 2 Zone 60W analogue amplifier, 60W rated Power, 24 VDC, 100V COMpatible with --> Constant Voltage Output x2, 30W Constant resistance Output x2

Overview:

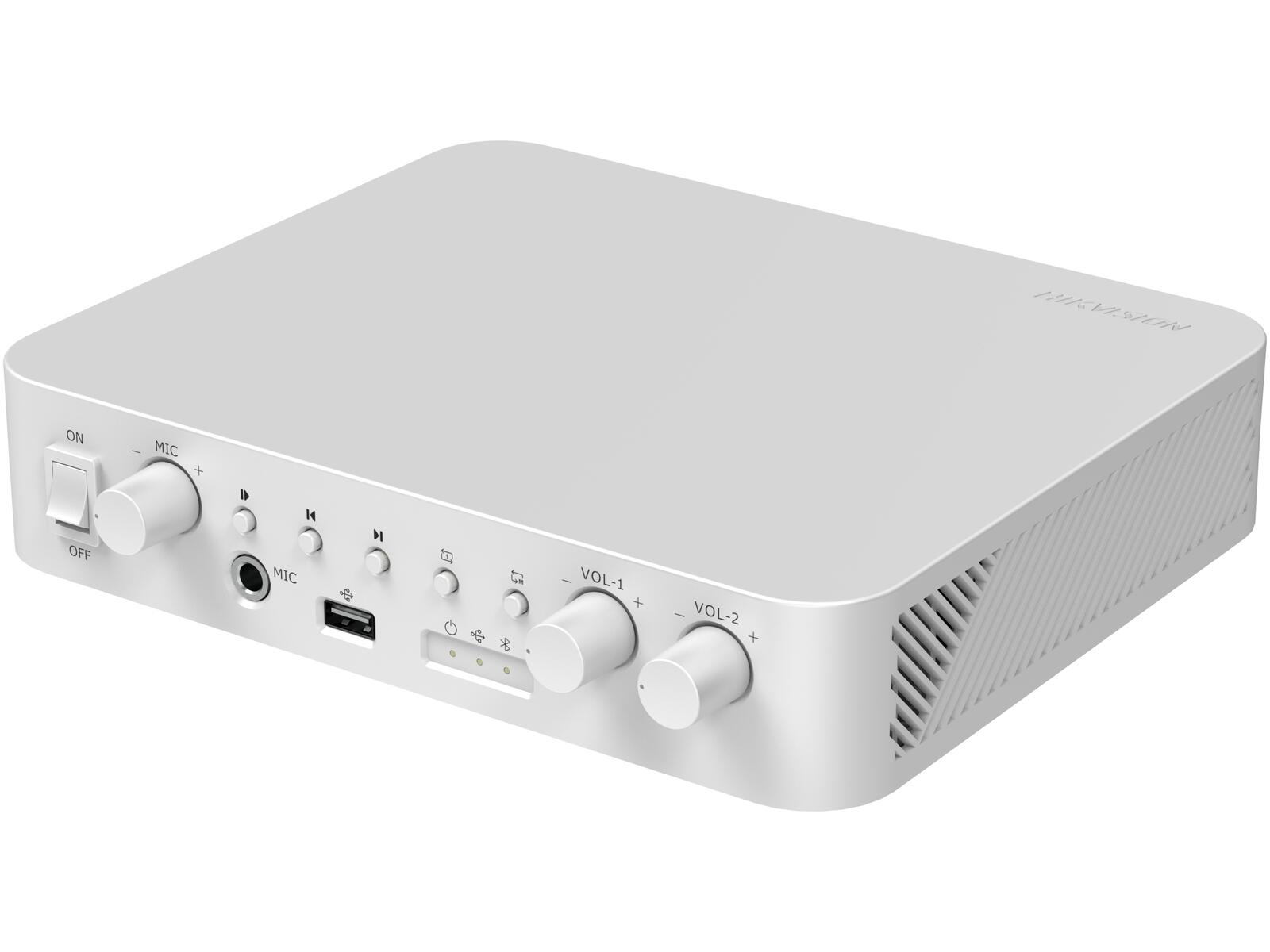

Hikvision DS-QAE0A60G1-VB 60W 2-Zone Analogue Amplifier
The Hikvision DS-QAE0A60G1-VB is a 60W analogue amplifier designed for reliable audio distribution across two separate zones. It supports multiple audio input options, including USB, Bluetooth, microphone and RCA, making it suitable for a range of commercial and public address applications. With 24 VDC operation and 100V compatible constant voltage output, it provides a practical solution for installations requiring flexible audio control across multiple areas.

Description:

The Hikvision DS-QAE0A60G1-VB 60W analogue amplifier combines straightforward operation with flexible audio connectivity. Its two-zone design allows audio levels to be adjusted independently, providing greater control when different areas require different volume levels.

The amplifier supports USB, Bluetooth, MIC and RCA audio inputs, allowing users to connect a variety of audio sources. Its 60W rated output is suitable for distributing audio through compatible speaker systems, while the 100V constant voltage architecture makes it well suited to commercial and public address installations.

Features:

Hikvision 60W 2-Zone Amplifier
Designed for applications where dependable audio distribution and simple zone management are important, the DS-QAE0A60G1-VB provides two independent zones with dedicated volume adjustment. This makes it suitable for environments such as retail stores, offices, schools, reception areas and other commercial spaces.

The amplifier provides the following key audio capabilities:

• 60W rated power output
• Two independently adjustable audio zones
• USB audio input
• Bluetooth audio input
• Microphone input
• RCA audio input
• 24 VDC power supply
• 100V compatible constant voltage output
• Two 30W constant voltage outputs
• Two 30W constant resistance outputs

Flexible Audio Connectivity
With USB, Bluetooth, microphone and RCA inputs, the amplifier can accommodate both modern wireless sources and traditional wired audio equipment. Bluetooth provides convenient playback from compatible devices, while RCA and microphone inputs allow integration with standard audio equipment and voice sources.

Two-Zone Audio Control
The two-zone configuration gives installers and users greater flexibility when managing audio throughout a building or facility. Each zone can have its volume adjusted independently, helping provide appropriate sound levels in different areas without requiring separate amplifiers.

Commercial Public Address Applications
The Hikvision DS-QAE0A60G1-VB is a practical choice for installations requiring a compact 60W amplifier with multiple input options and two-zone control. Its 100V compatible output makes it suitable for distributed speaker systems commonly used in commercial and public address environments.

Typical applications include:

• Retail shops and commercial premises
• Offices and reception areas
• Schools and educational facilities
• Public address systems
• Background music installations
• Multi-area audio systems

Technical Details
The amplifier is rated at 60W and operates from a 24 VDC power source. It provides two constant voltage outputs rated at 30W each, along with two 30W constant resistance outputs. This combination gives installers flexibility when designing compatible audio systems.

Part Number / SKU: DS-QAE0A60G1-VB

Available model: DS-QAE0A60G1-VB

For a 60W Hikvision analogue amplifier with Bluetooth, USB, MIC and RCA connectivity and independent two-zone volume control, the DS-QAE0A60G1-VB is a versatile option for commercial audio installations.

Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	DS-QAE0A60G1-VB
Function
Protection Function	short circuit protection, overcurrent protection, over temperature protection, anti-static electricity protection, surge protection, electrical shock protection
Audio
Rated Power	60 W
	24 VDC
Frequency Response	USB, Bluetooth: 20 Hz to 20 kHz
	MIC, RCA Input: 20 Hz to 8 kHz
THD and SNR	THD: ≤1%
	SNR: ≥100 dB
Interface
Audio In	MIC 1: -28 dBV, 2.57 KΩ, unbalanced, 6.35 mm jack, supports dynamic microphone connection
	USB 2.0 x 1
	RCA in 1: 0 dBV, 5 KΩ, unbalance, RCA pin jack
	Bluetooth
Audio Out	Constant Voltage Output x 2 , 100 V COM
	Constant Resistance Output x 2 , 30 W 4 Ω to 8 Ω
	RCA Out 1: 0 dBV, 100 Ω, unbalance, RCA pin jack
	RCA Cascading: support a cascade of up to 3 amplifiers
	Bluetooth
LED Indicator	Power indicator (solid white): the device is normally working
	USB flash drive indicator (solid white): the device is in USB mode
	Bluetooth indicator (solid blue): the device is in Bluetooth mode
	USB flash drive indicator (off) and Bluetooth indicator (off): the MIC input and RCA input are mixed
Volume Knob	MIC Volume Knob x 1 , Partition 1 Volume Knob x 1 , Partition 2 Volume Knob x 1
USB	USB 2.0
	File format: FAT32
	USB flash drive file playing logic: traverse play level 3 directory files in the USB flash drive.
Power Interface	Aperture size: Ø2.0 mm
General
Material	Plastic
Dimension	190.8 mm x 230.8 mm x 51.2 mm (7.48" x 9.06" x 2.01")
Package Dimension	362 mm x 280 mm x 100 mm (14.25" x 11.02" x 3.94")
	Approx. 1445.5 g (3.19 lb.)
With Package Weight	Approx. 2113.3 g (4.66 lb.)
Color	White
Packing List	Device x 1
	Power Adapter x 1
	Power Cord x 1
	Regulatory Compliance and Safety Information x 1
Bluetooth	Bluetooth 5.3 , 10 m
Operating Temperature	-10 degreesC to 55 degreesC(14 degreesF to 131 degreesF)
Operating Humidity	< 90% (No condensation)
Power Consumption	Standby Consumption: 1 W
	Annual Average Consumption: Max. Working Consumption: 60 W (based on the average playing time)
