DS-2CE17D0T-LFS(2.8mm)

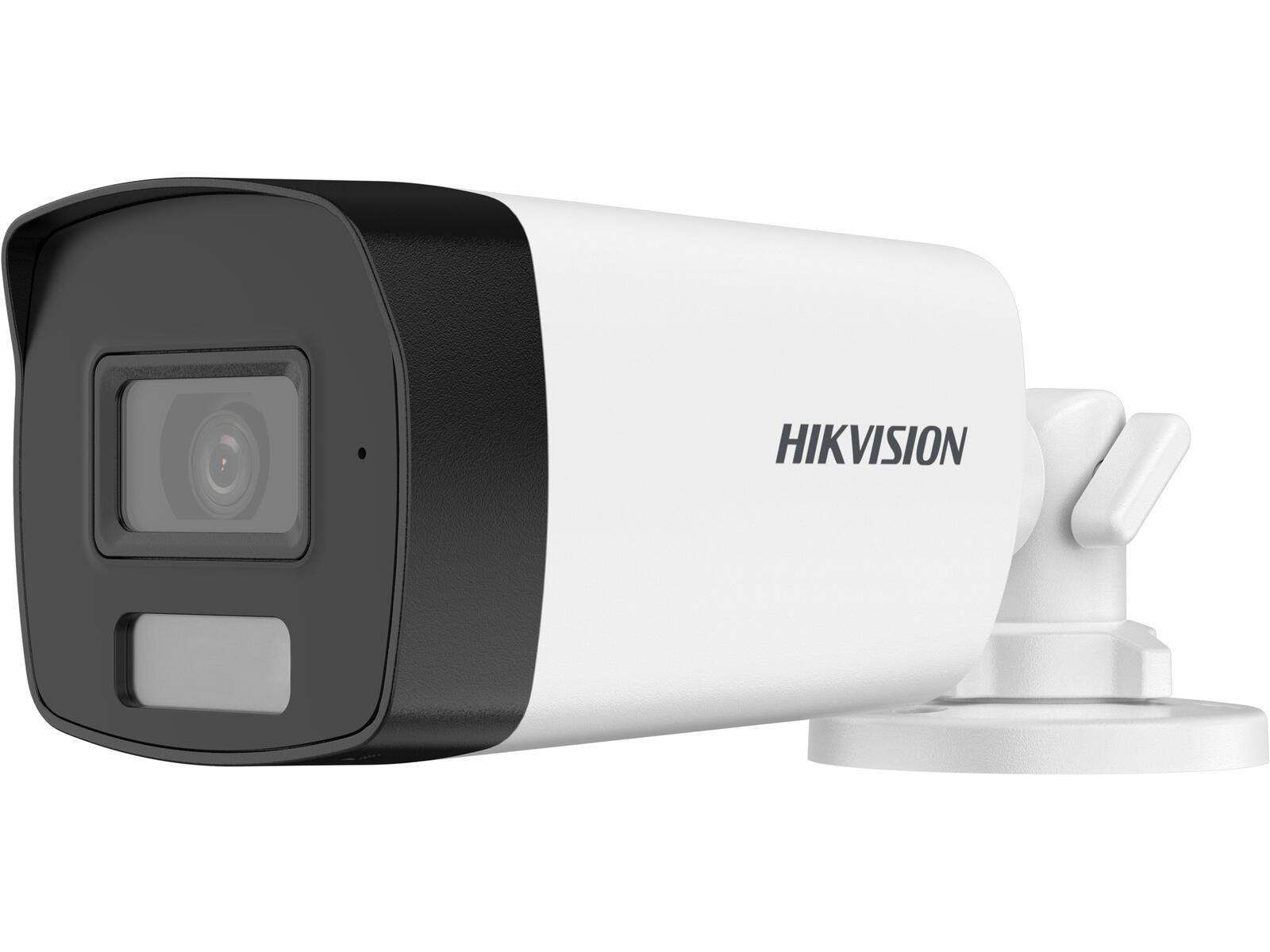

Hikvision 2MP Smart Hybrid Light Audio Fixed Bullet Analogue Camera with 2.8mm Lens

Hikvision 2MP Smart Hybrid Light Audio Fixed Bullet Analogue Camera with 2.8mm Lens, IR & White Light up to 40m, IP67, 1920 (H) x 1080 (V) maximum Resolution, PAL / NTSC signal system, Microphone, Digital WDR, DWDR / BLC / HLC / Global, Switchable TVI / AHD / CVI / CVBS Video Output

Overview:

The Hikvision DS-2CE17D0T-LFS is a 2MP Smart Hybrid Light audio fixed bullet analogue camera designed for dependable security monitoring in homes, businesses and other outdoor environments. With a 2.8mm fixed lens, 1920 x 1080 resolution and up to 40m of IR or white light illumination, it provides clear video during both daytime and low-light conditions. Its built-in microphone also supports audio over coaxial cable, adding sound to your surveillance coverage.

Description:

The Hikvision DS-2CE17D0T-LFS combines 2MP Full HD imaging with flexible Smart Hybrid Light technology. The camera can use infrared illumination for discreet night monitoring or white light when brighter colour imaging is preferred. Both lighting options provide coverage of up to 40m, helping maintain useful visibility after dark.

The fixed bullet design is well suited to outdoor surveillance, while the IP67-rated housing provides protection against dust and water. This makes the camera a practical choice for installations where equipment may be exposed to changing weather conditions.

With a built-in microphone and audio over coaxial cable, the camera can capture sound alongside video without requiring a separate audio connection. The camera also supports multiple analogue video formats, allowing it to work with a range of compatible DVR systems.

Features:

Clear 2MP Full HD Security Imaging
The 2MP image sensor delivers a maximum resolution of 1920 x 1080, providing detailed Full HD video for everyday security monitoring. Digital WDR helps improve image visibility in scenes with challenging lighting, while DWDR, BLC and HLC provide additional tools for managing bright backgrounds, shadows and high-contrast areas.

Key imaging and video details include:

• 2MP image resolution up to 1920 x 1080
• 2.8mm fixed focal lens
• PAL and NTSC signal system
• Digital WDR
• DWDR, BLC and HLC support
• Switchable TVI, AHD, CVI and CVBS video output

Smart Hybrid Light for Night Surveillance
Smart Hybrid Light gives installers greater flexibility when setting up night-time surveillance. The camera supports infrared illumination for traditional low-light monitoring as well as white light illumination when a brighter image is required.

Both IR and white light illumination can reach up to 40m, helping extend useful visibility around entrances, driveways, yards, walkways and other outdoor areas.

Built-In Microphone and Audio Over Coax
The integrated microphone adds audio recording capability to the camera, allowing compatible surveillance systems to capture sound together with video. Audio over coaxial cable simplifies installation by allowing the audio signal to travel through the same coaxial infrastructure used for the video connection.

Outdoor Bullet Camera with IP67 Protection
The fixed bullet housing is designed for outdoor surveillance applications. With an IP67 rating, the camera is resistant to dust and water, making it suitable for installations where protection from outdoor conditions is important.

Flexible Analogue Video Compatibility
One of the practical advantages of this Hikvision camera is its four-way switchable video output. It supports TVI, AHD, CVI and CVBS formats, providing flexibility when connecting to compatible analogue DVR equipment or upgrading an existing CCTV installation.

Part Number and Installation Details
The exact part number for this model is DS-2CE17D0T-LFS(2.8mm). The 2.8mm fixed lens provides a wide viewing perspective that can be useful for monitoring larger areas at relatively short distances.

The Hikvision DS-2CE17D0T-LFS is a versatile option for CCTV installations requiring Full HD video, built-in audio, flexible analogue compatibility and reliable night-time illumination in an outdoor-ready bullet camera.

Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	DS-2CE17D0T-LFS(2.8mm)
Camera
Image Sensor	2 MP CMOS
Max. Resolution	1920 (H) x 1080 (V)
Min. Illumination	0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1/25 s to 1 / 50, 000 s , NTSC: 1/30 s to 1 / 50, 000 s
Day & Night	ICR
Angle Adjustment	Pan: 0 to 360degrees, Tilt: 0 to 180degrees, Rotation: 0 to 360degrees
Signal System	PAL/NTSC
Lens
Lens Type	2.8 mm, 3.6 mm and 6 mm fixed focal lens
Focal Length & FOV	2.8 mm, horizontal FOV: 101degrees, vertical FOV: 56degrees, diagonal FOV: 118degrees
	3.6 mm, horizontal FOV: 78degrees, vertical FOV: 42degrees, diagonal FOV: 92degrees
	6 mm, horizontal FOV: 49.2degrees, vertical FOV:28.3 degrees, diagonal FOV: 56.1degrees
Lens Mount	M12
Microphone
Pickup Distance	In a radius of 5 m
Amount	1
Illuminator
Supplement Light Range	IR : Up to 40 m
	White Light : Up to 40 m
Supplement Light Type	Smart,IR,White Light
Image Settings	Brightness, Sharpness, Smart IR
Frame Rate	TVI: 1080P @ 30 fps, 1080P @ 25 fps
	AHD: 1080P @ 30 fps, 1080P @ 25 fps
	CVI: 1080P @ 30 fps, 1080P @ 25 fps
	CVBS: PAL/NTSC
Day/Night Mode	Auto/Color
Wide Dynamic Range (WDR)	Digital WDR
Image Enhancement	DWDR/BLC/HLC/Global
White Balance	Auto/Manual
AGC	Yes
Interface
Video Output	Switchable TVI/AHD/CVI/CVBS
General
Material	Front cover: Metal
	Main body: Plastic
Dimension	216.6 mm x 78.9 mm x 75.4 mm (8.53" x 3.10" x 2.97")
	Approx. 339 g (0.75 lb.)
Operating Condition	-40 degreesC to 60 degreesC (-40 degreesF to 140 degreesF), humidity: 90% or less (non-condensation)
Communication	HIKVISION-C
Language	English
Power Supply	12 VDC ± 25%
	*You are recommended to use one power adapter to supply the power for one camera.
Consumption	Max. 4.8 W
Approval
Protection	IP67
