GS-GWN7302

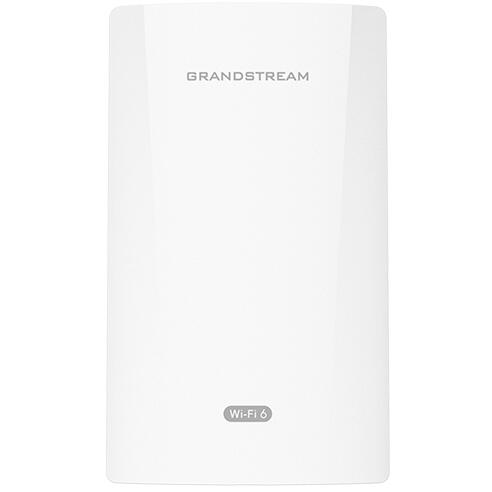

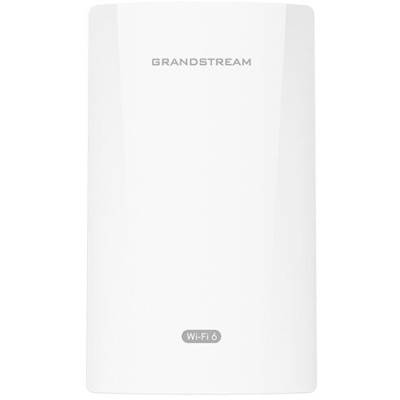

Grandstream GWN7302 Enterprise WiFi 6 PtP/PtMP Wireless Bridge

Grandstream GWN7302 Enterprise WiFi 6 PtP/PtMP Wireless Bridge, 2x Gigabit Ethernet ports (1x PoE+ in / 1x PoE out), IP66, 2 single internal antennas, 13.5dBi gain antenna, Up to 5 kilometers coverage range, 1 to 4 point to multipoint

Overview:

Grandstream GWN7302 Enterprise WiFi 6 Wireless Bridge
The Grandstream GWN7302 is a purpose-built WiFi 6 point-to-point and point-to-multipoint wireless bridge engineered for long-distance connectivity. Designed for business-grade deployments, it delivers stable, high-speed data transmission across distances of up to 5 kilometers. With a rugged IP66-rated enclosure and efficient 2x2 MIMO architecture, it is well suited for outdoor environments where reliability and performance are critical.

Description:

The GWN7302 (Part Number: GS-GWN7302 ) provides a cost-effective alternative to traditional cabling by enabling fast wireless links between buildings, remote sites, and infrastructure nodes. It supports both point-to-point and point-to-multipoint configurations, allowing flexible network expansion. With up to 2.4Gbps aggregate throughput, integrated high-gain antennas, and PoE support for simplified deployment, it is ideal for enterprises, service providers, and industrial environments requiring consistent long-range connectivity.

Features:

Reliable Long-Range Connectivity
Built for extended coverage, this wireless bridge supports communication over distances of up to 5 kilometers. It is particularly effective in environments where running physical cables is impractical or cost-prohibitive such as campuses, agricultural land, logistics hubs, and temporary installations.

The combination of WiFi 6 performance and TDMA technology ensures efficient spectrum usage and stable throughput, even in challenging radio environments.

Flexible Deployment Modes
The device supports both PtP and PtMP topologies, enabling communication between a single pair of endpoints or multiple nodes from a central location. This flexibility allows network architects to scale deployments without redesigning infrastructure.

Typical use cases include:

• Linking multiple buildings across a campus or business park
• Extending connectivity to remote surveillance or IoT devices
• Providing network access across large outdoor areas such as farms or industrial sites

Engineered for Harsh Environments
With an IP66-rated enclosure, the unit is resistant to dust, rain, and extreme weather conditions. It operates reliably in temperatures ranging from -30 C to 60 C, making it suitable for demanding outdoor deployments.

Simplified Installation and Power Options
Installation is streamlined through PoE input support, a one-button pairing function, and clear LED indicators for signal strength and device status. An integrated PoE output port allows the unit to power nearby devices such as IP cameras or speakers, reducing the need for additional power infrastructure.

Centralized and Scalable Management
Multiple management options are available to suit different operational models:

• Embedded controller accessible via web interface for direct configuration
• Cloud-based management through GDMS Networking for remote monitoring and control
• On-premise management using GWN Manager for enterprise environments
• Mobile configuration via the GWN App for quick deployment and adjustments

Performance and Technical Details
Key hardware and wireless capabilities include:

• 2 internal 5GHz antennas with 13.5 dBi gain
• 2x2:2 MIMO on 5GHz band
• Frequency range from 5150 to 5850 MHz
• Channel bandwidth options including 20, 40, 80 and 160 MHz
• Maximum transmit power up to 26 dBm depending on region
• Aggregate wireless throughput up to 2.4 Gbps

Supported data standards:

• 802.11ax up to 2402 Mbps
• 802.11ac up to 1732 Mbps
• 802.11n up to 300 Mbps
• Legacy 802.11a compatibility

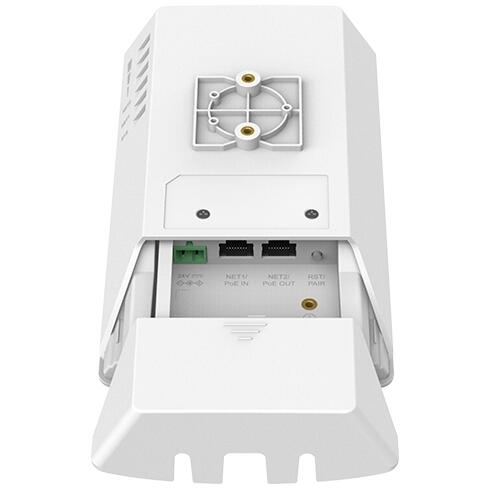

Connectivity and Interfaces
Essential connectivity and physical interfaces:

• 1 x Gigabit Ethernet port with PoE input
• 1 x Gigabit Ethernet port with PoE output
• Reset and pairing button for quick configuration
• LED indicators for signal strength, status, and port activity

Power and consumption:

• Supports 802.3af/at PoE input
• Optional 24V DC input compatibility
• Maximum power consumption of 13W
• PoE output up to 13W or 25W depending on input source

Physical Design and Installation
Deployment flexibility is supported through:

• Compact form factor measuring 180 x 102 x 38 mm
• Lightweight design at 412g
• Wall or pole mounting options with included kits

Environmental tolerances:

• Operating temperature from -30 C to 60 C
• Storage temperature from -30 C to 70 C
• Humidity tolerance from 5 percent to 95 percent non-condensing

Application Scenarios
The GS-GWN7302 is suited for a range of business and industrial deployments:

• Logistics environments such as ports, railyards, and distribution centers
• Multi-building enterprise campuses including education and healthcare
• Agricultural operations requiring connectivity across large land areas
• Outdoor event networks and temporary installations

Whats' include

• GWN7302 wireless bridge unit
• Mounting kits for wall or pole installation
• Quick start guide

Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications and features
Product Code	GS-GWN7302
Antenna	2 single internal antennas
	5GHz x 2 , gain 13.5dBi
	Beamwidth
	5G: H:30degreesC, V:30degreesC
MIMO	5GHz: 2x2:2, MIMO
Frequency Bands	5GHz Radio: 5150 - 5850 MHz
	*Not all frequency bands can be used in all regions
Channel Bandwidth	5G: 20, 40, 80 and 160MHz (x2)
Wi-Fi Data Rates	5G
	IEEE 802.11ax: 7.3 Mbps to 2402 Mbps
	IEEE 802.11ac: 6.5 Mbps to 1732 Mbps
	IEEE 802.11n: 6.5 Mbps to 300Mbps
	IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
	*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
Maximum TX Power	5G: 26dBm
	*Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity	5G
	802.11a: -92dBm @6Mbps, -74dBm @54Mbps
	802.11n 20 MHz: -73 dBm @MCS7 , 802.11n 40 MHz: -70 dBm @MCS7
	802.11ac 20 MHz: -67 dBm @MCS8 , 802.11ac 40 MHz: -63 dBm @MCS9
	802.11ac 80 MHz: -59 dBm @MCS9
	802.11ax 20 MHz: -60 dBm @MCS11 , 802.11ax 40 MHz: -58 dBm @MCS11
	802.11ax 80 MHz: -56 dBm @MCS11 , 802.11ax 160 MHz: -52 dBm@ MCS11
Coverage Range	Up to 5 kilometers
	*coverage range can vary based on environment
Point to Multipoint	1 to 4
Network Ports	1x autosensing 10/100/1000 Base-T Ethernet Port, RJ-45, PoE input
	1x autosensing 10/100/1000 Base-T Ethernet Port, RJ-45, PoE output
LEDs	1 tri-color LED for device tracking and status indication
	3x LED for signal strength
	2x LED for network port status
Auxiliary Ports	1x Reset and Pairing Button
PoE Input	802.3af/at
DC	+24V (Compatible with 16V-48V)
PSE output	Max 13W with PoE+ input
	Max 25W with +24V DC/2A input
Maximum Power Consumption	13W
Dimension	Unit: 180 x 102 x 38 mm
	Entire Package: 219 x 185.5 x 66 mm
Weight	Unit: 412g
	Entire Package: 753g
Mounting	Wall mount or pole mount, kits included
Package Content	GWN7302 PtP/PtMP Fixed Wireless Bridge, Mounting Kits, Quick Start Guide
Temperature	Operation: -30degreesC to 60degreesC
	Storage: -30degreesC to 70degreesC
Humidity	5% to 95% Non-condensing
Weatherproof Guide	IP66-level weatherproof capability
