GS-GCC6010W

Grandstream GCC6010W Unified Communications IP-PBX and networking system with Wi-Fi 6

Grandstream GCC6010W Unified Communications IP-PBX and networking system with Wi-Fi 6, 5x Gigabit Ethernet Ports, 12 users and 4 concurrent calls by Default PBX, VPN Router, Next-generation Firewall, IP PBX, Wi-Fi Access Point

Overview:

The GCC6000 Series provides an extraordinary all-in-one solution that merges unified communications and networking solutions into one platform. These state-of-the-art devices combine the functionality of 4 products to provide an all-in-one solution that includes a VPN router, next-generation firewall, IP PBX, and network switch or Wi-Fi access point. The Series includes three models: GCC 6010, GCC6010W, and GCC6011.

Features:

• Built-in IP PBX provides voice & video communications with advanced collaboration features ( PBX Upgrade options available )
• Built-in firewall provides anti-virus, layer 3-7 IDS/IPS, DPI, SSL detection, and more
• Built-in VPN router supports 2.5Gbps or 3Gbps to allow easy remote access
• Built-in network switch with 5 or 10 Gigabit ports, 4x PoE out ports, and 2x 2.5 SFP ports (GCC6010/GCC6011)
• Built-in dual-band Wi-Fi 6 AP with 2x2 MIMO technology (GCC6010W)
• Easily configure, deploy, and manage all Grandstream endpoints from one interface
• Provides advanced security protection with encrypted traffic, secure boot, unique security certificates, and more
• Managed through the cloud (GDMS), mobile app, local WEB UI, SSH, and SNMP
• Multiple WAN ports with load balancing and failover to maximize connection reliability

An Extraordinary All-in-One Solution
The GCC6000 Series redefines the communication experience by merging unified communications, networking, and security solutions into one platform.

Enterprise-Grade Security Protection
A built-in, next-generation firewall provides bank-grade security protection with VB 100 Grade-A anti-malware certification, market-leading AI-based DPI, and more.

State-of-the-Art Communications and Collaboration
The built-in IP PBX provides a suite of powerful communication and collaboration features to keep every organization connected and productive

Enhanced Network and System Management
The GCC6000 Series provides a secure, centralized interface to deploy manage and organization's entire network in real-time.

Smart QoS and Reduced Data Latency
By integrating networking and IP PBX functionality, the GCC Series significantly reduces latency and provides a smart QoS engine that ensures a smooth experience regardless of network traffic.

Designed for Small to Medium Businesses
The GCC6000 Series makes it easier than ever to build state-of-the-art business solutions by combining all networking, communication, and security needs into one solution.

Grandstream Device Management System
GDMS provides aFREE centralized interface to provision, manage, monitor and troubleshoot Grandstream products, including device management, account management, device configuration, firmware upgrades, device monitoring, intelligent alarm, and statistical analysis, individually or in batches of devices by site, group and model. This powerful cloud management platform adds robust security features to protect enterprise networks, including bank-grade TLS encryption from end-to-end, two-factor login authentication to protect your data security, two-way certificate verification and encryption of all device information. By offering a centralized, secure and zero-touch management for Grandstream endpoints, GDMS is ideal for enterprises, service providers and multi-site businesses as it allows them to easily deploy and manage large networks of Grandstream solutions.

Android and iOS mobile users can access the GDMS mobile app from any device by downloading for free through the app store, or get it on google play.

Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications and features
Product Code	GS-GCC6010W
Specifications
Product Code	GS-GCC6010W
Item	GCC6010W
Wi-Fi Standards	IEEE 802.11 a/b/g/n/ac/ax
Antennas	3 individual internal antennas ( 2 x dual band + 1 x single band 5G)
	2.4GHz: maximum gain 4dBi
	5 GHz: maximum gain 6dBi
Wi-Fi Data Rates	2.4G:
	IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps
	IEEE 802.11n: 6.5 Mbps to 300 Mbps
	IEEE 802.11b: 1, 2, 5.5, 11 Mbps
	IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
	5G:
	IEEE 802.11ax: 7.3 Mbps to 3603 Mbps
	IEEE 802.11ac: 6.5 Mbps to 2600 Mbps
	IEEE 802.11n: 6.5 Mbps to 450 Mbps
	IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
	*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands	2.4GHz radio: 2400 - 2483.5 MHz
	(2412-2472MHz is channel central frequency range, 2400-2483.5MHz is Frequency band) 5GHz radio: 5150 - 5895 MHz
	*Not all frequency bands can be used in all regions
Channel Bandwidth	2.4G: 20 and 40 MHz 5G: 20, 40, 80, 160 MHz
Wi-Fi and System Security	WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MU-MIMO	2x2:2 2.4GHz
	3x3:3 5GHz
Maximum TX Power	5G: 25.5dBm
	2.4G: 28.5dBm
	*Maximum power varies by country, frequency band and MCS rate
Receiver Senstivity	2.4G
	802.11b: -97dBm@1Mbps, -89dBm@11Mbps
	802.11g: -93dBm @6Mbps, -75dBm@54Mbps
	802.11n 20MHz: -73dBm @MCS7, 802.11n 40MHz: -70dBm @MCS7
	802.11ax 20MHz: -64dBm @ MCS11, 802.11ax 40MHz: -63dBm @MCS11
	5G
	802.11a: -93dBm @6Mbps, -75dBm @54Mbps
	802.11n: 20MHz: -73dBm @MCS7, 802.11n 40MHz: -70dBm @MCS7
	802.11ac 20MHz: -70dBm@MCS8, 802.11ac: HT40:- 66dBm @MCS9, 802.11ac 80MHz: -62dBm @MCS9
	802.11ax 20MHz: -64dBm @ MCS11, 802.11ax 40MHz: -61dBm @MCS11, 802.11ax 80MHz: -58dBm @MCS11
	802.11ax 160MHz: -54dBm@MCS11

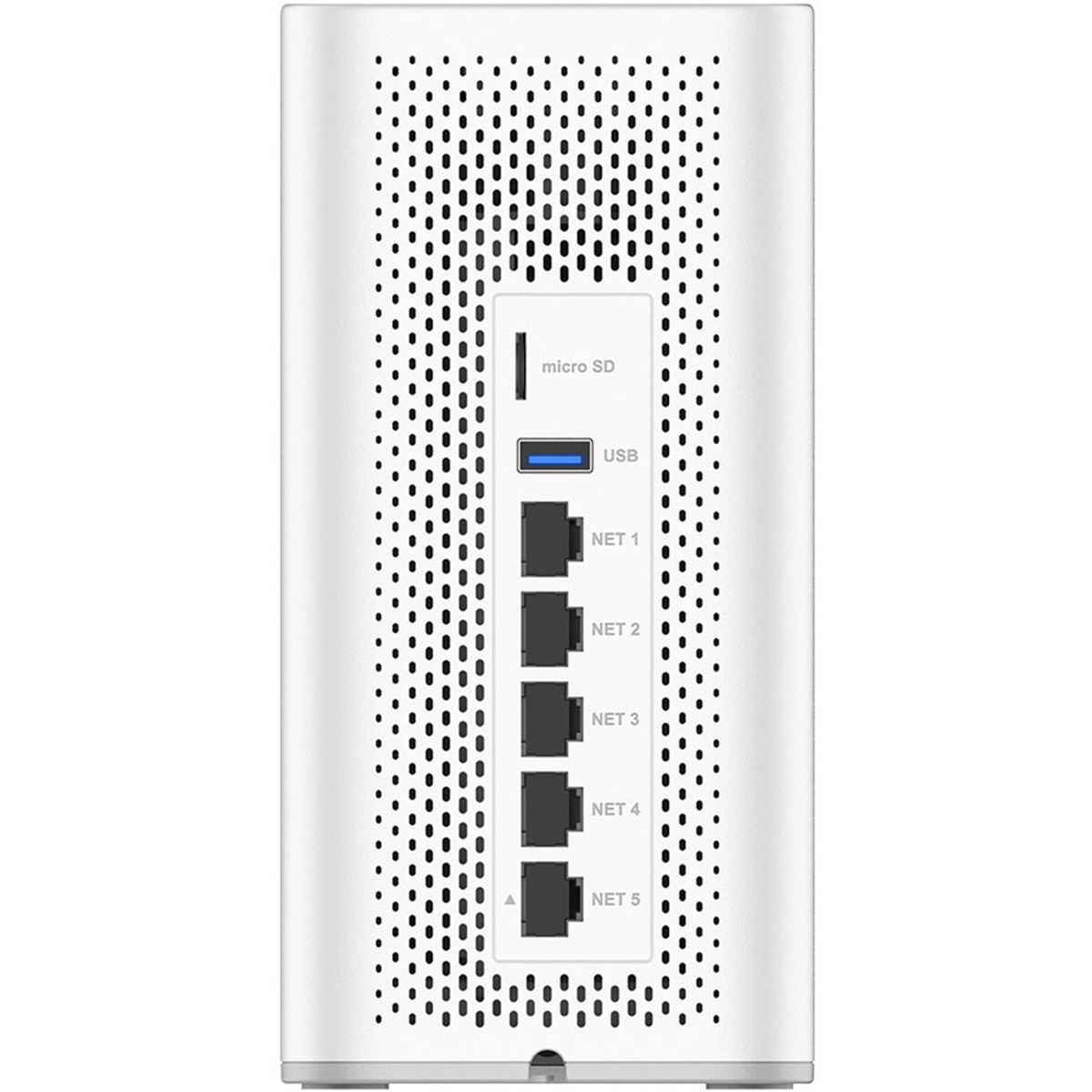

Network Ports	5x Gigabit Ethernet ports
	*All ports are WAN/LAN configurable, max 3x WAN
Auxiliary Ports	1xMicro-SD, 1xUSB 3.0, 1xReset
Memory	2GB RAM, 32GB eMMC Flash
External Storage	N/A
Router	3Gbps
IPsec VPN Throughput	1Gbps
NAT Sessions	160K
IDS/IPS	900Mbps
PBX	12 users and 4 concurrent calls by default
	Upgrades available for purchase (See more for PBX capacity upgrade options)
Mounting	Desktop
Material	Plastic Mini-Tower

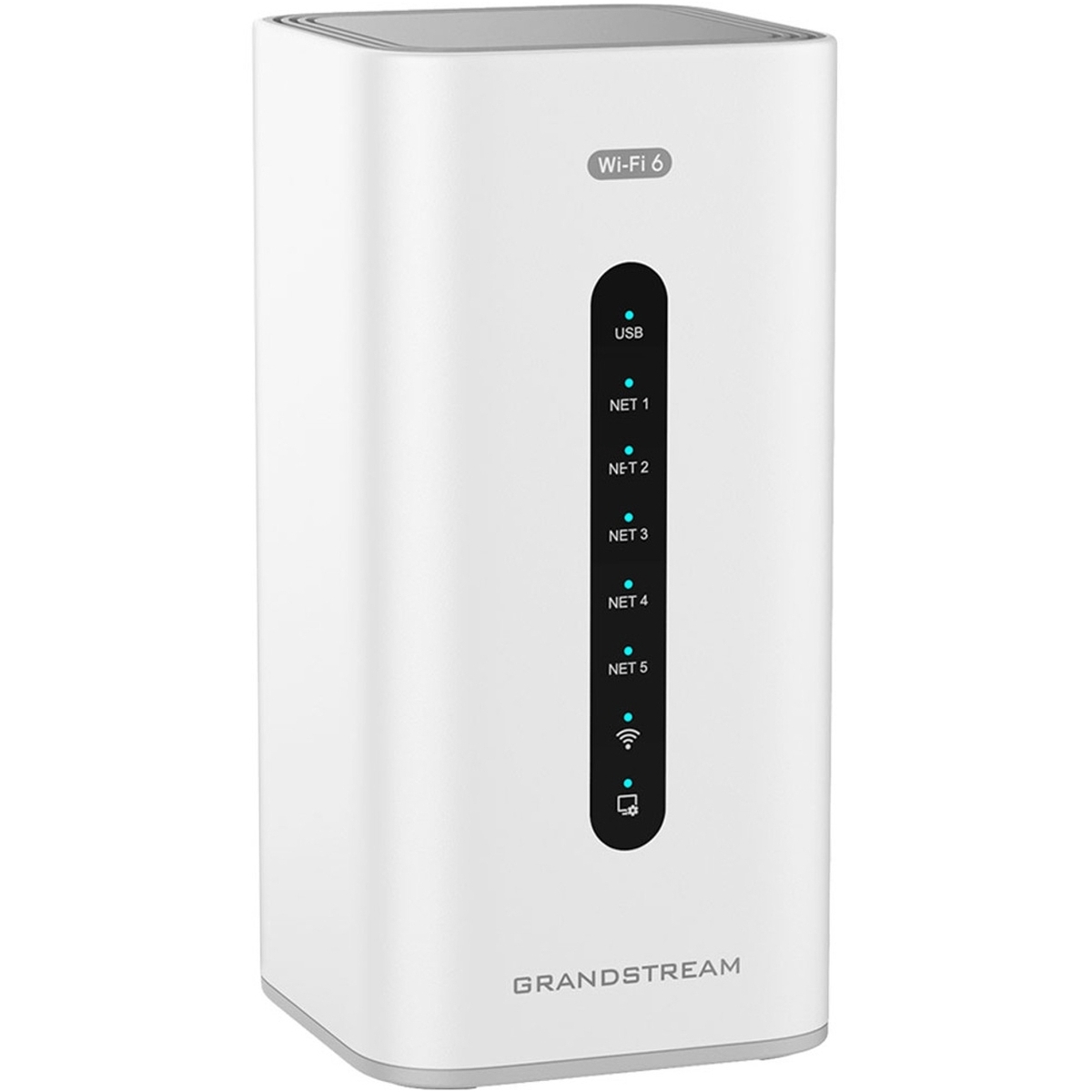

LEDs	8 x LEDs for device tracking and status indication
Connection Type	DHCP, Static IP, PPPoE
Network Protocols	IPv4, IPv6, IEEE802.1q, IEEE 802.1p, IEEE802.1x, IEEE802.3, IEEE 802.3u, IEEE 802.3x, IEEE802.3ab
QoS	VLAN, TOS
	Support multiple traffic classes, filter by port, IP address, DSCP and policing
	App QoS: Application/protocol monitoring and traffic statistics
	VoIP Prioritization
Firewall	DDNS, Port Forwarding, DMZ, UPnP, DoS & Spoofing defense, traffic rules, NAT, ALG
	DPI, Anti-Virus, IPS/IDS, SSL proxy
	Content Control: DNS filtering, web url/class/key words filtering, application identification and control
VPN	IPsec VPN Client-to-Site / Site-to-Site
	IPSec Encryption: 3DES, AES
	IPSec Authentication: MD5, SHA-1, SHA2-256
	IPSec Key Exchange: Main/Aggressive Mode, Pre-shared Key, DH Groups 1/2/5/14
	IPSec Protocols: ESP
	IPSec NAT Traversal
	PPTP VPN Server / Client
	PPTP Encrpytion: MPPE 40-bit, 128-bit
	PPTP/L2TP Authentication: MS-CHAPv1/2
	L2TP Client-to-Site
	OpenVPN Server / Client
	OpenVPN Encryption: AES, DES
	OpenVPN Authentication: MD5, SHA-1, SHA2-256, SHA2-384, SHA2-512
	OpenVPN Certificate: RSA
	WireGuard
Network Management	Grandstream Device Management System (GDMS), Local Web GUI, SSH, and SNMP (v1/ v2c/v3)
Max AP/Clients	Up to 150 GWN APs, Up to 500 Clients
Power and Green Energy Efficiency	Universal power adaptor included:
	Input 100-240VAC 50-60Hz
	Output: 12VDC 1.5A (18W)
Environmental	Operation: 0degreesC to 45degreesC
	Storage: -30degreesC to 60degreesC
	Humidity: 5% to 95% Non-condensing
Physical	Unit Dimension: 95 x 95 x 193 mm
	Unit Weight: 565g
	Entire Package Dimension: 186 x 127 x 105 mm
	Entire Package Weight: 920g
Package Content	GCC6010W, Universal Power Supply, Network Cable, Quick Installation Guide
Compliance	FCC, CE, RCM, IC
