FAN-A320I-WH

Fanvil A320i nurse Console Phone - White

Fanvil A320i nurse Console Phone - White, Built-In nurse call Software for Healthcare system, Equipped with PTM Handset, Built-In adjustable 8 mega-pixel camera, HD Audio, Dual Gigabit Ports, Bluetooth, 2.4GHz / 5GHz Wi-Fi, 10.1-inch (1280x800) Touch Screen

Overview:

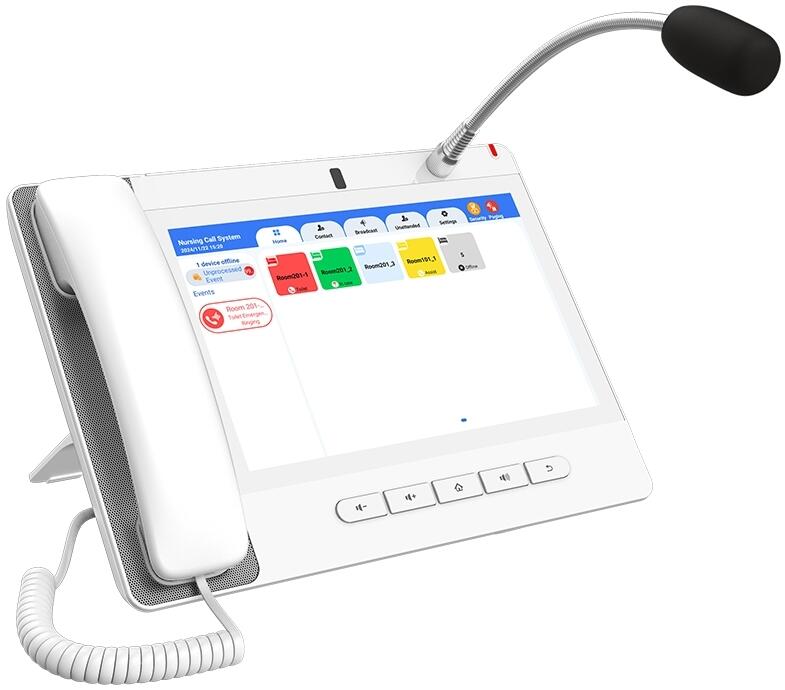

Fanvil A320i Nurse Console Phone - White
The Fanvil A320i Nurse Console Phone is an IP and SIP-based communication solution designed for nursing homes, clinics, assisted living facilities and other healthcare environments. It provides caregivers and healthcare staff with a central console for handling nurse calls, emergency alerts, video communication and paging. The A320i combines a large touch screen with HD audio, video calling, a built-in camera and dedicated nurse call software to support efficient communication between staff, patients and bedside stations.

Description:

The Fanvil A320i provides a practical nurse call and communication platform for healthcare facilities that require fast access to patient calls and emergency notifications. Its adjustable 8 megapixel camera with privacy cover and goose neck microphone support two-way audio and video communication with bedside stations and door phones. The PTM handset provides an additional communication option, while the large 10.1-inch touch screen makes call handling and system management straightforward.

The console also supports broadcasting and paging for emergency announcements, zone paging or communication with individual devices. With SIP support, the nurse console and staff devices can operate through a SIP server, making the A320i suitable for integration into IP-based healthcare communication systems.

Features:

Fanvil A320i Nurse Call System
The A320i is designed to manage different types of calls from bedside stations, allowing staff to quickly identify the nature and priority of an alert. Different colours and ringtones can be assigned to different call types, helping nurses and caregivers respond appropriately.

Supported call types include:

• Nurse Call Normal
• Nurse Call Emergency
• Toilet Emergency Call
• Staff Assistance Call
• Staff Emergency Call
• Code Blue Call
• Staff Presence

The system also supports unattended operation and scheduled automatic unattended functions, providing additional flexibility for facilities with different staffing requirements.

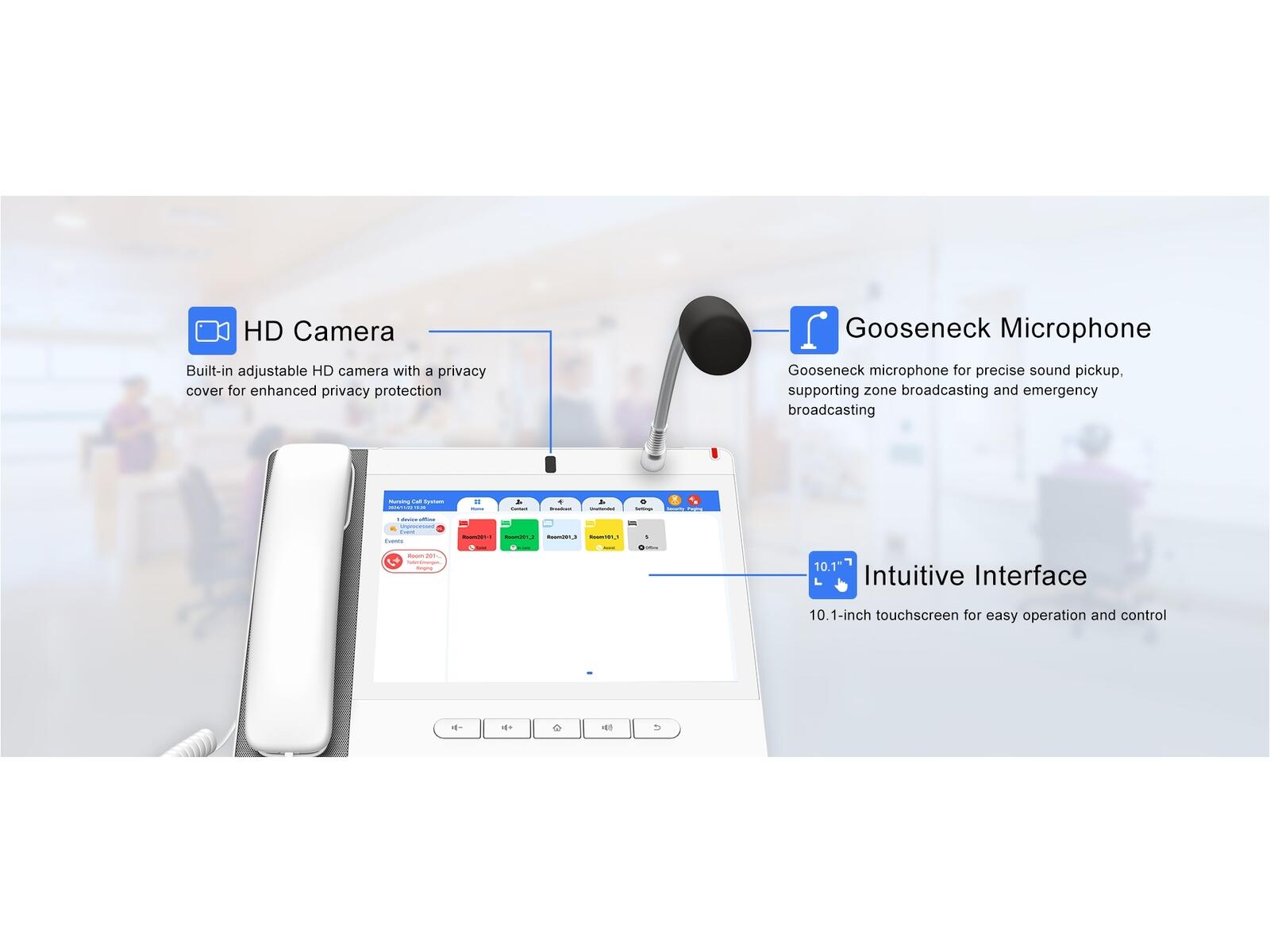

10.1-Inch Touch Screen and Video Communication
A 10.1-inch 1280 x 800 touch screen provides a clear interface for managing calls and accessing nurse call functions. The built-in adjustable 8 megapixel camera supports video calls, while the privacy cover allows the camera to be physically covered when video communication is not required.

The goose neck microphone is designed for extended sound pickup, helping provide clear two-way communication between the console and remote healthcare devices. HD audio is supported through both the speaker and handset.

IP, SIP and Network Connectivity
The Fanvil A320i uses IP and SIP communication protocols and can work with a SIP server. Dual Gigabit Ethernet ports and integrated PoE simplify installation and network connectivity, particularly where power and data need to be delivered through a single network cable.

Wireless connectivity is also supported through 2.4 GHz and 5 GHz Wi-Fi, while Bluetooth 5.0 provides additional connectivity options for compatible devices.

Paging, Broadcasting and Staff Communication
Built-in broadcasting and paging functions allow the A320i to be used for emergency announcements, zone paging or calls to a specific device. This can be useful in healthcare environments where staff need to communicate with multiple rooms or areas without making individual calls.

The Master Station A320i also supports screen sharing, helping staff access shared information where required.

Call Management and Storage
The A320i provides local call and contact management for healthcare communication requirements. It can store up to 10,000 call log entries and a local phonebook with up to 1,000 entries, making it easier for staff to review previous calls and access frequently used contacts.

The system can also support the CMD-01 corridor display, which is used to show call information and room status to staff in corridors and other visible areas.

Key Technical Details

• Model: Fanvil A320i Nurse Console Phone
• Colour: White
• Part Number / SKU: FAN-A320I-WH
• Display: 10.1-inch touch screen
• Display resolution: 1280 x 800
• Camera: Adjustable 8 megapixel camera with privacy cover
• Audio: HD audio on speaker and handset
• Microphone: Goose neck microphone for extended sound pickup
• Video codec: H.264
• Network: Dual Gigabit Ethernet ports
• Power: Integrated PoE
• Wireless: 2.4 GHz and 5 GHz Wi-Fi
• Bluetooth: Bluetooth 5.0
• Handset: PTM handset included
• Call logs: Up to 10,000 entries
• Phonebook: Up to 1,000 entries
• Protocol: IP and SIP

Healthcare Communication Integration
The Fanvil A320i Nurse Console Phone is built around the requirements of nurse call and healthcare communication systems. Bedside stations can register with the Master Station, while the console and staff devices can communicate through a SIP server. Its support for multiple call priorities, emergency alerts, paging, broadcasting and corridor displays makes it suitable for facilities that need a centralised communication point for caregivers.

With its combination of SIP connectivity, PoE, video communication, touchscreen control and dedicated nurse call software, the A320i offers a flexible option for modern IP-based healthcare communication deployments.
