V11HB28080ZA

Epson EB-L790U 7300lm 5000000:1 WUXGA 1920x1200 3LCD Laser Projector

Epson EB-L790U 7300lm 5000000:1 WUXGA 1920x1200 3LCD Laser Projector. WUXGA 1920x1200; 7300lm laser projector; 50"-500" screen; weight 8.2kg; HDMI HDBaseT LAN USB; laser life up to 30,000h

About this product

The Epson EB-L790U is a high-brightness 3LCD laser projector delivering 7,300 lumens and native WUXGA (1920 x 1200) resolution, ideal for large venues, conference rooms or auditoriums needing crisp, vibrant, professional-grade image quality with minimal maintenance.

Overview Summary

Description

The Epson EB-L790U is engineered for environments where brightness, image fidelity and reliability are critical. Its 3LCD projection system utilises a laser diode light source, ensuring high colour and white light output - 7,300 lumens - so your content remains vivid even under ambient lighting. The native WUXGA resolution delivers sharp and detailed visuals suitable for text-heavy presentations, detailed slides, video, or signage content. Colour reproduction spans up to 1.07 billion colours, enabling rich and accurate colour rendition.

Installation is straightforward and flexible. Manual lens shift (vertical ±50%, horizontal ±20%), 1.6x optical zoom and keystone correction (±30degrees vertical and horizontal) allow you to set up the projector to suit different room layouts - whether mounted on a ceiling, placed on a table, or positioned at the back of a room. The unit supports front, rear and ceiling projection.

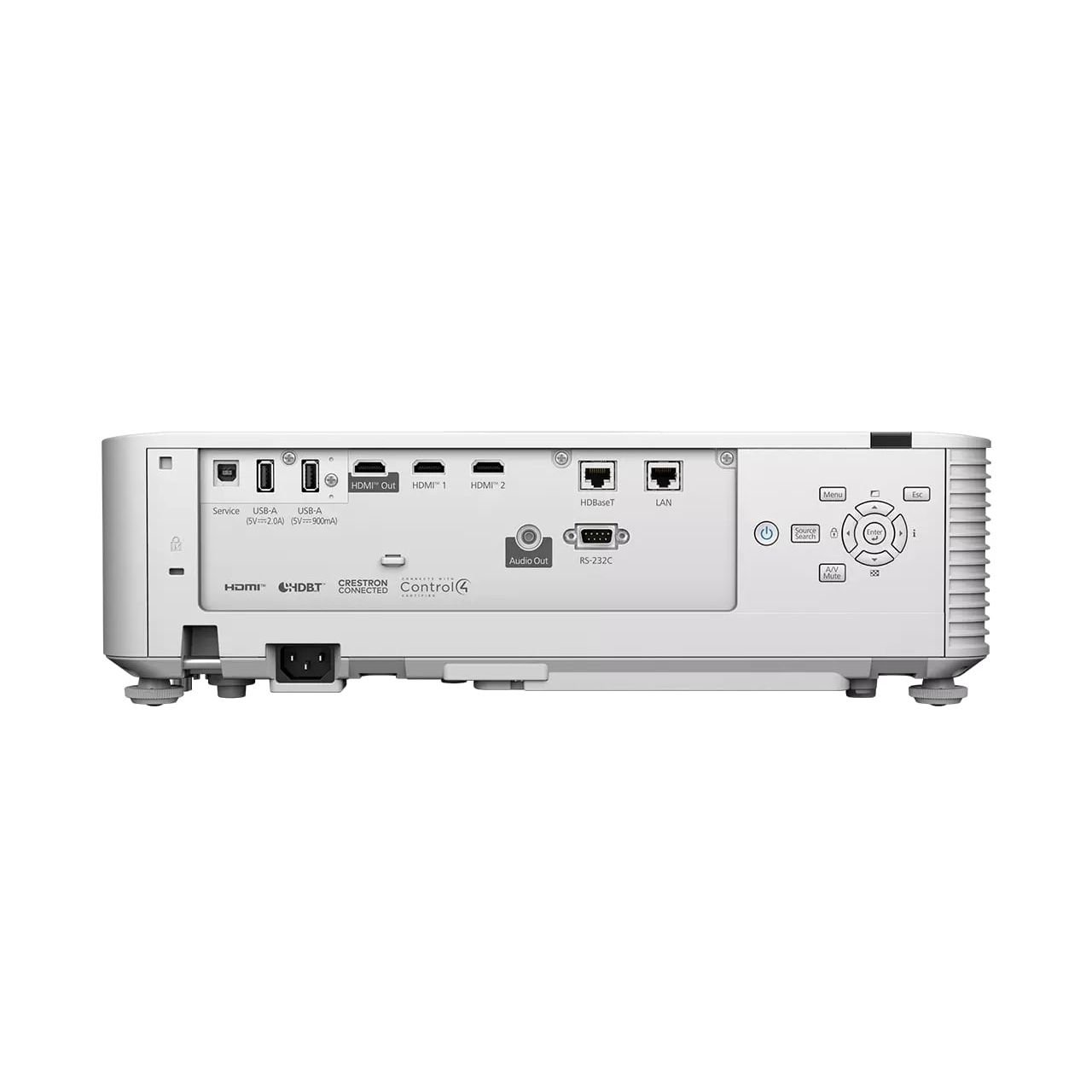

Connectivity options are extensive: 2 x HDMI (HDCP 2.3), 1 x HDBaseT, wired LAN (RJ45), 2 x USB Type-A, 1 x USB-B (service / firmware), RS-232C for control - plus built-in wireless LAN for content sharing or networked control. A 10 W internal speaker provides basic audio support. For large venues, classrooms or meeting rooms, this flexibility makes the EB-L790U a robust, future-proof solution.

Maintenance is minimal thanks to the long-life laser light source (20,000 hours normal / up to 30,000 hours in eco mode) and an electrostatic air filter - significantly reducing total cost of ownership compared to lamp-based projectors. Fan noise is modest at 34 dB (normal) / 25 dB (eco), helping maintain a professional, distraction-free environment.

Features

• 7,300 ANSI lumens colour and white light output - ideal for bright rooms or large screens.
• Native WUXGA (1920 x 1200) resolution with 16:10 aspect ratio - crisp, detailed image suitable for presentations, video, signage and more.
• 3LCD laser projection - up to 1.07 billion colours for accurate, vibrant colour reproduction.
• Laser light source with up to 20,000 hours (normal) / 30,000 hours (eco) - minimal maintenance and long lifespan.
• Flexible installation: manual lens shift, 1.6x optical zoom, keystone correction, front/rear/ceiling mount - adapt to different room layouts.
• Wide screen support: project from 50" up to 500" diagonal - versatile for meeting rooms, auditoriums, events or signage.
• Multiple connectivity: 2 x HDMI (HDCP 2.3), 1 x HDBaseT, USB, RS-232C, LAN, wireless LAN - fits various AV setups.
• Built-in 10 W speaker and network/control options - convenient for meetings and presentations without external audio need.
• Low maintenance: long-life laser, electrostatic filter, efficient cooling and quiet fan noise (34 dB / 25 dB eco mode).

Spectacular 7,300 lumens projector with WUXGA resolution
Ideal for meeting rooms, lecture halls and more. This compact, budget-friendly laser display delivers high-quality performance in any setting.

Compact design with scalable images up to 500"
The lightweight design simplifies transport and installation while offering scalable images up to 500” for maximum flexibility.

Effortless, flexible installation
With a fixed centre lens display, wide lens shift, and advanced features, setup is easy and adaptable to any environment.

Quiet operation
A high-performance projector with a low noise level of 25dB in Eco mode, ensuring a quiet, focused environment for presentations and meetings.

Instant connectivity with Apple AirPlay 2 and Miracast
Seamlessly share content from laptops, tablets, and smartphones - perfect for BYOD setups and collaborative environments.

Making sustainable choices with Epson
Made from 19% recycled plastics, low power consumption, reduced packaging and a usage life of up to 30,000 hours in Eco mode (20,000 hours normal).

What's in the Box

• Projector unit (Epson EB-L790U)
• Power cable
• Remote control (incl. batteries)
• User Guide and Quick Start Guide
• Warranty documentation

Specifications

© 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	V11HB28080ZA
Technology
Projection System	3LCD Technology, RGB liquid crystal shutter
LCD Panel	0,67 inch with C2 Fine
Color Light Output	7.300 Lumen- 5.110 Lumen (economy) In accordance with IDMS15.4
White Light Output	7.300 Lumen - 5.110 Lumen (economy) In accordance with ISO 21118:2020
Resolution	WUXGA
Aspect Ratio	16::10
Contrast Ratio	Over 5.000.000 : 1
Light source	Laser
Laser Light source	20.000 hours Durability High, 30.000 hours Durability Eco
Keystone Correction	Manual vertical: ±30 degrees, Manual horizontal ±30 degrees
Colour Video Processing	10 Bits
Colour Reproduction	Upto 1.07 billion colours
Optical
Throw Ratio	1,35 - 2, 20:1
Zoom	Manual, Factor:1 - 1,6
Lens	Optical
Lens Shift	Manual - Vertical ±50 %, horizontal ±20 %
Screen Size	50 inches - 500 inches
Projection Distance Wide	1,4 m - 14,8 m
Projection Distance Tele	2,4 m - 23,8 m
Projection Distance Wide/Tele	1,44 m - 23,84 m
Projection Lens F Number	1,5 - 1,7
Projection Lens Focal Length	20 mm - 31,8 mm
Projection Lens Focus	Manual
Connectivity
Interfaces	USB 2.0 (2x), USB 2.0 Type B (Service Only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, HDMI out, HDBaseT, Miracast, Jack plug out, HDMI (HDCP 2.3) (2x), Near Field Communication (NFC), Apple AirPlay 2
Epson iProjection App	Ad-Hoc / Infrastructure
Network Protocol	HTTPS, SNMP, ESC/VP.net, PJLink
Advanced Features
Security	Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Password protection
2D Colour Modes	Dynamic, Natural, Cinema, Presentation, DICOM SIM
Other features	21:9 aspect ratio support, A/V mute, Auto Power On, Built-in speaker, Customizable user logo, Direct Power on/off, Document Camera Compatible, Edge Blending, Home Screen, JPEG Viewer, Network projection, OSD copy function, PC Free, Point correction, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, Wireless LAN capable, iProjection App
Video Color Modes	Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection, BT709
Projector control	via: Crestron Integrated Partner, Extron XTP, AMX Device Discovery
General
Power consumption	336 Watt (Normal On-Mode), 233 Watt (Eco On-Mode), 399 Watt (Normal Peak-mode), 295 Watt (Eco Peak-Mode), 0,4 Watt (Energy saving standby)
Supply Voltage	AC 100 V - 240 V, 50 Hz - 60 Hz
Product dimensions	440 x 340 x 138 mm (Width x Depth x Height)
Product weight	8,2 kg
Noise Level	Normal:34 dB (A) - Economy:25 dB (A)
Supported Temperature	Storage -10degrees C - 60degrees C
Supported Humidity	Operation 20% - 80%, Storage 10% - 90%
Options	Air filter, Camera module, Ceiling mount, Document camera, External Speaker, HDBaseT Transmitter, Safety wire set, Suspension adapter, WP System - ELPWP20
Loudspeaker	10 Watt
Room Type / Application	Large Meeting Room/Boardroom, Auditorium, Meeting room / Classroom, Projection Mapping, Rental / Staging, Signage / Retail, Visitor Attraction
Positioning	Ceiling Mounted, Desktop
Colour	White
TCO Certified	For further information relating to TCO Certified please visit https: / / tcocertified.com / files / certification / Information-document-for-end-users.pdf

FAQ

What environments are best suited for this projector?

The Epson EB-L790U performs best in large rooms, auditoriums, lecture halls or meeting rooms with moderate to high ambient light thanks to its high 7,300-lumen brightness and WUXGA resolution. It is ideal for presentations, corporate events, large video displays or digital signage.

How long will the laser light source last?

The built-in laser light source is rated for up to 20,000 hours in normal mode and up to 30,000 hours in eco mode, meaning many years of heavy use before any need for light-source replacement or maintenance.

Can this projector be ceiling mounted or installed in different configurations?

Yes. It supports front, rear and ceiling mount configurations. Manual lens shift (vertical ±50%, horizontal ±20%), 1.6x optical zoom and keystone correction (±30degrees vertical and horizontal) provide flexibility in positioning and installation.

What connectivity options does it offer?

It includes 2 x HDMI inputs (HDCP 2.3), 1 x HDBaseT input, USB Type-A x 2 (for PC-free presentations or document cameras), USB Type-B (service/firmware), wired LAN (RJ45), RS-232C, built-in wireless LAN and an HDMI output plus stereo audio output - covering modern AV and networking needs.
