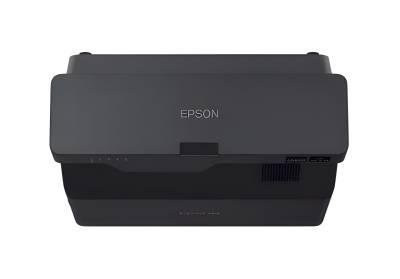

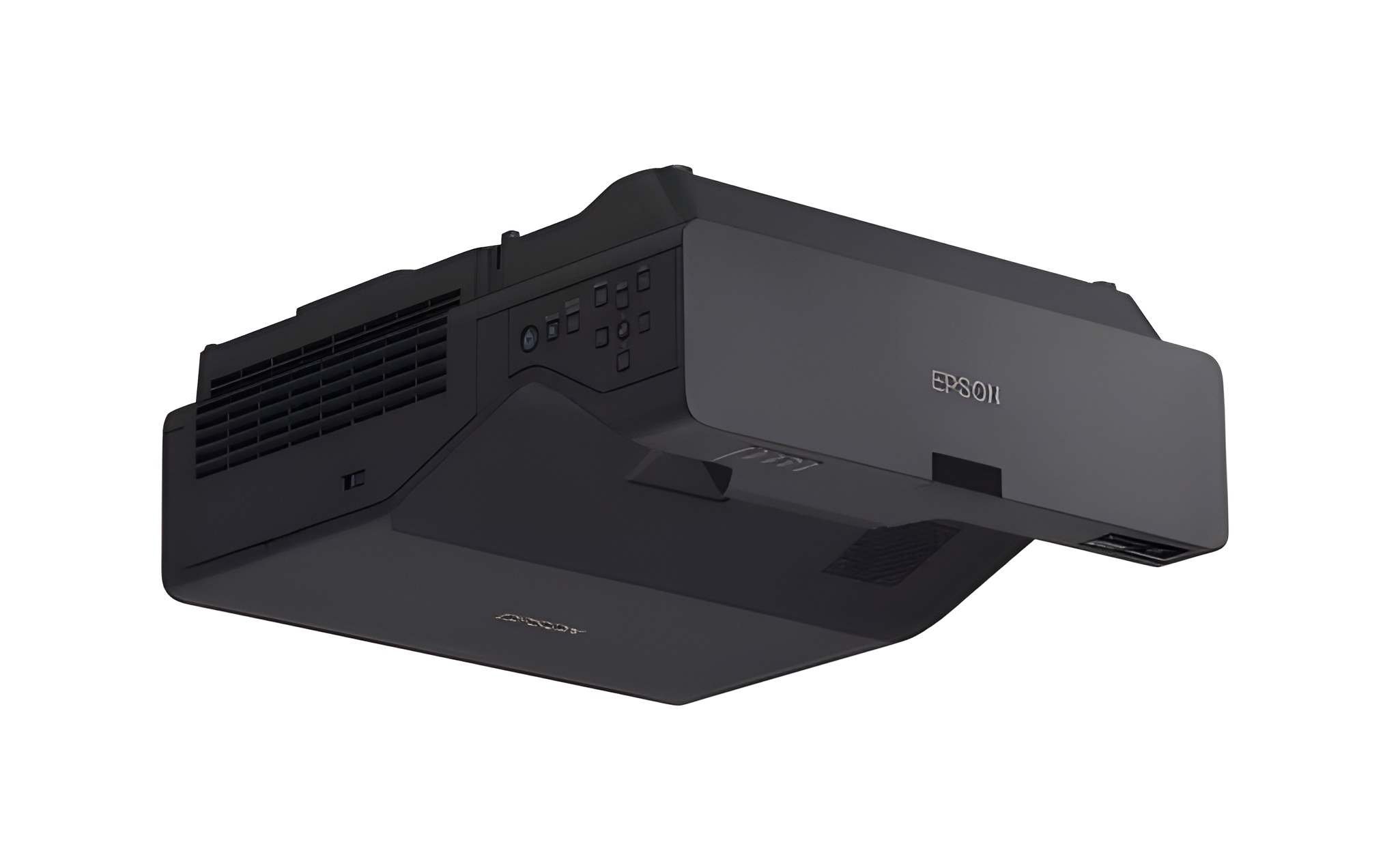

Epson EB-775F 4100 Lumen Full HD 1920x1080 3LCD Laser Projector

About this product

The Epson EB-775F is a high-performance Full HD (1920x1080) 3LCD laser projector delivering 4100 ANSI lumens for bright, crisp images even in well-lit rooms. Designed with an ultra-short-throw lens and compact form factor, it enables large displays up to 150 inches from minimal distance - ideal for signage, presentations, classrooms or retail environments.

Overview Summary

Product: Epson EB-775F Ultra Short Throw Laser Projector

The Epson EB-775F brings together powerful brightness and Full HD resolution in a compact, ultra-short-throw projector - perfect for producing large, vivid displays in tight spaces. With 4100 lumens and 3LCD laser technology, it delivers sharp, high-contrast images suitable for signage, presentations, classrooms or retail displays. Its versatile installation options (wall, ceiling, desktop) and support for screens up to 150 inches make it flexible for a variety of settings.

What tier does this fall into?

Professional / Commercial-grade

What is this best for?

Business presentations, Retail signage, Classroom teaching, Exhibitions, Large-format displays

Overview

The EB-775F is a cost effective way to create large, informative and immersive displays on multiple surfaces and in tight spaces at full HD and up to 4,100 lumens. It is designed to display visitor and customer information (e.g. in hospitality, retail and offices), exhibition information - even projecting directly onto exhibits - and boardroom presentations or school lessons.

Description

The Epson EB-775F offers a reliable, high-brightness projection solution built for commercial and educational environments. Its 3LCD laser engine ensures vibrant colours and excellent colour reproduction - capable of 1.07 billion colours. With native Full HD resolution (1920x1080) and a very short throw ratio (0.25-0.35:1), the EB-775F can project a large, bright image from a minimal distance, enabling installations even in small rooms or tight spaces. The fixed ultra-short-throw lens, manual focus, and digital zoom give flexibility for different screen sizes, while multiple connectivity options (HDMI, VGA, USB, network) support diverse content sources. The durable laser light source offers up to 20,000 hours runtime (normal mode) - reducing maintenance and ensuring long-term use.

Features

Key advantages and features of the EB-775F include:

High brightness: 4100 ANSI lumens - ensures clear, visible images even in bright or well-lit environments
Full HD resolution (1920x1080) - delivers crisp, sharp detail for presentations, video and signage
Ultra-short-throw lens (0.25-0.35:1) - allow large images (up to 150") from very short throw distances, saving space and enabling creative installation options
3LCD laser technology - bright, vibrant colour output and long-lasting light source with up to 20,000 hours estimated life
Flexible placement and installation - supports wall, ceiling or desktop mounting; suitable for diverse environments like offices, retail stores, schools, exhibitions
Wide connectivity - multiple HDMI, VGA, USB and network inputs to support various media sources and easy content playback
Low-maintenance operation - laser source means fewer replacements compared with lamp projectors, ideal for busy business or public environments

Versatile signage projector
Compact, unobtrusive, ultra-short-throw design for tight spaces

Create engaging displays
Up to 150" Full HD displays, 4,100 lumens and 3LCD technology

Flexible playback
Play content directly from a USB stick

Easy installation
360 degree rotation with portrait projection support

What's in the Box

Projector unit (Epson EB-775F)
Power cable
Remote control with batteries
Quick Start Guide
User guide / manual
Warranty documentation

Specifications

© 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	V11HA83180
Technology
Projection System	3LCD Technology, RGB liquid crystal shutter
LCD Panel	0,61 inch with C2 Fine
Color Light Output	4.100 Lumen- 2.800 Lumen (economy) In accordance with IDMS15.4
White Light Output	4.100 Lumen - 2.800 Lumen (economy) In accordance with ISO 21118:2020
Resolution	1080p
Resolution Enhancement	Full HD
Aspect Ratio	16::9
Contrast Ratio	Over 5.000.000 : 1
Light source	Laser
Laser Light source	20.000 hours Durability High, 30.000 hours Durability Eco
Keystone Correction	Manual vertical: ±3 degrees, Manual horizontal ±3 degrees
Colour Video Processing	10 Bits
2D Vertical Refresh Rate	192 Hz - 240 Hz
Colour Reproduction	Upto 1.07 billion colours
Optical
Throw Ratio	0,25 - 0, 35:1
Zoom	Digital, Factor:1 - 1,35
Lens	Optical
Screen Size	60 inches - 150 inches
Projection Distance Wide	0,4 m ( 65 inch screen )
Projection Distance Tele	0,7 m ( 120 inch screen )
Projection Lens F Number	1, 6
Projection Lens Focal Length	3,7 mm
Projection Lens Focus	Manual
Offset	5 :: 1
Connectivity

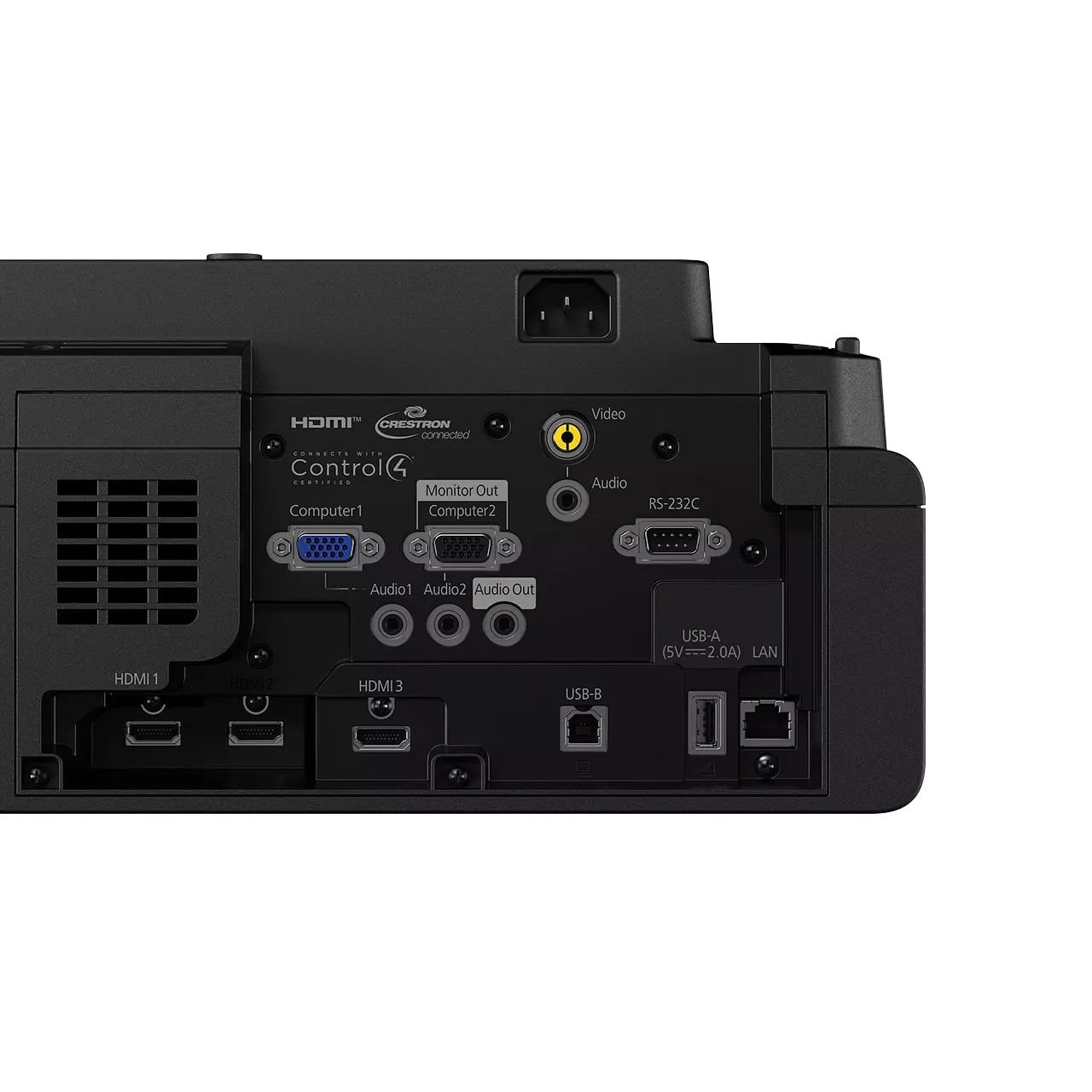

Interfaces	USB 2.0-A (2x), USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, VGA in (2x), VGA out, HDMI in (3x), Composite in, Miracast, Jack plug out, Jack plug in (3x), Wi-Fi Direct
Epson iProjection App	Ad-Hoc / Infrastructure
Network Protocol	HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
Advanced Features
Security	Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
Other features	21:9 aspect ratio support, A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Edge Blending, Email notification, Home Screen, Horizontal and vertical keystone correction, Image Shift, JPEG Viewer, Long light source life, Network projection, OSD copy function, PC Free, Power on button, Quick Corner, Schedule Function, Screen Mirroring, Ultra-wide display (16:6), Web Control, Web Remote, Wireless LAN capable, iProjection App
Video Color Modes	Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM SIM, Multi Projection
Projector control	via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol
General
Power consumption	200 Watt (Normal On-Mode), 141 Watt (Eco On-Mode), 263 Watt (Normal Peak-mode), 199 Watt (Eco Peak-Mode), 0,5 Watt (Energy saving standby)
Heat Dissipation	895 BTU/hour (max)
Supply Voltage	AC 220 V - 240 V, 50 Hz - 60 Hz
Product dimensions	356 x 395 x 133 mm (Width x Depth x Height)
Product weight	5,9 kg
Noise Level	Normal:37 dB (A) - Economy:27 dB (A)
Supported Temperature	Storage -10degrees C - 60degrees C
Supported Humidity	Operation 20% - 80%, Storage 10% - 90%
	Improper installation of the projector on a ceiling or wall may cause it to fall, leading to potential injury or damage. To prevent this, ensure the ceiling mount is securely fastened using all mounting points specified in the projector's user guide which is available to download from our support website (www.epson.eu/support). We recommend the use of Epson-approved ceiling mounts that are compatible with the projector model. Additionally, attach a safety wire of adequate strength to secure the projector to the ceiling mount.
	If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.
	We recommend that the equipment be inspected on a regular basis, either by the user or by a qualified professional, to ensure continued safe operation.
	If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.
Included Software	Epson Creative Projection, EasyMP Multi PC Projection, Epson Classroom Connect, Epson Projector Content Manager, Epson Projector Management
Options	Air filter, Ceiling mount, Connection and control box, External Speaker, Safety wire set, Visualiser camera, WP System - ELPWP10, Wall hanging bracket, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01
Loudspeaker	16 Watt
Room Type / Application	Signage / Retail, Visitor Attraction
Positioning	Ceiling Mounted, Desktop, Wall Mounted
Colour	Black
TCO Certified	For further information relating to TCO Certified please visit https: / / tcocertified.com / files / certification / Information-document-for-end-users.pdf

FAQ

What kind of environments is the Epson EB-775F best suited for?

The EB-775F excels in environments where space is limited but a large display is needed - such as retail signage, classrooms, meeting rooms, exhibitions or offices. Its ultra-short-throw lens allows a large image even when the projector is placed close to the wall or screen.

Can I use the EB-775F in a bright room with ambient light?

Yes. With 4100 ANSI lumens brightness and 3LCD colour output, the EB-775F produces bright, clear images that remain visible even in moderately lit rooms - making it suitable for conference rooms, retail spaces, or public areas with ambient light.

What screen size can I get with this projector?

The EB-775F supports screen sizes from approximately 49 inches up to 150 inches diagonal. This gives flexibility for small meeting rooms up to large presentation or signage areas.

How long will the laser light source last?

The built-in laser light source is rated for up to 20,000 hours in normal mode, and up to 30,000 hours when used in economy (eco) mode - significantly reducing maintenance compared with lamp-based projectors.

Is it easy to install and mount the EB-775F?

Yes. The projector supports wall, ceiling or desktop mounting, and its ultra-short-throw design simplifies installation even in tight spaces. Connectivity via multiple HDMI, VGA, USB and network ports gives flexible content source options.
