TM-T20IIIE

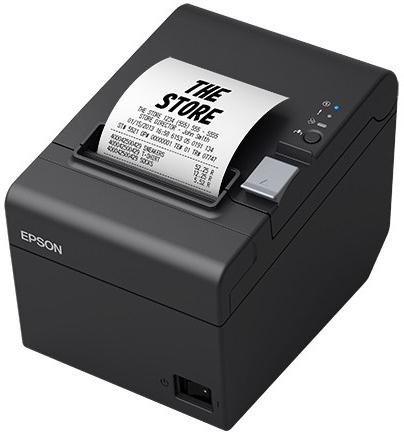

Epson TM-T20IIIE Thermal Receipt Printer including Power Supply USB & LAN

Epson TM-T20IIIE Thermal Receipt Printer including Power Supply USB & LAN, 250 mm/sec print speed, Ank printing Font, Paper width 80 mm, 22.6 CPI / 16.9 CPI characters per inch, 203x203 dpi dot density

Overview:

Epson TM-T20III Series - POS receipt printer
This entry-level thermal POS receipt printer provides a cost-effective POS solution with fast print speeds and economical features.

Features:

Epson TM-T20III Series
The combination of its fast print speeds, high reliability and economical operation, make this printer a must-have for small retail and speciality stores, hospitality venues and grocery stores.

Affordable
This easy-to-use model is our entry-level POS receipt printer and has an 80mm printing width. Its Automatic Paper Reduction feature reduces top and bottom margins, line feed width and barcode height, allowing for flexible receipt printing. This monitors and controls the amount of paper used. Paper costs are minimised by printing the top logo of the next receipt before cutting, so the top margin is further reduced by 12mm.

Reliable
With the mean time between failures (MTBF) of 360,000 hours and a mechanism life of 15 million lines, you can rely on the TM-T20III in high-volume printing environments.

Flexible
The TM-T20III comes with a built-in USB interface. You can select from two models: 1) USB + Serial, 2) Ethernet, making the model a long-term investment as it is possible to switch connectivity at any time.

Fast
Its print speed of 250mm/sec can save you time and its competitive price and running costs can save you money; ideal for when you need to beat queues quickly.

Specifications:

© 2022 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	TM-T20IIIE
Print type
Print method	Thermal line printing
Technology	Themal Line
Fonts & Styles
Print Speed	250 mm/sec
Print Speed receipt	250 mm/sec
Printing Font	ANK
Column capacity receipt	Paper width 80 mm, 48 / 64
Character set	95 Alphanumeric, 18 set International, 128 x 43 Graphic
Characters per inch	22.6 cpi / 16.9 cpi
Dot density	203 DPI x 203 DPI
Colour Printing	Black
Printing Characters	Text (incl. Euro symbol), Graphics, Barcode
Paper
Paper Types	Receipt
Paper size roll paper	79.50 ± 0.50 (W) mm x dia 83.00 mm
	57.50 ± 0.50 (W) mm x dia 83.00 mm
Interfaces
Interfaces	Wired Network, Drawer kick-out
Data Buffer
Data Buffer	4 kB or 45 Bytes
Power
Power Supply	AC adapter, C1
Power Consumption	Standby: 0.1 A, Mean: 1.8 A
Operating Voltage	24 V
General
Product dimensions	140 x 199 x 146 mm (Width x Depth x Height)
Product weight	1.7 kg
Colour	Black (EBCK)
Installation	horizontally, vertically, vertically with wall hanging bracket
Interface connectors	D.K.D. function (2 drivers)
Noise Level	Operation: 55 dB (A)
Humidity	Operation 10% - 90%, Storage 10% - 90%
Temperature	Operation 5° C - 45° C, Storage -10° C - 50° C
Reliability
Reliability	60,000,000 MCBF (Lines), 360,000 MTBF (Hours)
Auto Cutter Life	1,500,000 Cuts
Printer Life	15,000,000 lines
Print Head Life	150 km - 150,000,000 pulses
Standards Compliance
EMC Standards	FCC class A, CE marking, EN55022 Class A
Safety standards	UL, CSA, TÜV
Other Features
Cutter	Partial Cut
Sensors	Paper End Sensor, Paper Near End Sensor
Paper Saving Function	Yes
What's in the box
What's in the box	AC adapter, C1, CD Manual, EURO AC cable, Main unit, Paper roll spacer, Power switch cover, Roll paper, Rubber feet, Setup guide, Wall hanging bracket, Warranty document
