EPPJV11HA72180

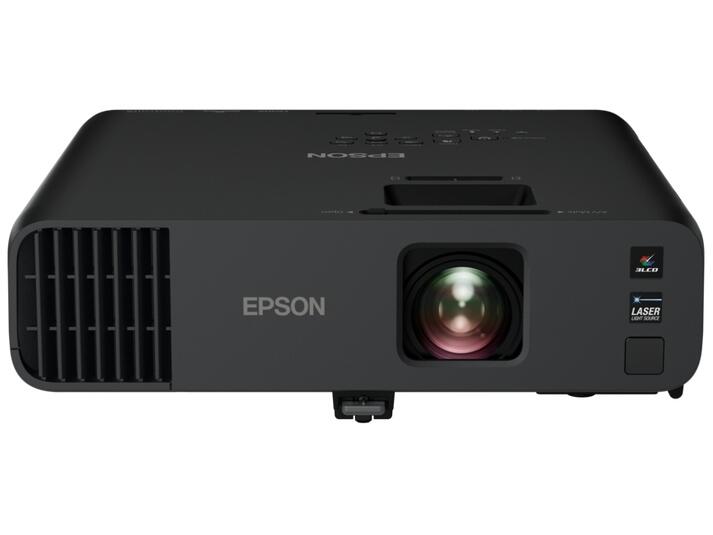

Epson EB-L265F 4600 Lumen Full HD 1920x1080 3LCD Wireless Laser Projector, VGA, HDMI

Epson EB-L265F 4600 Lumen Full HD 1920x1080 3LCD Wireless Laser Projector, V11HA69080, What's in the box - HDMI cable 1.8m / main unit / Power cable / Remote control including batteries, 3LCD technology, RGB Liquid Crystal shutter, 16:9 Aspect Ratio, 2500000:1 contrast ratio, Laser light source, Optical Lens, 31" - 310" screen size, USB 2.0, RS-232C, Ethernet Interface, Wi-Fi, 2x VGA in, VGA out, Composite in, Miracast, Cinch audio out, Microphone Input, 2x HDMI, 16 Watt loudspeaker

Overview:

Epson EB-L265F is a high-performance laser projector designed for digital signage, immersive displays, and flexible installation environments. Delivering Full HD 1920 x 1080 resolution with 3LCD technology and 4,600 lumens of brightness, it produces vivid, detailed images suitable for bright indoor spaces, retail environments, exhibitions, and experiential installations. With support for large-scale projection up to 310 inches and wireless content options, it is built for modern visual communication needs where scalability and reliability are essential.

Description:

The Epson EB-L265F combines laser projection technology with installation flexibility to deliver a scalable signage solution for professional environments. It supports a wide range of content sources including HDMI, USB playback, and wireless casting via Miracast and Wi-Fi. Its laser light source provides long operating life with minimal maintenance requirements, making it suitable for continuous use in commercial settings.

Designed for versatility, it can project onto walls, floors, ceilings, or even unconventional surfaces and 3D objects, enabling creative visual installations. The unit supports dynamic content playback and can operate independently using USB media or network-based content delivery.

Features:

Large-Scale Digital Projection for Commercial Use
This model is built to create impactful visual experiences in retail, hospitality, museums, and event spaces. The combination of Full HD resolution and high brightness ensures content remains clear and vibrant even in well-lit environments.

Key projection capabilities include:

• Screen size range from 31 inches up to 310 inches
• 4,600 lumen brightness for strong visibility in ambient light
• High contrast ratio of 2,500,000:1 for improved depth and detail
• 3LCD imaging system for consistent color reproduction

The projector also supports edge blending when multiple units are used, allowing for even larger combined displays.

Flexible Installation and Positioning Options
Installation versatility is a core strength of this projector, allowing it to adapt to different spatial requirements and creative setups. It can be mounted on ceilings, walls, floors, or lighting tracks, with full 360-degree rotation support for projection alignment.

Mounting options include:

• Ceiling installation for permanent signage setups
• Wall mounting for directional displays
• Floor placement for immersive projection mapping
• Lighting track compatibility for retail and gallery integration

Auto keystone correction and manual adjustment tools simplify alignment during setup.

Connectivity and Content Management
The EB-L265F is equipped with a broad set of input and networking options to support both wired and wireless workflows. It enables flexible content delivery across different environments and user setups.

Connectivity options include:

• 2 x HDMI inputs with HDCP support
• 2 x VGA inputs and 1 x VGA output
• USB 2.0 for direct media playback
• Ethernet (10/100 Base-TX)
• Wi-Fi (802.11 a/b/g/n/ac)
• Miracast screen mirroring
• Audio in/out and microphone input

It also supports content playback directly from USB storage, including playlists and video loops, reducing reliance on external devices.

Image Performance and Laser Technology
The projector uses a laser light source designed for long-term stability and consistent brightness output. Combined with Epson's 3LCD system, it delivers accurate color reproduction and reduced rainbow effects.

Core imaging characteristics:

• Full HD resolution (1920 x 1080)
• Laser lifespan up to 20,000 hours (high brightness mode)
• Extended eco mode operation up to 30,000 hours
• 10-bit colour processing for smoother gradients
• Support for up to 1.07 billion colours

These attributes make it suitable for high-impact visual storytelling and continuous signage operation.

System Design and Audio Output
The unit integrates a built-in 16W speaker, providing sufficient audio output for presentations and signage applications without requiring external sound systems in smaller installations. Power consumption is optimized for efficiency, with multiple operating modes to balance performance and energy use.

Additional system characteristics:

• Compact weight of 4.2 kg for easier installation handling
• Low maintenance laser architecture
• Operating noise reduced to 27 dB in eco mode
• Broad temperature and humidity tolerance for varied environments

Core Technical Summary

• Projection system: 3LCD with RGB liquid crystal shutter
• Resolution: Full HD 1920 x 1080
• Brightness: 4,600 lumens
• Contrast ratio: 2,500,000:1
• Light source: Laser
• Screen size capability: 31 to 310 inches
• Aspect ratio: 16:9
• Zoom: 1 to 1.62 manual
• Throw ratio: 1.32 to 2.12:1
• Audio: 16W built-in speaker
• Interfaces: HDMI, USB, VGA, Ethernet, Wi-Fi, Miracast, RS-232C

The Epson EB-L265F (SKU: V11HA72180 ) is positioned as a flexible, installation-ready laser projector for scalable signage, immersive projection mapping, and professional visual environments requiring reliability and high brightness performance.

Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	EPPJV11HA72180
Technology
Projection System	3LCD Technology, RGB liquid crystal shutter
LCD Panel	0,62 inch with C2 Fine
Color Light Output	4.600 Lumen- 3.200 Lumen (economy) In accordance with IDMS15.4
White Light Output	4.600 Lumen - 3.200 Lumen (economy) In accordance with ISO 21118:2020
Resolution	1080p
High Definition	Full HD
Aspect Ratio	16:9
Contrast Ratio	2.500.000 : 1
Light source	Laser
Laser Light source	20.000 hours Durability High, 30.000 hours Durability Eco
Keystone Correction	Auto vertical: ± 30 degrees, Manual horizontal ± 30 degrees
Colour Video Processing	10 Bits
2D Vertical Refresh Rate	192 Hz - 240 Hz
Colour Reproduction	Upto 1.07 billion colours
Optical
Throw Ratio	1,32 - 2,12:1
Zoom	Manual, Factor: 1 - 1,62
Lens	Optical
Screen Size	31 inches - 310 inches
Projection Lens F Number	1,51 - 1,77
Projection Lens Focal Length	18,2 mm - 29,1 mm
Projection Lens Focus	Manual
Offset	10 : 1
Connectivity
Interfaces	USB 2.0-A, USB 2.0 Type B (Service Only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, VGA in (2x), VGA out, Composite in, Miracast, Jack plug out, Jack plug in (2x), HDMI (HDCP 2.3) (2x)
Epson iProjection App	Ad-Hoc / Infrastructure
Network Protocol	HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
Advanced Features
Security	Kensington lock, Security bar, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
Other features	A/V mute, Arc Correction, Auto Power On, Auto source search, Automatic keystone correction, Built-in speaker, CEC compatible, Customizable user logo, Direct Power on/off, Document Camera Compatible, Edge Blending, Home Screen, Horizontal and vertical keystone correction, Long light source life, OSD copy function, PC Free, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Super resolution, Web Control, Web Remote, Wireless LAN capable, iProjection App
Video Color Modes	Blackboard, Cinema, Dynamic, Presentation, sRGB, Multi Projection
Projector control	via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol
General
Power consumption	199 Watt - On mode power consumption (Normal)
	260 Watt (Peak), 191 Watt (Eco), 0,5 Watt (Energy saving standby)
Heat Dissipation	884 BTU/hour (max)
Supply Voltage	AC 220 V - 240 V, 50 Hz - 60 Hz
Product weight	4,2 kg
Noise Level	Normal: 37 dB (A) - Economy: 27 dB (A)
Supported Temperature	Storage -10degrees C - 60degrees C
Supported Humidity	Operation 20% - 80%, Storage 10% - 90%
	If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.
	If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.
Included Software	Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management
Options	Air filter, Ceiling mount, Connection and control box, Document camera, External Speaker, Safety wire set, WP System - ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01
Loudspeaker	16 Watt
What's in the box	Cable cover, HDMI Cable 1.8m, Power cable, Quick Start Guide, Remote control incl. batteries, Warranty document
Room Type / Application	Projection Mapping, Signage / Retail, Visitor Attraction
Positioning	Ceiling Mounted, Desktop, Floor, Lighting Track, Wall Mounted
Colour	Black
