N845-03M-8L-MG

Eaton Tripp Lite series 40G MTP/MPO to 4xLC Fan-Out OM4 Plenum-Rated Fiber Optic ..

Eaton - Eaton Tripp Lite series 40G MTP/MPO to 4xLC Fan-Out OM4 Plenum-Rated Fiber Optic Cable Eaton Tripp Lite series 40G MTP/MPO to 4xLC Fan-Out OM4 Plenum-Rated Fiber Optic Cable, 40GBASE-SR4, Push/Pull Tabs, Magenta, 3 m, Order on Request
BUY NOW ! Supplier stock not confirmed, but might be in stock.* print

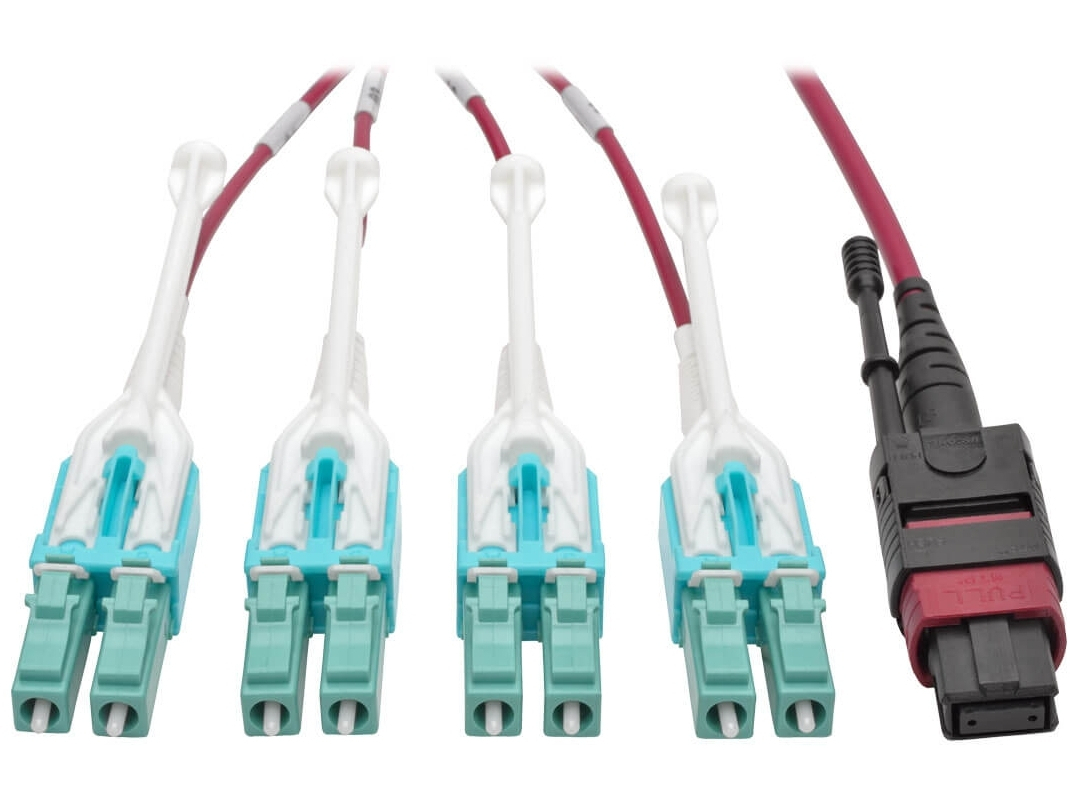

N845-03M-8L-MG Eaton Tripp Lite series 40G MTP/MPO to 4xLC Fan-Out OM4 Plenum-Rated Fiber Optic Cable Image 2

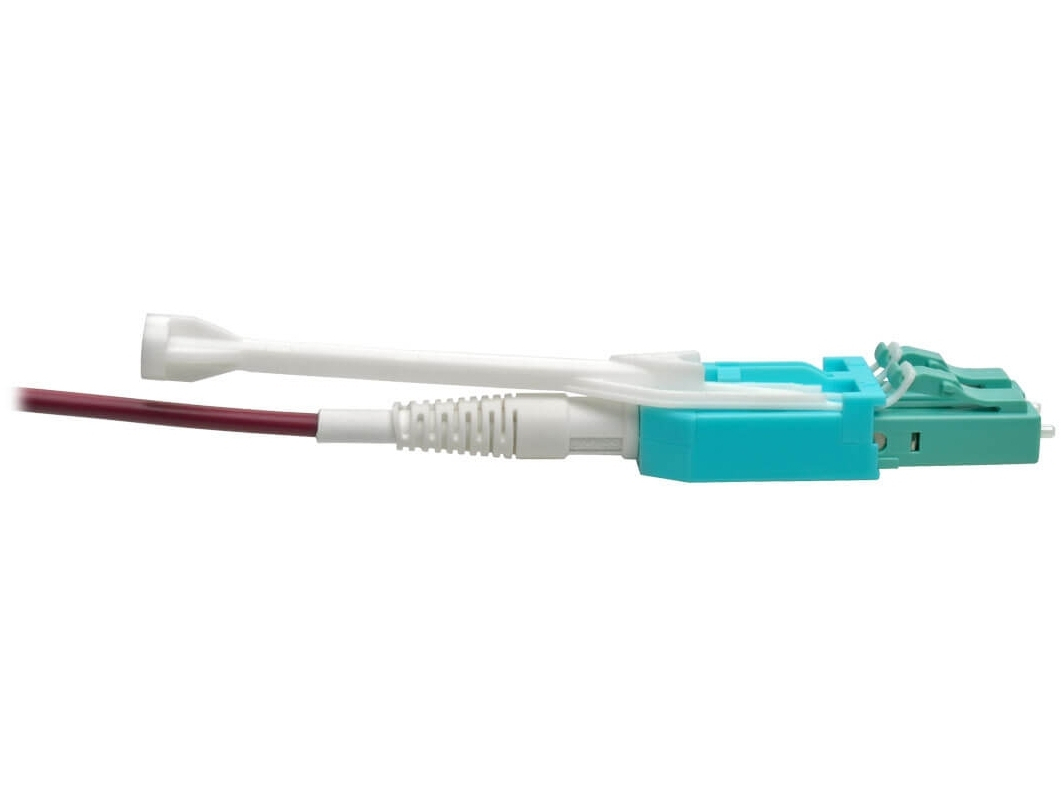

N845-03M-8L-MG Eaton Tripp Lite series 40G MTP/MPO to 4xLC Fan-Out OM4 Plenum-Rated Fiber Optic Cable Image 3

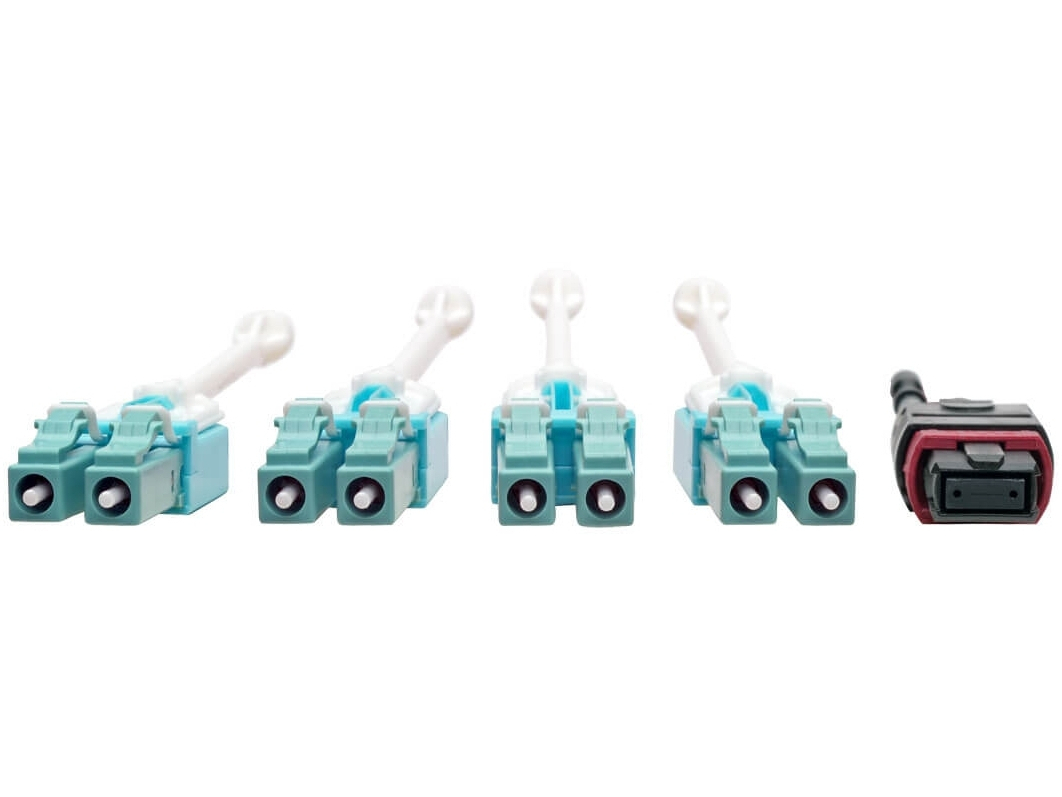

N845-03M-8L-MG Eaton Tripp Lite series 40G MTP/MPO to 4xLC Fan-Out OM4 Plenum-Rated Fiber Optic Cable Image 4
N845-03M-8L-MG Eaton Tripp Lite series 40G MTP/MPO to 4xLC Fan-Out OM4 Plenum-Rated Fiber Optic Cable Image 5
Not rated yet



Rate this product

Specials
Prices, images and descriptions are for reference purposes only & may change without prior notice. PLEASE RELY ON ABOVE DESCRIPTIONS AND NOT ON IMAGES. N845-03M-8L-MG Eaton Tripp Lite series 40G MTP/MPO to 4xLC Fan-Out OM4 Plenum-Rated Fiber Optic Cable is available from Laptop Direct and it is sold as new from our Optical Fibre Networking range of products. For reference purposes, the price of R4120 is valid 2026-10-12, and while stocks last, may be valid until . The price displayed is a guide for reference purposes only, and may change without prior notice. Reference prices are an invitation for potential buyers to make an offer to purchase, which we may reject without reason. A quote with final pricing is sent before a purchase can be made. T&C's apply. E&OE. Laptop Direct. You are looking at products found in the Optical Fibre Networking category.
Subscribe

Specification for the entire series

Important information: Kindly note that specifications differ between models. Features, options and accessories displayed below this paragraph are not included with this product unless it has been specified in the above description.


Please remember these important points when reading the information below this paragraph: Operating systems cannot be removed or changed, monitors are not included with computers, free Anti-virus and Office Software are trial versions or may have limited features and an additional license needs to be purchased to activate the full product.

N845-03M-8L-MG

Eaton Tripp Lite series 40G MTP/MPO to 4xLC Fan-Out OM4 Plenum-Rated Fiber Optic Cable

Eaton Tripp Lite series 40G MTP/MPO to 4xLC Fan-Out OM4 Plenum-Rated Fiber Optic Cable, 40GBASE-SR4, Push/Pull Tabs, Magenta, 3 m, Order on Request

Overview:

Connects 4 10Gb duplex LC devices to a 40Gb MTP port on a network switch. Designed for high-density connections between 40GBASE-SR4 network equipment.
  • Push/pull tab connectors install/remove with one hand
  • Plenum-rated jacket for connecting in ceilings, walls and ducts
  • Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 connections
  • Magenta color for easy OM4 identification
  • Slim, space-saving uniboot design for neat cable management
  • Premium-grade ceramic ferrule designed for fast applications

Features:

The three-meter N845-03M-8L-MG MTP/MPO to 8xLC Fan-Out Patch Cable supports 40 Gb Ethernet speeds and is designed for high-density connections between 40GBASE-SR4 network equipment. With one male MTP/MPO and eight male LC connectors, this OM4-rated multimode fiber optic fan-out cable supports various multi- and single-fiber connections. It fully transmits 40GBASE-SR with four fibers transmitting at 10 Gbps in each direction. Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 connections.

Push/pull tab connectors are easily accessible in high-density data center applications and make the cable easy to install and remove with one hand. The magenta-colored N845-03M-8L-MG features a premium-grade ceramic ferrule for 10 GbE and faster applications. The slim, space-saving uniboot design makes cable easier to manage. The plenum-rated jacket is perfect for connecting high-speed network components in ceilings, walls and ducts. The sturdy plastic housing is built to last a long time.

OM4-Rated for 40 Gb Ethernet Applications
  • Connects 4 10Gb duplex LC devices to a 40Gb MTP port on a network switch
  • Designed for high-density connections between 40GBASE-SR4 network equipment
  • Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 connections
  • Multimode fiber optic fan-out cable supports various multi- and single-fiber connections.
  • Fully transmits 40GBASE-SR with four fibers transmitting at 10 Gbps in each direction
  • Magenta-colored for identification as an OM4 cable
MTP/MPO and LC Connectors with Push/Pull Tabs
  • 1 male MTP/MPO and 8 male LC connectors
  • Push/pull tab connectors easy to install and remove with one hand
Error-Free Signal Transfer
  • Premium-grade ceramic ferrule for 10 GbE and faster applications
  • Slim, space-saving uniboot design makes cable easier to manage
  • Plenum-rated jacket for connecting in ceilings, walls and ducts
  • Sturdy plastic housing built to last a long time
Package Includes
  • N845-03M-8L-MG MTP/MPO to 8xLC Fan-Out Patch Cable, Magenta, 3 m

Specifications:

© 2024 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specificationsspacer
Product CodeN845-03M-8L-MGspacer
OVERVIEW
UPC Code37332200068
TechnologyMultimode
Optical ModeOM4
CONNECTIONS
Side A - Connector 112-STRAND MTP/MPO (FEMALE)
Side B - Connector 1(8) LC DUPLEX (MALE)
Endface PolishPC
PolarityType B (cross)
PHYSICAL
Cable Jacket ColorMagenta
Connector ColorAqua , Magenta , Black
Cable Jacket MaterialPVC
Cable Jacket RatingOFNP
Clad Diameter (microns)125
Core Diameter (microns)50
Number of Fibers12
Cable Length (m)2.99
Minimum Bend Radius20 mm (Dynamic) , 10 mm (Static)
Shipping Dimensions (hwd / cm)22.86 x 17.78 x 1.27
Shipping Weight (kg)0.08
Fiber Cable Length3M (9.8 ft)
ENVIRONMENTAL
Operating Temperature Range-4° to 140°F (-20° to 60°C)
Storage Temperature Range-4° to 140°F (-20° to 60°C)
Operating Humidity Range5% to 85% RH, Non-Condensing
Storage Humidity Range35% to 65% RH, Non-Condensing
COMMUNICATIONS
Network Compatibility40 Gbps , 100 Gbps , 400 Gbps
Attenuation @ 850NM3.0 dB/km
Insertion Loss= 0.35 dB
FEATURES & SPECIFICATIONS
Push/Pull TabsYes
BreakoutYes
TrunkYes
STANDARDS & COMPLIANCE
Product ComplianceRoHS , REACH
