N484-3M8-LC12

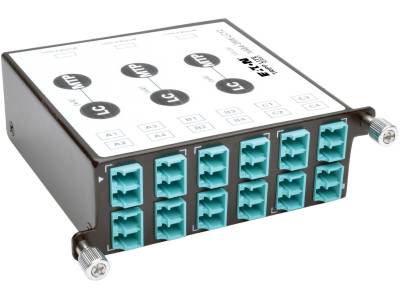

Eaton Tripp Lite series 40/100Gb Breakout Cassette

Eaton - Eaton Tripp Lite series 40/100Gb Breakout Cassette, 40Gb to 4 x 10Gb, 100Gb to 4 x 25Gb, (x3) 8-Fiber MTP/MPO to (x12) LC Duplex, Type-B Polarity, Order on Request
BUY NOW ! Supplier stock not confirmed, but might be in stock.* print


N484-3M8-LC12 Eaton Tripp Lite series 40/100Gb Breakout Cassette Image 2
N484-3M8-LC12 Eaton Tripp Lite series 40/100Gb Breakout Cassette Image 3
N484-3M8-LC12 Eaton Tripp Lite series 40/100Gb Breakout Cassette Image 4
N484-3M8-LC12 Eaton Tripp Lite series 40/100Gb Breakout Cassette Image 5
Not rated yet



Rate this product

Prices, images and descriptions are for reference purposes only & may change without prior notice. PLEASE RELY ON ABOVE DESCRIPTIONS AND NOT ON IMAGES. N484-3M8-LC12 Eaton Tripp Lite series 40/100Gb Breakout Cassette is available from Laptop Direct and it is sold as new from our Optical Fibre Networking range of products. For reference purposes, the price of R10380 is valid 2026-10-13, and while stocks last, may be valid until . The price displayed is a guide for reference purposes only, and may change without prior notice. Reference prices are an invitation for potential buyers to make an offer to purchase, which we may reject without reason. A quote with final pricing is sent before a purchase can be made. T&C's apply. E&OE. Laptop Direct. You are looking at products found in the Optical Fibre Networking category.
Subscribe

Specification for the entire series

Important information: Kindly note that specifications differ between models. Features, options and accessories displayed below this paragraph are not included with this product unless it has been specified in the above description.


Please remember these important points when reading the information below this paragraph: Operating systems cannot be removed or changed, monitors are not included with computers, free Anti-virus and Office Software are trial versions or may have limited features and an additional license needs to be purchased to activate the full product.

N484-3M8-LC12

Eaton Tripp Lite series 40/100Gb Breakout Cassette

Eaton Tripp Lite series 40/100Gb Breakout Cassette, 40Gb to 4 x 10Gb, 100Gb to 4 x 25Gb, (x3) 8-Fiber MTP/MPO to (x12) LC Duplex, Type-B Polarity, Order on Request

Overview:

Installs in select Tripp Lite fiber chassis to connect 12 duplex LC fiber cables with three 8-fiber MTP/MPO connections in high-density network applications.
  • For use with N484-01U or N484-00U chassis
  • Simple installation with no tools required
  • Factory-terminated connectors
  • Supports 40 GbE internally using OM4 fiber optic cable
  • Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 to SFP+ 10GBASE-SR and QSFP28 100GBASE-SR4 to SFP28 25GBASE-SR connections
  • Designed for use with recommended cabling

Features:

The N484-3M8-LC12 40/100Gb to 10/25Gb Breakout Cassette works in tandem with N484-01U or N484-00U chassis to connect 12 LC duplex fiber cables with three 8-fiber MTP/MPO connections in high-density network applications. It's compatible with recommended cabling, including the N820 -, N821 -, N844 -, N845 - and N858 Series. Its 8-fiber MTP ports are Polarity B, optimized for parallel optics and Base-8 connectivity.

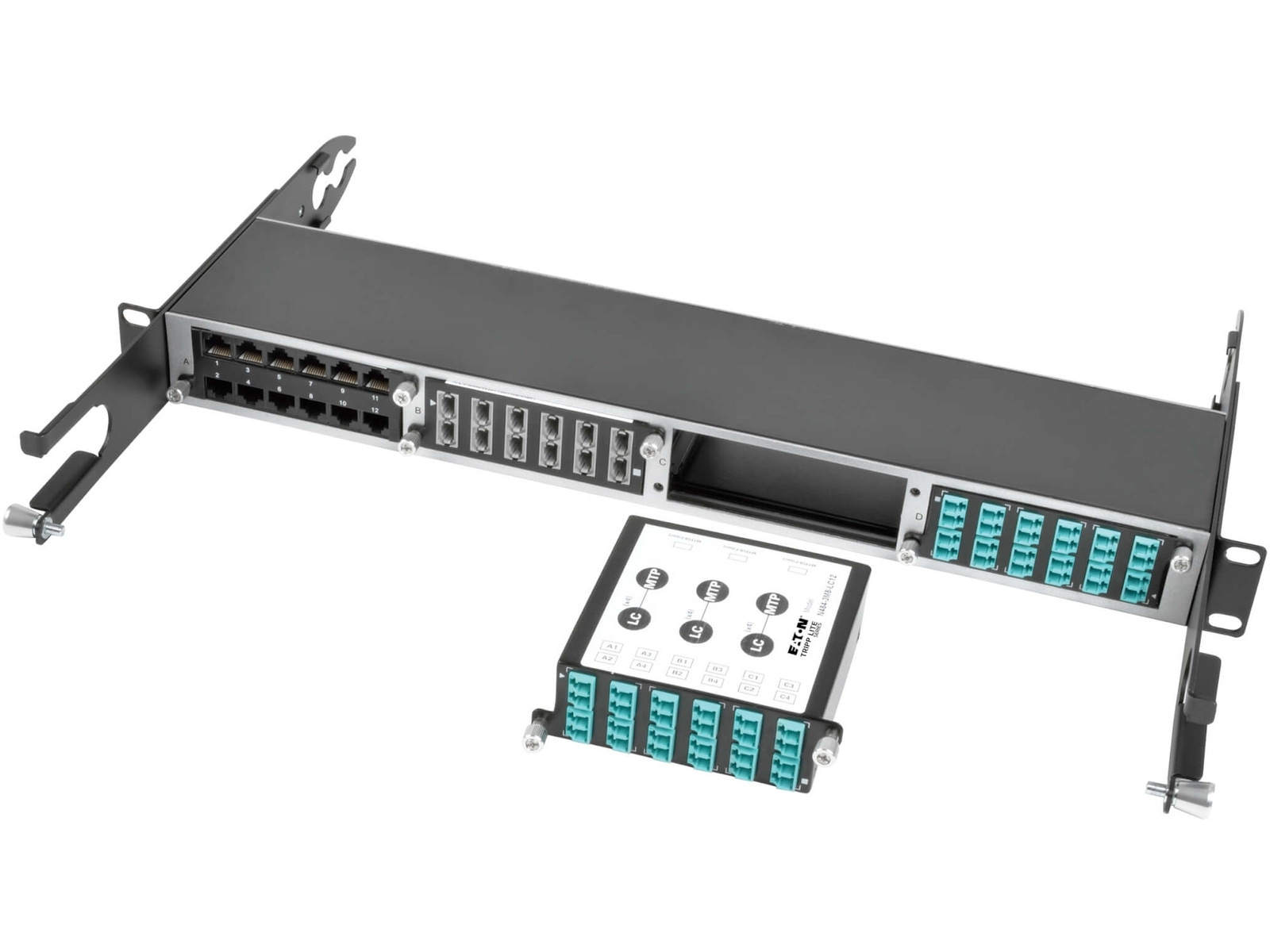

The cassette's modular design installs easily in the N484-01U and N484-00U chassis with no tools required. Just insert the cassette into the chassis, and screw in its retention clips to secure it. Plug LC Ethernet cables, such as N820-01M-T cables, into the cassette using the cable's convenient push/pull tabs. Up to four N484-3M8-LC12 cassettes fit in the N484-01U 1U enclosure panel, and one cassette fits in the N484-00U 0U sleeve. Dust tabs protect unused ports from potential damage.
The N484-3M8-LC12 complies with IEEE 802.3ae (10 GbE) and ANSI T11.2 (Fibre Channel) requirements. Supports 40 GbE internally using OM4 fiber optic cable. Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 to SFP+ 10GBASE-SR and QSFP28 100GBASE-SR4 to SFP28 25GBASE-SR connections. Ideal for QSFP fabric switches that use eight out of 12 available MTP fibers for four-lane parallel optics to 40 GB, allowing all 12 LC duplex cassette ports to be used. Maximum insertion loss of 0.35 dB falls well under the IEEE 802.3ae maximum channel loss specification of <25 dB. This cassette also supports devices of varying speeds, including 10Gb, 25Gb, 40Gb and 100Gb network equipment.

Elegant, Simple Solution for 40 Gb to 10 Gb, or 100 Gb to 25 Gb, LC Cable Connections
  • High-density fiber cassette for use with N484-01U and N484-02U fiber enclosure panels
  • Connect up to twelve LC duplex fiber cables with three 8-fiber MTP/MPO connections
  • Ideal for use with QSFP fabric switches to support 4 lanes parallel to 40 GB
  • Supports 40 GbE internally using OM4 fiber optic cable
  • Base-8 Fiber compatible with both QSFP+ 40 GbASE-SR4 to SFP+ 10 GbASE-SR and QSFP28 100 GbASE-SR4 to SFP28 25 GbASE-SR connections
  • 8-fiber MTP ports are Polarity B, optimized for parallel optics and Base-8 connectivity
Designed Specifically for Use with Cabling
  • Guaranteed compatibility with recommended cables, including N820 -, N821 -, N844 -, N845 - and N858 Series
Simple Fiber Installations Save Time and Money
  • Easy installation with no tools required
  • Installs neatly in N484-00U 0U chassis
  • Install up to 4 cassettes in N484-01U 1U enclosure panel
Easy to Modify, Upgrade or Expand Fiber Infrastructure By Adding or Swapping Cassettes
  • Complies with IEEE 802.3ae (10 GbE) and ANSI T11.2 (Fibre Channel) requirements
  • 0.35 dB maximum insertion loss falls under IEEE 802.3ae maximum channel loss spec of <25 dB
  • Supports devices of varying speeds, including 10 Gb, 25 Gb, 40 Gb and 100 Gb network equipment
Premium Construction for Optimal Performance
  • Heavy-duty cold-rolled steel construction
  • Factory-terminated connectors reduce time and labor
  • Dust caps protect unused ports
System Requirements
  • QSFP switches that use 8-fiber per port to support 4 x LC 10 GB breakout
  • Guaranteed compatibility with recommended cabling, including N820 -, N821 -, N844 -, N845 - and N858 Series cables
  • 8-fiber MTP ports are Polarity B, optimized for parallel optics and Base-8 Connectivity
Package Includes
  • 40/100Gb Breakout Cassette, 40Gb to 4 x 10Gb, 100Gb to 4 x 25Gb, (x3 ) 8-Fiber OM4 MTP/MPO to (x12 ) LC Duplex
  • Quick Start Guide

Specifications:

© 2024 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specificationsspacer
Product CodeN484-3M8-LC12spacer
OVERVIEW
UPC Code37332191366
TechnologyMultimode
CONNECTIONS
Number of Ports12
Side A - Connector 18-STRAND MTP/MPO (MALE)
Side B - Connector 1LC DUPLEX (FEMALE)
PHYSICAL
Shipping Dimensions (hwd / cm)4.06 x 19.56 x 14.99
Shipping Weight (kg)0.44
STANDARDS & COMPLIANCE
Product ComplianceRoHS


Download: pdf_downloads/2_5/254788_PDF1.pdf (64842 KB)
