N482-3M8-LC12

Eaton Tripp Lite series 40/100Gb Breakout Cassette

Eaton - Eaton Tripp Lite series 40/100Gb Breakout Cassette, 40Gb to 4 x 10Gb, 100Gb to 4 x 25Gb (x3) 8-Fiber OM4 MTP/MPO (Male with Pins) to (x12) LC Duplex, Type-B Polarity, Order on Request
No stock at suppliers. print
This product has been discontinued at this supplier, please try an alternative.


N482-3M8-LC12 Eaton Tripp Lite series 40/100Gb Breakout Cassette Image 2
N482-3M8-LC12 Eaton Tripp Lite series 40/100Gb Breakout Cassette Image 3
N482-3M8-LC12 Eaton Tripp Lite series 40/100Gb Breakout Cassette Image 4
N482-3M8-LC12 Eaton Tripp Lite series 40/100Gb Breakout Cassette Image 5
Not rated yet



Rate this product

Specials
Prices, images and descriptions are for reference purposes only & may change without prior notice. PLEASE RELY ON ABOVE DESCRIPTIONS AND NOT ON IMAGES. N482-3M8-LC12 Eaton Tripp Lite series 40/100Gb Breakout Cassette is available from Laptop Direct and it is sold as new from our Optical Fibre Networking range of products. For reference purposes, the price of R11350 is valid 2026-10-15, and while stocks last, may be valid until . The price displayed is a guide for reference purposes only, and may change without prior notice. Reference prices are an invitation for potential buyers to make an offer to purchase, which we may reject without reason. A quote with final pricing is sent before a purchase can be made. T&C's apply. E&OE. Laptop Direct. You are looking at products found in the Optical Fibre Networking category.
Subscribe

Specification for the entire series

Important information: Kindly note that specifications differ between models. Features, options and accessories displayed below this paragraph are not included with this product unless it has been specified in the above description.


Please remember these important points when reading the information below this paragraph: Operating systems cannot be removed or changed, monitors are not included with computers, free Anti-virus and Office Software are trial versions or may have limited features and an additional license needs to be purchased to activate the full product.

N482-3M8-LC12

Eaton Tripp Lite series 40/100Gb Breakout Cassette

Eaton Tripp Lite series 40/100Gb Breakout Cassette, 40Gb to 4 x 10Gb, 100Gb to 4 x 25Gb (x3) 8-Fiber OM4 MTP/MPO (Male with Pins) to (x12) LC Duplex, Type-B Polarity, Order on Request

Overview:

Installs in select Tripp Lite fiber enclosure panels to connect 12 LC duplex fiber cables with three 8-fiber MTP/MPO connections in high-density network applications.
  • For use with N482-01U or N482-02U chassis
  • Simple installation with no tools required
  • Factory-terminated OM4 connectors
  • Supports 40 GbE internally using OM4 fiber optic cable
  • Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 to SFP+ 10GBASE-SR and QSFP28 100GBASE-SR4 to SFP28 25GBASE-SR connections
  • Designed for use with recommended cabling

Features:

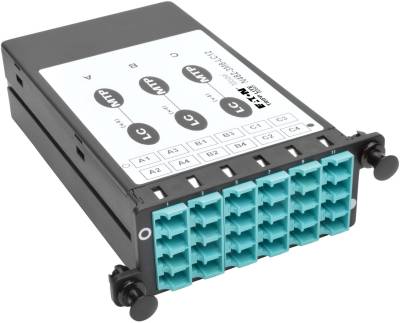

The N482-3M8-LC12 40/100 Gb to 10/25 Gb Breakout Cassette works in tandem with N482-01U or N482-02U chassis to connect 12 LC duplex fiber cables with three 8-fiber MTP/MPO connections in high-density network applications. It's compatible with recommended cabling, including the N820 -, N821 -, N844 -, N845 - and N858-Series. Its 8-fiber MTP ports are Polarity B, optimized for parallel optics and Base-8 connectivity. This cassette also future proofs your network for eventual 50Gb and 200Gb speeds and beyond.

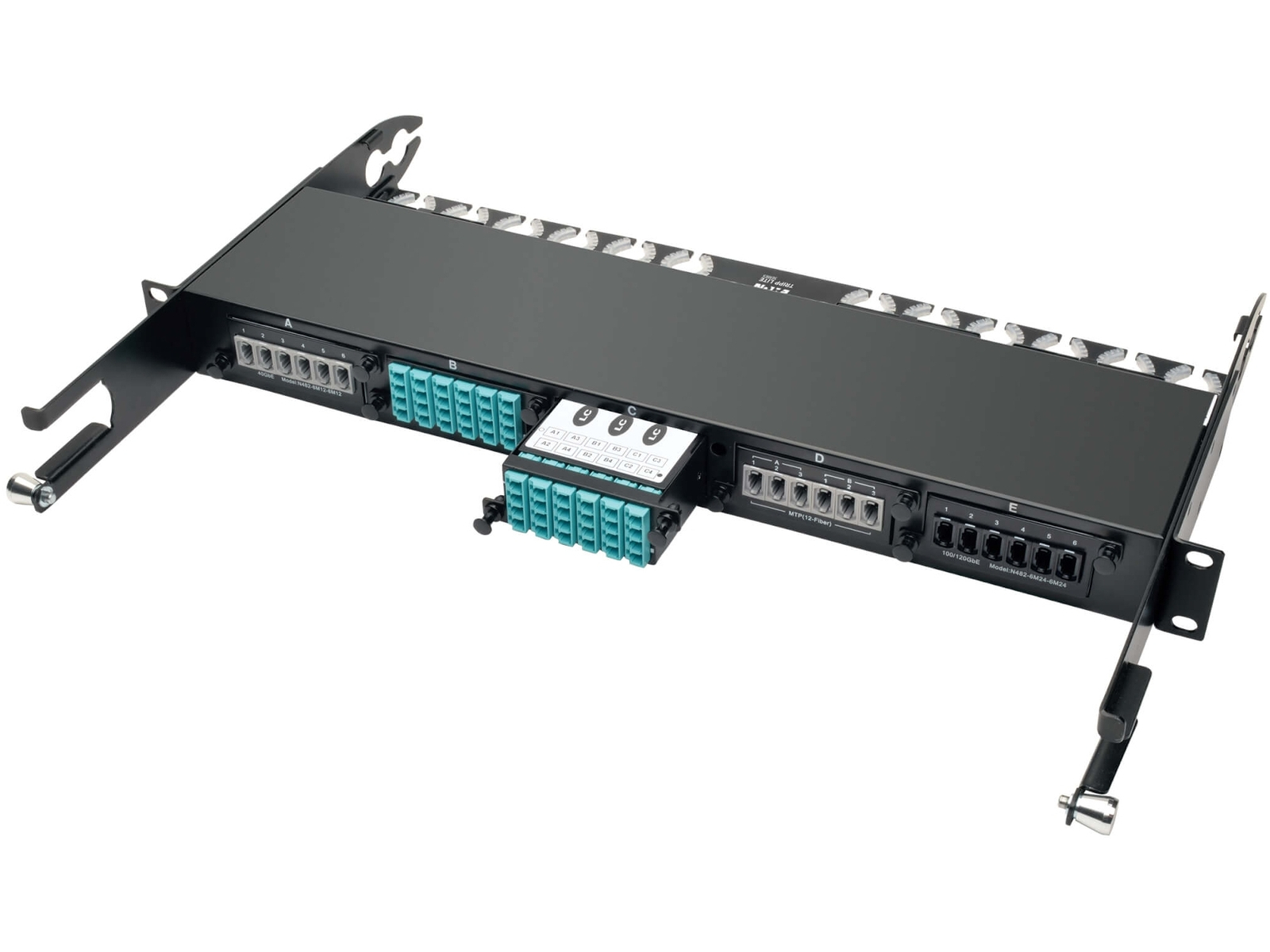

The cassette's modular design installs easily in the N482-01U and N482-02U chassis with no tools required. Just insert the cassette into the chassis, and snap in its retention clips to secure it. Plug LC Ethernet cables, such as N820-01M-T cables, into the cassette using the cable's convenient push/pull tabs. Up to five N482-3M8-LC12 cassettes fit in the N482-01U 1U enclosure panel, and 14 cassettes fit in the N482-02U 2U chassis. Dust tabs protect unused ports from potential damage.
The N482-3M8-LC12 complies with IEEE 802.3ae (10 GbE) and ANSI T11.2 (Fibre Channel) requirements. Supports 40 GbE internally using OM4 fiber optic cable. Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 to SFP+ 10GBASE-SR and QSFP28 100GBASE-SR4 to SFP28 25GBASE-SR connections. Ideal for QSFP fabric switches that use eight out of 12 available MTP fibers for four-lane parallel optics to 40 GB, allowing all 12 LC duplex cassette ports to be used. Maximum insertion loss of 0.35 dB falls well under the IEEE 802.3ae maximum channel loss specification of <25 dB. This cassette also supports devices of varying speeds, including 10Gb, 25Gb, 40Gb and 100Gb network equipment.

Elegant, Simple Solution for 40 Gb to 10 Gb, or 100 Gb to 25 Gb, LC Cable Connections
  • High-density fiber cassette for use with N482-01U and N482-02U fiber enclosure panels
  • Connect up to 12 LC duplex fiber cables with three 8-fiber MTP/MPO connections
  • Ideal for use with QSFP fabric switches to support 4 lanes parallel to 40 GB
  • Supports 40/100 GbE internally using OM4 fiber optic cable
  • Base-8 Fiber compatible with both QSFP+ 40 GbASE-SR4 to SFP+ 10 GbASE-SR and QSFP28 100 GbASE-SR4 to SFP28 25 GbASE-SR connections
  • 8-fiber MTP ports are Polarity B, optimized for parallel optics and Base-8 connectivity
  • Also future-proofs your network for eventual 50Gb and 200Gb speeds and beyond
Designed Specifically for Use with Cabling
  • Guaranteed compatibility with recommended cables, including N820 -, N821 -, N844 -, N845 - and N858-Series
Simple Fiber Installations Save Time and Money
  • Easy installation with no tools required
  • Install up to 14 cassettes in N482-02U 2U chassis
  • Install up to 5 cassettes in N482-01U 1U chassis
Easy to Modify, Upgrade or Expand Fiber Infrastructure by Adding or Swapping Cassettes
  • Complies with IEEE 802.3ae (10 GbE) and ANSI T11.2 (Fibre Channel) requirements
  • 0.35 dB maximum insertion loss falls under IEEE 802.3ae maximum channel loss spec of <25 dB
  • Supports devices of varying speeds, including 10 Gb, 25 Gb, 40 Gb and 100 Gb network equipment
Premium Construction for Optimal Performance
  • Factory-terminated connectors reduce time and labor
  • Dust caps protect unused ports
System Requirements
  • QSFP switches that use 8-fiber per port to support 4 x LC 10 GB breakout
  • Guaranteed compatibility with recommended cabling, including N820 -, N821 -, N844 -, N845 - and N858-Series cables
  • 8-fiber MTP ports are Polarity B, optimized for parallel optics and Base-8 Connectivity
Package Includes
  • N482-3M8-LC12 40 GB to 10 GB Breakout Cassette
  • Quick Start Guide

Specifications:

© 2024 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specificationsspacer
Product CodeN482-3M8-LC12spacer
OVERVIEW
UPC Code37332200327
TechnologyMultimode
CONNECTIONS
Number of Ports12
Side A - Connector 18-STRAND MTP/MPO (MALE)
Side B - Connector 1LC DUPLEX (FEMALE)
PHYSICAL
Shipping Dimensions (hwd / cm)5.08 x 19.30 x 12.19
Shipping Weight (kg)0.23
STANDARDS & COMPLIANCE
Product ComplianceRoHS


Download: pdf_downloads/2_5/254787_PDF1.pdf (65399 KB)
