N390-05M-8LC-AP

Eaton Tripp Lite series MTP/MPO (APC) to 4xLC (UPC) Singlemode Breakout Patch ..

Eaton - Eaton Tripp Lite series MTP/MPO (APC) to 4xLC (UPC) Singlemode Breakout Patch Cable Eaton Tripp Lite series MTP/MPO (APC) to 4xLC (UPC) Singlemode Breakout Patch Cable, 40/100 GbE, QSFP+ 40GBASE-PLR4, Plenum, Yellow, 5 m (16 ft.), Order on Request
BUY NOW ! Supplier stock not confirmed, but might be in stock.* print

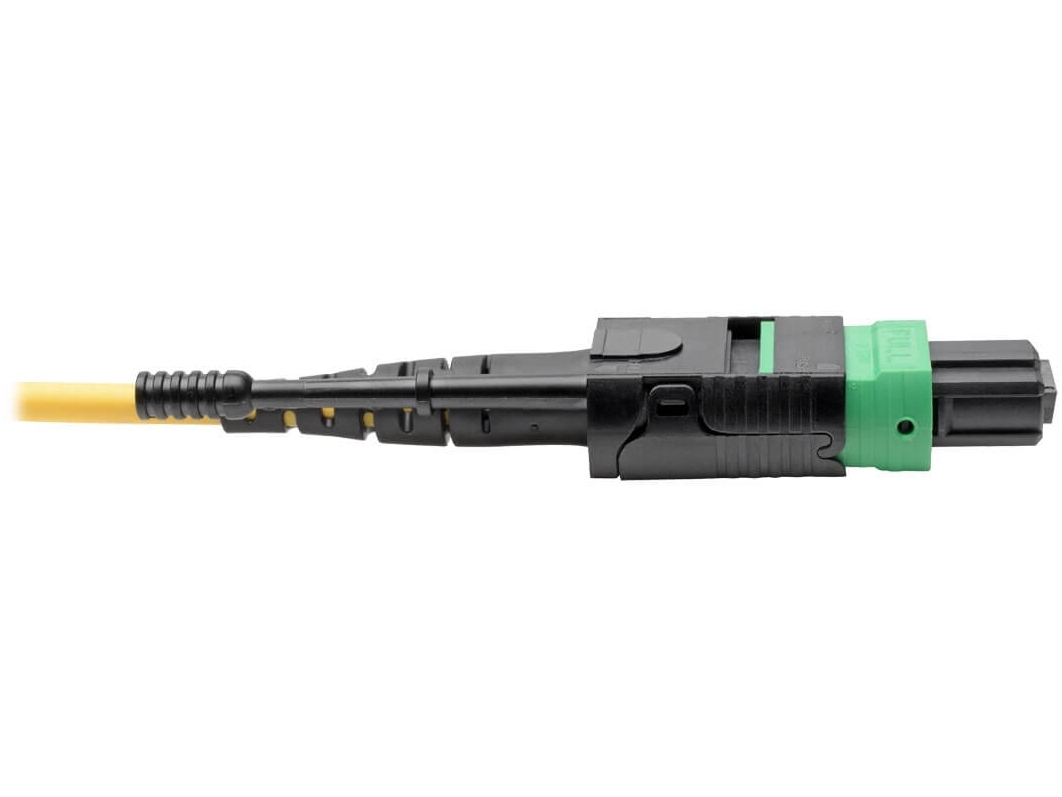

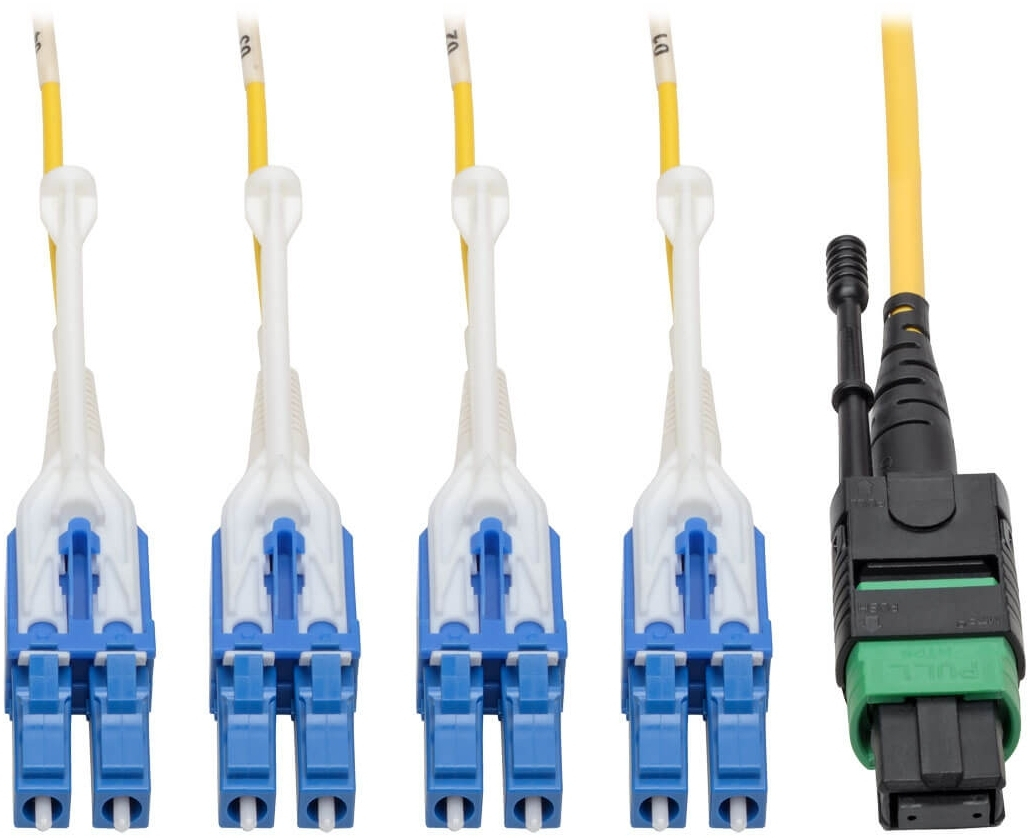

N390-05M-8LC-AP Eaton Tripp Lite series MTP/MPO (APC) to 4xLC (UPC) Singlemode Breakout Patch Cable Image 2
N390-05M-8LC-AP Eaton Tripp Lite series MTP/MPO (APC) to 4xLC (UPC) Singlemode Breakout Patch Cable Image 3
N390-05M-8LC-AP Eaton Tripp Lite series MTP/MPO (APC) to 4xLC (UPC) Singlemode Breakout Patch Cable Image 4
N390-05M-8LC-AP Eaton Tripp Lite series MTP/MPO (APC) to 4xLC (UPC) Singlemode Breakout Patch Cable Image 5
Not rated yet



Rate this product

Prices, images and descriptions are for reference purposes only & may change without prior notice. PLEASE RELY ON ABOVE DESCRIPTIONS AND NOT ON IMAGES. N390-05M-8LC-AP Eaton Tripp Lite series MTP/MPO (APC) to 4xLC (UPC) Singlemode Breakout Patch Cable is available from Laptop Direct and it is sold as new from our Optical Fibre Networking range of products. For reference purposes, the price of R4490 is valid 2026-10-13, and while stocks last, may be valid until . The price displayed is a guide for reference purposes only, and may change without prior notice. Reference prices are an invitation for potential buyers to make an offer to purchase, which we may reject without reason. A quote with final pricing is sent before a purchase can be made. T&C's apply. E&OE. Laptop Direct. You are looking at products found in the Optical Fibre Networking category.
Subscribe

Specification for the entire series

Important information: Kindly note that specifications differ between models. Features, options and accessories displayed below this paragraph are not included with this product unless it has been specified in the above description.


Please remember these important points when reading the information below this paragraph: Operating systems cannot be removed or changed, monitors are not included with computers, free Anti-virus and Office Software are trial versions or may have limited features and an additional license needs to be purchased to activate the full product.

N390-05M-8LC-AP

Eaton Tripp Lite series MTP/MPO (APC) to 4xLC (UPC) Singlemode Breakout Patch Cable

Eaton Tripp Lite series MTP/MPO (APC) to 4xLC (UPC) Singlemode Breakout Patch Cable, 40/100 GbE, QSFP+ 40GBASE-PLR4, Plenum, Yellow, 5 m (16 ft.), Order on Request

Overview:

Premium 9/125 singlemode fiber optic cabling for transmitting 40/100 Gb data and voice signals. Designed for high-density fiber patching between data center MDFs and IDFs in enterprise installations.
  • Push/pull tab connectors install/remove with one hand
  • 12-fiber MTP/MPO connectors with 12x density of SC connectors
  • Slim space-saving uniboot design for easy cable management
  • Angled APC connectors protect laser against destabilization
  • Yellow color for quick singlemode identification

Features:

9/125 Rated Singlemode Cable for 40/100 Gb Ethernet Applications
  • Designed for high-density fiber patching between data center MDFs and IDFs in enterprise installations
  • Optimized for QSFP+ 40GBASE-PLR4 and QSFP28 100GBASE-PSM4 networks
  • Plenum-rated jacket suited for ceilings, walls and ducts
  • Yellow-colored for identification as a singlemode cable
MTP/MPO APC and LC Duplex UPC Connectors with Push/Pull Tabs
  • MTP/MPO female connector and 8 LC duplex male connectors-no splicing required
  • 12-fiber MTP/MPO connector 12 times denser than SC connector
  • APC connector angled to prevent light from reflecting back into laser
  • UPC connector with premium-grade ceramic ferrule for 10 GbE and faster applications
  • Push/pull tabs easy to install and remove with one hand
Error-Free Signal Transfer
  • Fully transmits 40GBASE-PLR4 with 4 fibers transmitting at 10 Gbps in each direction
  • 100% tested for low insertion loss and back reflection
  • Slim, space-saving uniboot design easier to manage in crowded applications
  • N390-05M-8LC-AP MTP/MPO to 8xLC Singlemode Breakout Patch Cable, Yellow, 5 m

Specifications:

© 2024 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specificationsspacer
Product CodeN390-05M-8LC-APspacer
OVERVIEW
UPC Code37332205605
TechnologySinglemode
Optical ModeOS2
CONNECTIONS
Side A - Connector 112-STRAND MTP/MPO (FEMALE)
Side B - Connector 1(8) LC DUPLEX (MALE)
Endface PolishAPC , UPC
PolarityType B (cross)
PHYSICAL
Cable Jacket ColorYellow
Connector ColorBlue , Green , Black
Cable Jacket MaterialPVC
Cable Jacket RatingOFNP
Clad Diameter (microns)125
Core Diameter (microns)9
Number of Fibers8
Cable Length (m)5
Minimum Bend Radius20 mm (Dynamic) , 10 mm (Static)
Shipping Dimensions (hwd / cm)22.86 x 17.78 x 1.27
Shipping Weight (kg)0.1
Fiber Cable Length5M (16.4 ft)
ENVIRONMENTAL
Operating Temperature Range-4° to 140°F (-20° to 60°C)
Storage Temperature Range-4° to 140°F (-20° to 60°C)
Operating Humidity Range5% to 85% RH, Non-Condensing
Storage Humidity Range35% to 65% RH, Non-Condensing
COMMUNICATIONS
Network Compatibility40 Gbps , 100 Gbps , 400 Gbps
Attenuation @ 1310NM0.36 dB/km
Attenuation @ 1550NM0.22 dB/km
Insertion LossMPO = 0.70 dB , LC = 0.30 dB
FEATURES & SPECIFICATIONS
Push/Pull TabsYes
BreakoutYes
STANDARDS & COMPLIANCE
Product ComplianceRoHS , REACH


Download: pdf_downloads/2_5/254652_PDF1.pdf (74822 KB)
