B203-101-IND

Eaton Tripp Lite series 1-Port Industrial USB over Cat6 Extender

Overview:

Industrial-grade transmitter/receiver combo connects your office laptop or PC to a webcam or other USB peripheral up to 150 ft. away.

Supports USB 2.0 speeds up to 480 Mbps to ensure reliable data transfers
Power over Cable (PoC) provides power to the transmitter via Cat5/6 cable
ESD protection to ±15 kV cuts potential static damage to your connected peripherals
Industrial-grade metal housings withstand harsh warehouse and factory environments
Compatible with all major operating systems, including Windows, Mac OS and Chrome

Features:

Industrial-Grade Extender Connects Your Computer to a USB Device up to 150-ft. (45.7 m) Away

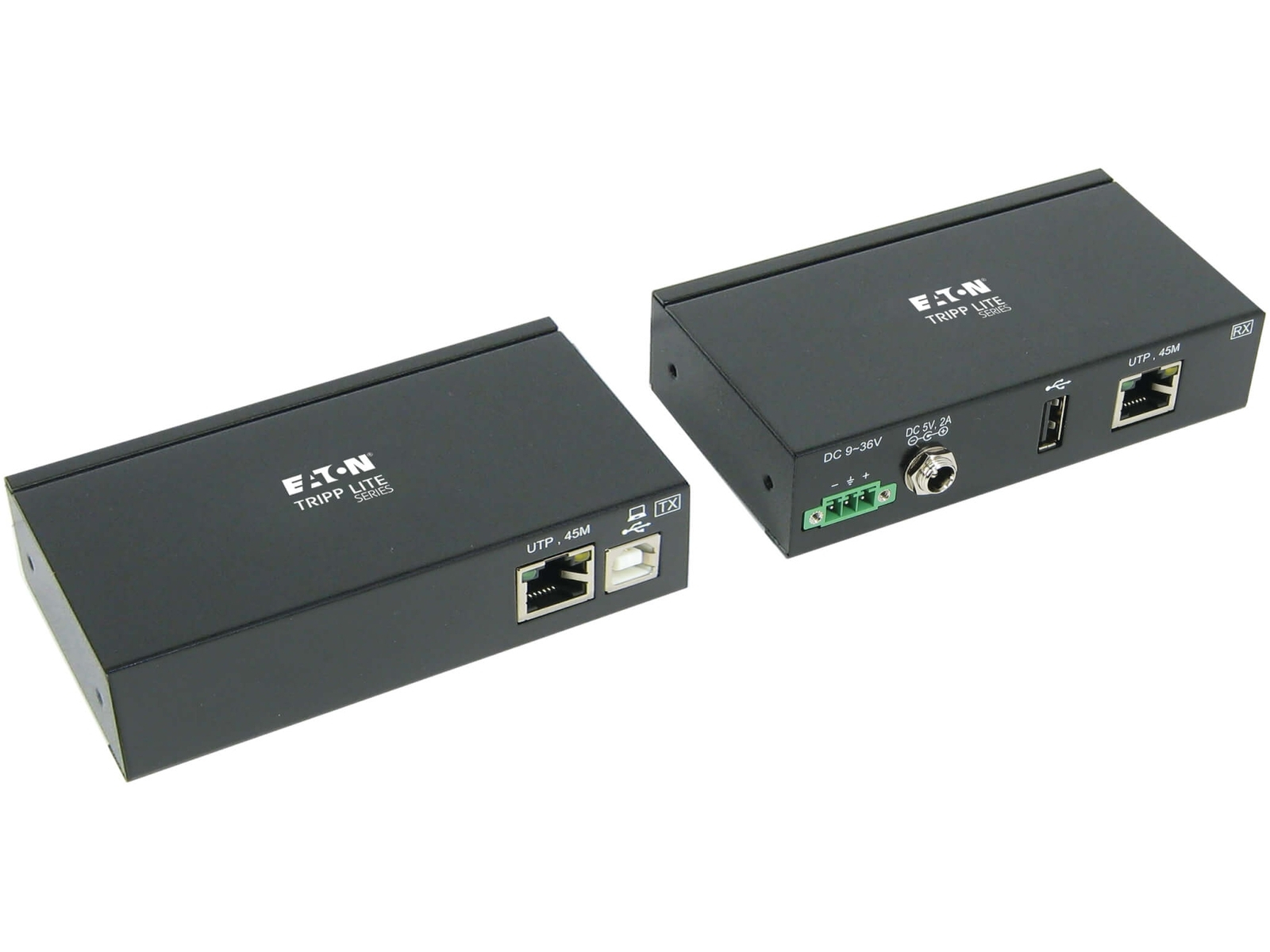

This plug-and-play extender kit with heavy-duty all-metal housings is ideal for connecting your office computer's USB-A port to a printer, 1080p webcam, external hard drive or other USB device located up to 150-ft. (45.7 m) (45 meters) away. The B203-101-IND includes a local transmitter and a remote receiver that extends USB 2.0 signals over user-supplied Cat5/6 cabling (such as N202-Series Cat6 Ethernet cables).

Protects Your Devices against Electrostatic Discharge (ESD)
Machines on the shop floor can generate electrostatic discharges, wiping out data and damaging sensitive electronics. This extender kit provides ESD protection to ±15 kV, reducing potential static damage to your connected USB peripherals. The durable metal transmitter and receiver units withstand harsh physical conditions in industrial and commercial applications, such as factories, construction sites, supply rooms and warehouses.

With Great Distance Comes Great Flexibility
By extending the USB connection beyond the standard 16-foot distance limitation to 150-ft. (45.7 m), the B203-101-IND provides workstation flexibility to place your computer and the USB device where they are best suited. This extender kit supports USB 2.0 data transfer rates up to 480 Mbps and is backward compatible with USB 1.1 technology, allowing you to connect legacy devices. No network connectivity is needed.

Plug-and-Play Kit Offers Flexible Power and Installation Options

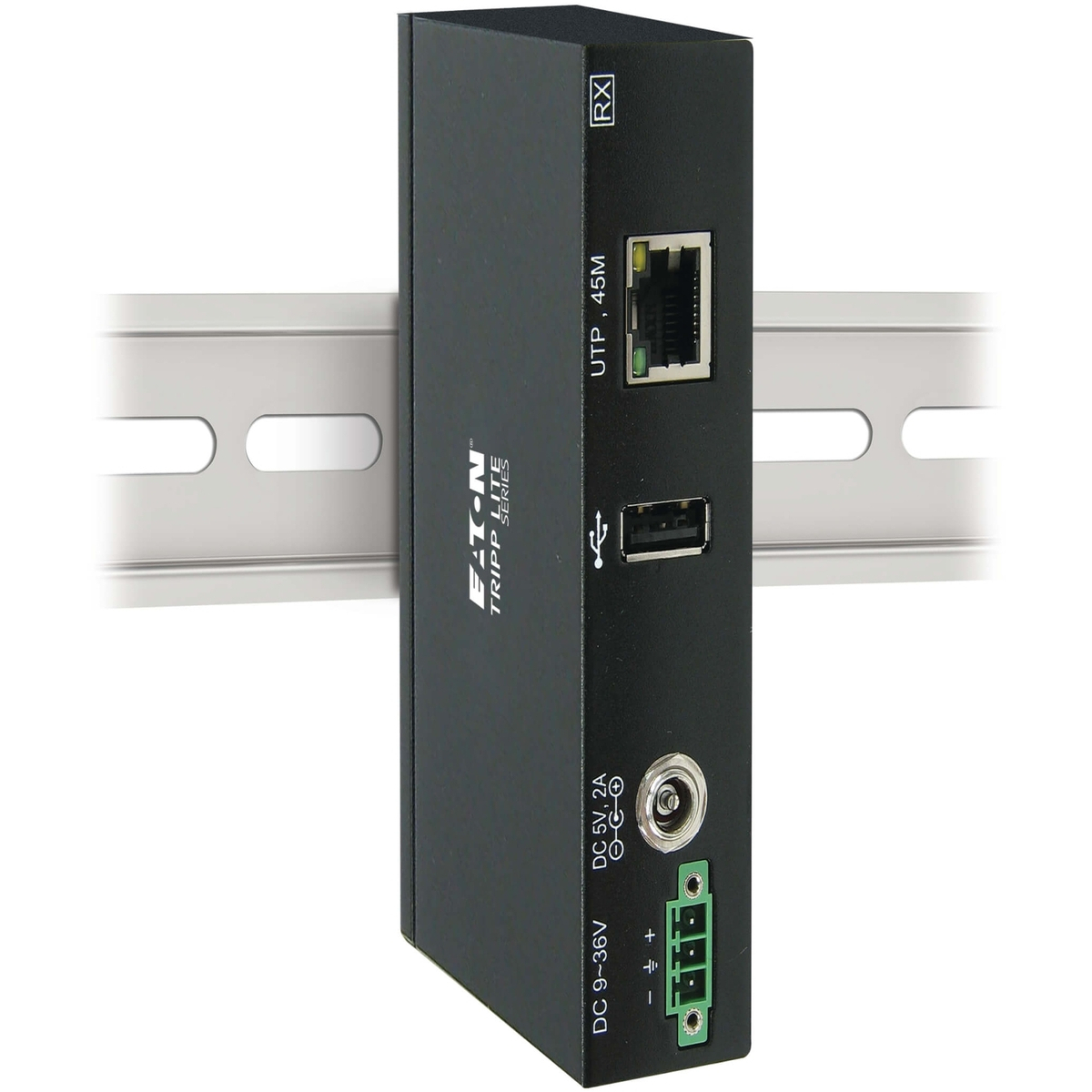

With user-supplied USB cables, connect the transmitter to your computer and the receiver to your USB peripheral. Connect the transmitter and receiver with a user-supplied Cat5/6 cable (all cables sold separately). The extender kit requires no software to download and install. The metal chassis rest easily on any flat surface or mount to a wall or DIN rail using the included hardware. A power supply with international plug adapters as well as a RS-232 Phoenix adapter supporting a DC voltage range from 9-36V is included for connecting external power to the unit as needed.

TAA-Compliant for GSA Schedule Purchases
The B203-101-IND is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Computer, laptop or server with USB-A port
Cat5/5e/6/6a cabling
Any major operating system, including Windows, Mac OS and Chrome

Package Includes

Transmitter
Receiver
(2) DIN rail mounts
(4) M4 screws
RS-232 Phoenix adapter
International power supply (Input: 100-240V, 50/60 Hz, 0.35A; Output: 5V 2A)
(4) Plug adapters (North America, Europe, U.K. Australia)
Owner's manual

Specifications:

© 2024 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	B203-101-IND
OVERVIEW
UPC Code	37332256072
Technology	USB 2.0 (High Speed)
VIDEO
HDR Support	No
INPUT
Product Length (in.)	4.528
Product Length (cm.)	11.501
Product Length (ft.)	0.377
Product Length (m)	0.115
POWER
Power Over Cable (PoC) Support	Yes
Output Volt/Amp (from external power supply)	5V/2A
USB Power Delivery (PD) Charging Support	No
CONNECTIONS
Number of Ports	4

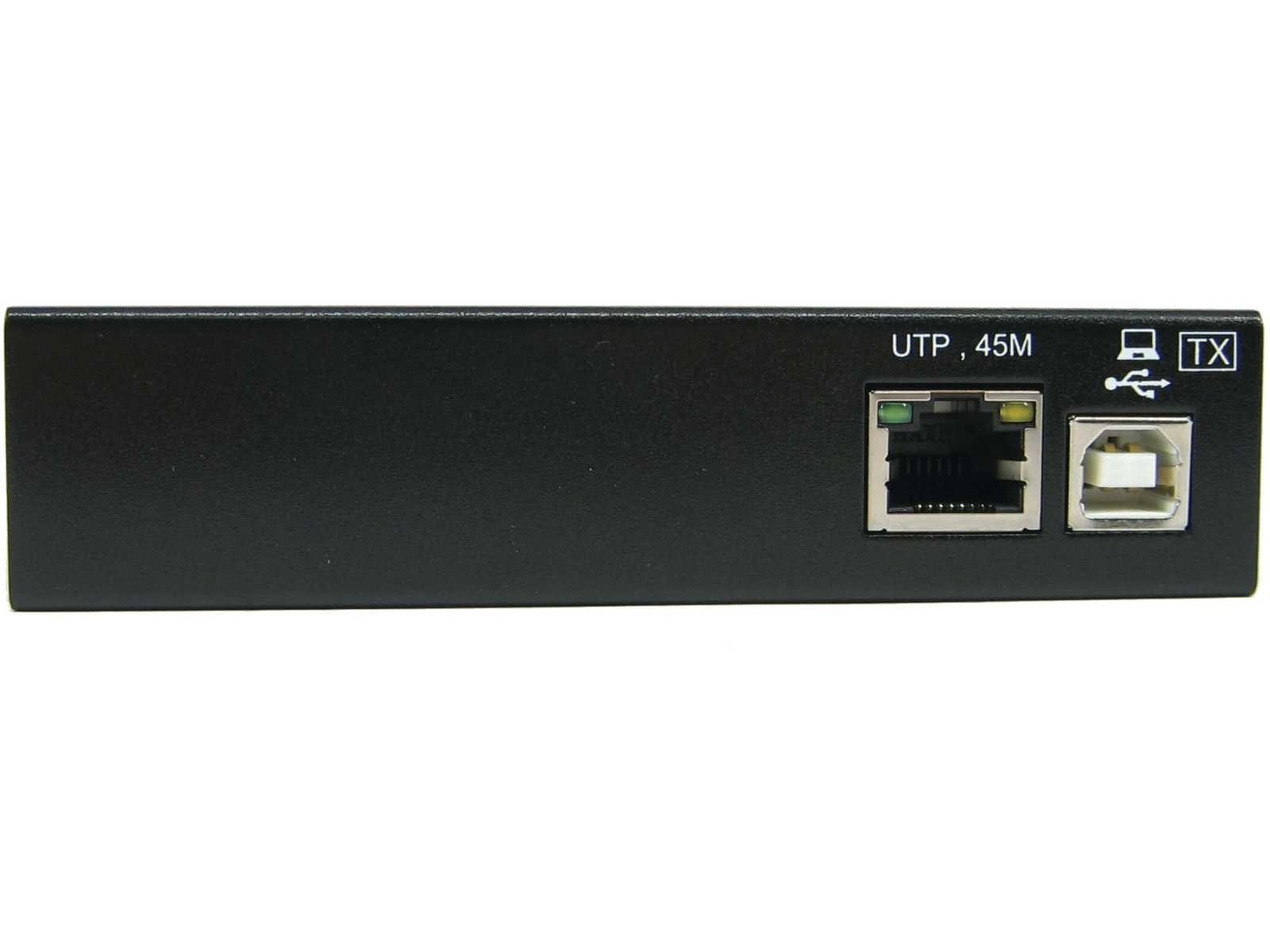

Side A - Connector 1	USB B (FEMALE)
Side A - Connector 2	RJ45 (FEMALE)
Side B - Connector 1	USB A (FEMALE)
Side B - Connector 2	RJ45 (FEMALE)
Connector Plating	Nickel
USER INTERFACE, ALERTS & CONTROLS
LED Indicators	Transmitter: 1x Green (Connection) , 1x Orange (Signal)Receiver: 1x Green (Connection) , 1x Orange (Activity)
PHYSICAL
Color	Black
Material of Construction	Metal
Receiver Unit Dimensions (hwd / cm.)	11.501 x 6.240 x 2.700
Receiver Unit Dimensions (hwd / in.)	4.528 x 2.457 x 1.063
Receiver Unit Weight (lbs.)	1
Transmitter Unit Dimensions (hwd / cm.)	11.501 x 6.240 x 2.700
Transmitter Unit Dimensions (hwd / in.)	4.528 x 2.457 x 1.063
Transmitter Unit Weight (lbs.)	1
Unit Packaging Type	Box
Unit Weight (lbs.)	1
ENVIRONMENTAL
Operating Temperature Range	32° to 122°F (0° to 50°C)
Storage Temperature Range	-4° to 158°F (-20° to 70°C)
Operating Humidity Range	0 - 85% RH, NON-CONDENSING
Storage Humidity Range	0 - 85% RH, NON-CONDENSING
ESD Protection	15KV
COMMUNICATIONS
Signal Range (ft.)	150
Transmission Distance	45m (150 ft)
IR Remote Extension Support	No
RS-232 Serial Extension Support	No
FEATURES & SPECIFICATIONS
USB Specification	USB 2.0 (up to 480 Mbps)
Driver Required	No
Recommended Category Cable	Cat5e/Cat6
STANDARDS & COMPLIANCE
Product Certifications	NOM (Mexico)
Product Compliance	RoHS , CE (Europe) , REACH , FCC (USA) , Trade Agreements Act (TAA)
