B127A-4X4-BH4PH

Eaton B127A-4X4-BH4PH 4x4 HDMI over Cat6 Matrix Switch Kit, Switch/4x Pigtail ..

Eaton - Eaton B127A-4X4-BH4PH 4x4 HDMI over Cat6 Matrix Switch Kit, Switch/4x Pigtail Receivers Eaton B127A-4X4-BH4PH 4x4 HDMI over Cat6 Matrix Switch Kit, Switch/4x Pigtail Receivers - 4K 60 Hz, HDR, 4:4:4, PoC, 230 ft. (70.1 m), TAA
BUY NOW ! Supplier stock not confirmed, but might be in stock.* print


Not rated yet



Rate this product

Specials
Prices, images and descriptions are for reference purposes only & may change without prior notice. PLEASE RELY ON ABOVE DESCRIPTIONS AND NOT ON IMAGES. B127A-4X4-BH4PH Eaton B127A-4X4-BH4PH 4x4 HDMI over Cat6 Matrix Switch Kit, Switch/4x Pigtail Receivers is available from Laptop Direct and it is sold as new from our Network : Other network devices range of products. For reference purposes, the price of R22290 is valid 2026-09-22, and while stocks last, may be valid until . The price displayed is a guide for reference purposes only, and may change without prior notice. Reference prices are an invitation for potential buyers to make an offer to purchase, which we may reject without reason. A quote with final pricing is sent before a purchase can be made. T&C's apply. E&OE. Laptop Direct. You are looking at products found in the Network : Other network devices category.
Subscribe

Specification for the entire series

Important information: Kindly note that specifications differ between models. Features, options and accessories displayed below this paragraph are not included with this product unless it has been specified in the above description.


Please remember these important points when reading the information below this paragraph: Operating systems cannot be removed or changed, monitors are not included with computers, free Anti-virus and Office Software are trial versions or may have limited features and an additional license needs to be purchased to activate the full product.

B127A-4X4-BH4PH

Eaton B127A-4X4-BH4PH 4x4 HDMI over Cat6 Matrix Switch Kit, Switch/4x Pigtail Receivers

Eaton B127A-4X4-BH4PH 4x4 HDMI over Cat6 Matrix Switch Kit, Switch/4x Pigtail Receivers - 4K 60 Hz, HDR, 4:4:4, PoC, 230 ft. (70.1 m), TAA

Overview:

Switch/quad-receiver combo allows custom switching of four HDMI 4K video/audio signals to four HDMI 4K displays up to 230 ft. away.

Features:

  • Supports 4K @ 60 Hz video resolutions (4:4:4) as specified in HDMI 2.0
  • Switches between 4 source devices by manual push button or included IR remote
  • Carries High Dynamic Range (HDR) signals for rich contrast and expanded color accuracy
  • Power over Cable (PoC) technology provides power to receivers via Cat6 cable
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

HDMI Matrix Switch Kit Ideal for Digital Signage in Offices, Schools and Trade Shows

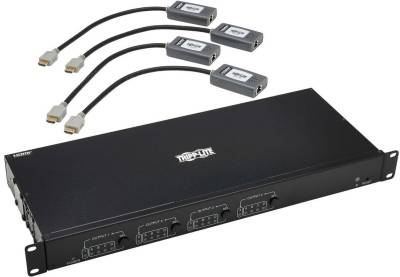

This HDMI matrix switch kit includes a quad-input switch and four pigtail-style receivers. It’s recommended for office buildings, schools, houses of worship, trade shows, meeting facilities, retail settings, hotels and other locations with video presentations or digital signage applications. The matrix switch and receivers extend 4K audio/video up to 230 feet (70.1 meters), making the kit ideal for areas where the four source devices and four remote displays are farther apart than conventional cabling allows.

Extends a 4K A/V Transmission up to 230 ft….or Even Farther
The B127A-4X4-BH4PH allows video from any of four connected HDMI sources to display on four HDMI displays up to 230 feet away via user-supplied Cat6 cabling. You may select which video to display on which monitors by using the push button on the switch or the included IR remote control, which lets you operate the switch from the receiver end of the installation. By installing B127A-010-H signal repeaters (sold separately) between the switch and receivers, you can extend the signal up to 400 feet (121.9 meters) total per video output.

Transmits Crystal-Clear 4K Video with Multi-Channel Audio, HDR and 4:4:4 Color
The B127A-4X4-BH4PH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, as specified in HDMI 2.0, with 36-bit Deep Color. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This switch kit also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks
After you connect the included external power supply to the switch, Power over Cable (PoC) technology powers the receivers over Cat6 cable. LEDs on both the switch and receivers will light up to indicate the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the receivers without the need for a nearby AC outlet.

Multi-Resolution Support Allows Mixing and Matching of Displays of Different Resolutions
Say you have a brand new 4K/60 Hz HDTV in the living room, but want to extend video from the source devices to the older 1080p TV in the kitchen and the 4K (at 30 Hz) monitor in your home office. The B127A-4X4-BH4PH is backward compatible with 4K/30 Hz and 1080p resolutions via automatic switching, allowing each connected monitor to display video at its maximum resolution.

Plug-and-Play Operation for Quick Setup and Immediate Use
The included matrix switch and receivers operate with no software required. The switch comes with detachable surface-mount brackets for mounting to a pole, rack or flat surface. Connect the switch to as many as four sources with user-supplied HDMI cables (such as P568- or P569-Series). Then, connect the pigtail receivers’ built-in HDMI plugs to the displays. Finally, connect the switch to the receivers with user-supplied Cat6 patch cable (such as N202-Series).

TAA-Compliant for GSA Schedule Purchases
The B127A-4X4-BH4PH is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

System Requirements:

  • Source device(s) with HDMI output (Blu-ray player, cable box, media server)
  • Display device(s) with HDMI input (HDTV, projector, monitor)

Specifications:

© 2023 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specificationsspacer
Product CodeB127A-4X4-BH4PHspacer
OVERVIEW
UPC Code 37332269607
Product Type Matrix Switch
Device Compatibility Chromebook; Computer; Laptop
Technology Cat5/5e; Cat6; HDMI; POC
Host Connector (4) HDMI (FEMALE)
VIDEO
Video Input HDMI (FEMALE)
Video Output HDMI (FEMALE); RJ45 (FEMALE)
Number of Monitors Supported 4
Video Ports (4) HDMI (FEMALE); (4) RJ45 (FEMALE)
Video Ports Details HDMI 2.0; HDCP 2.2
Supported Resolutions 1280x720 (720p); 1920x1080 (1080p); 3840x2160 (4K)
Max Supported Video Resolution 3840 x 2160 @ 60 Hz
Max. Distance (Between any 2 Units) 230 ft.
Max 1280 x 720 (720p) Range (ft) 230
Max 1920 x 1080 (1080p) Range (ft) 230
Max 1920 x 1200 Range (ft) 230
Max 2560 x 1600 Range (ft) 230
Max 3840 x 2160 (4K) Range (ft) 230
Maximum Distance with Booster 400
Transmitter Video Input HDMI
Transmitter - Number of Video Outputs 4
Transmitter - Local Display Output HDMI or DVI w/ adapter
Receiver/Transceiver Video Output HDMI
Receiver - Number of Video Outputs 4
Signal Range (ft) 230
Signal Range (m) 70
Range Extension with Booster Yes
Range Extension using other Tripp Lite product 400 ft.
Extended Mode No
Mirror Mode No
Other Tripp Lite product used to extend range B127A-010-H Signal Booster
Max Supported Color Depth 36-bit Deep Color
HDR Support Yes
3D Video Supported Yes
Chroma Sub Sampling 4:4:4
Signal Transmission Unidirectional
AUDIO
Audio Ports (4) HDMI (FEMALE)
Audio Ports Details Lossless audio including LPCM 7.1
Audio Input HDMI
Audio Output HDMI
Audio Specification Supports lossless audio formats such as LPCM 7.1
INPUT
AC Power Adapter Plug(s) AS/NZS 3112 Australia; BS 1363 UK; CEE 7/16 Schuko; NEMA 1-15P North America
AC Power Adapter Input Specs (V / Hz / A) 100-240V / 50/60Hz / 1.5A
AC Power Adapter Output Specs (V / A) 24V / 2A
AC Power Adapter Cord Length (ft.) 4.53
AC Power Adapter Cord Length (m) 1.38
Voltage Compatibility (VAC) 100; 110; 120; 125; 127; 200; 208; 220; 230; 240
Built-In Cable Length (m) 0.305
Built-In Cable Length (cm) 30.5
Power Source AC Adapter
POWER
Power Source Type AC Adapter
AC Plug Type AS/NZS 3112; BS1363; CEE 7/16 Schuko; NEMA 1-15P
Power Source Transmitter end only (Included)
Power Over Cable (PoC) Support Yes
Receiver Power Source Power Over Cable
USER INTERFACE, ALERTS & CONTROLS
LED Indicators Transmitter: OUTPUT (1-4) = x4 Orange (Port is currently in use); A, B, C, D LED's = x16 Green (Indicates which output is in use); POWER = x1 Green (Unit is powered); RJ45 Power/Signal (1-4) = x4 Green (Solid when connected to power, Flashes when transmitting video). Receivers (x4): Power (x4 Green), Link Indicator (x4 Orange).
PHYSICAL
Color Black
Material of Construction Metal
Included Mounting Accessories Yes
Number of Displays 4
Form Factor/Mounting Options Box; Pigtail; Rackmount; Tabletop; Wall-mount
Usable Rack Space 1U
Rackmountable Yes
Receiver Unit Dimensions (hwd / cm.) 1.86 x 4.7 x 7.5
Receiver Unit Dimensions (hwd / in.) 0.732 x 1.85 x 2.95
Receiver Unit Weight (lbs.) 1
Transmitter Unit Dimensions (hwd / cm.) 4.4 x 44 x 18.1
Transmitter Unit Dimensions (hwd / in.) 1.73 x 17.32 x 7.13
Transmitter Unit Weight (lbs.) 4.34
Unit Dimensions (hwd / cm) 4.4 x 44 x 18.1
Unit Packaging Type Box
Unit Weight (kg) 0.91
ENVIRONMENTAL
Operating Temperature Range 32° to 104°F (0° to 40°C)
Storage Temperature Range 5° to 122°F (-15° to 50°C)
Relative Humidity 0 to 85% RH, Non Condensing
COMMUNICATIONS
Max 1024 x 768 Range (ft) 230
Signal Range (m) 70
Max 480P Range (ft) 230
Transmission Distance 230 ft.
Max 1440 x 900 Range (ft) 230
Max 1080i Range (ft) 230
Max 4K UHD Range (ft) 230
Max 480i Range (ft) 230
Max 640 x 480 Range (ft) 230
Max 800 x 600 Range (ft) 230
Max 1600 x 1200 Range (ft) 230
EDID Compatible Yes
IR Remote Extension Support Yes
RS-232 Serial Extension Support Yes
Consumer Electronics Control (CEC) Supported Yes
Latency Zero latency
CONNECTIONS
Side A - Connector 1 (4) HDMI (FEMALE)
Side A - Connector 2 (4) RJ45 (FEMALE)
Input x Output 4 x 4
FEATURES & SPECIFICATIONS
All-in-One Kit Yes
Integrated/Removable Cable No
MST Support No
Mounting Accessory Included Yes
Multi-Resolution Support Yes
Port Selection Pushbutton; Remote Selector
HDCP Specification 1.4; 2.2
Driver Required No
Recommended Category Cable 24 AWG Cat6 UTP Cable
STANDARDS & COMPLIANCE
External Power Supply Certifications CCC; GS; LPS; PSE; RCM; TUV; UL; WEEE; cUL
Product Compliance RoHS; CE (Europe); REACH; FCC (USA); Trade Agreements Act (TAA)
