CNV-CSC-107

Cypress UHD+ 2x1 HDMI / VGA to HDMI scaler

Cypress - Cypress CSC-107 UHD+ 2x1 HDMI / VGA to HDMI scaler, 1 hdmi(type-a) Input Port, 1x VGA, Input Port, 1x HDMI (Type-A) Output Port, 1x Analog Stereo (3.5mm), 4K@60 Input signal types, HDMI 4096 x 2160p @ 60Hz, VGA 1920x1200 @ 60Hz
No stock at suppliers. print

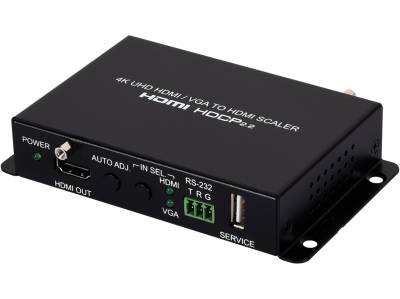

CNV-CSC-107 Cypress UHD+ 2x1 HDMI / VGA to HDMI scaler Image 2

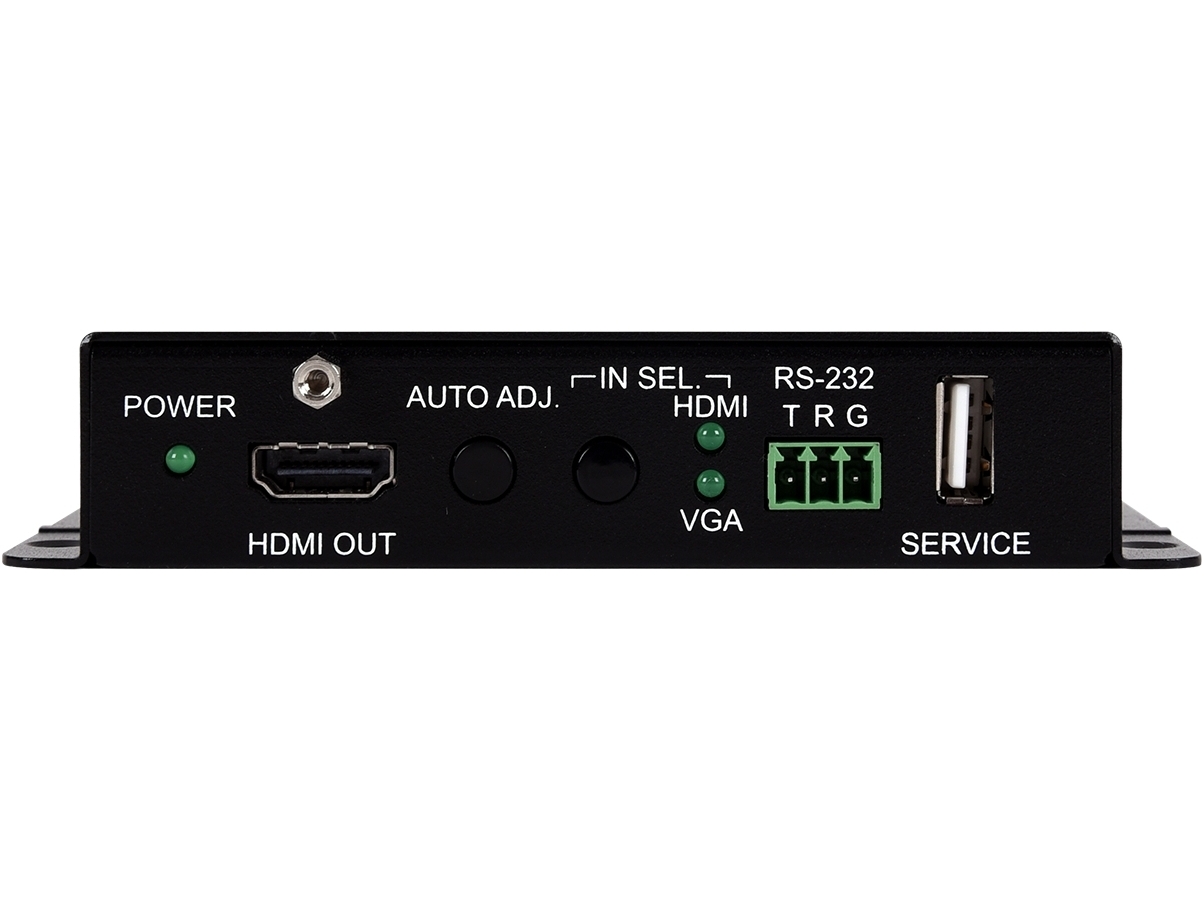

CNV-CSC-107 Cypress UHD+ 2x1 HDMI / VGA to HDMI scaler Image 3
CNV-CSC-107 Cypress UHD+ 2x1 HDMI / VGA to HDMI scaler Image 4
Not rated yet



Rate this product

Specials
Prices, images and descriptions are for reference purposes only & may change without prior notice. PLEASE RELY ON ABOVE DESCRIPTIONS AND NOT ON IMAGES. CNV-CSC-107 Cypress UHD+ 2x1 HDMI / VGA to HDMI scaler is available from Laptop Direct and it is sold as new from our HDMI switches range of products. For reference purposes, the price of R5320 is valid 2026-10-06, and while stocks last, may be valid until . The price displayed is a guide for reference purposes only, and may change without prior notice. Reference prices are an invitation for potential buyers to make an offer to purchase, which we may reject without reason. A quote with final pricing is sent before a purchase can be made. T&C's apply. E&OE. Laptop Direct. You are looking at products found in the HDMI switches category.
Subscribe

Specification for the entire series

Important information: Kindly note that specifications differ between models. Features, options and accessories displayed below this paragraph are not included with this product unless it has been specified in the above description.


Please remember these important points when reading the information below this paragraph: Operating systems cannot be removed or changed, monitors are not included with computers, free Anti-virus and Office Software are trial versions or may have limited features and an additional license needs to be purchased to activate the full product.

CNV-CSC-107

Cypress UHD+ 2x1 HDMI / VGA to HDMI scaler

Cypress CSC-107 UHD+ 2x1 HDMI / VGA to HDMI scaler, 1 hdmi(type-a) Input Port, 1x VGA, Input Port, 1x HDMI (Type-A) Output Port, 1x Analog Stereo (3.5mm), 4K@60 Input signal types, HDMI 4096 x 2160p @ 60Hz, VGA 1920x1200 @ 60Hz

Overview:

CSC-107
UHD+ 2x1 HDMI/VGA to HDMI Scaler
  • Switchable HDMI input and VGA input with a 3.5mm analog stereo audio input
  • Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output over HDMI
  • Supports up to 1080p or WUXGA (1920x120060Hz RB) video input over VGA
  • Auto input switching by detecting HDMI/VGA signal.
  • Output preferred resolution of connected display(NATIVE mode)
  • Comprehensive output picture adjustments via RS-232 (contrast, brightness, hue, saturation, sharpness, RGB (color tone) level and aspect ratio size)
  • Supports LPCM 2.0 digital/analog audio input and output

Features:

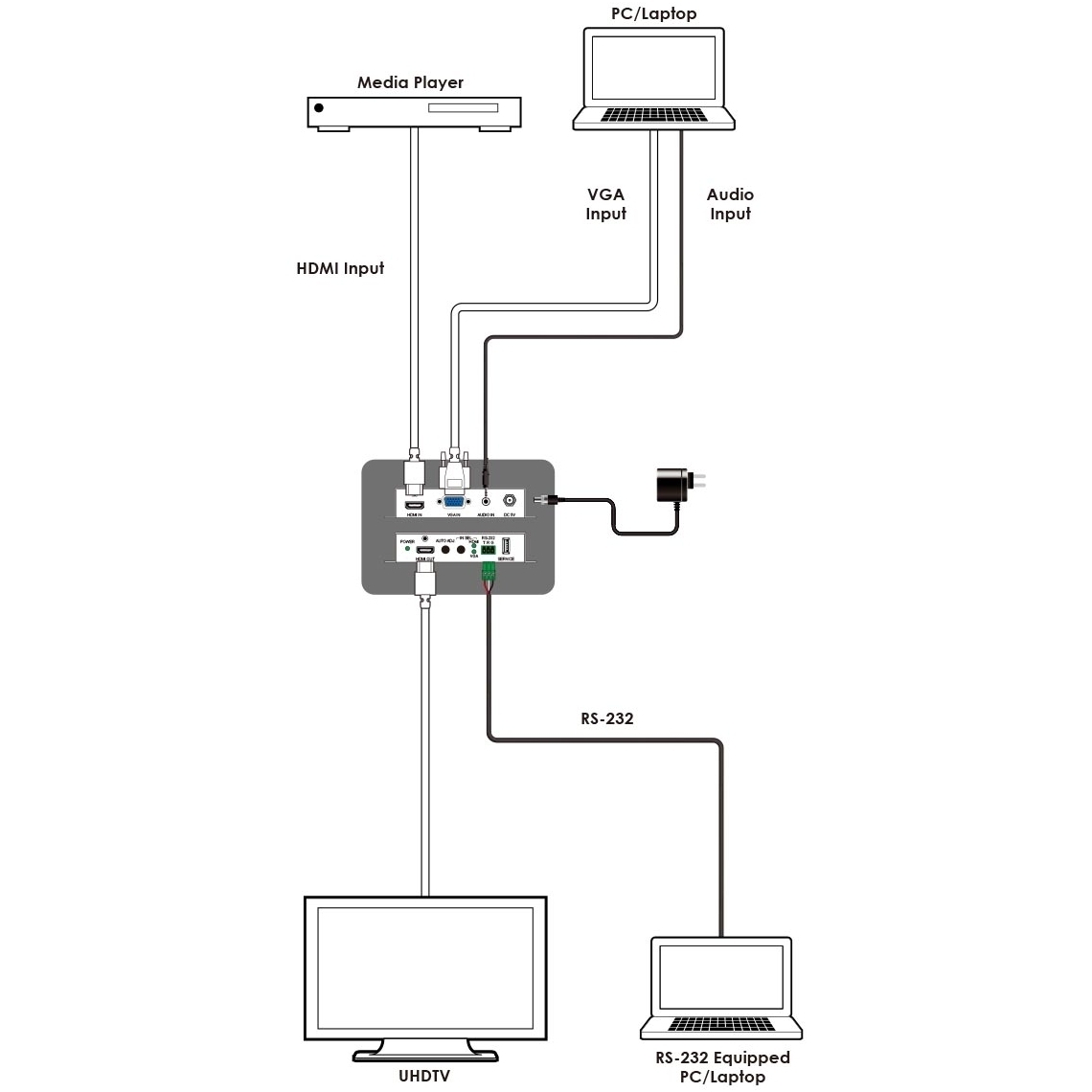

This compact 4K UHD HDMI/VGA to HDMI Switching Scaler accepts a wide range of resolutions from 480i up to 1080p/WUXGA over the VGA input and up to 4K@60Hz (4:4:4 ) on the HDMI input. With the use of the 3.5mm audio input, stereo audio may be embedded with either source as well. Scaled HDMI output resolutions are available up to 4K@60Hz (4:4:4 ). Integrated EDID management options allow for control over the way connected sources detect the unit. The included automatic source detection and switching feature allows the unit to switch automatically to the most recently connected source, or to switch to the alternate input if the current one becomes disconnected. The Auto Adjustment function, activated by a button on the unit, can automatically adjust the image position of the VGA source if necessary. This unit is an ideal device for integrating previously incompatible sources and displays, or for providing a flexible auto-detection input point for a small boardroom or huddle space. This unit is controllable via front panel buttons and RS-232.

Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications and features
Product Code CNV-CSC-107spacer
Interfaces
Input Port1 HDMI(Type-A)
1 VGA
Output Port1 HDMI (Type A)
Control I/O1 RS-232 (3-pin Terminal Block)
Audio1 Analog stereo (3.5mm)
Service Port1 USB (Type-A)
Video
HDMI Compliance2.0 (DVI 1.0)
HDCP Compliance2.x
Input Signal Types4K@60 8-bit 4:4:4, HDR10
Output Signal Types 4K@60 8-bit 4:4:4 VGA WUXGA
Resolutions
Maximum InputHDMI 4096 x 2160p@60
VGA 1920x1200@60RB
Maximum OutputHDMI 4096 x 2160p@60
Audio
AudioHDMI LPCM (8 Channels), Bitstream
High Bit Rate Bitstream
Analog Input 2 Vrms impedance 40kΩ
Power
Power Supply5V/2.6A (Locking)
Power Consumption6.29W
Enclosure
Chassis MaterialMetal
Chassis ColorBlack
Dimensions (W x H x D)108mm x 24mm x 75mm [Case Only]
110mm x 25mm x 75mm [All Inclusive]
Weight244g
Ordering Information
Model No.Product Description
CSC-107UHD+ 2x1 HDMI/VGA to HDMI Scaler
