CSV-3104D-CLUB3D

Club 3D USB 3.2 Gen 1 4K UHD at 30Hz Mini Docking Station Ultra slim design

Club 3D CSV-3104D USB 3.2 Gen 1 4K UHD at 30Hz Mini Docking Station Ultra slim design, USB 3.0 Input, HDMI, DVI-I, 4x full size USB 3.2 Gen 1, RJ45 Ethernet, 3.5mm audio, Mic combo jack

Overview:

USB 3.2 Gen 1 4K UHD at 30Hz Mini Docking Station Ultra slim Design
The Club 3D CSV-3104D USB 3.2 Gen 1 4K UHD at 30Hz Mini Docking Station Ultra slim design allows you to expand the outputs of your laptop or ultrabook so it can be used as a traditional desktop PC.

With the advanced DisplayLink DL-5900 chip inside, Club3Ds USB 3.2
Gen 1 4K UHD at 30Hz Mini Docking Station is able to offer you the perfect solution to connect all your favorite USB devices (*4 ), as well as connect two external monitors via HDMI and a DVI-D Connector, in addition to an Ethernet network Connection it also offers an Audio/Microphone output all via a single USB cable.

Because of its convenient and compact design, the Club 3D USB 3.2 Gen 1 4K UHD at 30Hz Mini Docking Station is a versatile tool that provides you maximum functionality from your Small desktop replacement or mobile companion.

Design:
The Club3D USB 3.2 Gen 1 4K UHD 30Hz Mini Docking Station has a modern and minimalistic design and combines the functionality normally found in larger Docking Stations with a convenient, solid and highly portable casing. The miniature size makes it easy to take it with you wherever you go. Use it without external power for maximum mobility* . (*Limits functionality)

Specifications:

© 2022 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	CSV-3104D-CLUB3D
Product Name	USB 3.2 Gen 1 4K UHD at 30Hz Mini Docking Station
Product Series	Docking Station
Product Code	CSV-3104D
EAN code	8717249401261
UPC code	854365005343
Features	Ultra Slim size: 9.5 x 9.4 x 4.4 cm / 3.74 x 3.7 x 1.73 inch (LxWXH)
	Supports dual External monitors via HDMI 1.4 and DVI-I via Displaylink DL-5900 chipset
	USB 3.2 Gen 1 downstream port x 4
	Supports BC 1.2 charging x2
	Supports Gigabit Ethernet (10/100/1000)
	Supports Audio 2.1 channel (3.5 mm Audio combo jack)
	Supports Resolutions up to 4K UHD 3840x 2160p 30Hz (HDMI ) and 2048 x 1152 60Hz (DVI-I)
	Designed for Laptops and Ultrabooks
OS Support	Windows and Mac OSX
In the box	USB 3.2 Gen 1 4K UHD at 30Hz Mini Docking Station
	Power Supply 36 Watt ( 12V3 Amp )
	USB 3.2 Gen 1 cable 1 m / 3.28 ft
	Quick install guide

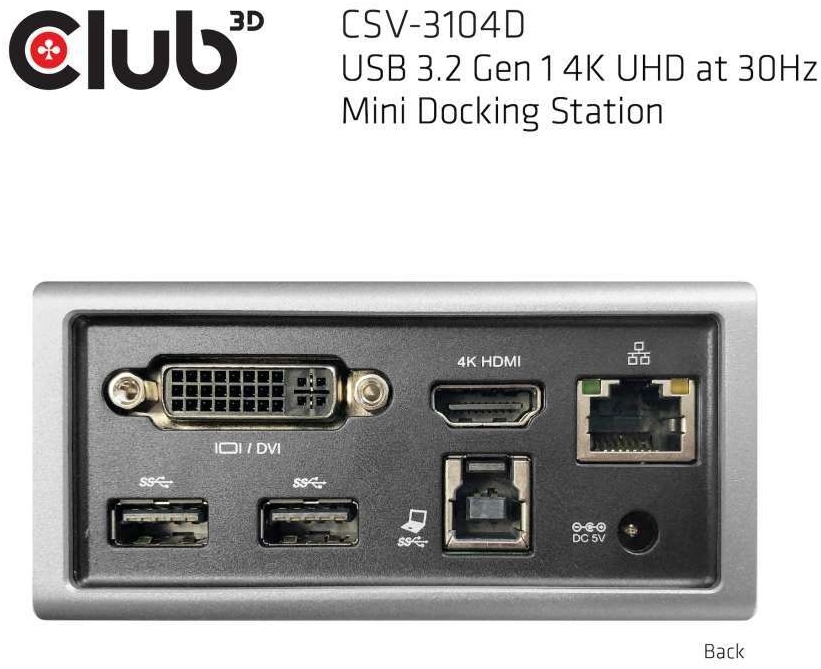

Available Interfaces
Input	USB 3.0
Output	HDMI
	DVI-I
	4 x full size USB 3.2 Gen 1
	RJ45 Ethernet
	3.5mm Audio, Mic Combo jack
Other info	Box size: 22.5 x 14.2x 5.5 cm / 8.86 x 5.59 x 2.65 inch
	Device size: 9.5 x 9.4 x 4.4 cm / 3.74 x 3.7 x 1.73 inch
	USB (Power) Cable length approx.: 1 m / 3.28 ft
	Device Weight: 289 gr / 10.19 oz
	USB Power Cable Weight: 41 gr / 1.45 oz
	Adapter: 168 gr /5.92 oz
	Box Weight: 185 gr / 6.53 oz
	Total Weight: 686 gr / 24.02 oz
	Meets ROHS, FCC, and CE EMI requirements
