CB-SEC-5G-90/120

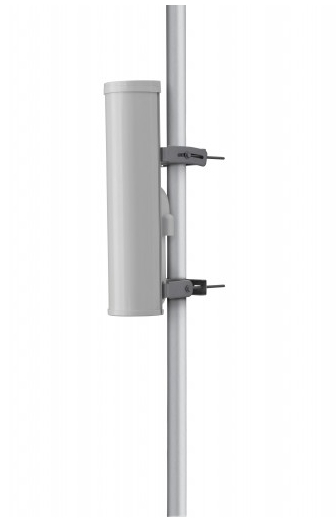

Cambium ePMP 5GHz 90/120 Sector Antenna

CAMBIUM - Cambium ePMP 5GHz 90/120 Sector Antenna, Frequency Range: 4.9GHz to 5.97GHz, Gain 18dBi, 3 dB Beamwidth - Azimuth 90 degrees, 6 dB Beamwidth - Azimuth 120 degrees, 3 dB Beamwidth - Elevation 6 degrees, Polarization: Horizontal and Vertical
BUY TODAY ! Expected to be in Stock at suppliers.* print


CB-SEC-5G-90/120 Cambium ePMP 5GHz 90/120 Sector Antenna Image 2
CB-SEC-5G-90/120 Cambium ePMP 5GHz 90/120 Sector Antenna Image 4
Not rated yet



Rate this product

Specials
Prices, images and descriptions are for reference purposes only & may change without prior notice. PLEASE RELY ON ABOVE DESCRIPTIONS AND NOT ON IMAGES. CB-SEC-5G-90/120 Cambium ePMP 5GHz 90/120 Sector Antenna is available from Laptop Direct and it is sold as new from our Wireless: Antennas range of products. For reference purposes, the price of R4370 is valid 2026-10-31, and while stocks last, may be valid until . The price displayed is a guide for reference purposes only, and may change without prior notice. Reference prices are an invitation for potential buyers to make an offer to purchase, which we may reject without reason. A quote with final pricing is sent before a purchase can be made. T&C's apply. E&OE. Laptop Direct. You are looking at products found in the Wireless: Antennas category.
Subscribe

Specification for the entire series

Important information: Kindly note that specifications differ between models. Features, options and accessories displayed below this paragraph are not included with this product unless it has been specified in the above description.


Please remember these important points when reading the information below this paragraph: Operating systems cannot be removed or changed, monitors are not included with computers, free Anti-virus and Office Software are trial versions or may have limited features and an additional license needs to be purchased to activate the full product.

CB-SEC-5G-90/120

Cambium ePMP 5GHz 90/120 Sector Antenna

Cambium ePMP 5GHz 90/120 Sector Antenna, Frequency Range: 4.9GHz to 5.97GHz, Gain 18dBi, 3 dB Beamwidth - Azimuth 90 degrees, 6 dB Beamwidth - Azimuth 120 degrees, 3 dB Beamwidth - Elevation 6 degrees, Polarization: Horizontal and Vertical

Overview:

C050900D021A - Cambium ePMP 5GHz 90/120 Degree Sector Antenna
Cambium Networks has designed an antenna solution that enables network operators to increase the spectral efficiency and scale of their ePMP point to multi-point (PMP) distribution access networks.

Wireless Service Providers deploying networks in 5GHz spectrum will find this sector antenna for 90° and 120° applications especially well-suited for high-density networks requiring frequency re-use and wide-band spectrum coverage.

Features:

  • Frequency Reuse: Designed for ABAB channel re-use (two channels covering four sectors), the sector antenna has 35 dB front to back ratio including a wide aperture in the rear facing direction
  • Channel Flexibility: consistent gain from 4.9 to 6.0 GHz allows the operator to select a channel anywhere in the band and achieve the expected performance
  • Consistent Coverage: Excellent null fill capabilities of the antenna allow for broad geographical coverage within a sector even near the base of the tower and the edges of the sector
  • Designed for the Installer: Small compact design, integrated ePMP radio mount and GPS antenna integration
  • Predictable Performance: The sector antenna is integrated into Cambium Networks LINKPlanner. The 3D model shows coverage at all elevations and across the azimuth

Product Specifications

  • Frequency Range: 4.9GHz to 5.97GHz
  • Gain: 18dBi
  • 3 dB Beamwidth - Azimuth: 90 degrees
  • 6 dB Beamwidth - Azimuth: 120 degrees
  • 3 dB Beamwidth - Elevation: 6 degrees
  • Electrical Downtilt: -2 degrees
  • Polarization: Horizontal and Vertical
  • Port-to-Port Isolation: > -30 dB
  • Front-to-Front Ratio: 35 dB
  • Maximum Input Power: 5 W
  • Input Impedance: 50 ohms
  • Mounting Connectors: 2 x RPSMA
  • Mounting Hardware: Included for mounting to mast diameters 2" to 4" (5 cm to 10 cm), -10 to +5 degree tilt, Hardware included to connect ePMP access point to back of antenna body
  • Physical Dimensions (Antenna Body): 23.4" (H) x 6.2" (W) x 4.3" (D) (584 mm x 157 mm x 110 mm)
  • Physical Dimensions (with ePMP 1000 Access Point): 23.4" (H) x 6.2" (W) x 5.9" (D) (593 mm x 157 mm x 150 mm)
  • Weight: Antenna Body: 8.8 lbs. (4.0 Kg). With ePMP 1000 Access point and Mounting Brackets: 14.6 lbs. (6.6 Kg)
  • Environmental: IP65
  • Radome Material: UV Protected ABS
  • Operating Temp: -40°C to 60°C (-40°F to 140°F)

Product Includes

  • (1) ePMP 5GHz 90/120° Sector Antenna
  • (2) Pole Brackets
  • (2) Front Mast Clamps
  • (2) Rear Mast Clamps
  • (4) M8x160 Bolts
  • (4) M8x12 Screws
  • (8) M8 Nuts
  • (1) Antenna Body
  • (1) ePMP 1000 Holder
  • (1) ePMP 2000 Sector Mount
  • (1) Environmental Cover
  • (2) RP-SMA Cables
