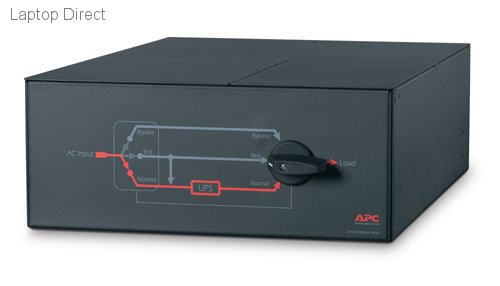

UPAPSBP16KP

APC service Bypass Panel- 200/208/240V; 100A; MBB; Hardwire input/output

Overview:

Apc bypass panel- 200/208/240v; 100a; mbb; hardwire input/output
Apc maintenance bypass panels, input: 200v, 208v, 230v, 480v 3ph, input connections: hard wire 3-wire (2ph + g), hard wire 3 wire (1ph+n+g), hard wire 4-wire (2ph+n+g), hard wire 5-wire (3ph + n + g), output: 120v, 200v, 208v, 230v, output connections: hard wire 3-wire (2ph + g),hard wire 3-wire (h n + g),hard wire 4-wire (2ph + n +g)

Includes:

Installation guide, rack mounting brackets, user manual

Specifications:

© 2015 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	SBP16KP
Nominal output voltage	120v, 200v, 208v, 230v
Maximum total current draw per phase	100a
Output connections	(1) hard wire 3-wire (2ph + g)
	(1) hard wire 3-wire (h n + g)
	(1) hard wire 4-wire (2ph + n +g)
Overload protection	Yes
Input
Nominal input voltage	200v, 208v, 230v, 480v 3ph
Input frequency	50/60 hz
Input connections	Hard wire 3-wire (2ph + g)
	Hard wire 3 wire (1ph+n+g)
	Hard wire 4-wire (2ph+n+g)
	Hard wire 5-wire (3ph + n + g)
Number of power cords	1
Acceptable input voltage	200-240 vac
Maximum line current per phase	100a
Maximum input current per phase	100a
Load capacity	20 kva
Load power factor range	0 to 1
Physical
Net weight	21.36 kg
Maximum height	178.00 mm
Maximum width	432.00 mm
Maximum depth	660.00 mm
Shipping weight	31.36 kg
Shipping height	305.00 mm
Shipping width	610.00 mm
Shipping depth	991.00 mm
Color	Black
Environmental
Operating environment	-20 - 50 br>
Operating relative humidity	0 - 95%
Operating elevation	0-4500 meters
Storage temperature	-40 - 65 br>
Storage relative humidity	0 - 95%
Storage elevation	0-15000 meters
Regulatory approvals	Csa, en 60950, gost, iec 60950, iec 60950, ul 1778
Standard warranty	Carry-in
