UPAPAP6003A

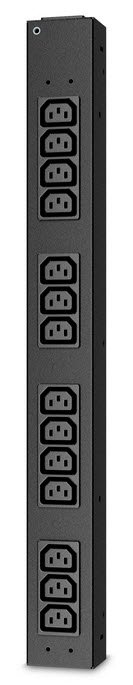

APC AP6003A rack PDU, basic, half height 100-240V/20A, 220-240V/16A, (14) C13

APC AP6003A RACK PDU, BASIC, HALF HEIGHT, 100-240V/20A, 220-240V/16A, (14) C13

Features:

Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.

Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.

Specifications:

© 2019 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	AP6003A
Output
Nominal Output Voltage	100V, 120V, 200V, 208V, 230V, 240V
Maximum Total Current Draw	20
Output Connections	(14) IEC 320 C13 (Battery Backup)
Input
Nominal Input Voltage	230V
Input frequency	50/60 Hz
Input Connections	IEC-320 C20
Acceptable Input Voltage	100-240VAC
Maximum Input Current	20A
Maximum Line Current	20A
Regulatory Derated Input Current (North America)	16A
Physical
Maximum Height	20.59inches (523mm, 52.3CM)
Maximum Width	2.2inches (56mm, 5.6CM)
Maximum Depth	1.85inches (47mm, 4.7CM)
Net Weight	4.14lbs. (1.88KG)
Shipping weight	5.6lbs. (2.55KG)
Shipping Height	24.1inches (612mm, 61.2CM)
Shipping Width	4.84inches (123mm, 12.3CM)
Shipping Depth	4.2inches (107mm, 10.7CM)
Color	Black
Environmental
Operating Temperature	32 - 122 °F (0 - 50 °C)
Operating Relative Humidity	5 - 95 %
Operating Elevation	0-10000ft (0-3000meters)
Storage Temperature	-15 - 65 °C
Storage Relative Humidity	5 - 95 %
Storage Elevation	0-50000ft (0-15000meters)
Conformance
Approvals	cUL Listed, UL Listed
Sustainable Offer Status
RoHS	Compliant
REACH	REACH: Contains No SVHCs
