HP-R4W02A specification sheet

Short Description

Long Description

Overview:

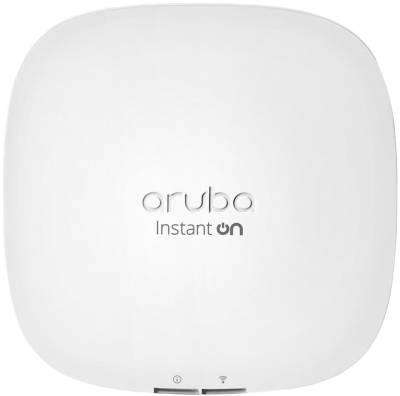

Aruba Instant On AP22 (RW) 2x2 Wi-Fi 6 Indoor Access Point
Aruba Instant On AP22 Indoor Access Points provide high-performance, business-grade Wi-Fi 6 connectivity for small businesses. Designed for dense, high-traffic environments, these access points support the growing needs of mobile devices, IoT, and modern security requirements. The compact design delivers fast wireless speeds and reliable coverage without the need for additional controllers or costly setup.

Description:

The Aruba Instant On AP22 supports 2x2 MIMO on both 2.4 GHz and 5 GHz bands, providing up to 1.2 Gbps combined wireless data rates. Power over Ethernet simplifies installation, while built-in wireless mesh functionality extends coverage to hard-to-wire areas. Enhanced security with WPA2/WPA3 and customizable guest access ensures safe connections for employees and visitors. Management is easy with a web or mobile app interface, making setup and monitoring quick and straightforward.

Features:

High-Performance Wi-Fi 6 for Small Businesses

• Supports up to 75 clients per radio, ideal for busy small office or retail environments
• Delivers multi-user MIMO and OFDMA for efficient simultaneous connections
• Target Wake Time (TWT) helps devices conserve battery while maintaining connectivity
• Ensures seamless HD video streaming and cloud application performance

Flexible Network Expansion with Wireless Mesh

• Built-in wireless mesh allows network extension without additional cabling
• Eliminates dead zones and improves Wi-Fi coverage in challenging areas
• Perfect for offices, cafes, and distributed business locations

Advanced Security for Business Networks

• WPA2/WPA3 and Enhanced Open protect sensitive data for employees and guests
• Create up to eight SSIDs for segmented access
• Integrated firewall and router functionality for extra security
• Block unwanted applications or websites with detailed traffic visibility

Customizable Guest Access Experience

• Tailor landing pages with your brand logo and messaging
• Integration with third-party portals like Skyfii, Purple, Aislelabs, and Wavespot
• Facebook Wi-Fi support for redirecting visitors through your business page
• Ideal for small businesses, retail locations, restaurants, and Wi-Fi hotspots

Reliable, Easy-to-Manage Setup

• Quick deployment using web GUI or mobile app templates
• Compact design fits seamlessly in any office or store
• No need for external controllers or extra software

Technical Details

• Model: HP R4W02A Instant On AP22 (RW)
• Power over Ethernet (PoE)
• Uplink: 1x Gigabit Ethernet
• Wireless Data Rates:
  • 5 GHz: 802.11ax 2x2 MIMO up to 1.2 Gbps
  • 2.4 GHz: 802.11ax 2x2 MIMO up to 574 Mbps

Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	HP-R4W02A
Certifications	EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments)
	Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3
Input voltage	Power over Ethernet (POE): 802.3af (class 3)
	DC power (12V)
	Note: Power sources are sold separately
Wi-Fi antenna	Integrated down-tilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 4.3dBi in 2.4GHz and 5.6dBi in 5GHz (of the effective, combined pattern for both antennas in each band).
Connectivity, standard	IEEE 802.11ax
Ports	(1) uplink Gigabit Ethernet port, with POE-in support (802.3af)
Mounting	The access point ships with a white mount clip that can attach to both wall and ceiling.
	You can also purchase a mount (R6P90A) that matches the aesthetic design and looks of the APs, to blend seamlessly into your environment.
Power consumption	Max power consumption (worst-case): 10.1W (PoE), 8.8W (DC)
Radio coverage	Dual Radio for simultaneous dual-band operation
	5 GHz 802.11ax 2x2 MIMO for up to 1.2 Gbps wireless data rate, with Multi User MIMO support (Wi-Fi 6)
	2.4 GHz 802.11ax 2x2 MIMO for up to 574 Mbps wireless data rate (Wi-Fi 6)
Differentiator	Aruba Instant On AP22 Indoor Access Points offer a reliable, affordable, and business-grade 802.11ax Wi-Fi experience for high performance, high-density small business environments like hotels, restaurants, and professional offices. Supporting Wi-Fi 6 standard, these access points have a peak data rate of 1.2 Gbps and scale up to 25 access points, without additional cost and complexity. For use in those countries and regions where no specific regulatory domain is required.
Weight	1.1 lb
Weight	500 g
Dimensions	1.5 x 6.3 x 6.3 in
Dimensions	37x 160 x 160 mm
