HK-311324129 specification sheet

Short Description

Long Description

Overview:

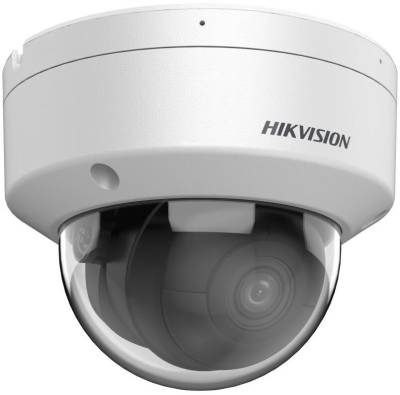

The Hikvision DS-2CD2146G2H-ISU is a 4MP fixed dome network camera designed to deliver clear, reliable surveillance in demanding indoor and outdoor environments. Powered by DarkFighter technology, it provides strong low-light performance, while 120 dB WDR helps maintain image detail in scenes with bright and dark areas. The 4mm lens provides a practical viewing angle for general security monitoring, with infrared illumination extending up to 30 metres for nighttime surveillance.

Description:

The Hikvision DS-2CD2146G2H-ISU combines high-resolution imaging, intelligent video analytics and robust dome-camera protection in a compact network camera. It supports efficient H.265+ video compression to reduce bandwidth and storage requirements without compromising useful image quality. Deep learning technology can help distinguish between human and vehicle targets, making it suitable for security systems that need more accurate event detection.

With a built-in microphone, audio input and output, alarm interfaces and a memory card slot supporting up to 512GB, the camera can operate as part of a flexible surveillance installation. Its IP67 weather and dust resistance and IK10 vandal resistance make it suitable for locations where the camera may be exposed to harsh environmental conditions or physical interference.

Features:

4MP Hikvision DarkFighter Imaging
The camera captures video at up to 2688 x 1520 resolution, providing more detail than standard 2MP surveillance cameras. Hikvision DarkFighter technology is designed to improve image quality in low-light conditions, helping maintain usable surveillance footage when available lighting is limited.

For scenes affected by strong sunlight, headlights or other challenging lighting conditions, 120 dB true WDR helps balance bright and dark areas within the same image. BLC, HLC and 3D DNR further assist with difficult lighting and image noise.

Night Vision and Video Recording
Built-in infrared illumination provides an IR range of up to 30 metres, allowing the camera to continue monitoring areas in darkness. Video can be encoded using H.265, H.264, H.265+ or H.264+, providing flexibility when configuring network bandwidth and recording storage.

The camera also supports ROI for the main stream and sub-stream, allowing important areas of an image to receive greater attention during encoding.

Key video capabilities include:

• Maximum resolution: 2688 x 1520
• Resolution class: 4MP
• Lens: 4mm fixed lens
• IR range: Up to 30 metres
• Compression: H.265, H.264, H.265+, H.264+
• WDR: 120 dB true WDR
• Noise reduction: 3D DNR
• ROI: 1 fixed region for main stream and sub-stream
• Simultaneous live view: Up to 6 channels

Intelligent Security Monitoring
Deep learning-based human and vehicle classification helps improve the accuracy of security events by focusing detection on relevant target types. The camera also supports motion detection, face capture and perimeter protection for installations requiring more advanced surveillance functions.

These capabilities make the camera suitable for applications where simple video recording is not enough and the surveillance system needs intelligent event monitoring.

Network, Audio and Storage
The DS-2CD2146G2H-ISU connects to a network using a 10M/100M self-adaptive RJ45 Ethernet port. A built-in memory card slot supports cards up to 512GB, providing local recording capability where supported by the surveillance configuration.

Audio and alarm connections add further integration options:

• 1 x RJ45 10M/100M self-adaptive Ethernet port
• Built-in microphone
• 1 x audio input
• 1 x audio output
• Alarm input and output
• Built-in memory card slot supporting up to 512GB

Built for Indoor and Outdoor Security
The fixed dome housing is designed for installations where durability is important. IP67 protection helps guard against dust and water ingress, while IK10 vandal resistance provides additional protection against physical impact. This makes the camera well suited to commercial premises, entrances, perimeter areas, offices, retail environments and other security-sensitive locations.

Hikvision DS-2CD2146G2H-ISU Model Details
The specified model is the DS-2CD2146G2H-ISU(4mm)(O-STD), with the 4mm fixed lens configuration. The part number / SKU for this product is HK-311324129.

Available model variants include:

• DS-2CD2146G2H-I(2.8mm)(eF)
• DS-2CD2146G2H-I(4mm)(eF)

Suitable Security Applications
The Hikvision 4MP DarkFighter fixed dome camera is a strong choice for businesses, offices, warehouses, retail stores, entrances, building perimeters and other areas requiring dependable day and night surveillance. Its combination of 4MP imaging, low-light performance, WDR, intelligent detection, local storage and rugged protection makes it suitable for both standalone network camera deployments and larger Hikvision surveillance systems.

Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	HK-311324129
Camera
Image Sensor	1/3" Progressive Scan CMOS
Max. Resolution	2688 x 1520
Min. Illumination	Color: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR
Shutter Time	1/3 s to 1 / 100,000 s
Day & Night	IR cut filter
Angle Adjustment	Pan: 0degrees to 355degrees,tilt: 0degrees to 75degrees,rotate: 0degrees to 355degrees
Lens
Lens Type	Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV	2.8 mm, horizontal FOV 100.2degrees, vertical FOV 54.7degrees, diagonal FOV 119.7degrees 4 mm, horizontal FOV 81.1degrees, vertical FOV 44.7degrees, diagonal FOV 94.6degrees
Lens Mount	M12
Iris Type	Fixed
Aperture	F1.0
Depth of Field	2.8 mm: 1.9 m to ∞ 4 mm: 2.5 m to ∞
DORI
DORI	2.8mm: D: 63 m, O: 25 m, R: 12 m, I: 6 m 4mm: D: 78 m, O: 31 m, R: 15 m, I: 7 m
Illuminator
Supplement Light Type	IR
Supplement Light Range	Up to 30 m
Smart Supplement Light	Yes
IR Wavelength	850 nm
Video
Main Stream	50 Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720) 60 Hz: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
Sub-Stream	50 Hz: 25 fps (1280 x 720, 640 x 480, 640 x 360) 60 Hz: 30 fps (1280 x 720, 640 x 480, 640 x 360)
Third Stream	50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360) 60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360) *Third stream is supported under certain settings.
Video Compression	Main stream: H.265 / H.264 / H.265+ / H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings.
Video Bit Rate	32 Kbps to 8 Mbps
H.264 Type	Baseline Profile / Main Profile / High Profile
H.265 Type	Main Profile
Bit Rate Control	CBR/VBR
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Region of Interest (ROI)	1 fixed region for main stream and sub-stream
Audio
Audio Compression	-SU: G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
Audio Bit Rate	-SU: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate	-SU: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering	-SU: Yes
Network
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
Simultaneous Live View	Up to 6 channels
API	Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User/Host	Up to 32 users. 3 user levels: administrator, operator and user
Security	Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage	NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client	iVMS-4200, Hik-Connect, Hik-Central
Web Browser	Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch	Yes
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch	Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)	120 dB
SNR	≥ 52 dB
Image Enhancement	BLC, HLC, 3D DNR
Privacy Mask	4 programmable polygon privacy masks
Interface
Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone	-SU: Yes
Audio	-SU: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium -SU: 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm	-SU: 1 input, 1 output (max. 12 VDC, 30 mA)
Reset Key	Yes
Event
Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event	Scene change detection
Linkage	Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warning
Deep Learning Function
Face Capture	Yes
Perimeter Protection	Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
General
Power	12 VDC ± 25%, 0.6 A, max. 7.2 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8.5 W
Material	Cover: aluminum alloy, main body: aluminum alloy
Dimension	Ø121.5 mm x 97.6 mm (Ø4.8" x 3.8")
Package Dimension	150 mm x 150 mm x 141 mm (5.9" x 5.9" x 5.6")
Weight	Approx. 550 g (1.2 lb.)
With Package Weight	Approx. 800 g (1.8 lb.)
Storage Conditions	-30 degreesC to 60 degreesC (-22 degreesF to 140 degreesF). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-30 degreesC to 60 degreesC (-22 degreesF to 140 degreesF). Humidity 95% or less (non-condensing)
Language	33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function	Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
Approval
EMC	CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Safety	UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment	CE-RoHS: 2011/65/EU
Protection	IP67: IEC 60529-2013,IK10: IEC 62262:2002
