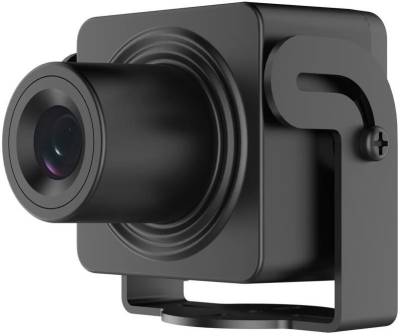

Hikvision DS-2CD2D25G1/M-D/NF Covert Network Camera
High quality imaging with 2 MP resolution, efficient H.265+ compression technology to save bandwidth and storage, clear imaging against strong back light due to 120 dB true WDR technology, and 3D DNR technology for clean and sharp images.
The Hikvision DS-2CD2D25G1/M-D/NF is a compact covert network camera designed for discreet Full HD surveillance where reliable image quality and unobtrusive installation are important. With a 2 MP sensor and 1920x1080 resolution, it provides clear video for monitoring indoor areas and other applications requiring a discreet camera solution.
The camera combines 120 dB true WDR with BLC and HLC to help maintain usable image detail in challenging lighting conditions, including scenes with strong backlighting. 3D DNR further reduces digital noise to produce cleaner footage, while H.265 and H.264 video compression help reduce bandwidth and storage requirements.
Hikvision 2MP Covert Network Camera
The DS-2CD2D25G1/M-D/NF uses a fixed 2.8mm lens and is designed for discreet surveillance installations. Its covert design makes it suitable for applications where a conventional visible CCTV camera may not be desirable.
The camera supports up to 15 simultaneous live view channels, allowing multiple authorised users or systems to access the camera feed. A fixed region of interest can also be configured to prioritise important areas within the image.
Clear Full HD Surveillance
With 2 MP resolution and a 1920x1080 Full HD image, the camera provides detailed video for everyday security monitoring. The 120 dB true WDR system helps balance bright and dark areas within the same scene, making it useful in environments where lighting conditions can change significantly.
Additional image processing includes:
Efficient Video Compression
The camera supports H.265 and H.264 video compression to help optimise network bandwidth and recording storage. Efficient compression is particularly useful when the camera is connected to an NVR or other network video recording system.
Network and Audio Connectivity
A 10M/100M self-adaptive RJ45 Ethernet port provides the network connection for video transmission and camera management. The camera also includes one line-in audio input for compatible audio applications.
Key technical details include:
Part Number and Model
This Hikvision covert network camera is supplied under part number / SKU HK-311318330 and carries the model designation DS-2CD2D25G1/M-D/NF(2.8mm)(O-STD).
Suitable Applications
The discreet design and Full HD imaging make this camera suitable for offices, retail environments, commercial premises, reception areas and other locations where covert network surveillance is required. Its WDR and noise reduction technologies also make it a practical choice for areas with mixed or difficult lighting.
| © 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | |
Specifications | |
| Product Code | HK-311318330 |
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 1920 x 1080 |
| Min. Illumination | Color: 0.002 Lux @ (F1.2, AGC ON) |
| Shutter Time | 1/3 s to 1 / 100,000 s |
| Lens | |
| Focal Length & FOV | 2.8 mm: horizontal FOV: 107.8degrees, vertical FOV: 57.9degrees, diagonal FOV: 126.7degrees |
| 4 mm: horizontal FOV: 82.8degrees, vertical FOV: 45.1degrees, diagonal FOV: 98degrees | |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | 2.8 mm: F2.0 |
| 4 mm: F2.0 | |
| DORI | |
| DORI | 2.8 mm: D: 42.8 m, O: 17 m, R: 8.6 m, I: 4.3 m |
| 4 mm: D: 55.2 m, O: 21.9 m, R: 11 m, I: 5.5 m | |
| Video | |
| Main Stream | 50 Hz: 50 fps (1920 x 1080, 1280 x 720) |
| 60 Hz: 60 fps (1920 x 1080, 1280 x 720) | |
| Sub-Stream | 50 Hz: 25 fps (640 x 480, 640 x 360, 320 x 240) |
| 60 Hz: 30 fps (640 x 480, 640 x 360, 320 x 240) | |
| Third Stream | 50 Hz: 1 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360, 320 x 240) |
| 60 Hz: 1 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360, 320 x 240) | |
| Video Compression | Main stream: H.265/H.264 |
| Sub-stream: H.265/H.264/MJPEG | |
| Third stream: H.265/H.264 | |
| H.264 Type | Baseline Profile / Main Profile / High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CVR/BVR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | Support 1 fixed region for main stream |
| Audio | |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| Simultaneous Live View | Up to 15 channels |
| API | Open Network Video Interface, ISAPI, SDK, ISUP 5.0 |
| User/Host | Up to 32 users |
| 3 level: administrator, operator, and user | |
| Network Storage | NAS (NFS, SMB/CIFS) |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE10, IE11 |
| Plug-in free live view: Chrome 57.0+, Firefox 52.0+ | |
| Local service: Chrome 57.0+, Firefox 52.0+ | |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, and sharpness adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| Image Enhancement | BLC, HLC, defog, 3D DNR |
| Privacy Mask | Yes |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Audio | 1 input (line in) |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception (HDD full, HDD error, network disconncected), video quality diagnosis |
| Smart Event | Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection |
| Audio exception detection, defocus detection, scene change detection | |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning |
| General | |
| Power | 12 VDC ± 20%, 0.13 A, max. 1.5 W, Ø5.5 mm coaxial power plug |
| Dimension | 31.5 mm x 31.5 mm x 49.6 mm (1.2" x 1.2" x 2") |
| Package Dimension | 130 mm x 104 mm x 85 mm (5.1" x 4.1" x 3.3") |
| Weight | Approx. 93 g (0.2 lb.) |
| With Package Weight | Approx. 202 g (0.4 lb.) |
| Storage Conditions | -30 degreesC to 60 degreesC (-22 degreesF to 140 degreesF). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 degreesC to 60 degreesC (-22 degreesF to 140 degreesF). Humidity 95% or less (non-condensing) |
| Language | 18 languages: English, Traditional Chinese, Russian, Turkish, Japanese, Korean, Thai, Vietnamese, Estonian, Bulgarian, Hungarian, Czech, Slovak, French, Italian, German, Spanish, Portuguese |
| General Function | One-key reset, heartbeat, mirror, password protection, privacy mask, rotate, watermark, IP address filter |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B) |
| CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014) | |
| RCM (AS/NZS CISPR 32: 2015) | |
| IC (ICES-003: Issue 7) | |
| KC (KN 32: 2015, KN 35: 2015) | |
| Safety | UL (UL 62368-1) |
| CB (IEC 62368-1:2014+A11) | |
| CE-LVD (EN 62368-1:2014/A11:2017) | |
| BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005) | |
| LOA (IEC/EN 60950-1) | |
| Environment | CE-RoHS (2011/65/EU) |
| WEEE (2012/19/EU) | |
| Reach (Regulation (EC) No 1907/2006) | |
