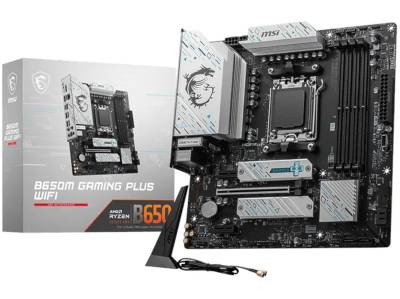

MSI B650M Gaming Plus WiFi AM5 Micro-ATX Motherboard for AMD Ryzen 7000, 8000 and 9000 Series
Built on the AMD B650 chipset, the MSI B650M Gaming Plus WiFi delivers a strong foundation for modern gaming systems, content creation PCs, and high-performance desktop builds. Designed for AMD Ryzen 7000, 8000, and 9000 Series processors, it combines DDR5 memory support, PCIe 4.0 storage, fast networking, and dependable power delivery in a compact Micro-ATX form factor. Whether you are upgrading an existing system or assembling a new PC, this motherboard provides the performance, expandability, and connectivity needed for years of reliable use.
The MSI B650M Gaming Plus WiFi is a feature-rich AM5 motherboard designed for users who want excellent gaming performance, fast DDR5 memory, high-speed PCIe 4.0 storage, and next-generation networking. With Wi-Fi 6E, Bluetooth 5.3, 2.5Gb Ethernet, reinforced PCIe graphics support, and advanced cooling solutions, it offers an ideal balance of speed, stability, and upgrade potential for modern desktop PCs.
Designed for the Latest AMD Ryzen Processors
Supporting AMD Ryzen 7000, 8000, and 9000 Series desktop processors, this motherboard makes full use of the AM5 platform and AMD B650 chipset. Four DDR5 memory slots support up to 256GB of RAM with speeds reaching 7200+ MHz when overclocked, while AMD EXPO support allows compatible memory kits to achieve optimal performance with minimal setup.
Reliable Power and Efficient Cooling
Stable performance starts with dependable power delivery. The integrated 10+2+1 Duet Rail Power System works alongside Core Boost and Memory Boost technologies to maintain consistent operation under demanding workloads. A 6-layer PCB with 2oz thickened copper improves signal quality and heat dissipation, while extended VRM heatsinks, premium thermal pads, and the M.2 Shield Frozr help maintain lower operating temperatures during intensive gaming and productivity sessions.
Fast Storage and Flexible Expansion
Whether loading games, editing media, or transferring large files, the storage configuration offers impressive speed and flexibility.
Key storage and expansion highlights:
The reinforced PCIe x16 slot is built to support modern graphics cards while improving durability and reducing signal interference.
High-Speed Connectivity for Gaming and Productivity
Modern networking is built into every aspect of the motherboard. Wi-Fi 6E provides access to the latest wireless bands, Bluetooth 5.3 offers stable peripheral connectivity, and the integrated Realtek 2.5Gb Ethernet controller delivers fast wired networking for competitive gaming and large file transfers.
Rear connectivity includes:
Internal headers provide additional USB connectivity, RGB lighting support, TPM 2.0 compatibility, multiple fan headers, and front-panel USB Type-C support.
Clear Audio and Builder-Friendly Design
Audio Boost technology with the Realtek ALC897 codec delivers immersive 7.1-channel high-definition audio suitable for gaming, entertainment, and everyday multimedia use. Four EZ Debug LEDs simplify troubleshooting during assembly, while addressable RGB headers allow easy integration with compatible lighting components.
Technical Details
Package Contents
Why Choose the MSI B650M Gaming Plus WiFi
Combining modern AM5 compatibility, high-speed DDR5 memory support, PCIe 4.0 expansion, premium networking, and robust thermal engineering, the MSI B650M Gaming Plus WiFi is an excellent choice for gamers, creators, and PC enthusiasts. The Part Number / SKU B650MGAMINGPLUSWIFI represents a motherboard that offers strong upgrade potential, dependable performance, and a balanced feature set for today's demanding desktop systems.
| © 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | |
Specifications | |
| Product Code | B650MGAMINGPLUSWIFI |
| Chipset | AMD B650 |
| CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory Support DDR5 7200+(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800(JEDEC) MHz | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Supports AMD EXPO | |
| Max. overclocking frequency: | |
| 1DPC 1R Max speed up to 7200+ MHz | |
| 1DPC 2R Max speed up to 6000+ MHz | |
| 2DPC 1R Max speed up to 6000+ MHz | |
| 2DPC 2R Max speed up to 5400+ MHz | |
| Onboard Graphics | 1x HDMI |
| Support HDMI 2.1, maximum resolution of 4K 60Hz | |
| 1x DisplayPort | |
| Support DP 1.4, maximum resolution of 4K 60Hz | |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
| Slot | 1x PCI-E x16 slot |
| Supports x16/x4 (For Ryzen 9000/ 7000 Series processors) | |
| Supports x8/x4 (For Ryzen 8700/ 8600/ 8400 Series processors) | |
| Supports x4/x4 (For Ryzen 8500/ 8300 Series processors) | |
| 2x PCI-E x1 slot | |
| PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) | |
| PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| Audio | Realtek ALC897 Codec |
| 7.1-Channel High Definition Audio | |
| Storage | 2x M.2 |
| M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| 4x SATA 6G | |
| M2_2 supports PCIe 4.0 x2 speed when Ryzen 8500/ 8300 Series processor is installed | |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices |
| Supports RAID 0, RAID 1 for M.2 NVMe storage devices | |
| USB | 4x USB 2.0 (Front) |
| 4x USB 5Gbps Type A (Rear) | |
| 2x USB 5Gbps Type A (Front) | |
| 3x USB 10Gbps Type A (Rear) | |
| 1x USB 10Gbps Type C (Rear) | |
| 1x USB 10Gbps Type C (Front) | |
| LAN | Realtek RTL8125BG 2.5Gbps LAN |
| Internal IO | 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 1x Pump Fan | |
| 3x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Tuning Controller connector(JDASH) | |
| 2x Addressable V2 RGB LED connector (JARGB_V2) | |
| 2x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 ports | |
| 2x USB 5Gbps Type A ports | |
| 1x USB 10Gbps Type C ports | |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 6E |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX | |
| Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| Supports Bluetooth 5.3 | |
| * Wi-Fi 6E 6GHz may depend on every country's regulations and will be ready in Windows 11. | |
| ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. | |
| LED FEATURE | 4x EZ Debug LED |
| BACK PANEL PORTS | DisplayPort |
| 2.5G LAN | |
| USB 3.2 Gen 2 10Gbps (Type-A) | |
| USB 3.2 Gen 1 5Gbps (Type-A) | |
| Wi-Fi / Bluetooth | |
| Flash BIOS Button | |
| HDMI | |
| USB 3.2 Gen 2 10Gbps (Type-A) | |
| USB 3.2 Gen 2 10Gbps (Type-C) | |
| Audio connectors | |
| OPERATING SYSTEM | Support for Windows 11 64-bit, Windows 10 64-bit |
| PCB Info | mATX |
| 243.84mmx243.84mm | |
