ASUS P3606CCAP-U516512G0W specification sheet

Short Description

Asus ExpertBook P3 G1 P3606CCAP Series Core Ultra Series 2 ASUS P3606CCAP-U516512G0W Misty Grey Notebook, Intel Core Ultra 5 225H Series 2 Fourteen (14) Core Arrow Lake Turbo Boost up to 4.9Ghz 18MB L3 Cache Processor (4 Perfomance Cores & 8 Efficient Cores & 2 Low Power Efficient Cores), 16GB DDR5-5200 SO-Dimm Memory (1x16GB), Supports 64GB Max Mem, 2 Memory slots, 512GB SSD Solid State Hard Drive PCIe, M.2 2230 slot + M.2 2280 Slot, NO optical drive ( No CD), 16" WUXGA (1920 x 1200 resolution) Non Gloss Type 300nits LED Backlit Display, Intel Arc Graphics 130T, Intel AI Boost 13 TOPS, 802.11ax Wi-Fi 6, 10/100/1000 Gigabit Ethernet LAN, Bluetooth, Webcam, 3 Cell Battery, Fingerprint Reader, 1x USB 3.2 Gen 2 Type-C support display / power delivery, 2x USB 3.2 Gen 1 Type-A, 1x Thunderbolt 4 compliant with USB4, HDMI output, 1.8 kg, Microsoft Windows 11 Home 64 bit, 1 Year Carry in warranty

© Respective owners and brand holders. © 2026 Laptop Direct CC. The contents has been generated by Laptop Direct CC (https://www.laptopdirect.co.za). All products are sourced locally in South Africa and the warranty is that of the local supplier only. E&OE.

Long Description

Overview:

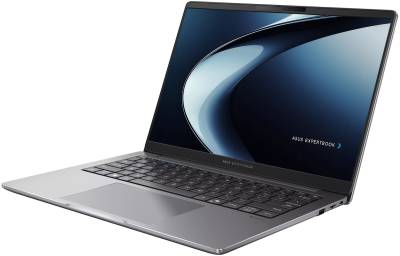

The ASUS ExpertBook P3 G1 P3606CCAP is a business-focused 16-inch laptop designed for professionals who need reliable performance, modern AI capabilities, and strong security. Powered by the Intel Core Ultra 5 225H processor, fast DDR5 memory, and a PCIe SSD, it delivers smooth multitasking for office work, remote collaboration, and everyday productivity.

Its lightweight design, Full HD+ display, built-in AI acceleration, and business-grade security make it an excellent choice for users working in the office, from home, or while travelling. Windows 11 Home completes the package with a familiar and productive user experience.

Built for Productivity
The Intel Core Ultra 5 225H processor combines 14 cores with turbo speeds of up to 4.9GHz, delivering responsive performance for multitasking, business software, web applications, and content creation. With 16GB DDR5 memory and a fast 512GB PCIe SSD, applications load quickly and files are easily accessible.

Memory is upgradeable to 64GB, while dual M.2 storage slots provide flexibility for future storage expansion.

Features:

AI-Ready Performance
Integrated Intel AI Boost technology with up to 13 TOPS accelerates AI-assisted workloads and improves supported productivity applications. The Intel Arc Graphics 130T also provides enhanced graphics performance for creative tasks, presentations, and multimedia.

Large 16-Inch WUXGA Display
The 16-inch WUXGA (1920 x 1200) anti-glare display offers extra vertical workspace with its 16:10 aspect ratio, making it easier to work with documents, spreadsheets, and multiple windows. A brightness rating of 300 nits helps deliver clear viewing in a variety of lighting conditions.

Designed for Business
The ExpertBook P3 is built with mobile professionals in mind. Its durable construction and lightweight 1.8kg design make it easy to carry between meetings, offices, or while travelling.

Efficient cooling helps maintain consistent performance during demanding workloads.

Advanced Security
Protect your business data with built-in security technologies including:

• Fingerprint reader for secure sign-in
• TPM 2.0 hardware security
• Physical webcam privacy shield
• Kensington Nano security slot
• Commercial-grade BIOS protection

These security measures help safeguard sensitive information both in the office and on the move.

Stay Connected
The ASUS ExpertBook P3 offers a wide selection of ports for modern workplaces.

• Thunderbolt 4 with USB4 compatibility
• USB 3.2 Gen 2 Type-C with DisplayPort and Power Delivery
• Two USB 3.2 Gen 1 Type-A ports
• HDMI output
• Gigabit Ethernet (RJ45)
• Audio combo jack

Wireless connectivity includes Wi-Fi 6 and Bluetooth for fast, reliable networking and peripheral support.

Comfortable Everyday Use
Built-in AI enhancements improve video conferencing and online collaboration, while the integrated webcam makes virtual meetings simple. The spacious display and practical keyboard layout help improve productivity throughout the working day.

Key Highlights

• Intel Core Ultra 5 225H 14-core processor
• Intel Arc Graphics 130T
• Intel AI Boost (13 TOPS)
• 16GB DDR5 memory
• 512GB PCIe SSD
• Dual M.2 storage expansion support
• Supports up to 64GB memory
• 16-inch WUXGA anti-glare display
• Wi-Fi 6 and Bluetooth
• Gigabit Ethernet
• Thunderbolt 4 and USB-C connectivity
• Fingerprint reader and TPM 2.0 security
• Windows 11 Home
• Weight: 1.8kg

Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications and features
Product Code	ASUS P3606CCAP-U516512G0W
Model	P3606CCAP / 90NX0AL1-M004B0
Operating System	Windows 11 Home - ASUS recommends Windows 11 Pro for business
Office	N/A
LCD cover-material	Plastic
LCD cover-color	Misty Grey
Top case-material	Plastic
Top case-color	Misty Grey
Bottom case-material	Plastic
Bottom case-color	Misty Grey
Military grade	US MIL STD 810H military grade standard (24 procedures)
Panel Size	16.0-inch
Backlit	LED Backlit
Brightness	300nits
Resolution	WUXGA (1920 x 1200) 16:10
Glare	Anti-glare display
Color gamut	NTSC: 45%
View angle(H/V)	160/160
Response time(Typ/Max) (ms)	20/25
Refresh rate	60Hz
Contrast (Typ)	1000:1
Touch Panel	Non-touch screen
Screen-to-body ratio	90 %
IPS-level	Wide view
Processor	Intel Core Ultra 5 Processor 225H 1.7 GHz (18MB Cache, up to 4.9 GHz, 14 cores, 14 Threads) , Intel AI Boost NPU up to 13 TOPS
Neural processor	Intel AI Boost NPU
Chipset	N/A
Discrete/Share	Share
Integrated GPU	Intel Graphics
VRAM	N/A
How to upgrade memory	Upgradable , Need to remove bottom/top case
Expansion Slot(includes used)	2x DDR5 SO-DIMM slots
	1x M.2 2230 PCIe 4.0x4
	1x M.2 2280 PCIe 4.0x4
DIMM Memory	16GB DDR5 SO-DIMM
Total System Memory	DDR5 16GB
Storage	512GB M.2 2280 NVMe PCIe 4.0 SSD
Front-facing camera	720p HD camera
	With privacy shutter
Wireless	Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth 5.4 Wireless Card
NumberPad	N/A
FingerPrint	FingerPrint
Keyboard type	Chiclet Keyboard
Keyboard language	English
I/O ports	1x USB 3.2 Gen 2 Type-C support display / power delivery
	2x USB 3.2 Gen 1 Type-A
	1x Thunderbolt 4, compliant with USB4, support display / power delivery
	1x HDMI 2.1
	1x 3.5mm Combo Audio Jack
	1x RJ45 Gigabit Ethernet
Audio	Audio by Dirac
	Built-in speaker
	Built-in array microphone
Battery	50WHrs, 3S1P, 3-cell Li-ion
AC Adapter	TYPE-C, 65W AC Adapter, Output: 20V DC, 3.25A, 65W, Input: 100~240V AC 50/60Hz universal (Adapter+power cord)
Required charging power	Min: 55W
	Max: 65W
	*The indicated wattage is for demonstrating the system's support capability as required by EU regulations. For optimal system performance, please use the standard-wattage adapter or higher.
Dimension (WxHxD)	35.93 x 25.35 x 1.17 ~ 1.99 cm (14.15" x 9.98" x 0.46" ~ 0.78")
Starting Weight (with Battery)	1.80 kg (3.97 lbs)
Starting Weight (w/o Battery)	1.61 kg (3.55 lbs)
Security	Fingerprint sensor integrated with Power Key
	Kensington Nano Security Slot (6x 2.5mm)
	BIOS Booting User Password Protection
	BIOS Integrity Measurement Support
	BIOS Self Recovery
	BIOS setup user password
	CSME BIOS Redundancy Assistance
	Enhanced Password Strength
	HDD User Password Protection and Security
	Intel CSME Firmware Resilience
	Intel BIOS Guard
	Intel Boot Guard
	Microsoft Security Level 3
	Support Absolute Persistence 2.0 (Computrace)
	Trusted Platform Module (Firmware TPM)
	ASUS ExpertGurdian with NIST SP 800 155 compliance
Antivirus	McAfee 30 days free trial
MyASUS feature	System diagnosis
	Battery health charging
	Fan Profile
	Splendid
	Tru2Life
	Function key lock
	WiFi SmartConnect
	AppDeals
MyExpert Features	Advanced Tool
	ExpertMeet(All)
	SafeGuard Backup(Dual SSD, additional purchase before shipment)
Built-in Apps	ASUS MyExpert (Not supported in China, 16GB RAM or higher)
	AI ExpertMeet (China only)
	MyASUS
Reparability Index (for Belgium)	9.2
Reparability Index (for France)	9.7
Ecolabels & Compliances	FSC Recycled
	RoHS
