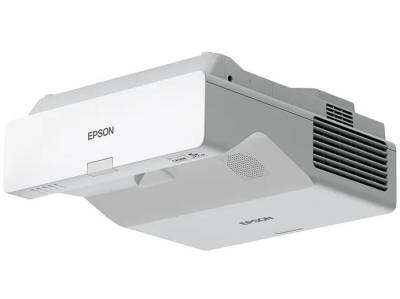

Epson EB-770Fi Interactive Full HD Laser Projector for Education and Business Use
The Epson EB-770Fi is an interactive ultra short throw laser projector designed for collaborative learning and professional presentation environments. Built around Full HD 1920 x 1080 resolution and 3LCD technology, it delivers sharp, colour-accurate images even in well-lit rooms. With a brightness output of 4100 lumens, it produces consistently visible content without requiring a darkened space.
This model supports screen sizes from 60 inches up to 100 inches and uses a 16:9 widescreen aspect ratio, making it suitable for modern classroom and meeting room formats. The ultra short throw design allows large-scale projection from very close range, reducing shadows and glare while improving usability in tight spaces.
The Epson EB-770Fi (SKU: EB-770Fi / V11HA78080 ) is a high-performance interactive laser display system designed to replace traditional flat panels and standard projectors. It combines long-life laser projection, multi-touch interactivity, and flexible connectivity into a single installation-friendly solution.
It is engineered for environments that require collaboration, annotation, and real-time interaction, such as classrooms, training rooms, and hybrid meeting spaces. The system supports both pen and finger-touch input, enabling users to write, draw, and interact directly on the projected surface. This enhances engagement and supports more dynamic presentations and lessons.
The laser light source delivers high efficiency with minimal maintenance requirements, offering long operational life and stable brightness over time. Its compact ultra short throw design also reduces installation constraints while improving usability in shared environments.
Interactive Ultra Short Throw Display Capability
The EB-770Fi is designed to deliver a large interactive surface without occupying significant room space. Its projection system enables clear visibility even at close range, reducing obstruction and improving accessibility for group participation.
Key display characteristics include:
Connectivity and Integration Options
This model supports a wide range of connection methods to suit modern AV and IT environments. It allows both wired and wireless collaboration, making it adaptable for multiple device types.
Available interfaces include:
It is also compatible with network control protocols including SNMP, PJLink, HTTPS, and common AV control systems, allowing centralised management in larger installations.
Technical Performance and Imaging System
The EB-770Fi uses advanced 3LCD laser technology combined with RGB liquid crystal shutter architecture. This ensures balanced colour reproduction without rainbow effects commonly found in single-chip systems.
Core imaging performance includes:
Colour reproduction is enhanced through 10-bit processing, allowing highly detailed gradients and accurate visual output across presentations, video, and interactive content.
Installation Flexibility and Room Integration
Designed for flexible deployment, the EB-770Fi can be mounted on walls, ceilings, or placed on a desktop depending on room configuration. Its ultra short throw lens allows large projection surfaces to be created from minimal distance, reducing shadow interference during use.
Additional system capabilities include:
Power Efficiency and Physical Design
The unit is engineered for energy efficiency and continuous operation in professional environments.
Operating conditions support a wide range of installation environments, including typical classroom and office humidity and temperature ranges.
Included Items
The EB-770Fi package includes essential accessories required for installation and interactive use:
Summary Application Use
This projector is designed primarily for:
Its combination of laser projection, ultra short throw design, and interactive input makes it suitable for environments requiring high engagement and flexible content delivery.
| © 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | |
Specifications | |
| Product Code | EB-770Fi |
| Technology | |
| Projection System | 3LCD Technology, RGB liquid crystal shutter |
| LCD Panel | 0,62 inch with C2 Fine |
| Image | |
| Color Light Output | 4.100 Lumen- 2.800 Lumen (economy) In accordance with IDMS15.4 |
| White Light Output | 4.100 Lumen - 2.800 Lumen (economy) In accordance with ISO 21118:2020 |
| Resolution | 1080p |
| Resolution Enhancement | Full HD |
| Aspect Ratio | 16:9 |
| Contrast Ratio | Over 5.000.000 : 1 |
| Light source | Laser |
| Laser Light source | 20.000 hours Durability High, 30.000 hours Durability Eco |
| Keystone Correction | Manual vertical: ±3 degrees, Manual horizontal ±3 degrees |
| Colour Video Processing | 10 Bits |
| 2D Vertical Refresh Rate | 192 Hz - 240 Hz |
| Colour Reproduction | Upto 1.07 billion colours |
| Optical | |
| Throw Ratio | 0,25 - 0,35:1 |
| Zoom | Digital, Factor:1 - 1,35 |
| Lens | Optical |
| Screen Size | 60 inches - 100 inches |
| Projection Lens F Number | 1,6 |
| Projection Lens Focal Length | 3,7 mm |
| Projection Lens Focus | Manual |
| Offset | 5 : 1 |
| Connectivity | |
| Interfaces | USB 2.0-A (2x), USB 2.0 Type B (Service Only) (2x), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, Wi-Fi Direct, VGA in (2x), VGA out, HDMI in (3x), Composite in, Miracast, Jack plug out, Jack plug in (3x), Microphone input, Sync. in, Sync. out, Multi-Touch interface (optional) |
| Network Protocol | HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink |
| Advanced Features | |
| Security | Kensington lock, Control panel lock, Password lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection |
| Other features | 21:9 aspect ratio support, A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Digital zoom, Direct Power on/off, Document Camera Compatible, Dual Pen Support, Easy OSD pre-setting, Email notification, Finger-touch support, Home Screen, Horizontal and vertical keystone correction, Image Shift, Instant on/off, Interactive, Interactive Home Screen, Interactive OSD menu, Mail notification function, Microphone input, Network administration, Network projection, OSD copy function, PC Interactive, PC free annotation, Projection App for Chromebook, Quick Corner, Schedule Function, Screen Mirroring, Screen share, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, Whiteboard sharing function, Wireless LAN capable, iProjection App, iProjecton set-up by scanning a code |
| Interactivity | Yes - pen and finger-touch |
| Video Color Modes | Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM SIM |
| Projector control | via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol |
| General | |
| Power consumption | 197 Watt (Normal On-Mode), 141 Watt (Eco On-Mode), 263 Watt (Normal Peak-mode), 199 Watt (Eco Peak-Mode), 0,5 Watt (Energy saving standby) |
| Heat Dissipation | 895 BTU/hour (max) |
| Supply Voltage | AC 100 V - 240 V, 50 Hz - 60 Hz |
| Product dimensions | 356 x 395 x 133 mm (Width x Depth x Height) |
| Product weight | 6 kg |
| Noise Level | Normal:37 dB (A) - Economy:27 dB (A) |
| Supported Temperature | Storage -10degrees C - 60degrees C |
| Supported Humidity | Operation 20% - 80%, Storage 10% - 90% |
| If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling. | |
| If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance. | |
| Included Software | Easy Interactive Tools, EasyMP Multi PC Projection, Epson Projector Management |
| Options | Air filter, Ceiling mount, Connection and control box, External Speaker, Finger Touch Unit, Finger Touch Unit Wall Bracket, Pen tip(Felt), Pen tip(Teflon), Safety wire set, Visualiser camera, WP System - ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01 |
| Loudspeaker | 16 Watt |
| What's in the box | 2 x Pen tip(Teflon), 4 x Pen tip(Felt), Corner markers for auto screen adjustment, Interactive pens, Pen Holder/Stand, Power cable, Projector feet, Quick Start Guide, Remote control incl. batteries, USB cable, Warranty document |
| Room Type / Application | Meeting room / Classroom |
| Positioning | Ceiling Mounted, Desktop, Wall Mounted |
| Colour | White |
| Country of Origin | |
| Country Of Origin | Philippines |
