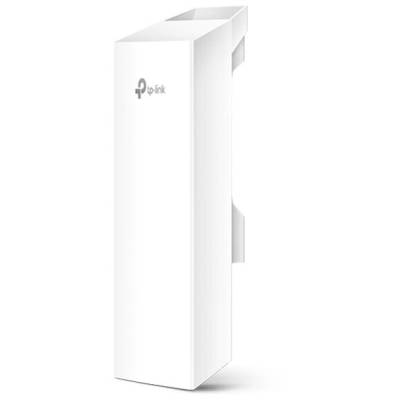

CPE 210 2.4GHz 300Mbps 9dBi Outdoor CPE
The CPE210 is engineered to deliver stable long-distance wireless connectivity with a durable build suitable for demanding outdoor conditions. It offers reliable data links for homes, farms, businesses, and remote installations.
This outdoor wireless device supports up to 300 Mbps speeds on 2.4GHz and integrates a 9dBi dual-polarized antenna for focused, long-range signal delivery. It is designed for multi-mode deployment, remote PoE installation, and centralized management, making it practical for point-to-point links, rural coverage, and network expansions.
Hardware Built for Demanding Outdoor Environments
The unit is equipped with Qualcomm Atheros chipsets and a robust enclosure designed for long-term external use. It operates reliably in temperatures ranging from minus 40 to 70 degrees Celsius, making it suitable for harsh climates.
Antenna and Signal System
The integrated high gain antenna provides stable directional performance, supported by a metal reflector that helps reduce noise and enhance signal strength.
Long-Range Wireless Transmission
The device is tuned for extended outdoor reach and can support data transmission over distances exceeding 5km in field scenarios.
Maximized Throughput with MAXtream TDMA
Large wireless deployments often face signal competition that reduces performance. MAXtream TDMA helps organize transmission timing, minimizing collisions and supporting more consistent speeds across point-to-multipoint setups.
Central Management with Pharos Control
The included software enables administrators to discover devices, update firmware, monitor status, and perform ongoing maintenance from one workstation.
PharOS Management Interface
A browser-based control panel gives professionals detailed configuration options for fine-tuning network behavior.
| © 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | |
Specifications | |
| Product Code | CPE210 |
| HARDWARE FEATURES | |
| Processor | Qualcomm Atheros 560MHz CPU, MIPS 74Kc |
| Memory | 64MB DDR2 RAM, 8MB Flash |
| Interface | 1 10/100Mbps Shielded Ethernet Port (Passive PoE in) |
| 1 Grounding Terminal | |
| 1 Reset Button | |
| Power Supply | Passive Power over Ethernet via LAN0 (+4, 5pins, -7, 8pins) |
| Voltage range: 16-27VDC | |
| Power Consumption | 10.5 Watts Max |
| Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. | |
| Dimensions ( W x D x H ) | 8.8 x 3.1 x 2.4 in. |
| Antenna Type | Built-in 9dBi 2x2 Dual-polarized Directional Antenna |
| Beam Width: 65degrees (H-Plane) / 35degrees (E-Plane) | |
| Protection | 15KV ESD Protection |
| 6KV Lightning Protection | |
| Enclosure | Outdoor ASA stabilized plastic material |
| IPX5 waterproof Certification | |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11b/g/n (with Pharos MAXtream disabled) |
| Proprietary Protocol | TDMA Mode (with Pharos MAXtream enabled) |
| Wireless Speeds | Up to 300Mbps (40MHz, Dynamic) |
| Up to 144.4Mbps (20MHz, Dynamic) | |
| Up to 72.2Mbps (10MHz, Dynamic) | |
| Up to 36.1Mbps (5MHz, Dynamic) | |
| Frequency | 2.4~2.483GHz |
| Transmission Power | 27dBm/500mw (1dBm step adjustable) |
| SOFTWARE FEATURES | |
| Wireless Configurations | Pharos MAXtream TDMA Technology |
| 802.11b/g/n modes | |
| Selectable Channel Width: 5/10/20/40MHz | |
| Automatic Channel Selection | |
| Transmission Power Control | |
| Dynamic Frequency Selection (DFS) | |
| WDS Enable/Disable | |
| Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption | |
| SSID Broadcast Enable/Disable | |
| Multi-SSID with VLAN Tagging (AP mode only) | |
| Distance/ACK Timeout Setting | |
| Wireless MAC Address Filter | |
| Wireless Advanced: | |
| > Beacon Interval/RTS Threshold/Fragmentation | |
| > Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia | |
| Management | Discovery and Remote Management via Pharos Control application |
| HTTP/HTTPS Web-based management | |
| System Log | |
| SNMP Agent(v2c) | |
| Ping Watch Dog | |
| Dynamic DDNS | |
| SSH Server | |
| System Tools | Wireless Signal Quality Indicators: |
| Signal Strength/Noise/Transmit CCQ/CPU/Memory | |
| Monitors: Throughput / Stations / Interfaces / ARP / Routes / WAN / DHCP | |
| Spectrum Analyzer | |
| Speed Test | |
| Ping | |
| Traceroute | |
| System-level Optimizations | Optimized IGMP Snooping/Proxy for multicast applications |
| Hardware watch dog | |
| POE ADAPTER FEATURES | |
| Dimensions(W x D x H) | 4.3 x 2.2 x 1.3 in |
| Interfaces | 1 AC Jack with Earth Ground |
| 1 10/100Mbps Shielded Ethernet Port (Power + Data) | |
| 1 10/100Mbps Shielded Ethernet Port (Data) | |
| Button | Remote Reset Button |
| Power Status LEDs | Green |
| Input | 100-240VAC, 50/60Hz |
| Output | 24VDC, 0.6A Max |
| +4, 5pins, -7, 8pins. (Support up to 60m Power over Ethernet) | |
| Efficiency | > 80% |
| Certifications | FCC |
| OTHERS | |
| Certification | FCC, RoHS, IPX5 |
| Package Contents | Outdoor Wireless CPE |
| 24VDC Passive PoE Adapter | |
| Pole Mounting Straps | |
| AC Power Cord | |
| Installation Guide | |
| Environment | Operating Temperature: -40degreesC~70degreesC (-40degreesF~158degreesF) |
| Storage Temperature: -40degreesC~70degreesC (-40degreesF~158degreesF) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~95% non-condensing | |
