NET-EAP723 specification sheet

Short Description

Long Description

Overview:

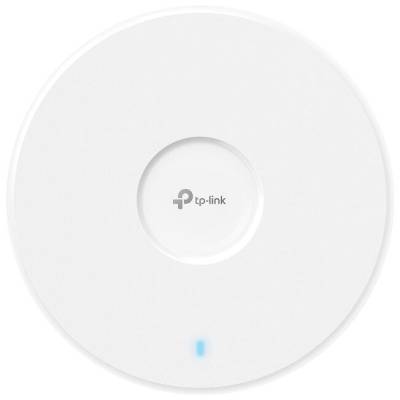

TP-Link Omada BE3600 Ceiling Mount Wi-Fi 7 Access Point (EAP723 )
The TP-Link Omada EAP723 (BE3600 ) is a high-performance ceiling-mount Wi-Fi 7 access point designed for businesses and high-density environments. It delivers fast, reliable wireless connectivity with dual-band support and advanced networking technologies, making it ideal for offices, conference rooms, and enterprise spaces.

Description:

This access point provides ultra-fast Wi-Fi speeds of up to 2,882 Mbps on the 5 GHz band and 688 Mbps on the 2.4 GHz band, handling 250+ devices simultaneously. With a 2.5 Gbps Ethernet port, 802.3at PoE support, and compatibility with the Omada SDN platform, it offers centralized cloud management, seamless roaming, and mesh networking. Its ceiling and wall mount design ensures unobtrusive installation and optimal coverage for spaces up to 140 m².

Features:

High-Speed Wireless Connectivity
The EAP723 leverages Wi-Fi 7 technologies, including 4K-QAM, OFDMA, and MLO, to provide faster, more efficient wireless performance. With dual-band operation, devices can enjoy smooth streaming, lag-free video calls, and responsive online experiences.

Enterprise-Grade Networking
Equipped with advanced multi-user capabilities, the BE3600 supports multiple concurrent devices without compromising speed. It ensures stable connections even in high-density scenarios like offices, classrooms, or co-working spaces.

Seamless Installation and Management
The access point supports both ceiling and wall mounting for flexible deployment. Integration with the Omada SDN platform enables centralized cloud management, making network monitoring, configuration, and firmware updates simple and convenient.

Optimized for Maximum Coverage
With 160 MHz bandwidth and Multi-RU support, the EAP723 provides extended coverage for up to 140 m² . Users benefit from seamless roaming across access points, ensuring consistent connectivity throughout the network.

Connectivity and Expansion

• 1x 2.5 Gbps Ethernet port to maximize Wi-Fi 7 speeds
• 802.3at PoE support for flexible power options
• Mesh networking for extended coverage
• Centralized management for easy monitoring and control

Specifications:

© 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	NET-EAP723
HARDWARE FEATURES
Interface	1 x 2.5G Ethernet Port
Button	Reset
Power Supply	802.3at PoE or 12V/1.5A DC (Power Adapter Not Included)
Power Consumption	18.6 W (For PoE)
	16.0 W (For DC)
Dimensions (W x D x H)	6.3 x 6.3 x 1.4 in (160 x 160 x 36.7 mm)
Antenna Type	2.4 GHz: 2 x 4.0 dBi
	5 GHz: 2 x 5.0 dBi
Mounting	Ceiling / Wall Mounting (Kits Included)
WIRELESS FEATURES
Coverage	140² (1500 ft²)
Wireless Client Capacity	250+
Wireless Standards	IEEE 802.11 a/b/g/n/ac/ax/be
Frequency	2.4 GHz and 5 GHz
Signal Rate	688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz)
Wireless Features	4K-QAM
	Seamless Roaming
	MU-MIMO
	EHT160 Mesh Balancing Band Steering Beamforming Airtime Fairness Multiple SSIDS: 16 (8 on each band) Wireless Schedule Reboot Schedule QoS (WMM) Rate Limit Static IP/Dynamic IP RADIUS Accounting MAC Authentication
Wireless Security	Captive Portal Authentication
	Access Control
	Maximum number of MAC filters: 4,000
	Wireless Isolation Between Clients
	VLAN
	Rogue AP Detection
	WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmit Power	< 20 dBm (2.4 GHz, EIRP)
	< 23 dBm (5 GHz, band 1 & band 2, EIRP)
	< 28 dBm (5 GHz, band 3, EIRP)
MANAGEMENT
Omada Application	Yes
Centralized Management	Omada Cloud-Based Controller
	Omada Hardware Controller
	Omada Software Controller
Cloud Access	Yes. Requires the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
MAC Access Control Management	Yes
SNMP	v1, v2c, v3
Local/Remote System Syslog	Yes
Web-based Management	Yes
OTHER
Certification	CE, FCC, RoHS, IC
Package Contents	EAP723
	Installation Guide
	Ceiling/Wall Mounting Kit
Environment	Operating Temperature: 0 degreesC-40 degreesC (32 degreesF-104 degreesF)
	Storage Temperature: -40 degreesC-70 degreesC (-40 degreesF-158 degreesF)
	Operating Humidity: 10%-90% non-condensing
	Storage Humidity: 5%-90% non-condensing
