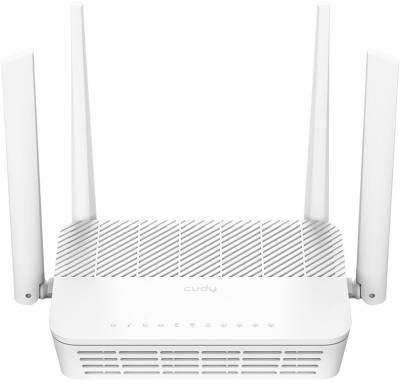

Cudy AX3000 WiFi 6 Dual-Band Gigabit xPON Router GP3000
The Cudy AX3000 WiFi 6 xPON router combines high-speed internet, advanced connectivity, and flexible deployment options, making it ideal for modern FTTH networks. With dual-band Wi-Fi 6 support and GPON/EPON compatibility, it delivers seamless performance for both home and business applications.
This router provides ultra-fast internet speeds, stable connections over long distances, and multiple ports for versatile network setups. Its support for EasyMesh, IPTV, and various management protocols ensures a smooth and customizable user experience. Perfect for users looking for a reliable, high-performance solution for fiber optic networks.
High-Speed Internet with Dual-Band Wi-Fi 6
The AX3000 supports 4-stream dual-band Wi-Fi 6, offering maximum speeds of 2402 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band. This ensures faster downloads, smoother streaming, and low-latency online gaming for multiple devices simultaneously.
Flexible xPON Connectivity
Designed for FTTH deployments, the router supports both GPON and EPON modes:
Comprehensive Wired Network Options
Equipped with multiple Ethernet ports, the router ensures seamless wired connectivity:
Advanced Network Management and IPTV Support
The Cudy AX3000 supports CWMP, OMCI, and multiple TR-standards (TR069/TR098/TR111/TR143/TR181 ) for effective network management. It also includes IPTV support with IGMP Proxy, Bridge, and VLAN tagging, making it ideal for high-quality video streaming and smart home integration.
EasyMesh for Seamless Coverage
With EasyMesh support, the router can create a mesh Wi-Fi system with other compatible devices, providing consistent signal strength and eliminating dead zones throughout your home or office.
Reliable Performance for Modern Networks
Built with 4 fixed Wi-Fi antennas and robust hardware, the AX3000 ensures stable connections even in busy network environments. Its dual-mode xPON design allows easy deployment in diverse fiber-optic setups, making it a versatile solution for high-speed internet access.
| © 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | |
Specifications | |
| Product Code | CD-GP3000 |
| Model Version | |
| - | GP3000 1.0 |
| CPU | |
| CPU Details | 1 GHz Dual-Core |
| Memory/Storage | |
| Flash/ROM | 128 MB (1 Gbit) NAND |
| DDR/RAM | 512 MB (4 Gbit) DDR3L |
| xPON | |
| Protocols | GPON (ITU G. 984 standard , Class B+) |
| EPON (802.3ah) | |
| Speed | GPON: 2.488 Gbps Downstream / 1.244 Gbps Upstream |
| EPON: 1.25 Gbps Downstream / Upstream | |
| Wavelength | TX: 1310 nm |
| RX: 1490 nm | |
| Max Transmission Distance | 20 km |
| Wireless | |
| 5 GHz Wi-Fi Speed | 2402 Mbps |
| 2.4 GHz Wi-Fi Speed | 574 Mbps |
| 5 GHz Wi-Fi Streams | 2T2R (2x2 MIMO) |
| 2.4 GHz Wi-Fi Streams | 2T2R (2x2 MIMO) |
| Wi-Fi Antennas | 4x Fixed |
| 5 GHz Antenna Gain Max | 5dBi |
| 2.4 GHz Antenna Gain Max | 5dBi |
| FEM or PA/LNA | 5 GHz: 2x External |
| 2.4 GHz: 2x External | |
| Beamforming | True |
| Range Performance | Max: 200 m (656 ft) |
| Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions. | |
| Wall Performance | Two wooden walls with thickness < 10 cm (4'') |
| One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'') | |
| Interfaces | |
| SC/APC Port | 1 |
| Gigabit RJ45 Ports | 4 |
| Ethernet Notes | 1x LAN/WAN port, the rest are LAN ports. |
| USB-A 3.0 Ports | Optional for ISP Order |
| LED | Power |
| PON | |
| LOS | |
| Internet | |
| 2.4 GHz Wi-Fi | |
| 5 GHz Wi-Fi | |
| WPS | |
| LAN | |
| Physical Buttons | Power On/Off Button |
| Reset Button | |
| WPS Button | |
| Wi-Fi On/Off Button | |
| Power Input | DC Jack |
| Power | |
| Power Methods | DC |
| DC | 12V 1.5A |
| Power Adapter | Input: 100-240V~, 50/60 Hz |
| Output: 12V?1.5A | |
| Reliability | |
| Environment | Operating Temperature: 0 degreesC ~ 40 degreesC (32 degreesF ~104 degreesF) |
| Storage Temperature: -40 degreesC ~ 70 degreesC (-40 degreesF ~ 158 degreesF) | |
| Humidity: 10% ~ 90% non-condensing | |
| Storage Humidity: 5% ~ 95% non-condensing | |
| Certifications | |
| - | FCC, CE |
| Mechanical | |
| Installation | Desktop |
| Wall-mount | |
| Dimension | 173x123.8x33 mm |
| 6.81x4.87x1.3 inches | |
| Product Weight | 352.0 g (12.42 oz.) |
| Package Content | |
| - | GP3000 |
| Power Adapter | |
| Ethernet Cable | |
| Installation Guide | |
| Ordering Information | |
| Retail Package Dimension | 304x268x54 mm |
| 11.97x10.55x2.13 inches | |
| Retail Package Weight | EU: 770.0 g (27.16 oz.) |
| Mechanical | |
| Casing Material | Plastic |
| Ordering Information | |
| Carton Net Weight | EU: 15.4 kg (33.95 lbs) |
| Carton Gross Weight | EU: 16.7 kg (36.82 lbs) |
| Units per Carton | 20 |
| Carton Dimension | 55.6x55.5x32.5 cm |
| 21.89x21.85x12.8 inches | |
| Model Version | |
| - | GP3000 1.0 |
| Wireless | |
| Wi-Fi Standards | Wi-Fi 6 |
| Max Wi-Fi Modulation | 1024-QAM |
| Wi-Fi Efficiency | OFDMA |
| MU-MIMO | |
| BSS Color | |
| Max Capacity | 256 |
| Recommended Client Upper Limit | 100 |
| Max Wi-Fi Channel Width | 160 MHz |
| Wi-Fi Security | WPA/WPA2/WPA3 |
| Guest Network | 2.4 GHz, 5 GHz |
| WPS | True |
| General | |
| Operation Modes | xPON Wi-Fi Router |
| Mesh | EasyMesh R2 |
| Mesh Backhaul | Wireless Backhaul |
| Wired Backhaul | |
| WAN Mode | DHCP |
| Static IP | |
| PPPOE | |
| Network | |
| QoS | 4 Queues |
| 802.1p Classification | |
| DSCP | |
| Traffic Shaping | |
| By MAC | |
| By IP | |
| By Port | |
| DHCP | Address Reservation |
| DHCP Client List | |
| Server | |
| IP Versions | IPv4/IPv6 |
| IPv6 Protocols | Dynamic (SLAAC/DHCPv6) |
| Static (Fixed IP) | |
| IPTV/VLAN | Bridge |
| Tag VLAN | |
| TTL Customization | Extend |
| Spoof | |
| Custom | |
| IGMP | IGMP Proxy |
| Forwarding | Port Forwarding |
| UPnP | |
| DMZ | |
| Firewall | SPI Firewall |
| Utilities | |
| DNS Options | Manual DNS |
| Online Detection | True |
| Management | |
| All Devices Management | MAC Filter |
| IP/MAC Binding | |
| Content Management | Domain Filter |
| IP Filter | |
| Port Filter | |
| System | |
| Local Control Method | Config Web Page |
| Remote Control Method | TR069/TR098/TR111/TR143/TR181 |
| OMCI | |
| OAM | |
| Firmware Upgrade | Local Update |
| Reliability | Backup and Restore |
| Languages | English |
| Hindi | |
| Bengali | |
| French | |
| Portuguese | |
| Russian | |
| Urdu | |
| Indonesian | |
| German | |
| Arabic | |
| Spanish | |
| Simplified Chinese | |
