The Uniview UNV Uniarch 3MP Indoor PTZ Camera delivers high-definition video with flexible pan and tilt capabilities for effective indoor security. Featuring intelligent detection, IR night vision up to 10 meters, two-way audio, and Micro SD storage support up to 256GB, it ensures reliable monitoring for homes and offices in South Africa.

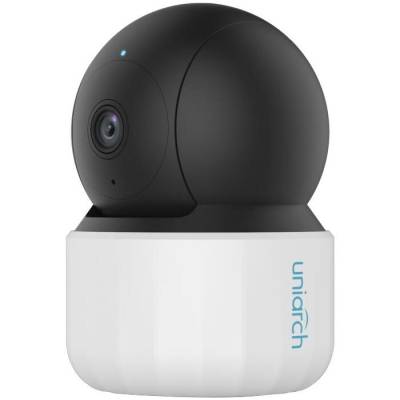

Uniview UNV Uniarch 3MP Indoor PTZ Camera
The Uniview UNV Uniarch 3MP Indoor PTZ camera delivers sharp, high-definition video with flexible pan and tilt capabilities, ideal for indoor security monitoring. Designed for both home and business environments, this camera combines advanced imaging, intelligent detection, and easy installation in a compact design.
This 3MP PTZ camera offers clear 2304 x 1296 resolution video with smooth 25fps streaming. Equipped with digital noise reduction, IR night vision up to 10 meters, and two-way audio, it ensures effective monitoring and communication. With Ultra 265 video compression and Wi-Fi connectivity, the camera supports extended storage via Micro SD cards up to 256GB and simple network setup for seamless indoor surveillance.
High-Quality Imaging and Video Performance
Capture every detail with the 3MP 1/3" CMOS sensor. The camera supports multiple resolution options:
Intelligent Detection for Enhanced Security
Stay informed with smart detection capabilities, including:
Two-Way Communication
Interact in real-time with built-in microphone and speaker. The camera supports two-way audio, letting users hear and speak through the camera via a connected device.
Night Vision and Low-Light Clarity
Infrared night vision reaches up to 10 meters, providing reliable surveillance in complete darkness. Combined with 2D/3D digital noise reduction, the camera produces clear images even in challenging lighting.
Storage and Connectivity Options
Easily store footage with Micro SD card support up to 256GB. Connect via 2.4GHz Wi-Fi with the built-in antenna or use the RJ45 Ethernet port for stable wired networking. The camera's pan and tilt functions allow flexible coverage of indoor areas.
Easy Setup and Installation
Designed for user-friendly installation, the Uniview UNV Uniarch 3MP camera can be quickly configured for home or office environments. Its compact design and Wi-Fi connectivity simplify placement without compromising functionality.
Yes, it has IR night vision up to 10 meters with auto/manual control.
Yes, it supports Micro SD cards up to 256GB and network ANR storage.
Yes, the camera has a built-in microphone and speaker for real-time communication.
Pan: 0degrees-355degrees, Tilt: -15degrees-90degrees, with 20 presets and home position support.
Wi-Fi 2.4GHz or RJ45 10M/100M Ethernet for stable network access.
| © 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | |
Specifications | |
| Product Code | UN-UA-UHO-S3E-M3TD |
| Item | Uho-S3E-M3 |
| Camera | |
| Sensor | 1/3", 3.0 megapixel, progressive scan, CMOS |
| Minimum Illumination | Colour: 0.02 lux (F2.0, AGC ON) |
| 0 lux with IR on | |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1/4 ~ 1/100000s |
| WDR | DWDR |
| S/N | >52dB |
| Lens | |
| Lens Type | 4.0mm @F2.0 |
| Iris | Fixed |
| Angle of View (H) | 80.6degrees |
| Angle of View (V) | 43.3degrees |
| Angle of View (O) | 86.4degrees |
| Illuminator | |
| IR Range | Up to 10m (33ft) |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264 |
| Frame Rate | Main Stream: 3MP (2304*1296), Max 25fps , 2MP (1920*1080), Max 30fps , 720P (1280*720), Max 30fps |
| Sub Stream: 640*360,Max 30fps , 2CIF(704*288), Max 30fps , CIF(352*288), Max 30fps | |
| Video Bit Rate | 128 Kbps~2048 Kbps |
| ROI | Up to 8 areas |
| Video Stream | Dual streams |
| OSD | Up to 2 OSDs |
| Privacy Mask | Support |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Flip Vertical/Flip Horizontal/180degrees |
| HLC | N/A |
| BLC | N/A |
| Defog | Digital Defog |
| Events | |
| Basic Detection | Human body detection, Motion detection, Audio Detection |
| Auto tracking | Support |
| General Function | IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| Audio | |
| Audio Compression | G.711U,G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 kHz |
| Storage | |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR |
| Network | |
| Wi-Fi | 2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna |
| Protocols | IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP |
| Compatible Integration | API |
| Client | Uniarch Client |
| Uniarch APP | |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
| Pan & Tilt | |
| Pan Range | 0degrees ~ 355degrees |
| Pan Speed | 17degrees/s ~ 50degrees/s |
| Preset speed: 50degrees/s | |
| Tilt Range | -15degrees ~ 90degrees |
| Tilt Speed | 17degrees/s ~ 50degrees/s |
| Preset speed: 50degrees/s | |
| Number of Presets | 20 |
| Home Position | Support |
| Interface | |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| WIFI | Support |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Certifications | |
| EMC | CE EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) |
| FCC (FCC 47 CFR part15 B) | |
| RF | FCC ID (FCC CFR 47 part15 C) |
| CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311) | |
| Safety | CE LVD (EN 62368-1) |
| Environment | CE-RoHS (2011/65/EU , (EU)2015/863) , WEEE (2012/19/EU) |
| General | |
| Power | DC 5V/1.5A |
| USB type-C interface | |
| Dimensions (Ø x H) | Ø80 x 120mm (Ø3.1" x 4.8") |
| Weight | 0.22kg(0.49lb) |
| Working Environment | -10degreesC~50degreesC(-14degreesF ~ 122degreesF) , Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -10degreesC~50degreesC(-14degreesF ~ 122degreesF) , Humidity: ≤95% RH (non-condensing) |
| Surge Protection | N/A |
| Reset Button | Support |
| LED indicator | 1, red/blue |
