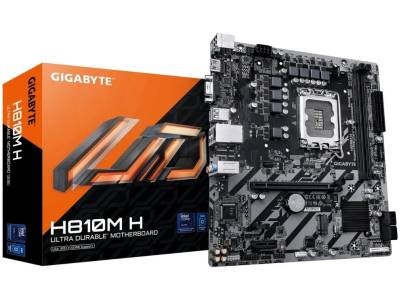

Gigabyte H810M-H Intel Core Ultra Motherboard for High-Performance Builds
The Gigabyte H810M-H motherboard is designed for users who demand high performance and reliability in compact mATX form factor. Engineered for Intel Core Ultra processors, it delivers robust power, advanced connectivity, and efficient cooling, making it ideal for gamers, creators, and PC enthusiasts building a modern desktop system.
This motherboard supports Intel Core Ultra Series 2 processors and dual-channel DDR5 memory for fast and responsive performance. It features PCIe 4.0 slots for high-speed graphics and storage, multiple USB and display ports, and a Smart Fan 6 system for silent and efficient cooling. With EZ-Latch PCIe slots, easy BIOS navigation, and RGB customization, the H810M-H combines durability, expandability, and user-friendly design.
Optimized Power and Memory Support
Next-Level Expansion and Storage
Advanced Cooling and Quiet Operation
Reliable Networking
High-Quality Audio Performance
User-Friendly Design for Easy Assembly
Customizable Software and RGB Lighting
Connectivity and Compatibility Highlights
Why Choose the Gigabyte H810M-H
| © 2025 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | |
Specifications | |
| Product Code | GA-H810M-H |
| CPU | LGA1851 socket: Support for Intel Core Ultra Processors |
| L3 cache varies with CPU | |
| Chipset | Intel H810 Express Chipset |
| Memory | Support for DDR5 6400/5600 MT/s memory modules |
| 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics support: |
| - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| * Support for HDMI 2.1 version and HDCP 2.3. | |
| - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz | |
| (Graphics specifications may vary depending on CPU support.) | |
| Audio | Realtek Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| Support for S/PDIF Out | |
| LAN | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Expansion Slots | CPU: |
| - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) | |
| * The PCIEX16 slot can only support a graphics card or an NVMe SSD. | |
| Chipset: | |
| - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) | |
| Storage Interface | Chipset: |
| - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) | |
| - 4 x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| USB | Chipset: |
| - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header | |
| - 3 x USB 3.2 Gen 1 ports (1 ports on the back panel, 2 ports available through the internal USB header) | |
| - 3 x USB 2.0/1.1 ports (1 ports on the back panel, 2 ports available through the internal USB header) | |
| Chipset+USB 2.0 Hub: | |
| - 4 x USB 2.0/1.1 ports on the back panel | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 2 x system fan headers | |
| 2 x addressable RGB Gen2 LED strip headers | |
| 1 x M.2 Socket 3 connector | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x S/PDIF Out header | |
| 1 x USB Type-C header, with USB 3.2 Gen 1 support | |
| 1 x USB 3.2 Gen 1 header | |
| 1 x USB 2.0/1.1 header | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) | |
| 1 x serial port header | |
| 1 x Clear CMOS jumper | |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port |
| 1 x HDMI port (Note) | |
| 1 x D-Sub port | |
| 1 x USB 3.2 Gen 1 port | |
| 5 x USB 2.0/1.1 ports | |
| 1 x RJ-45 port | |
| 3 x audio jacks | |
| (Note) Actual support may vary by CPU. | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan speed control function is supported will depend on the fan you install. | |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | Support for GIGABYTE Control Center (GCC) |
| * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| Support for Q-Flash | |
| Support for Smart Backup | |
| Bundled Software | Norton Internet Security (OEM version) |
| LAN bandwidth management software | |
| Operating System | Support for Windows 11 64-bit |
| Support for Windows 10 64-bit | |
| * The Intel NPU driver is only supported on Windows 11. | |
| Form Factor | Micro ATX Form Factor , 24.4cm x 21.5cm |
